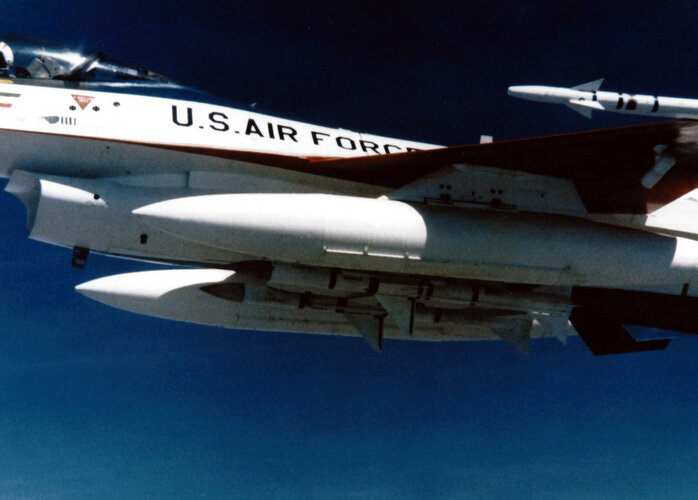

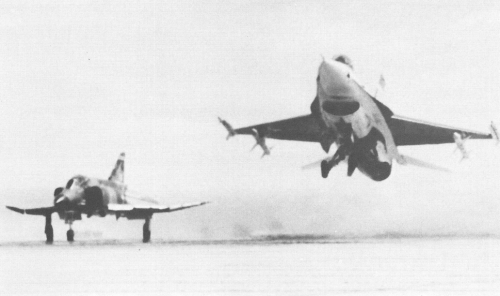

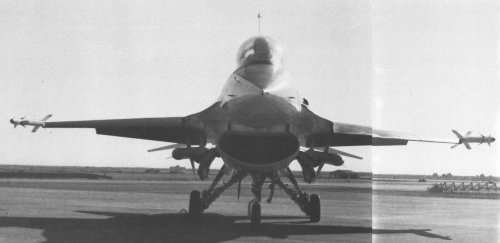

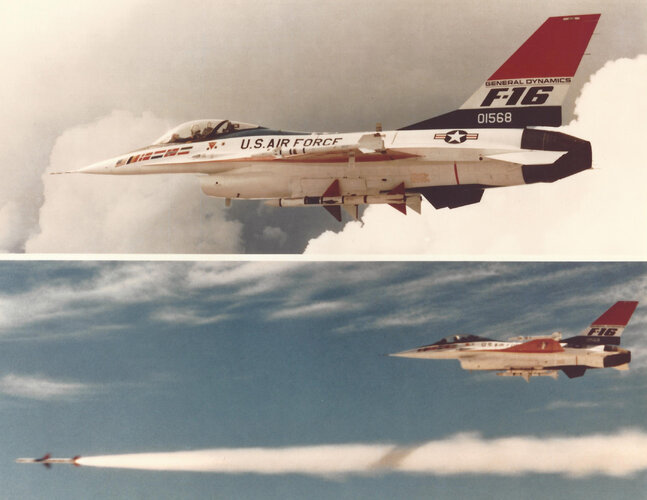

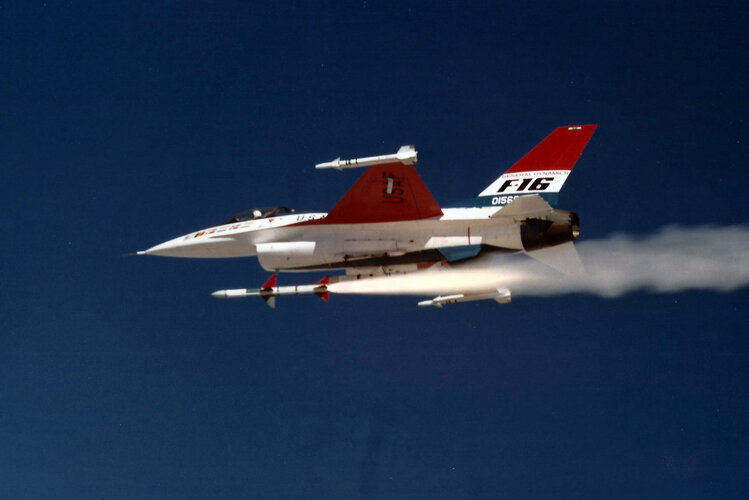

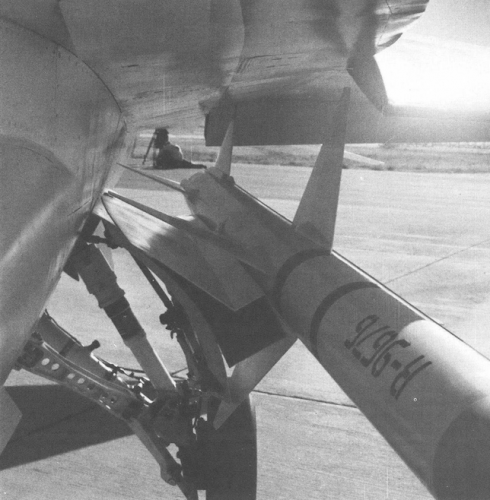

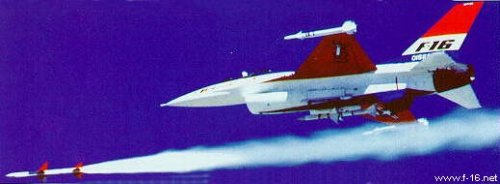

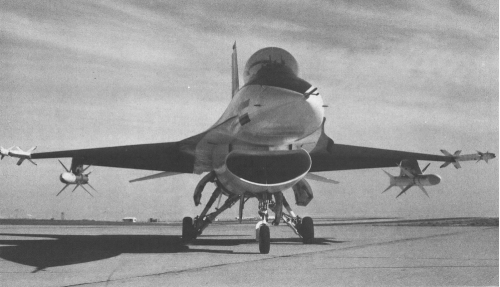

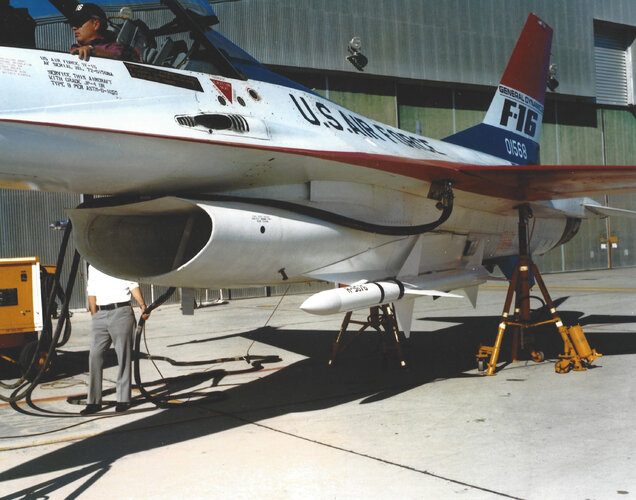

This F-16 with underwing AIM-7 pylons and also unconventional landing gear bay door pylons was shown to JASDF officials as part of the effort to sell the F-16 to Japan.

http://archive.aviationweek.com/image/spread/19761004/25/1/


Attachments

  • F-16-Sparrow-1.png
    618.6 KB · Views: 1,157
  • F-16-Sparrow-2.png
    833.3 KB · Views: 1,079
  • F-16-Sparrow-3.png
    452.2 KB · Views: 994
  • F-16-Sparrow-4.png
    518 KB · Views: 957
Those door-mounted pylons were part of the early studies on the F-16A ADF as well.

TomS said:
Those door-mounted pylons were part of the early studies on the F-16A ADF as well.
Click to expand...


Attachments

  • aag.jpg
    20.7 KB · Views: 906
sdasmarchives said:
F 2228 The General Dynamics F-16 Fighting Falcon and the Sparrow Missile 1977
Click to expand...
https://youtu.be/jCGFABmQwsk
Code:
https://youtu.be/jCGFABmQwsk

Nice find. Thanks.

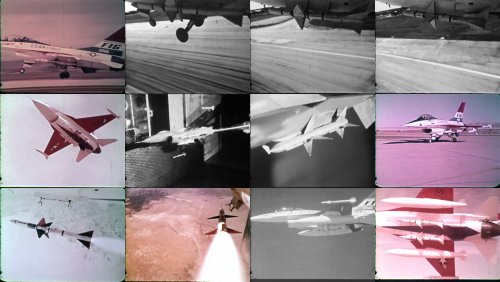

I made some screencaps and tried to recover colours where possible.


Attachments

  • F-16-Sparrow.jpg
    1,009.9 KB · Views: 361
PaulMM (Overscan) said:
I made some screencaps and tried to recover colours where possible.
Click to expand...

Good work my dear Paul.

Can someone capture the soundtrack? I expected Benny Hill to show up :D

I forgot about those. Wonder if there was ever any thought to revisit the door pylons with AIM-120C? 200lb lighter and smaller wings could actually make this viable.

Jeb said:
I forgot about those. Wonder if there was ever any thought to revisit the door pylons with AIM-120C? 200lb lighter and smaller wings could actually make this viable.
Click to expand...

Probably not needed since AMRAAM is light enough to hang on the wingtip rails instead.

TomS said:
Jeb said:
I forgot about those. Wonder if there was ever any thought to revisit the door pylons with AIM-120C? 200lb lighter and smaller wings could actually make this viable.
Click to expand...

Probably not needed since AMRAAM is light enough to hang on the wingtip rails instead.
Click to expand...

Yeah, but if they wanted to missileer-up a modern Viper, this adds pylons. :)

...


Attachments

  • scan0003-6_edited-2.jpg
    848.8 KB · Views: 172
  • scan0003-7.jpg
    1.1 MB · Views: 153
  • scan0003-8_edited-1.jpg
    336.8 KB · Views: 151
  • scan0003-9_edited-1.jpg
    698.2 KB · Views: 154
Yes. Sat down in the garage to look for something else and came across a ton of stuff I'd forgotten about.

Last edited:
The Iraqi F-16IQs have the AIM-7M-F1/H Sparrow, since no one trusts them with the latest tech:

"When it comes to air-to-air weaponry, the F-16IQ will be armed with AIM-9L/M Sidewinders and AIM-7M Sparrows."

See:

jalopnik.com

Iraq's F-16s Have A Cool Paint Job But Antiquated Weapons

Post-Saddam Iraq's first tactical fighter aircraft has taken flight. Lockheed flew the Block 52 F-16D for the first time just a couple days ago, and deliveries of the first batch of four jets are said to be just a couple months away. It looks great, but...
jalopnik.com jalopnik.com

I always liked this idea, and was surprised the didn't use them, whether for Sparrows or AMRAAMs or even Mavericks. Tucked up like that almost semi-conformally near the axis of rotation I would have thought they would be lower drag and have little effect on performance.

Since these weren't implemented, what was the downside?
