F-15 & F-16 Models fitted with canard controls

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,857
Reaction score
893

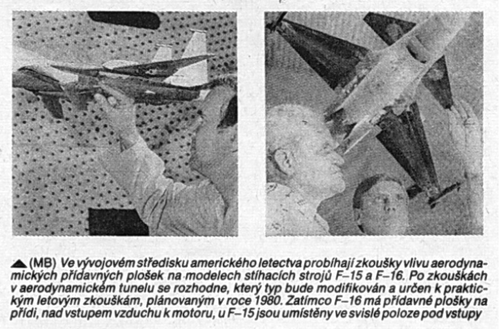

From L+K 24/1978,

I found those two Models to F-15 & F-16 with pads,as the google translate.

In the US Air Force Development Center, tests are being carried out on the impact of feathering pads on F-15 and F-16 fighter models. After wind tunnel testing, it is decided which type will be modified and intended for practical flight tests planned in 1980. While F-16 has additional pads on the bow, above the air inlet of the engine, the F-15s are positioned vertically below the inlets


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,443
Reaction score
744
Its pretty obvious it is talking about the additional control surfaces - the canards on the F-16 and the vertically mounted control surfaces on the F-15.


apparition13

I really should change my personal text
Joined
Jan 27, 2017
Messages
12
Reaction score
15
For the F-15, yes. That was MD's entry to the AFTI program. It was to modify an F-15 with movable wingtips and forward mounted fins for direct lift and sideforce, similar to MD-265 project. The F-16 AFTI won that part of the program.


Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,527
Reaction score
127
The F-15 reminds me of the Vectored Lift Fighter demonstrator proposal - the fairings on the wing for the actuators to move the outboard section are a giveaway.

Enjoy the Day! Mark
