F-102 and F-106 Model Numbers

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,266
Reaction score
63
I'm trying to acquire all of the model numbers related to the F-102 and F-106 aircraft. Here's what I have so far:
F-102 and F-106 Model Numbers
8-, F-102A with J40 engine
8-, F-102A with J57-P-11 engine
8-10, F-102A with J57-P-23A engine
8-12, TF-102A with J57-P-23A engine
8-, TF-102B with YJ67-W-1 engine
8-, F-102B with YJ67-W-1 engine
8-23, F-102B with J75-P-9 engine
8-24, F-106A with J75-P-17 engine
8-27, F-106B with J75-P-17 engine
8-28, F-106C (F-106X) with JT4B-22 engine
8-29, F-106D (F-106X) with JT4B-22 engine
8-, F-106E
8-, F-106F


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822

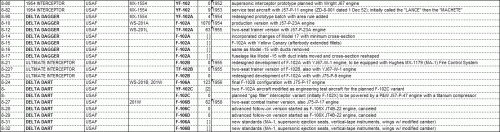

Model 8 variants according to my lists. Certainly not exempt from mistakes, so PLEASE recheck every bit of info here if you can...


Attachments

  • Model 8 variants.gif
    Model 8 variants.gif
    37 KB · Views: 128
