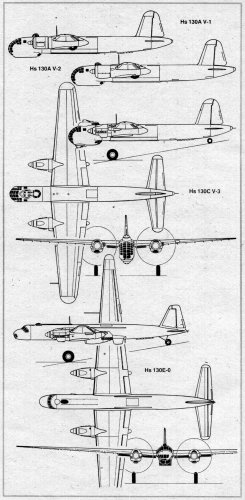

Hi,

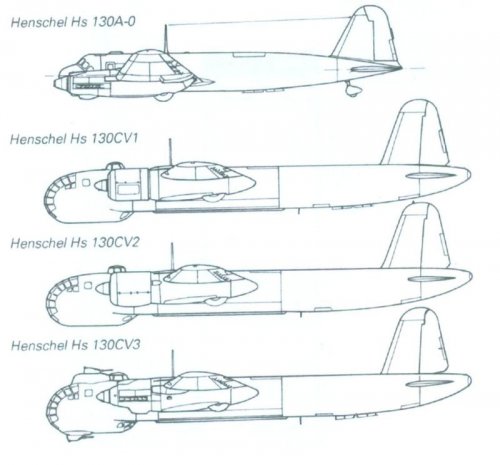

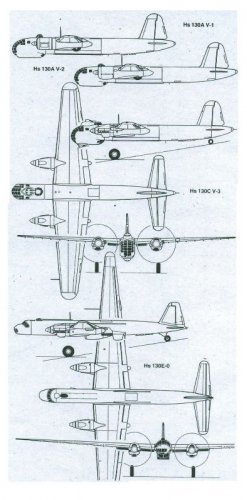

see the versions of the Henschel Hs.130.


Attachments

  • Henschel Hs-130.jpg
    Henschel Hs-130.jpg
    414.3 KB · Views: 888

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,793
Reaction score
1,367
Thanks Mav [and Happy Holidays, all]

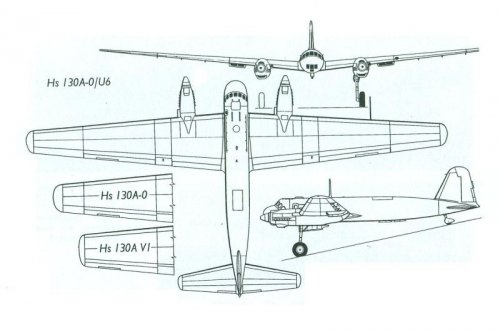

Those drawings were done by Dennis Punnet and originally appeared in William Green's "War Planes of the Second World War, Volume 10" (Macdonald, 1968).


burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
83
Reaction score
42

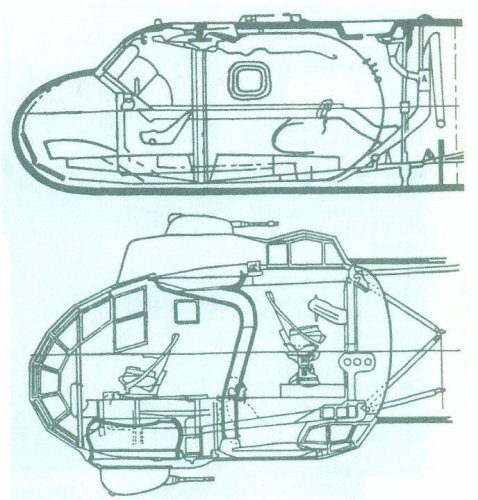

It seems to me that those drawings are neither original nor accurate, especially concerning Hs.130a.

Hs.130a is a high-altitude Aufklarer (recon), the crew is only 2 pilots, no any guns.

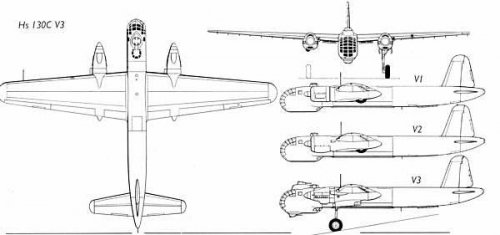

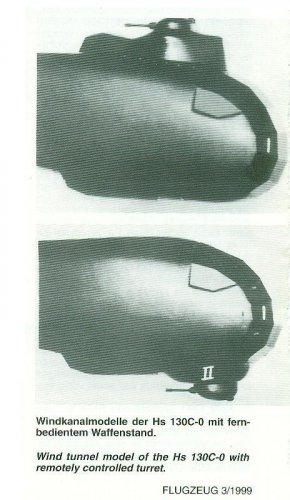

So it can't have battlecabin! It appears only on bomber Hs130c.

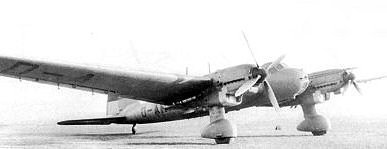

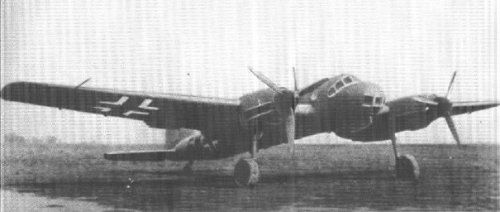

Here is Hs.130a V-1: just stepped nose like usual passenger aircraft. Funny, but this photo (although in a bad quality) is placed also in Flieger Revue. So it's just non accurate job from the "compiler" of this article.

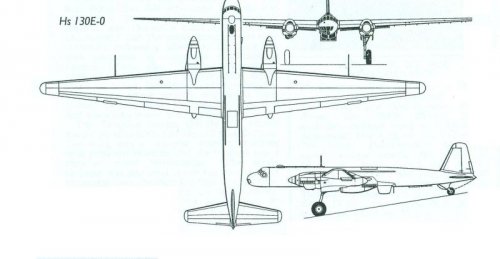

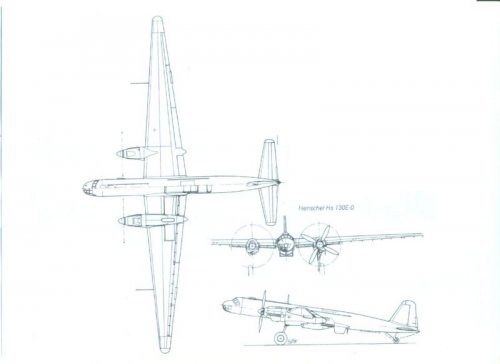

Look also on Hs.130e: it's Hs.130a with additional 5th engine (before this system was tested on the Soviet bomber ANT-42/TB-7/Pe-8). So the nose sections of Hs.130a and Hs.130e are the same.


Attachments

  • hs130v1_1.jpg
    93.2 KB · Views: 553

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,316
Reaction score
1,386

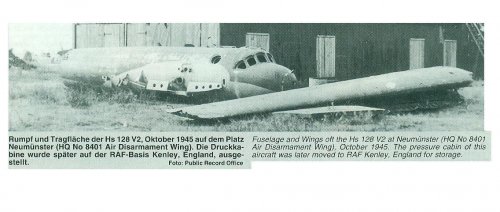

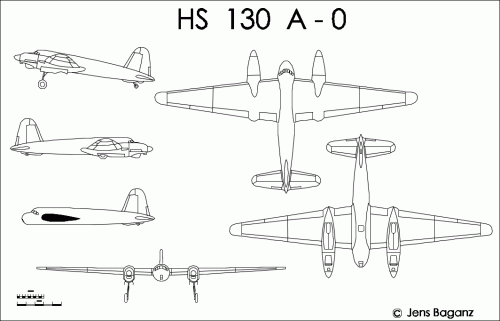

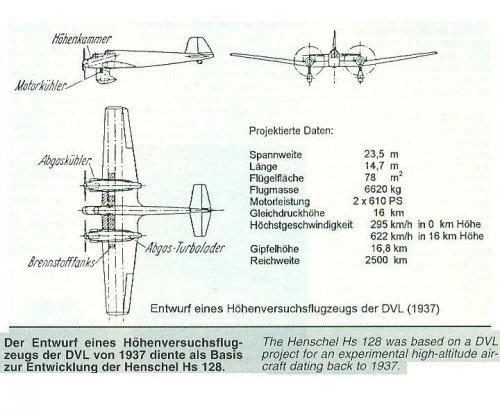

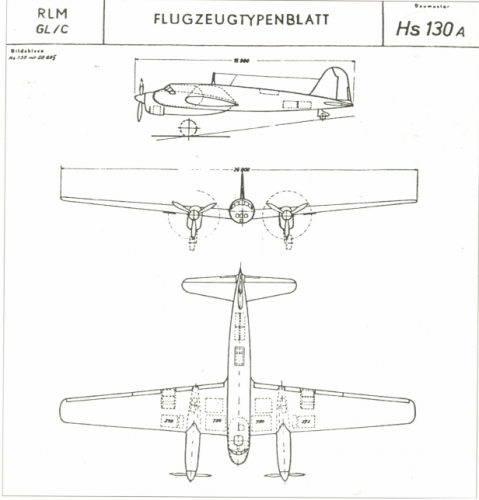

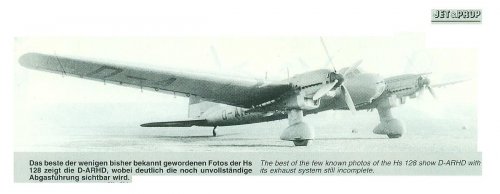

According to Phil Butler, the Hs 130 has been mixed up with the Hs 128
quite often. The remains of the aircraft, that were at RAF Kenley during
1946/1947 and reported to be HS 130A-0, are said to belong to the Hs 128 V-2
in fact. And in Kens/Novarra it is stated, too, that for the Hs 130 the configuration
of the Hs 128 was used, but with an retractable landing gear. So the fully glazed
nose really seems not to be very plausible for the prototype.
(Old drawings, low quality, sorry)


Attachments

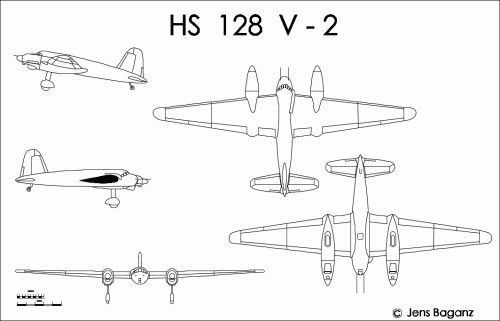

  • HS-128V-2.GIF
    40.5 KB · Views: 528
  • HS-130A.GIF
    43.2 KB · Views: 530

burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
83
Reaction score
42
Jemiba, thank you.

Very nice sketch and is more similar on the Hs.130a.

But if we look on Hs.128...

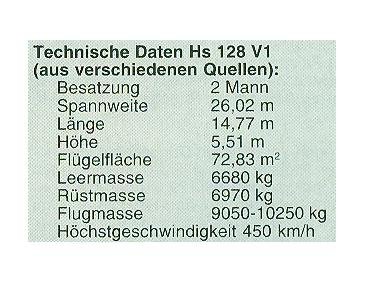

according to Green the span is 26m. But in the sketch the span is equal 29m
The fuselage length:
Green - 14,8m,
Baganz's sketch - 13,3m
The angle between fuselage back and fin forward edge is very different in left and right views.

So it's pleasant to see but I would not recommend to build the scale model using this drawing ;)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,316
Reaction score
1,386
"I would not recommend to build the scale model using this drawing"

Me too ! :-\
I'll try to find the sketches I've used as a basis for the drawings, I'm
not sure, but I think, they were from old FliegerRevue issues, very small
ones, that I still remember, but then I had no others available.
What I thought to be most important was, that Hs 128 and Hs 130 were
often mixed up in publications.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,205
Reaction score
126
henschel hs 128 and 130.

Hi all.
I know the Hs 128 and some versions of the Hs 130.
but I've nothing for the 4 engined Hs 130F.
I thank you if someone could give me something
about this version.
An happy new year for all the menbers of this site.
Bye


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
137
Re: henschel hs 128 and 130.

Sorry mate ;),

can`t add more on this. I knew it from several sources, but data are scant. I sure hope this would be using the Hs130C fuselage and cabin. What a handsome aircraft it would be.


Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
13
Re: henschel hs 128 and 130.

Quote from Warplanes of the Third Reich - William Green.

"The difficulties experiemced with the HZ Anlage, not least of which was its fuel consumption, led, in 1943, to proposals to produce the Hs 130F powered by four BMW 801TJ turbo-supercharged 14-cylinder, radial, air-cooled engines each rated at 1,800 h.p for take-off and 1,500 h.p at 40,000 ft. The airframe of the Hs 130F was essentially similar to that of the Hs 130E, apart from wing structure changes to permit the installation of the four radial engines, and the Development Department of the RLM was sufficiently impressed by the proposal to recommend the immediate construction of this promiosing aircraft. However increasing shortages of strategic materials, coupled with the early development stage then reached by the BMW 801TJ motivated against the acceptance of this recommendation, and the Hs 130F project was shelved."

Regards Bailey.


saturncanuck

Any landing you can walk away from, is a good one.
Joined
Jan 14, 2009
Messages
299
Reaction score
10
Website
www.aerofile.ca
Re: henschel hs 128 and 130.

Bailey said:
Quote from Warplanes of the Third Reich - William Green.

"The difficulties experiemced with the HZ Anlage, not least of which was its fuel consumption, led, in 1943, to proposals to produce the Hs 130F powered by four BMW 801TJ turbo-supercharged 14-cylinder, radial, air-cooled engines each rated at 1,800 h.p for take-off and 1,500 h.p at 40,000 ft. The airframe of the Hs 130F was essentially similar to that of the Hs 130E, apart from wing structure changes to permit the installation of the four radial engines, and the Development Department of the RLM was sufficiently impressed by the proposal to recommend the immediate construction of this promiosing aircraft. However increasing shortages of strategic materials, coupled with the early development stage then reached by the BMW 801TJ motivated against the acceptance of this recommendation, and the Hs 130F project was shelved."

Regards Bailey.

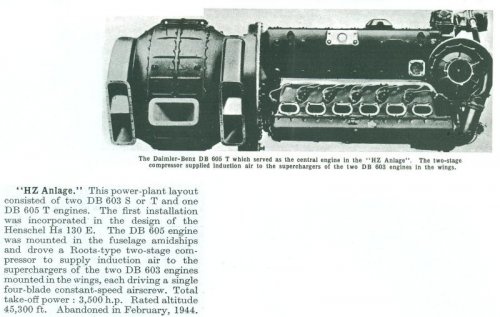

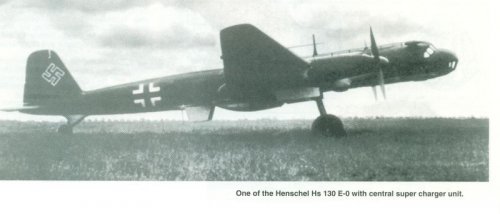

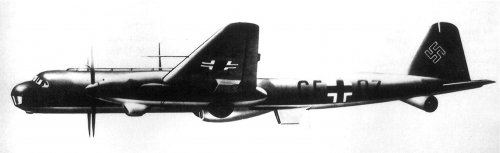

Apparently, the fuel consumption from the three Daimler-Benz engines was a limiting factor as well....


Attachments

  • Hs 130_2.jpg
    Hs 130_2.jpg
    326.3 KB · Views: 196
  • Hs 130.jpg
    Hs 130.jpg
    71.8 KB · Views: 200
  • Hs 128.jpg
    Hs 128.jpg
    9.6 KB · Views: 213

Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
284
Reaction score
47

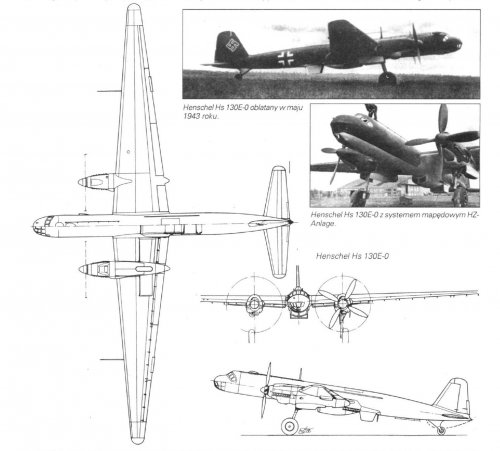

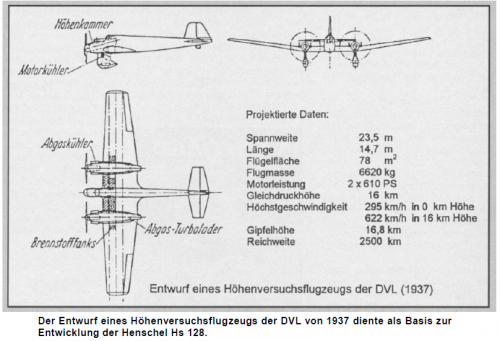

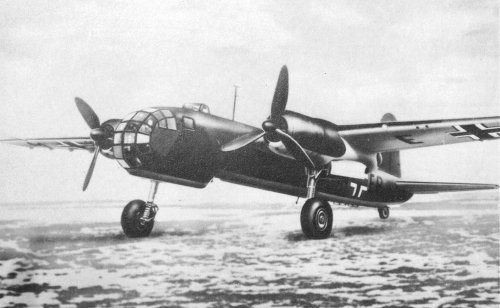

The Henschel factory build/designed on the line of the Hs-128 and the Hs-130 a twin engined high altitude bomber, the Hs-130C.
Who can help me with all kind of details/materials concerning these aeroplanes/project?
Interresting would be, dimensions/drawings/cut away drawing/pictures/details concerning the armament etc.etc.
Jan


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,821
Website
www.amazon.com

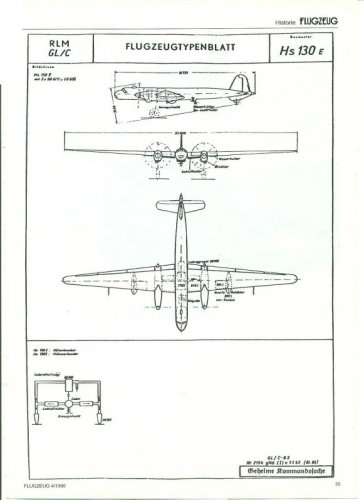

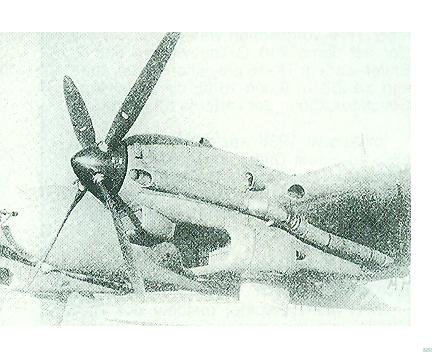

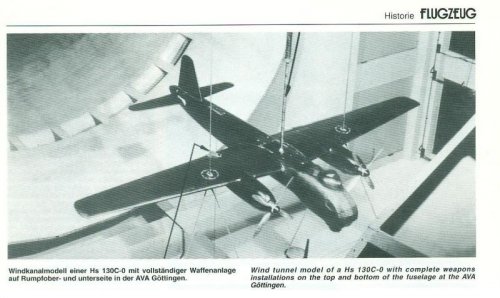

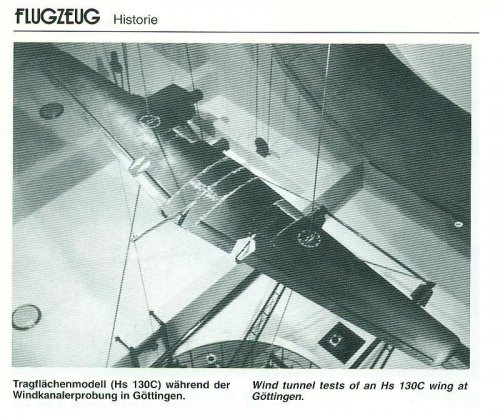

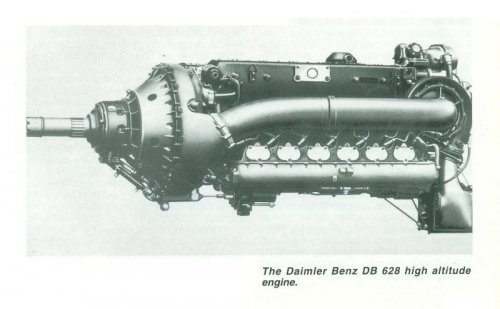

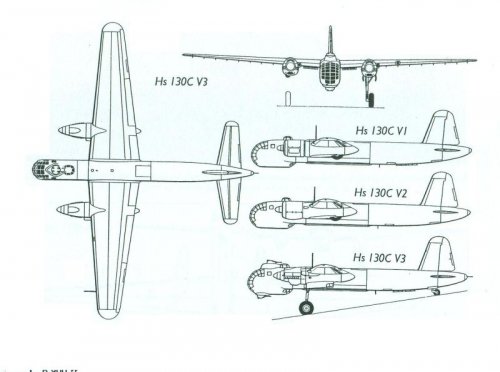

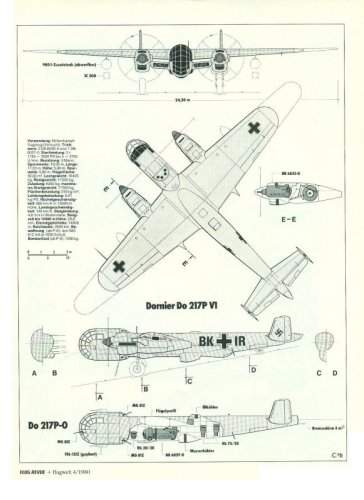

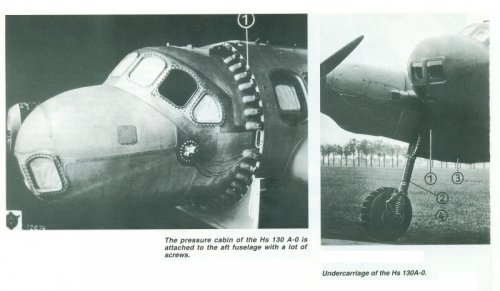

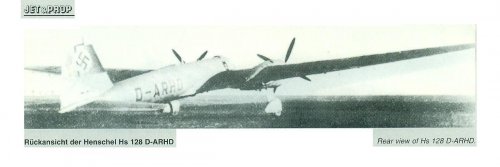

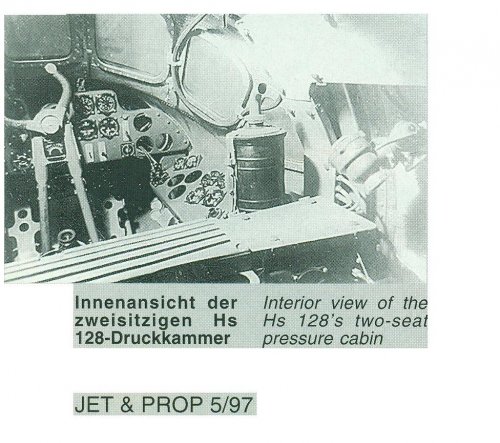

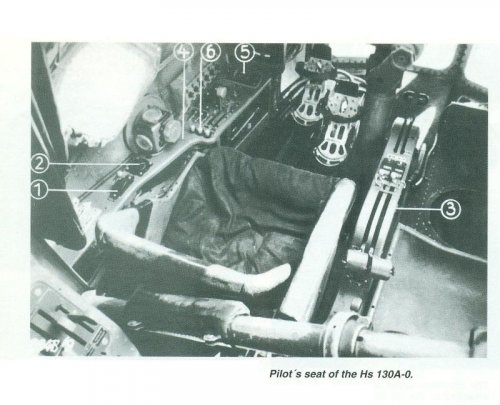

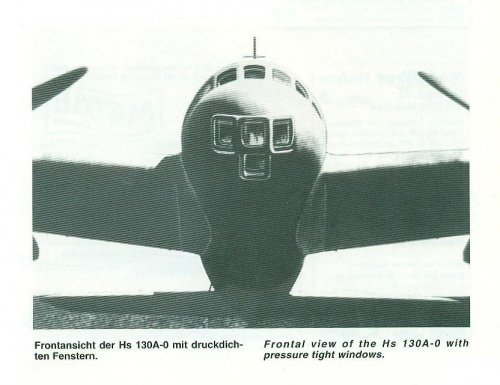

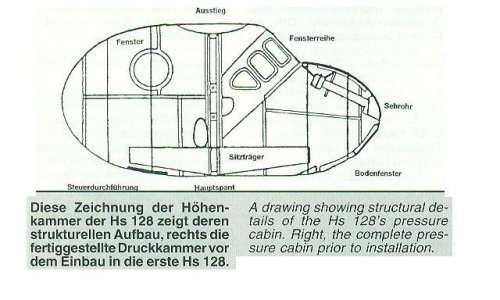

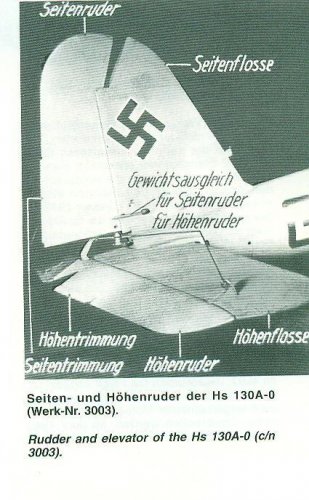

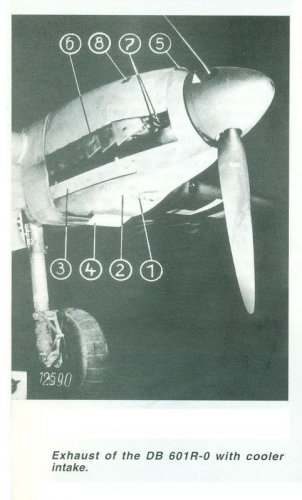

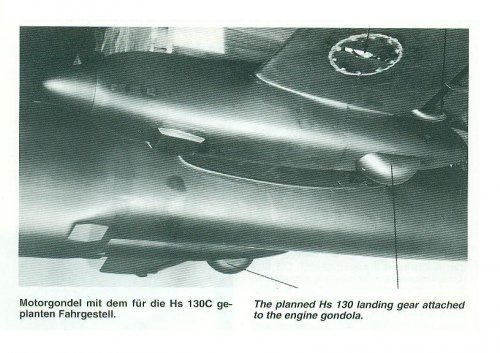

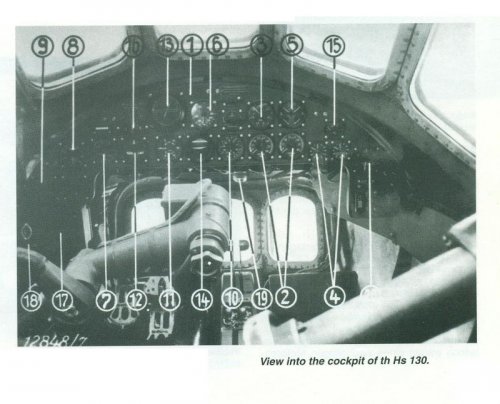

Please see attached info
Sources
Jet & Prop 5/97
Flugzeug 3/99
4/99
5/99


Attachments

  • n 006.jpg
    n 006.jpg
    61.8 KB · Views: 175
  • n 005.jpg
    n 005.jpg
    35 KB · Views: 163
  • n 004.jpg
    n 004.jpg
    50.6 KB · Views: 152
  • n 003.jpg
    n 003.jpg
    48.1 KB · Views: 384
  • n 002.jpg
    n 002.jpg
    51.8 KB · Views: 392
  • n 001.jpg
    n 001.jpg
    23.7 KB · Views: 396
  • n.jpg
    46.3 KB · Views: 382
  • ñ 007.jpg
    ñ 007.jpg
    88.6 KB · Views: 642

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,821
Website
www.amazon.com
Please see attached info


Attachments

  • n 007.jpg
    n 007.jpg
    60.3 KB · Views: 108
  • n 006.jpg
    n 006.jpg
    91.1 KB · Views: 103
  • n 005.jpg
    n 005.jpg
    82 KB · Views: 127
  • n 004.jpg
    n 004.jpg
    59 KB · Views: 139
  • n 003.jpg
    n 003.jpg
    39.1 KB · Views: 131
  • n 002.jpg
    n 002.jpg
    50.9 KB · Views: 131
  • n 001.jpg
    n 001.jpg
    82.5 KB · Views: 137
  • n.jpg
    66.2 KB · Views: 127

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,821
Website
www.amazon.com
Please see attached info
Sources
Jet & Prop 5/97
Flugzeug 3/99
4/99
5/99


Attachments

  • n 005.jpg
    n 005.jpg
    56.2 KB · Views: 118
  • n.jpg
    73.8 KB · Views: 109
  • ñ 006.jpg
    ñ 006.jpg
    79.7 KB · Views: 157
  • ñ 004.jpg
    ñ 004.jpg
    66.3 KB · Views: 165
  • ñ 003.jpg
    ñ 003.jpg
    97.7 KB · Views: 142
  • ñ 002.jpg
    ñ 002.jpg
    127.2 KB · Views: 132
  • ñ 001.jpg
    ñ 001.jpg
    66.1 KB · Views: 142

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,821
Website
www.amazon.com
Please see attached info
Sources
Jet & Prop 5/97
Flugzeug 3/99
4/99
5/99


Attachments

  • ñ 010.jpg
    ñ 010.jpg
    52.2 KB · Views: 199
  • ñ 009.jpg
    ñ 009.jpg
    84.2 KB · Views: 173
  • ñ 008.jpg
    ñ 008.jpg
    48.5 KB · Views: 159
  • ñ 007.jpg
    ñ 007.jpg
    72.1 KB · Views: 157
  • ñ.jpg
    50.1 KB · Views: 119

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,821
Website
www.amazon.com
Please see attached info
Sources
Jet & Prop 5/97
Flugzeug 3/99
4/99
5/99


Attachments

  • ñ 015.jpg
    ñ 015.jpg
    25.5 KB · Views: 159
  • ñ 014.jpg
    ñ 014.jpg
    125.2 KB · Views: 162
  • ñ 013.jpg
    ñ 013.jpg
    30.8 KB · Views: 124
  • ñ 012.jpg
    ñ 012.jpg
    66.6 KB · Views: 118
  • ñ 011.jpg
    ñ 011.jpg
    224.2 KB · Views: 116

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,793
Reaction score
1,367
Impressive collection Justo! As Jan implied in his query, there was no direct connection between the Hs 130A and Hs 130C. The designation was a ruse to hide from the Führungsstab der Luftwaffe the fact that an essentially new design was being added to 'Bomber B'.

Unbuilt projects in the original, high-altitude Hs 130 sequence were:
- Hs 130B: a bomber version of the Hs 130A, mock-up built 1941
- Hs 130D: Hs 130A variant with DB 605s (2-stage DVL/Argus superchargers), 1941

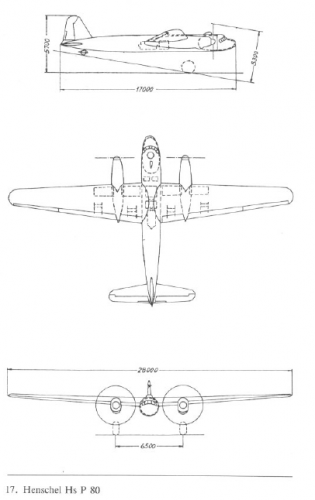

-- Hs 130D eclipsed by P.80/Hs 130E series with HZ-Anlage supercharger system
- Hs 130F: Hs 130E development, 4 x BMW 801TJ (or DB 603) repl. HZ-Anlage system
-- BMW 801TJ Hs 130F construction ordered but none built due to material shortages


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,977
Reaction score
3,943

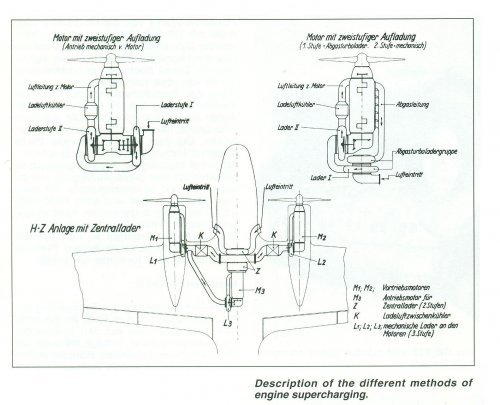

Hi! I can't understand bottom one's concept. Someone please explain me. :-[


Attachments

  • Hs-130.jpg
    196.3 KB · Views: 262

mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
16
blackkite said:
Hi! I can't understand bottom one's concept. Someone please explain me. :-[

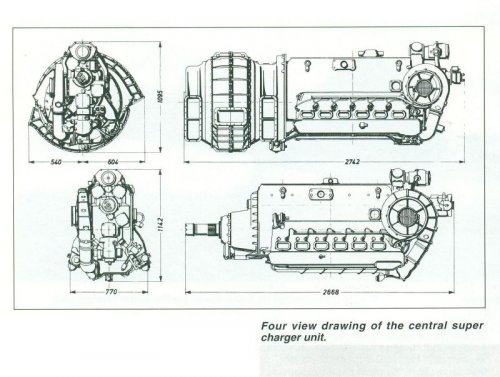

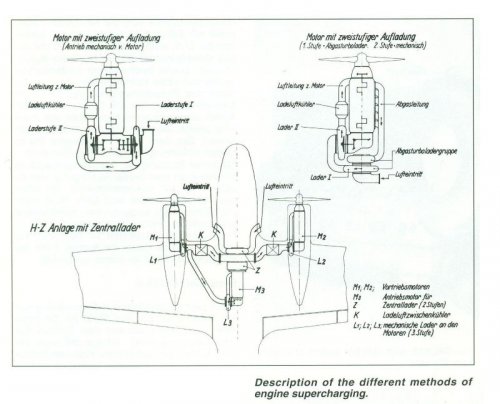

The bottom concept has a big additional "central compressor" (Z) that is driven mechanically by a separate third engine (M3). All the three motors (M1,M2,M3) have also their own small mechanical compressors (L1,L2,L3).


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,977
Reaction score
3,943
Thansk mz! Why are Z divided into 2 piece?
I can't imagine air pass from forward Z to after Z. :-[


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,316
Reaction score
1,386

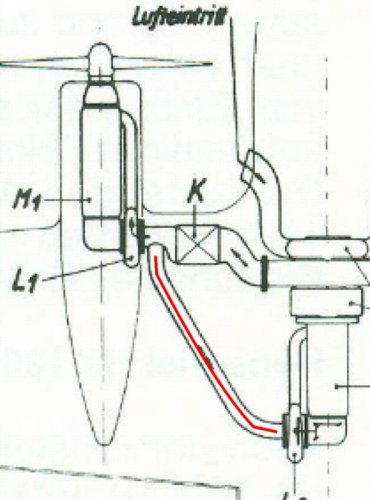

blackkite said:
I can't imagine air pass from forward Z to after Z. :-[

I think, you are speaking about the red marked tube ?
That was to feed the compressor of the internal engine, I think


Attachments

  • HZ.jpg
    96.8 KB · Views: 207

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,977
Reaction score
3,943
Jemiba said:
blackkite said:
I can't imagine air pass from forward Z to after Z. :-[

I think, you are speaking about the red marked tube ?
That was to feed the compressor of the internal engine, I think
Hi Jemiba!
I want to know the air flow route from "Lufteintritt" to K through Z.


Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
174
Reaction score
48
Apparently you have it backwards. "Z" is the main first stage supercharger (compressor) for all three engines. The flow goes from there through the intercoolers "K"and then to " L1"," L2", and "L3"the the second stage superchargers(compressors) on each of the three engines.
Best regards,
Artie Bob


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,977
Reaction score
3,943
Artie Bob said:
Apparently you have it backwards. "Z" is the main first stage supercharger (compressor) for all three engines. The flow goes from there through the intercoolers "K"and then to " L1"," L2", and "L3"the the second stage superchargers(compressors) on each of the three engines.
Best regards,
Artie Bob
Hi! I can understand what you mean, but I can not understand the structure of Z. Why Z divided into 2 parts?


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
16
blackkite said:
Artie Bob said:
Apparently you have it backwards. "Z" is the main first stage supercharger (compressor) for all three engines. The flow goes from there through the intercoolers "K"and then to " L1"," L2", and "L3"the the second stage superchargers(compressors) on each of the three engines.
Best regards,
Artie Bob
Hi! I can understand what you mean, but I can not understand the structure of Z. Why Z divided into 2 parts?

First and second stage.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,977
Reaction score
3,943
Thanks mz again. I understand. As a result this system supplied 3 stage highly compressed air to every 3 engines.
This system must be radically increase Hs-130's service ceiling.


Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
448
Reaction score
37

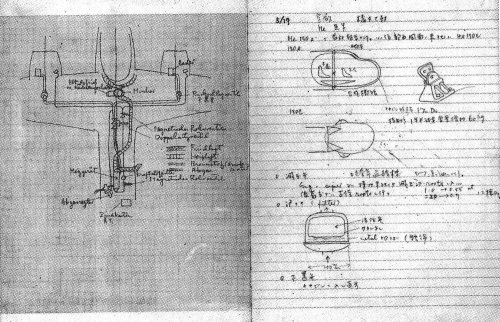

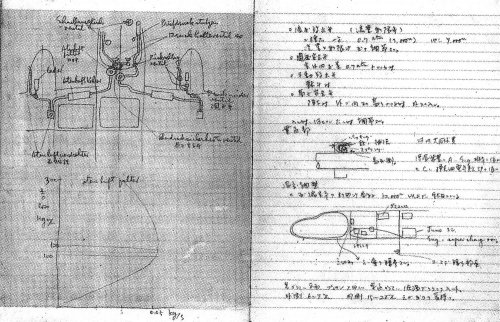

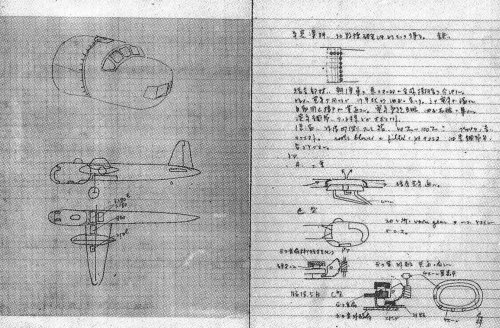

To add a twist to the Hs 130 story, here is the Japanese connection. Included here are three scans of notes taken by a Japanese delegation on the Hs 130 program. The Japanese were very interested in the pressure cabin and high-altitude capabilities of the Hs 130 to further their own developments.


Allied intelligence, at the time, believed that the Japanese had data on the Hs 130. They were right!


Source: Tatsuo Hasegawa and Akio Yamazaki's "Vision:Secret Development Record of the High Altitude Fighter Plane Ki-94 B-29 Interceptor"


Attachments

  • hs130jap01.jpg
    630.3 KB · Views: 451
  • hs130jap02.jpg
    558.1 KB · Views: 420
  • hs130jap03.jpg
    662.1 KB · Views: 394

Wasp

ACCESS: Restricted
Joined
Jan 11, 2010
Messages
27
Reaction score
5
Just some additions:

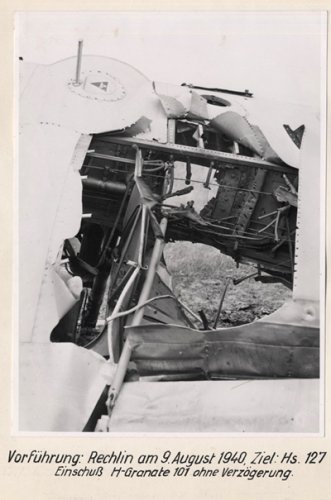

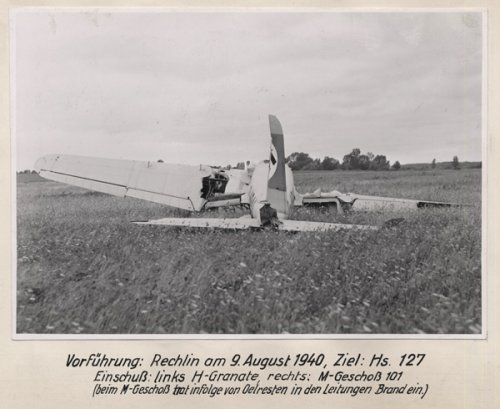

The end of the Hs 127 in 1940..


Attachments

  • Hs 127 _1.jpg
    Hs 127 _1.jpg
    181.5 KB · Views: 888
  • Hs 127 _2.jpg
    Hs 127 _2.jpg
    202.2 KB · Views: 841
  • Hs 127 _3.jpg
    Hs 127 _3.jpg
    150.1 KB · Views: 770

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
From Flugzeug 2/1999,

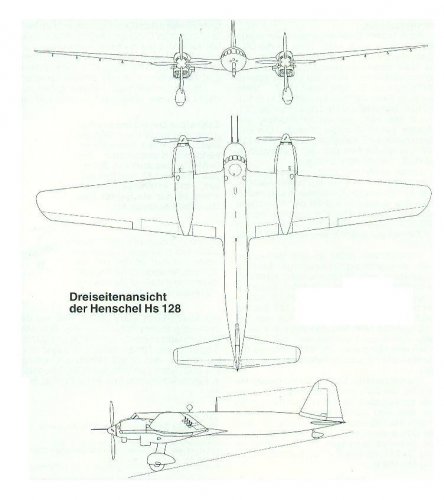

here is a drawing to Henschel Hs.130,you feel it looks like Hs.128 ?.


Attachments

  • Hs.130 A.png
    Hs.130 A.png
    158.4 KB · Views: 623

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,316
Reaction score
1,386
hesham said:
...,you feel it looks like Hs.128 ?.

If sources availabe are correct, the first Hs 130 was externally very similar to the
Hs 128, having led quite often to the two types mixed up, see earlier posts.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
Hi,


here is the Henschel P.80,or Hs.130E.


Attachments

  • P.80.png
    63.8 KB · Views: 484

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
920
Website
deeptowild.blogspot.com
Source:
https://www.facebook.com/photo.php?fbid=1042799335754650&set=o.34366349783&type=1&theater


Attachments

  • 12087865_1042799335754650_1348979210163314481_o.jpg
    134.7 KB · Views: 190
  • 12107956_1042799572421293_8525263898699560141_n.jpg
    19.4 KB · Views: 202

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766
Apophenia said:
Impressive collection Justo! As Jan implied in his query, there was no direct connection between the Hs 130A and Hs 130C. The designation was a ruse to hide from the Führungsstab der Luftwaffe the fact that an essentially new design was being added to 'Bomber B'.

The Hs 130 C, illustrated by T. Hitchcock, from Monogram's Close-Up #02:


Attachments

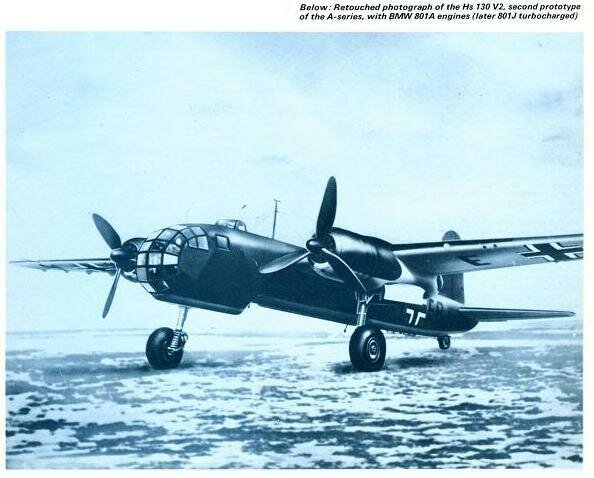

  • Hs 130 C V2.jpg
    Hs 130 C V2.jpg
    59.2 KB · Views: 129

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665
Justo Miranda said:
Please see attached info
Sources

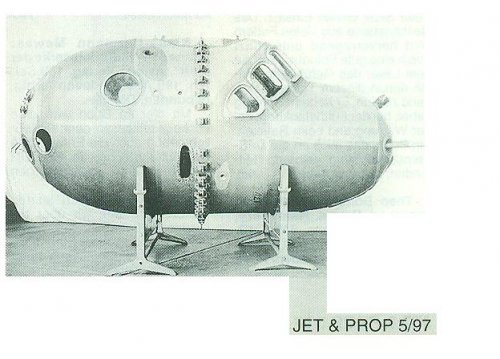

Jet & Prop 5/97
Flugzeug 3/99
4/99
5/99

A clearer view to DVL concept of 1937.

http://adl-luftfahrthistorik.de/dok/Henschel_Hs_128.pdf


Attachments

  • 1.png
    330.7 KB · Views: 152

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,977
Reaction score
3,943
Hi!


Attachments

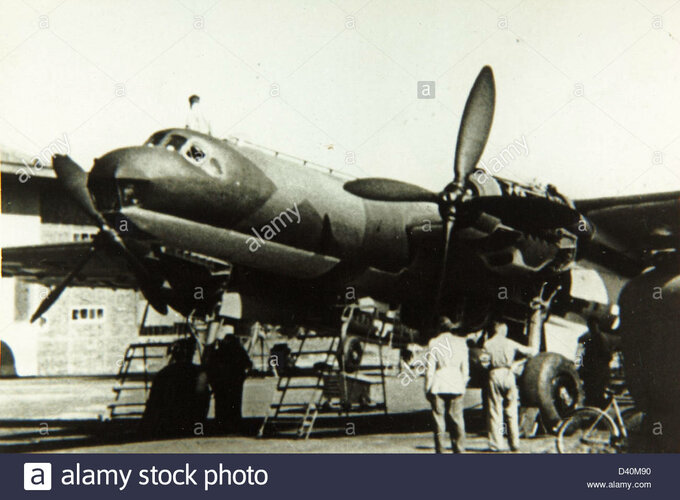

  • D40M90.jpg
    139.8 KB · Views: 38
  • Hs_130_V2.jpg
    42.6 KB · Views: 39

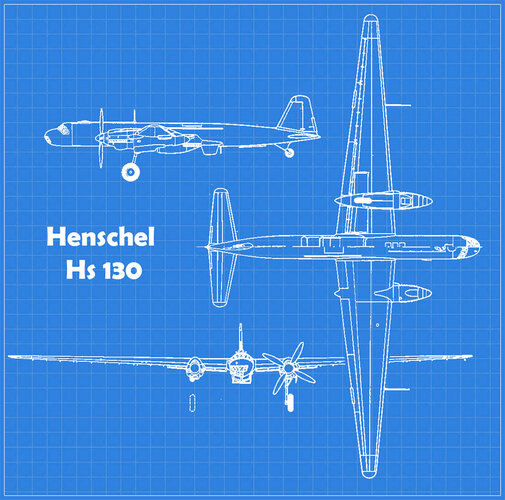

  • hs130-blueprint.jpg
    204.1 KB · Views: 89

Similar threads

Top
