EU LAPCAT (Long-Term Advanced Propulsion Concepts and Technologies) program

PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
799
Reaction score
247
Anyone heard any other information on Lapcat?

http://www.reactionengines.co.uk/lapcat_veh.html


CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
9
Here you go:

http://www.esa.int/techresources/ESTEC-Article-fullArticle_item_selected-6_1_01_par-30_1129904712655.html

But don't hold your breath....


CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
9
Another one...

http://ec.europa.eu/enterprise/space/news/article_3846_en.html

What are these Europeans smoking?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,878
Hi,

the Reaction Engines company design of the LAPCAT/ Configuration A2 hypersonic aircraft which could carry 300 passengers.
http://www.reactionengines.co.uk/lapcat.html
http://www.flightglobal.com/articles/2008/02/05/221310/pictures-ultra-long-haul-flights-in-hypersonic-aircraft-to-take-under-five-hours.html


Attachments

  • A2.JPG
    16.7 KB · Views: 211

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
171

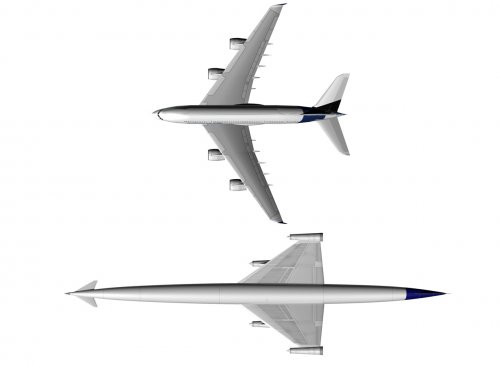

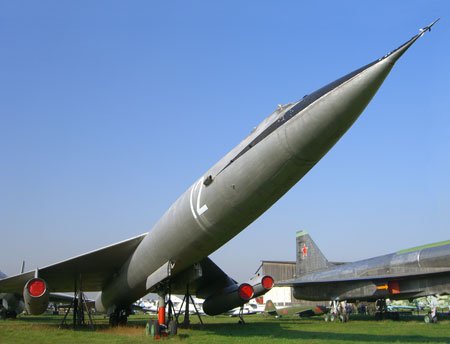

Flateric, do the museum attendants miss the Myasishchev M-50 wing in Monino ? :D


Attachments

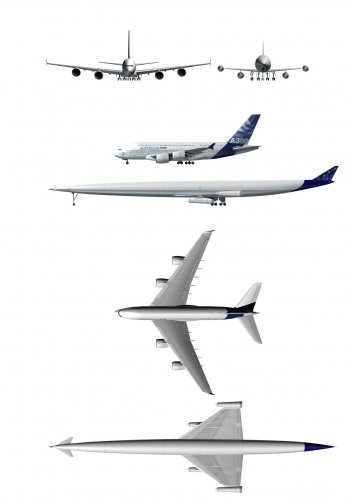

  • A380_compared_1280.jpg
    88.3 KB · Views: 206

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,148
Reaction score
1,287
I think that everyone who attempt to steal Bounder wings from Monino will be sliced over the ground after attempt to remove ground supports that hold 'em in place in fact. If he will survive, that dude will finish the job)


Attachments

  • sep28_1536--.jpg
    23.9 KB · Views: 159
  • sep28_1482.jpg
    42.7 KB · Views: 146
  • 353501_2.jpg
    33.4 KB · Views: 182

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,209
Reaction score
170
I like the last two comparison shots. It looks a bit like a four-engined CL-400 as well. I'd hate to see #1 or #4 unstart at Mach 5: could be a little too entertaining with that eedy-beedy vertical stab.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,806
Reaction score
617
Is nice to know that English Aerospace Industry (that so much gave in the past) is born again and is coming out with a really interesting idea, so long by the HOTOL project....


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
799
Reaction score
247
What surprise me was how long its taken for the media to find out about it.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
667
Reaction score
149
What surprise me was how long its taken for the media to find out about it.

Theres a small article on the BBC site, anything else in the general media?

From what i see, its not so much a "design" as a "pretty CAD image" but i'll admit I can't make out much detail on their images. The engine seems to be a hydroden fuelled turboramjet.

I have serious concerns over the construction, CFRP base with aluminium fuel tanks, outside shell being fibre reinforced ceramic 0.5mm thick?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,101
Reaction score
1,592
Website
www.aerospaceprojectsreview.com
red admiral said:
I have serious concerns over the construction...

Same here. I was especially dubious about Skylon... to me it looked like it'd snap in half on re-entry.

Neither of these designs looks like they'd well tolerate any high angle of attack flight or, worse, thrust imbalance.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
Probably it's near the review for the renewal of funding by ESA... ;) Ok, everyone has to find out a way to make a living. Today I was in Milan Polytechnic library looking for old Journal of Aircrafts articles and I was talking with the volunteer undergraduate that minds the photocopy service (no charge for it, something works fine in Italy, after all). He was surprised for all the publicity the A2 had, since he had met the British guys a year ago on an Erasmus tour, and nothing had really changed in the configuration.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,209
Reaction score
170
There's some auto-response thing that kicks in when anyone says "London to Sydney in 2 hours". They have nice-looking images too.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,148
Reaction score
1,287
It's actual for Overscan I'd say...
What if Richard Branson was reading FI recently while chatting with Paul Allen? It would be, say, 'Virgin LAPCAT'


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
667
Reaction score
149
Looking into it a bit more and the temperature on the outside is about 500-600°C at Mach 5 cruise. Getting a ceramic composite to withstand this is pretty easy, most likely some metal-matrix-ceramic mix that gives a nice light weight. Not sure I'd want a bird strike with only 0.5mm thickness though. The thinness of the skin is problematic as a large amount of the heat is going to be transferred through the plate to the interior, which doesn't seem to have active cooling and the CFRP base structure melts around 200°C

Anyone any ideas on why Helium is used as a cooling agent instead of the LH?


amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
239
Reaction score
10
Pretty dumb question and pardon my ignorance, now how are the passengers going to handle the 'G' forces at hypersonic speeds?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,101
Reaction score
1,592
Website
www.aerospaceprojectsreview.com
amsci99 said:
Pretty dumb question and pardon my ignorance, now how are the passengers going to handle the 'G' forces at hypersonic speeds?

No reason why passengers here should experience anything worse than what passengers in regular jetliners experience on takeoff... they'll just experience it longer.


Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
102
Website
sites.google.com
From the Popular Science web site:

http://www.popsci.com/military-aviation-space/article/2008-01/green-skies-mach-5

"Modern air travel is a marvel. It's also a source of endless delay, annoyance and planet-killing greenhouse gases. A proposed hydrogen-powered hypersonic airliner could change all that. The plane is Reaction Engines's A2 concept, a Mach-5 (3,400mph) craft for 300 passengers funded in part by the European Union's Long-Term Advanced Propulsion Concepts and Technologies project (Lapcat). Lapcat wants an airliner that can fly from Brussels to Sydney in less than four hours. If built, the A2 will do just that—without producing a trace of carbon emissions.

Engineers created the A2 with the failures of its doomed supersonic predecessor, the Concorde, very much in mind. Reaction Engines's technical director, Richard Varvill, and his colleagues believe that the Concorde was phased out because of a couple major limitations. First, it couldn't fly far enough. "The range was inadequate to do trans-Pacific routes, which is where a lot of the potential market is thought to be for a supersonic transport," Varvill explains. Second, the Concorde's engines were efficient only at its Mach-2 cruising speed, which meant that when it was poking along overland at Mach 0.9 to avoid producing sonic booms, it got horrible gas mileage. "The [A2] engine has two modes because we're very conscious of the Concorde experience," he says.

Those two modes—a combination of turbojet and ramjet propulsion systems—would both make the A2 efficient at slower speeds and give it incredible speed capabilities. (Engineers didn't include windows in the design because only space-shuttle windows, which are too heavy for use in an airliner, can withstand the heat the A2 would encounter.) In the A2's first mode, its four Scimitar engines send incoming air through bypass ducts to turbines. These turbines produce thrust much like today's conventional jet engines—by using the turbine to compress incoming air and then mixing it with fuel to achieve combustion—and that's enough to get the jet in the air and up to Mach 2.5. Once it reaches Mach 2.5, the A2 switches into its second mode and does the job it was built for. Incoming air is rerouted directly to the engine's core. Now that the plane is traveling at supersonic speed, the air gets rammed through the engine with enough pressure to sustain combustion at speeds of up to Mach 5.

That's the principle behind all ramjet designs. But the Scimitar's system goes further by adding a turbine compressor that squeezes air even more intensely. This is a big departure from traditional ramjet design; these air-breathing engines normally can't use turbines because the air enters the engine at such a high temperature—1,800ºF at Mach 5—that turbine blades would quickly melt. In the Scimitar, though, a cooling system wrapped around the inside of the engine cools incoming air enough to let it run through a turbine. As a result, the A2 has a setting for every speed.

But an even greater asset than the A2's speed is its negligible carbon footprint. It's hydrogen-powered, so it produces only water vapor and a little bit of nitrous oxide as exhaust. And although a hypersonic jet loaded with liquid hydrogen might sound dangerous, hydrogen fuel is actually no more explosive than normal jet fuel.

Joseph Schetz, a hypersonic-propulsion expert at Virginia Tech, says there's nothing fundamentally unsound in the A2's plans, "but whether it's doable or not is a whole other conversation." The engineers still face crucial design obstacles, such as building heat exchangers reliable enough for hypersonic flight.

The biggest challenge: manufacturing hydrogen fuel on a large scale without emitting carbon in the process. Indeed, Varvill is hesitant to pitch his plane as a truly green machine because he believes carbon-free hydrogen production is still a long way off. If a viable hydrogen economy comes to pass, though, the A2 could very well be the new airliner of choice."

The Scimitar Engine:

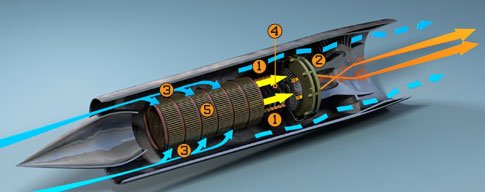

"For takeoff, landing and subsonic flight, the A2's Scimitar engine sends intake air through a bypass duct [1] and into a turbine [2], like a standard jet engine. After reaching supersonic speed, though, the engine redirects air from the bypass duct through the engine core [3] for flight up to Mach 5. Like a ramjet, the Scimitar works by taking in air from the atmosphere at high speeds and funneling (or "ramming") it until it's intensely compressed. At this point, the extremely hot air mixes with fuel and causes ignition. But the Scimitar one-ups traditional ramjet design by adding a turbine [4] that compresses the incoming air even further. Ramjets usually can't use turbines because the incoming air is so hot that it will melt the turbine blades. The Scimitar solves that problem by first cooling the air in a heat exchanger [5] using gaseous helium."

--Michael Belfiore


Attachments

  • scimitarengine.jpg
    22.9 KB · Views: 115
  • greenskies_485_0.jpg
    17.9 KB · Views: 80
A

avatar

Guest
gentlemen are the canards going to be useful for the proposed subsonic flight envelope? Is that why they are there?
Please elaborate

A

avatar

Guest
Also is this design potentially capable of > mach 5 flights minus those canard extensions?


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,043
Reaction score
43
Honestly, I think there are many other aerodynamic shapes that would be far more effective...

I take it this plane is comparatively light for it's overall size? Because otherwise, the wing-loading is going to be outrageously high.


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
26
Hi everybody

Someone knows a LAPCAT Mach 8 design ? The Scramjets are on Top of the fuselage !
I saw it here
http://abenteuerwissen.zdf.de/ZDFde/inhalt/1/0,1872,1020545,00.html?dr=1
There is also the video !
Maybe someone can help with a picture ?

Many Thanks


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,043
Reaction score
43
moin1900,

Why would a person want to put the inlets on top? It would be far better to put them on the bottom and integrate the airplane into a wave-riding platform...


KJ Lesnick


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,876
Reaction score
366
Aerodynamically, I don't see a problem with the configuration. To really be able to criticize it, you would have to know what their design goals were that were stated in the mission profile. There are some "better" aerodynamic configurations", but it would appear to me that minimizing weight and ease of manufacturing and maintenance were big drivers as well. You aren't going to get lower cost than a simple circular cross section fuselage, which also makes minimizing weight easier. If they can minimize their interference drag at the wing/fuselage interface, I don't see any reason not to use this configuration.

Shock cone inlets are very efficient and light weight. Also, by making the engines podded, I'm sure that makes maintenance much easier. Of course, it adds surface area and , hence, drag. But it seems to me they took a very balanced approach to the problem here, instead of going all out on just optimizing the aerodynamics/propulsion interface.

As for the canards, yes they would help subsonically, since the wing and canard would be optimized for supersonic flight, the canard is there to minimize the change in trim (trim drag) due to the a.c. shift. However, you should also note that this aircraft has a relatively small delta wing located close to the c.g. and as such, you aren't going to get pitch authority from it. So you would still need a "tail" of some sort to trim/control the aircraft. As such, the best "tail" for the mission, is a canard in this case.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,148
Reaction score
1,287
The European Union’s LAPCAT (Long-Term
Advanced Propulsion Concepts and Technologies)
project aims to shorten the travel time for
intercontinental flights—for
example, reducing flight time
between Brussels and Sydney
to approximately 2-4 hr.
During Phase I, TBCC and
RBCC (rocket-based combined
cycle) engines were
evaluated at Mach 4-8. Mach
5 and Mach 8 airliners, both
hydrogen-fueled, are achievable for a long-distance
range; a hydrocarbon-fueled Mach 4.5
aircraft has a shorter range. Phase II focuses on
Reaction Engine’s Scimitar engine, to cruise at
Mach 5, and on the Mach 8 aircraft and related
propulsion unit.
MBDA France and ONERA are pursuing
Phase II of the LEA program for flight tests of a
4-m-long vehicle at Mach numbers of 4-8 with
DMR for approximately 10 sec. Each test vehicle
will use a fixed-geometry engine. A mixture
of gaseous methane and gaseous hydrogen has
been selected to increase the density of fuel and
to ensure robust ignition and good combustion
efficiency.
The MBDA/ROXEL test facility at Bourges
Subdray test center received upgrades to conduct
long-duration tests and allow tests at conditions
up to Mach 7.5. The upgraded facility is
called METHYLE. A modular water-cooled
DMR combustion chamber makes feasible propulsion
system technology tests such as for endothermic
fuel reforming, engine control systems,
measurement techniques, and fuel-cooled
structures.


Attachments

  • LAPCAT-MR1 Mach 8 airliner.jpg
    LAPCAT-MR1 Mach 8 airliner.jpg
    7.5 KB · Views: 103

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,148
Reaction score
1,287
Let me guess...hmmm...would be stuff on the picture named 'LAPCAT-MR1 Mach 8 airliner.jpg' manned or unmanned? Hmm...


Simon666

ACCESS: Confidential
Joined
May 9, 2007
Messages
105
Reaction score
0
red admiral said:
Anyone any ideas on why Helium is used as a cooling agent instead of the LH?
I'd think either hydrogen embrittlement , the fact that hydrogen becomes a strong reducing agent at higher temperatures or a combination of both.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,878
Hi,

http://2.bp.blogspot.com/_VyTCyizqrHs/SeTDDKVvd1I/AAAAAAAADdI/25pdADK220w/s320/lapcat1.JPG


Attachments

  • lapcat1.JPG
    13.5 KB · Views: 313

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com

Attachments

  • a2_heating_1280.jpg
    170.9 KB · Views: 21

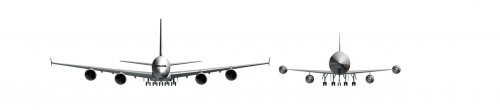

  • With_A380_Front_1280.jpg
    22.7 KB · Views: 14
  • With_A380_Top_1280.jpg
    59.9 KB · Views: 17
  • With_A380_Side_1280.jpg
    42.4 KB · Views: 19
  • inflight_underneath_1280.jpg
    103.3 KB · Views: 187
  • 25km_up_A4_1280.jpg
    174.3 KB · Views: 198
  • A2_2000_Ground_1280.jpg
    205.1 KB · Views: 222

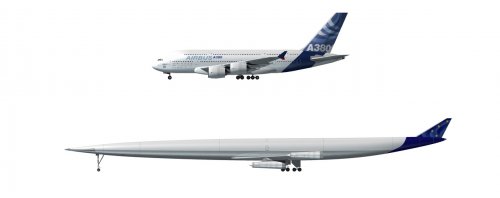

  • A2_A380_comparison.jpg
    137.3 KB · Views: 250
