From: “Enemy at the Gates: Panic Fighters of the Second World War”



Estonia (17 June 1940)​

After achieving independence on February 1918 and signing a peace treaty with the U.S.S.R. in 1920, Estonia created an Aviation Regiment equipped with some German and British aircraft surviving from the First World War.

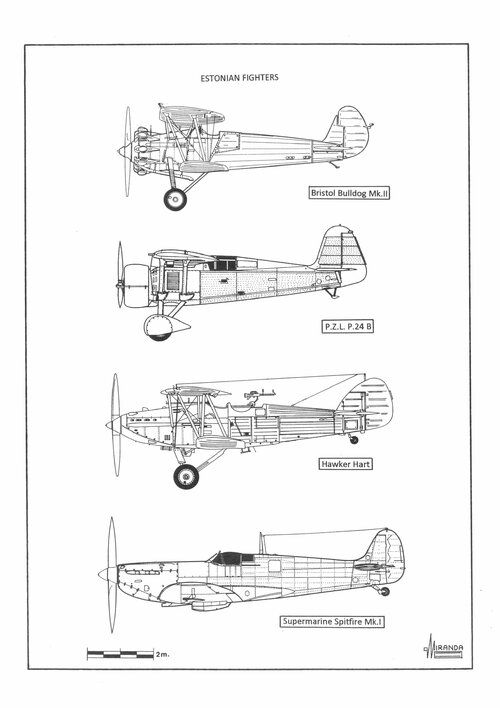

In 1924 the Government managed to neutralize a communist coup that had been seconded by the Aviation Regiment. It was necessary to reform the Estonian Army and to create a new Air Force. In 1925, fifteen Gourdou-Lesseurre GL-32 monoplane fighters were acquired, followed a year later by nine Potez 25 A.2 light bombers, twelve Bristol Bulldog Mk.II biplane fighters in 1930 and eight Hawker Hart fighter-bombers in 1932.

The growing Soviet threat required the assignment of a 20 per cent of their annual state budgets to defence, a burden that the economy of the small Baltic State could not support indefinitely. By the middle of the 1930s, Estonia had four infantry divisions, two submarines, one torpedo boat, six gunboats, four minelayers and 50 combat aircrafts.

Early 1937 the government of Estonia sold seven Bristol Bulldog Mk.II and eight Potez 25 A.2 to Spain through a Czech import company, to circumvent the arms embargo imposed by the Non-Intervention Committee. The operation turned out to be very lucrative and Estonia decided to act as an intermediary in the sale of 26 Fokker G.I heavy fighters, two Fokker C.X light bombers, two Fokker D.XXI monoplane fighters and seven Letov S.231 biplane fighters to the Spanish communists.

On 8 July 1937, after Hendon Air Show, the Estonian Military Purchasing Committee placed an order for twelve Supermarine Spitfire Mk.I with the money obtained from the illegal arms trade. The price of a Spitfire of the time was equivalent to 40 per cent of the annual budget of Estonia. The Spitfires were to be delivered between July 1939 and June 1940, but the British cancelled the operation 12 days after the German attack to Poland.

The attempt to acquire some P.Z.L. P.24 fighters also failed because of the excessive demand from other countries. The Soviet-German Non-Aggression Pact signed in August 1940, the Mutual Assistance Pact imposed by the Soviets in September to the Baltic States and the beginning of the Second World War took the Estonian Air Force by surprise with a strength of four Gladiators and seven Harts.

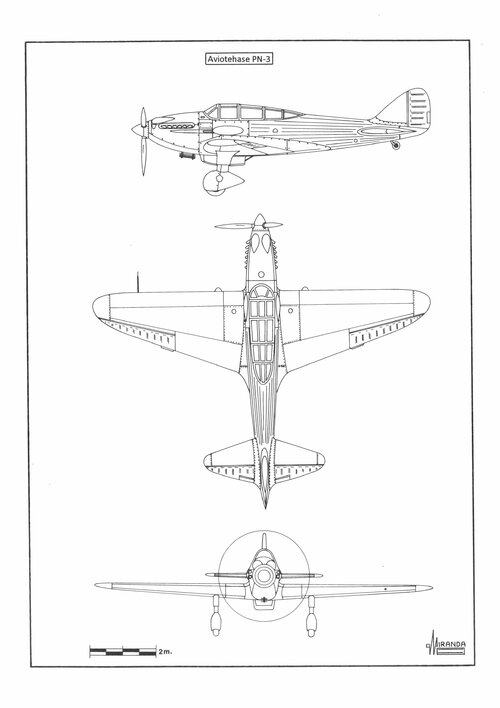

The local aeronautical industry reached the capacity to manufacture the PON-1 biplane trainer in 1935 and the PTO-4 monoplane trainer in 1938. The first flight of the prototype Aviotehase PN-3, designed as a conversion trainer for the Spitfire, took place in January 1939. It could fly at 395 kph, powered by a Rolls-Royce Kestrel XI and was armed with two 7.62 mm machine guns. It would have served as the basis for the construction of an advanced fighter, but its development was interrupted by the soviet occupation on 16 June 1940.

Bibliography​

Books

Humberstone, R., Estonian Air Force 1918-1940, Blue Rider Publishing, 1999.

Publications

Gerdessen, F., “Estonian Air Power 1918-1945”, Air Enthusiast/Eighteen.

Lennurägi, E., “Estonian Air Force”, SAFO vol 15.Nº3, April 1991.

Lennurägi, E., “Estonian Air Force”, SAFO vol 16.Nº2, April 1992.


Attachments

  • 098.jpeg
    468.7 KB · Views: 115
  • 099.jpeg
    341.5 KB · Views: 96

karel4

ACCESS: Restricted
Joined
May 1, 2019
Messages
15
Reaction score
24
Hi to all.
Specially for Justo Miranda. Your drawings are very nice.

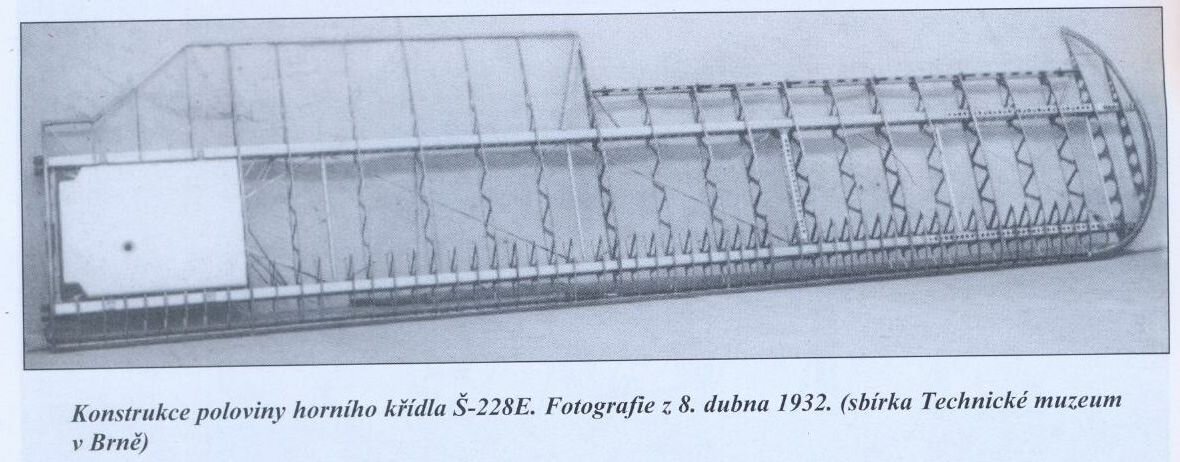

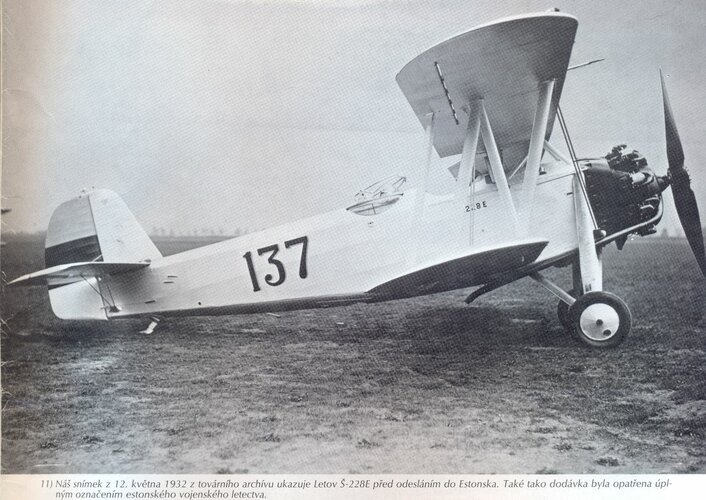

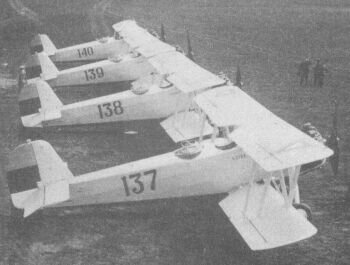

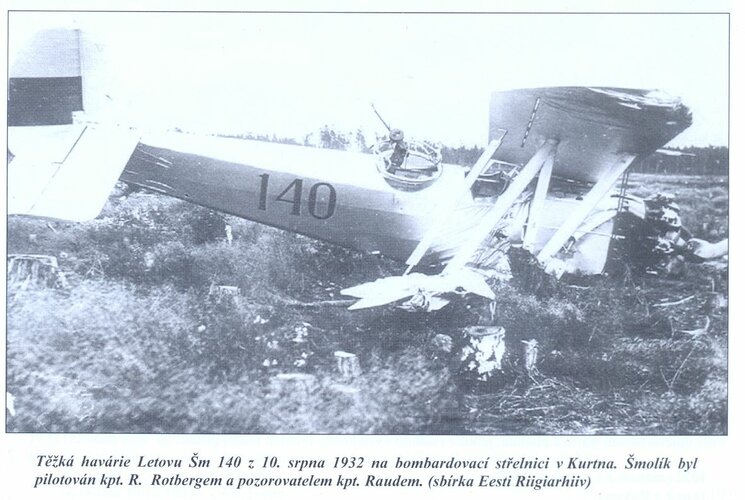

Would it be possible to draw Letov S-228E and PON-1/1A drawings?
These drawings are missing completely or they are wrong.
Thank you very much.
Honza


Attachments

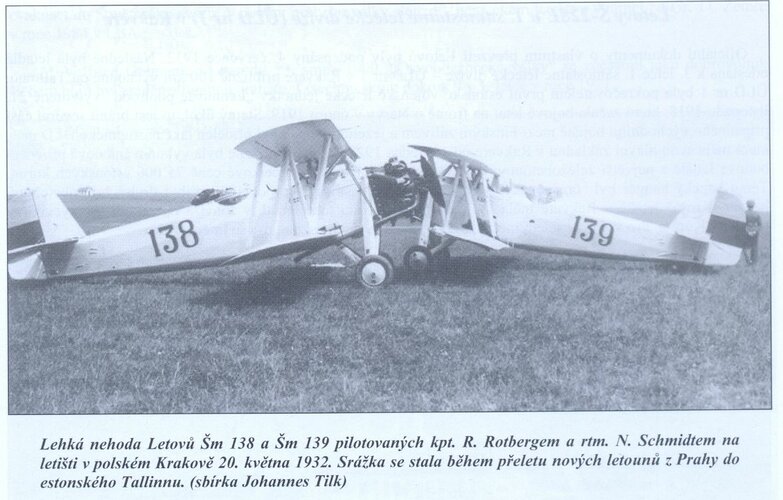

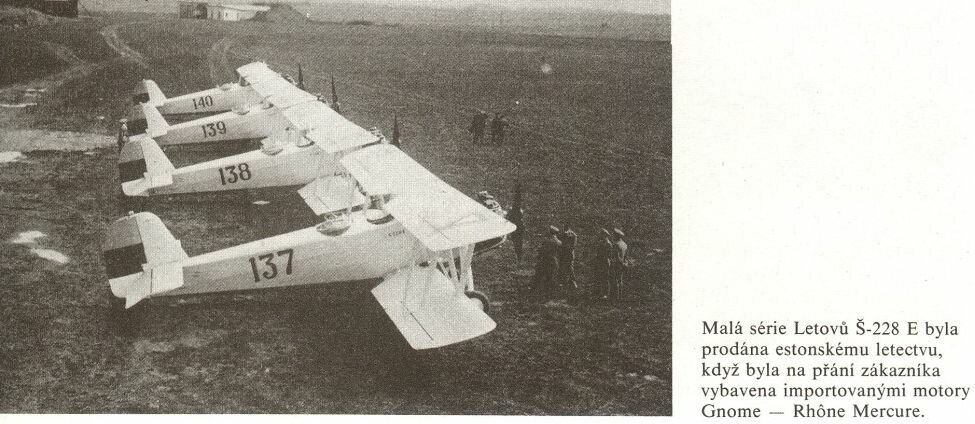

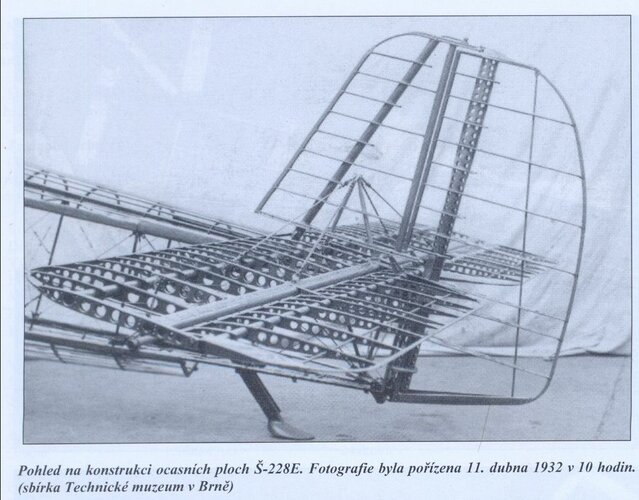

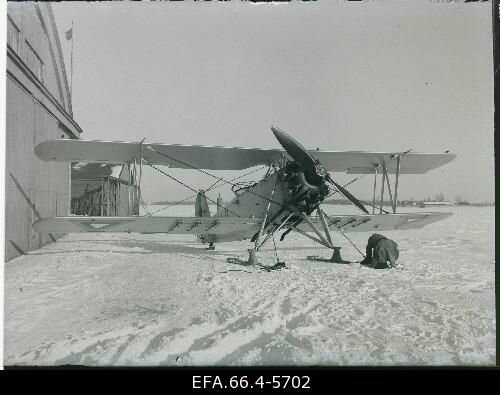

  • Letov Š.228 est 04,detail 00.jpg
    Letov Š.228 est 04,detail 00.jpg
    58.4 KB · Views: 47
  • Letov Š.228 est 05.jpg
    Letov Š.228 est 05.jpg
    59.4 KB · Views: 33
  • Letov Š.228 est 06.jpg
    Letov Š.228 est 06.jpg
    169.7 KB · Views: 33
  • Letov Š.228 est 07.jpg
    Letov Š.228 est 07.jpg
    57.2 KB · Views: 37
  • Letov Š.228 est 08.jpg
    Letov Š.228 est 08.jpg
    33.1 KB · Views: 40

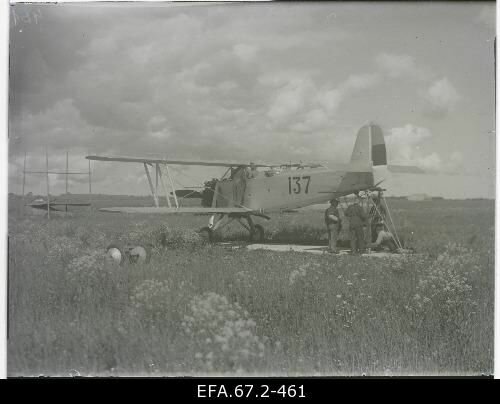

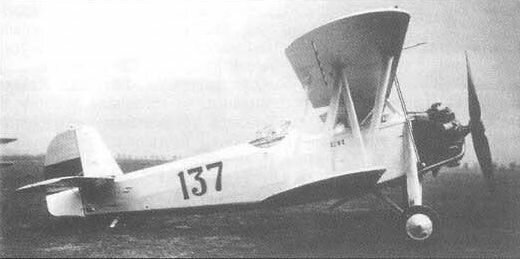

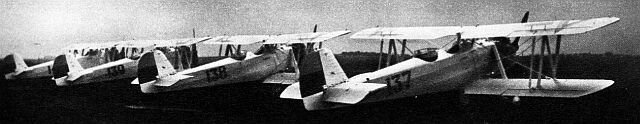

  • Letov Š.228 est 37,č.137 00.jpg
    Letov Š.228 est 37,č.137 00.jpg
    15.9 KB · Views: 35
  • Letov Š.228 est 37,č.137 01.jpg
    Letov Š.228 est 37,č.137 01.jpg
    91.8 KB · Views: 31
  • Letov Š.228 est 37,č.137 02.jpg
    Letov Š.228 est 37,č.137 02.jpg
    689.9 KB · Views: 32
  • Letov Š.228 est 37,č.137 03.jpg
    Letov Š.228 est 37,č.137 03.jpg
    24.3 KB · Views: 28
  • Letov Š.228 est 37,č.137 05.jpg
    Letov Š.228 est 37,č.137 05.jpg
    21.8 KB · Views: 27
  • Letov Š.228 est 37,č.137 06.jpg
    Letov Š.228 est 37,č.137 06.jpg
    27.5 KB · Views: 31
  • Letov Š.228 est 37,č.137 07.jpg
    Letov Š.228 est 37,č.137 07.jpg
    31.1 KB · Views: 28
  • Letov Š.228 est 37,č.137 08.jpg
    Letov Š.228 est 37,č.137 08.jpg
    35.6 KB · Views: 34

karel4

ACCESS: Restricted
Joined
May 1, 2019
Messages
15
Reaction score
24
continuation....


Attachments

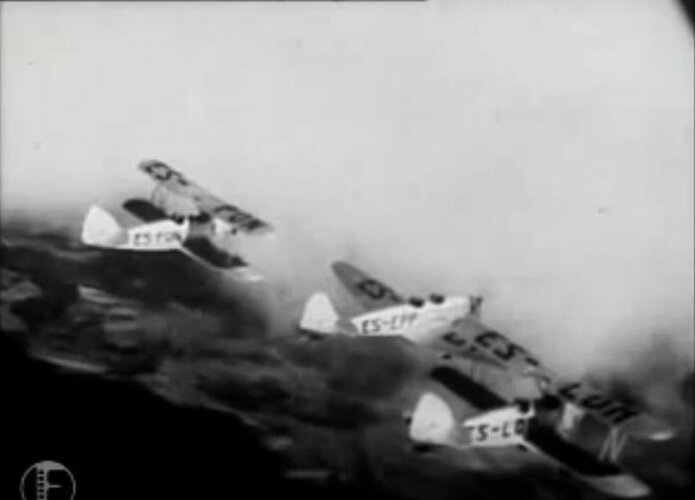

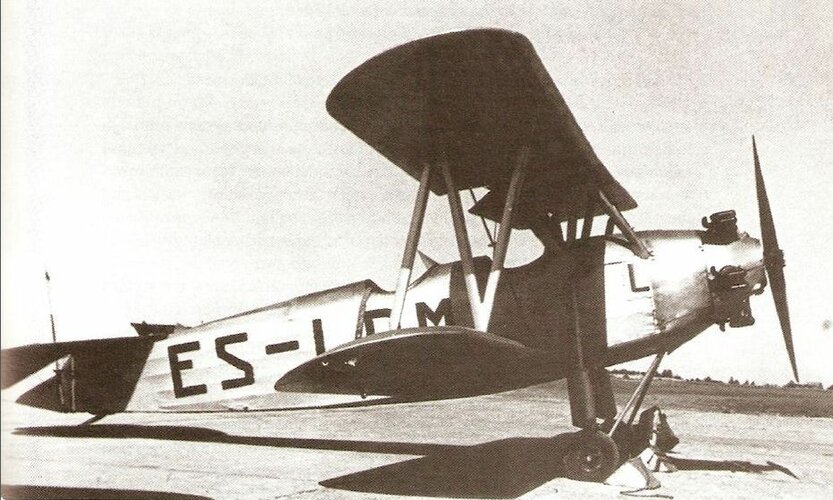

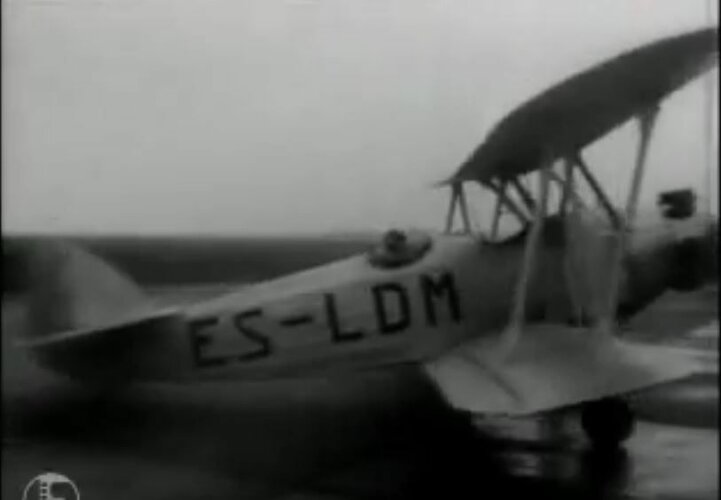

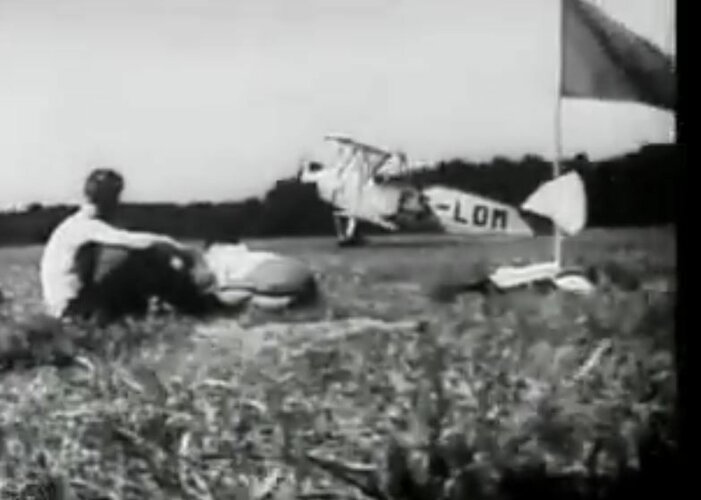

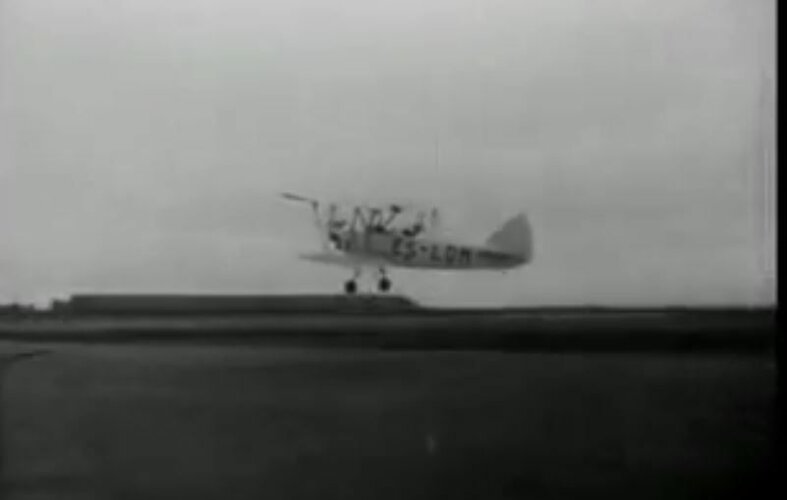

  • PON-1 20,ES-LDM 00.jpg
    PON-1 20,ES-LDM 00.jpg
    111.7 KB · Views: 33
  • PON-1 20,ES-LDM 01.jpg
    PON-1 20,ES-LDM 01.jpg
    26.9 KB · Views: 29
  • PON-1 20,ES-LDM 02.jpg
    PON-1 20,ES-LDM 02.jpg
    34.1 KB · Views: 25
  • PON-1 20,ES-LDM 04.jpg
    PON-1 20,ES-LDM 04.jpg
    28.3 KB · Views: 26
  • PON-1 20,ES-LDM 03.jpg
    PON-1 20,ES-LDM 03.jpg
    26.7 KB · Views: 27
  • PON-1 20,ES-LDM 05.jpg
    PON-1 20,ES-LDM 05.jpg
    41.1 KB · Views: 24
  • PON-1 20,ES-LDM 06.jpg
    PON-1 20,ES-LDM 06.jpg
    18.7 KB · Views: 24

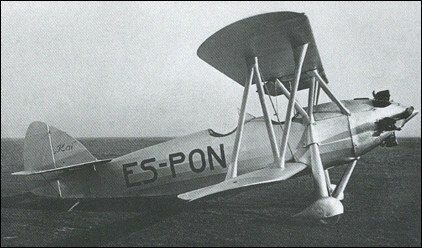

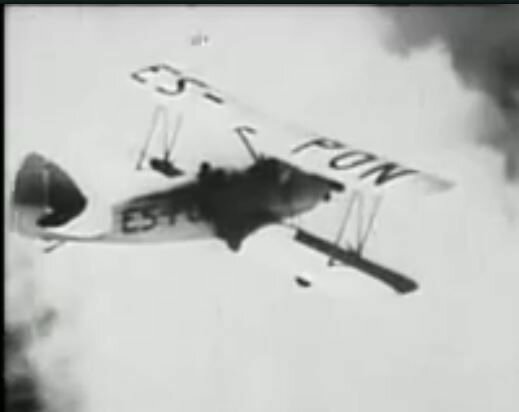

  • PON-1 20,ES-PON 00.jpg
    PON-1 20,ES-PON 00.jpg
    28.4 KB · Views: 26
  • PON-1 20,ES-PON 01.jpg
    PON-1 20,ES-PON 01.jpg
    51.9 KB · Views: 25
  • PON-1 20,ES-PON 02.jpg
    PON-1 20,ES-PON 02.jpg
    16.6 KB · Views: 23
  • PON-1 20,ES-PON 03.jpg
    PON-1 20,ES-PON 03.jpg
    20.3 KB · Views: 24
  • PON-1A 06a.jpg
    PON-1A 06a.jpg
    38.9 KB · Views: 21
  • PON-1A 06k.jpg
    PON-1A 06k.jpg
    69.9 KB · Views: 21

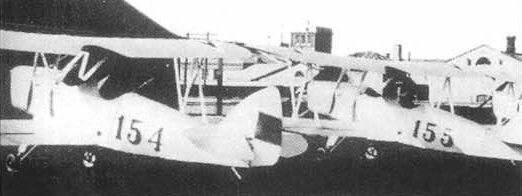

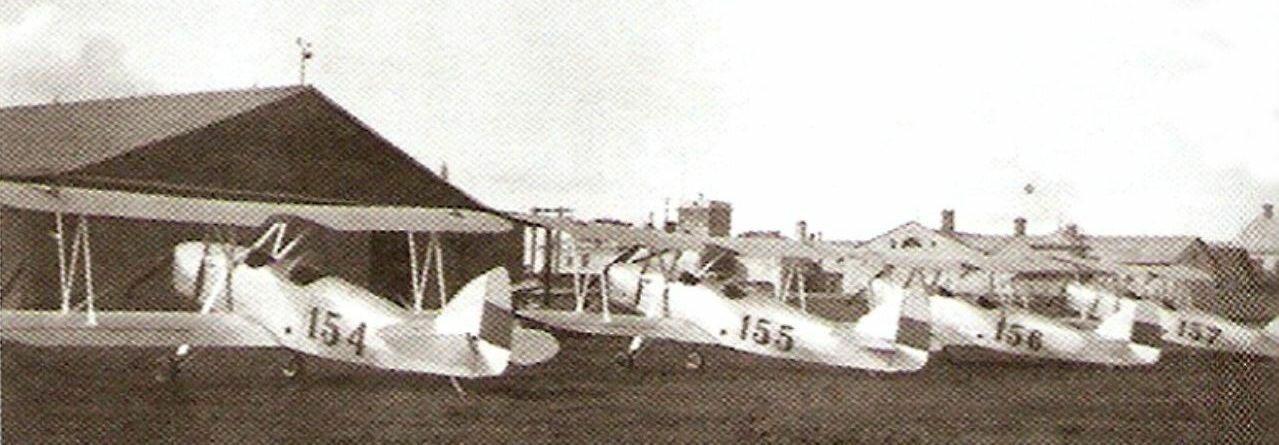

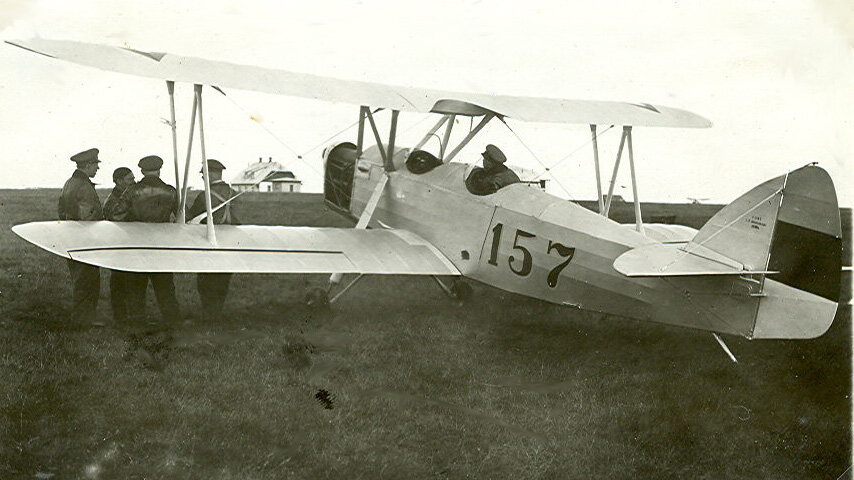

  • PON-1A 21,154 00.jpg
    PON-1A 21,154 00.jpg
    22.3 KB · Views: 21
  • PON-1A 21,154 00b.jpg
    PON-1A 21,154 00b.jpg
    94.8 KB · Views: 30

karel4

ACCESS: Restricted
Joined
May 1, 2019
Messages
15
Reaction score
24
continuation....


Attachments

  • 2290001.jpg
    94.5 KB · Views: 28
  • 2290002.jpg
    161.8 KB · Views: 28
  • 2290003.jpg
    167.8 KB · Views: 30
  • 2290004.jpg
    146.3 KB · Views: 35
  • scan0016.jpg
    182.4 KB · Views: 37
  • scan0017.jpg
    151.9 KB · Views: 59

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,764
Reaction score
3,422
Website
www.amazon.com
Hi to all.
Specially for Justo Miranda. Your drawings are very nice.
Would it be possible to draw Letov S-228E and PON-1/1A drawings?
These drawings are missing completely or they are wrong.
Thank you very much.
Honza

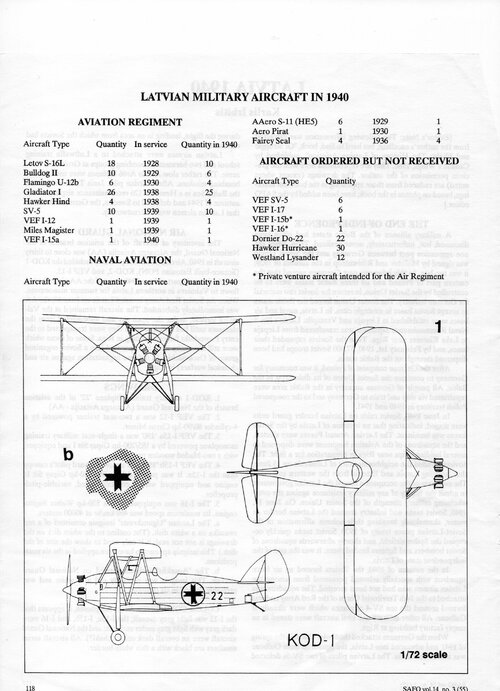

Please see the Latvian version KOD-1


Attachments

  • 573.jpg
    854 KB · Views: 53
  • kod1-c1.jpg
    42.5 KB · Views: 70

karel4

ACCESS: Restricted
Joined
May 1, 2019
Messages
15
Reaction score
24
I know these drawings. Unfortunately, they are inaccurate and
these are cartoons of a real plane ...
According to them, it is not possible to make scale model.


karel4

ACCESS: Restricted
Joined
May 1, 2019
Messages
15
Reaction score
24
For Justo Miranda: Thanks for your answer, but I meant PON-1 and Letov 228. :)
