English Electric Lightning projects

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,838
Reaction score
1,699

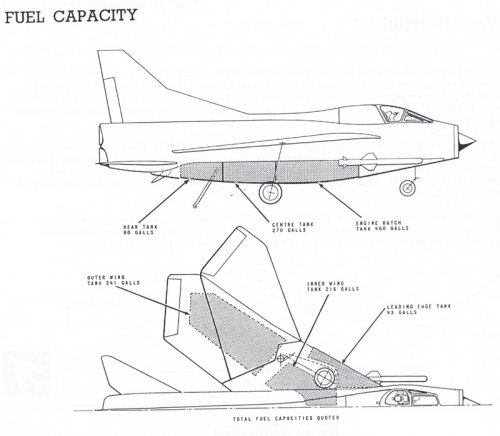

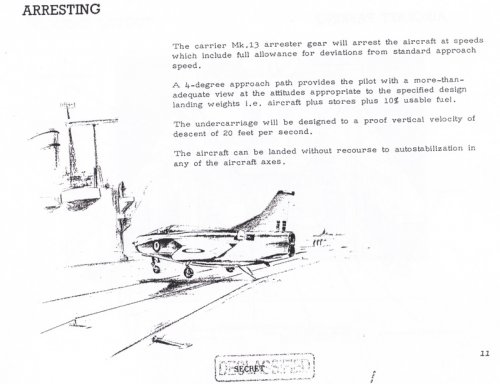

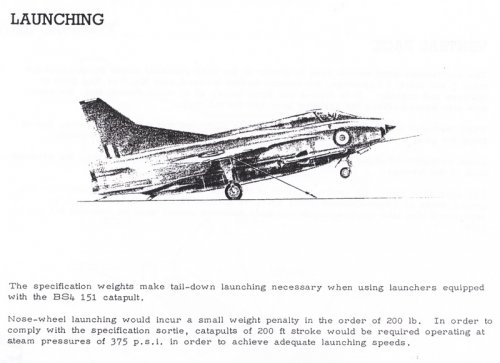

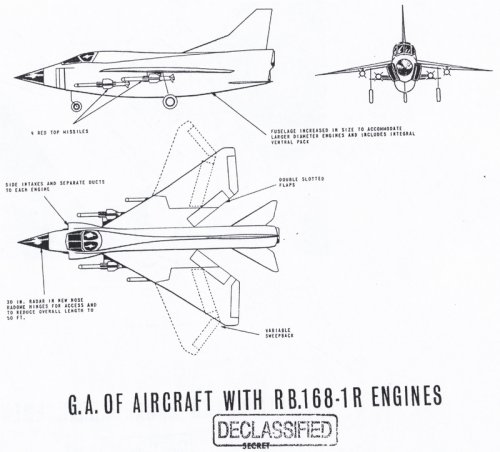

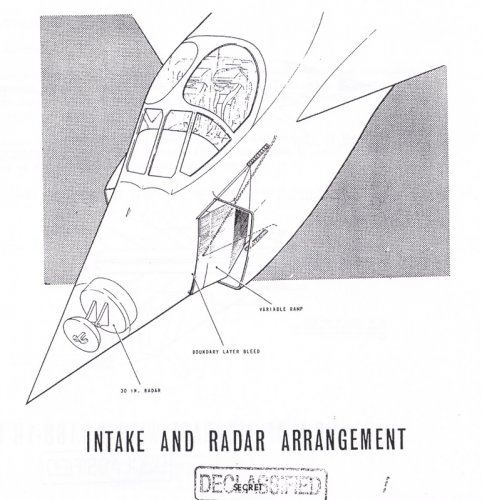

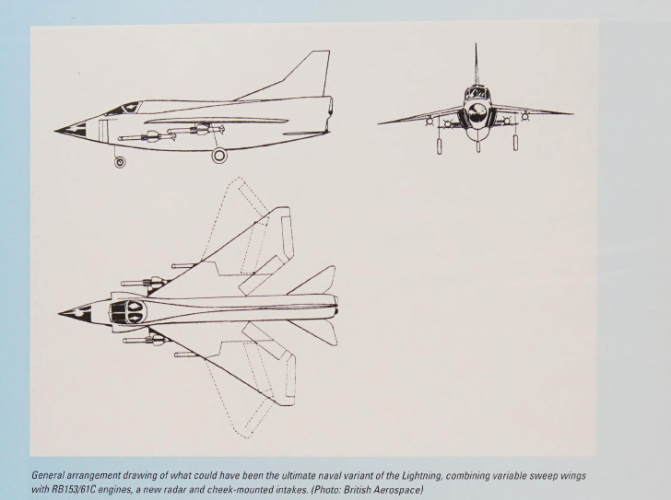

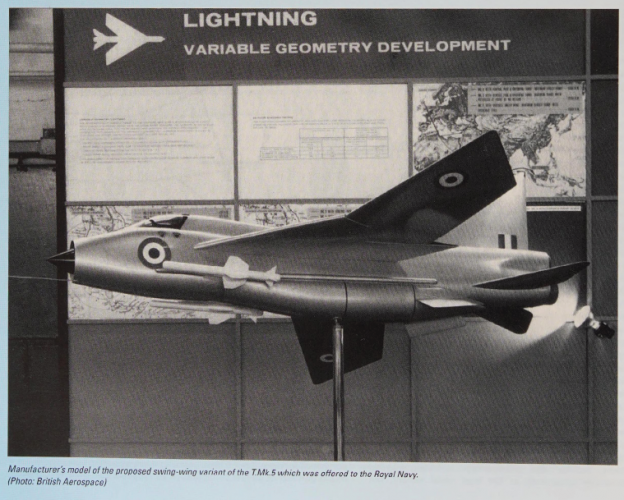

VG Lightning projects...

These were Royal Navy projects.

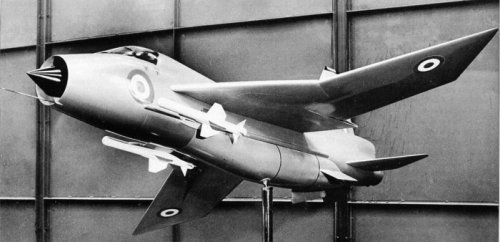

A nice VG Lightning model (unofficial :) can be found here:

http://www.secretprojects.co.uk/forum/index.php?topic=476

Sources:
  • Tony Buttler, British Secret Projects: Jet Fighters
  • Kev Darling, Warbirdtech 28: English Electric Lightning


Attachments

fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,201
Reaction score
276

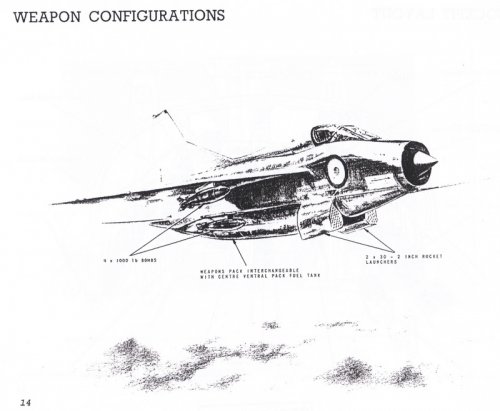

Info, pic's and links stolen from what if modelers forum!
BillSlim @ what if modelers forum said:
If you want one, or the TSR.2 brochure, the NW Heritage Group might still have a few left.

They can be reached at:

BAE SYSTEMS - North West Heritage Group
Warton Aerodrome (W23H)
Preston
PR4 1AX
Tel: 01772 855941

The Lightning brochure was £5.50, the TSR.2 was a bit cheaper at £5, though prices have probably changed.
Source: http://www.whatifmodelers.com/forum//index.php?showtopic=17220&st=0


Attachments

Hammer Birchgrove

CLEARANCE: Top Secret
Joined
May 13, 2009
Messages
586
Reaction score
4
About when would the VG Lightning, naval and land-based, have made their respective maiden flights and entered service? ???

Thanks in advance. :)


Hammer Birchgrove

CLEARANCE: Top Secret
Joined
May 13, 2009
Messages
586
Reaction score
4
zen said:
Hammer Birchgrove
Depends on the sort of difficulties they'd have developing the VG wing.
So if I wanted to make a What If? story, I could go anywhere from 1965 to 1972? (Not much of a point having it after, as I see it.)


Hammer Birchgrove

CLEARANCE: Top Secret
Joined
May 13, 2009
Messages
586
Reaction score
4
I think I should've asked when English Electric/BAC made the respective suggestions. :)

Thanks in advance.


zen

CLEARANCE: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
1,270
Reaction score
198
First VG Lightning is for the VG research work sometime late 1950's if my memory is correct, that under Type 588 studies that covered several aircraft.

Naval VG Lightning is to AW406 I think sometime between 1963 and 1965.

In theory a VG Lightning is quite a plausable effort.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
Hi,

P.3 Projected development of P.1 with side intakes, March 1951.
P.5 Projected development of P.1 with one Rolls-Royce Avon RA.12
with reheat, March 1952.
P.6 Projected development of Lightning to meet ER.134T, April-
August 1953.
P.8 Projected development of Lightning – tandem 2-seat high
altitude fighter to meet F.155T. Area-ruled fuselage, air-to-air
missiles on wingtips. September 1955.
P.15 Projected photo-reconnaissance version of Lightning,
Feb 1956 .
P.18 Projected low-altitude bomber version of Lightning,
Oct-Nov 1956.
P.19 Projected interceptor variant of Lightning.
P.23 Projected development of Lightning.
P.33 Projected 2-seat strike-fighter version for Australia.
P.34 Projected single-seat ground-attack version for RAF.

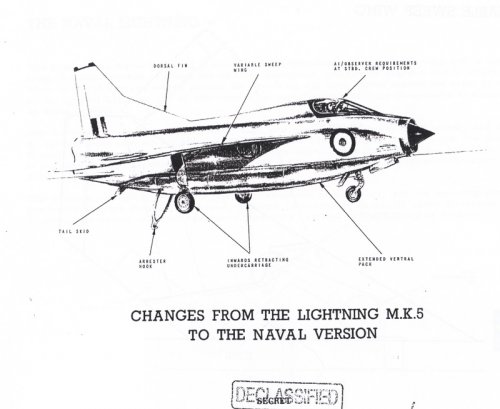

VG Lightning Projected version of Lightning T.5 with
variable-geometry wing, enlarged ventral pack and folding
fin for carrier-borne naval interceptor role, autumn 1963-
April 1964.

http://www.aeroflight.co.uk/aircraft/english-electric-lightning.htm


JFC Fuller

CLEARANCE: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
3,266
Reaction score
325
Wow, i have not seen this thread, I have checked BSP Jet Fighters and it makes reference to the P.3 with wind tunnel testing taking place in the second half of 1951 and first half of 1954. This is a potentially fascinating lightning derivative and I would love to see some imagery of it!


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,838
Reaction score
1,699
P.6/1 - Single RB.106 engine, variable intake centerbody [inboard profile & sections in Project Cancelled (2nd ed.) and 3 view in British Secret Projects : Jet Fighters]
P.6/2 - Two Armstrong Siddeley Sa.7 or Rolls-Royce RA.18 engines, also delta variant [3 views in British Secret Projects : Jet Fighters]
P.6B - Straight wing, wing mounted engines [3 view in British Secret Projects : Jet Fighters]
P.6D - canard [3 view in British Secret Projects : Jet Fighters]
P.8 - see topic here.
P.23 - Genie-armed Lightning project [Drawing showing Genie installation in Project Cancelled (2nd Edition)]


zen

CLEARANCE: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
1,270
Reaction score
198

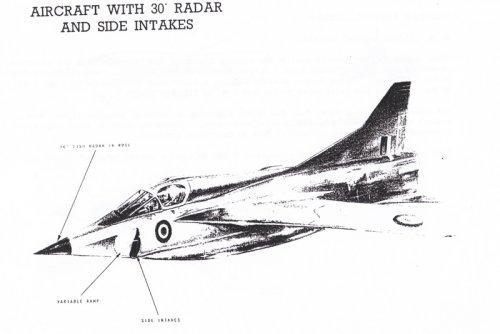

P.3 Projected development of P.1 with side intakes, March 1951.
Intriguing one that. Had they dealt with the inlet issues and provided a larger scanner all sorts of things are possible.


JFC Fuller

CLEARANCE: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
3,266
Reaction score
325
overscan said:
Thought I'd seen a drawing but can't think where.
I know that feeling! If you do remember please do let me know.

I see that the P.6/1 would have used the RB.106 Thames, once again that engine crops up!


JFC Fuller

CLEARANCE: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
3,266
Reaction score
325
zen said:
P.3 Projected development of P.1 with side intakes, March 1951.
Intriguing one that. Had they dealt with the inlet issues and provided a larger scanner all sorts of things are possible.
Indeed, perhaps there was an opportunity to make something exceptional out of the Lightning prior to the P.8 design?


Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
562
Reaction score
134
In the "Air Pictorial" issue of June 1998 there was an article "Lightning and the unbuilt projects" by Tony Buttler.
(http://www.theaviationindex.com/publication/air-pictorial/volume-60-issue-06-1998)

As its title impied the article contained information on unbuilt versions of the Lightning, including advanced interceptor, ground attack as well as recce variants.

Unfortunately my copy has apparently been lost during a removal, so I can't tell more on that, as I read the article quite a few years ago.

Hopefully somebody in the forum does have it. If so please let us know.

Best regards,
Piotr


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,790
Reaction score
39
I have it... :)

(four pages 362-365)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
Hi,

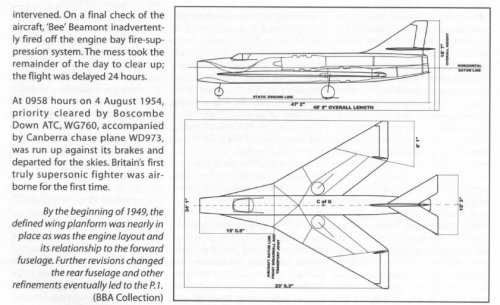

from the book; Warbird Tech; English Electric Lightning,here is;

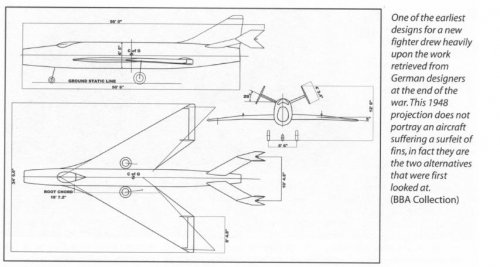

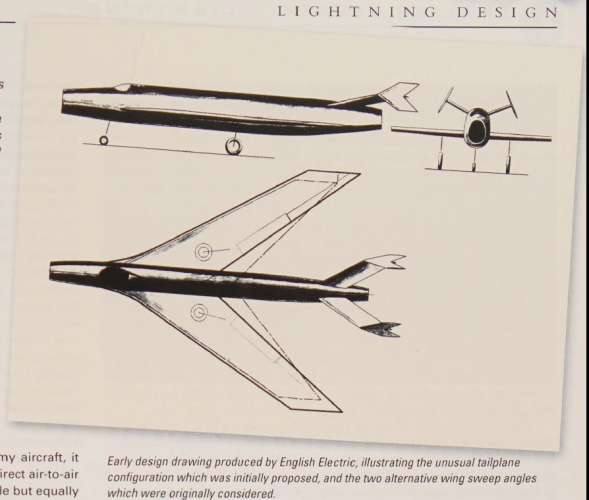

1- earliest design of 1948

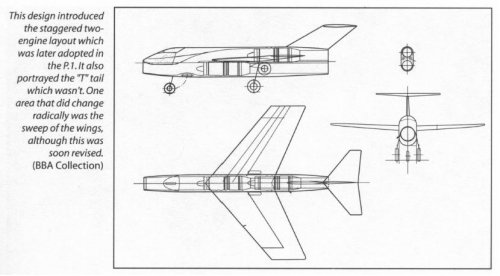

2- a design with a staggered two-engine layout
3- nearly the final design of 1949


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176

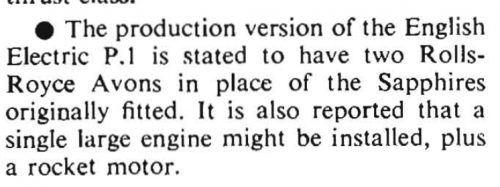

Also in Air Pictorial 2/1956,


they spoke about report for English Electric P.1 Lightning to be had a single large turbojet
engine plus a rocket motor,I never heard about such thing before ?.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,103
Reaction score
536

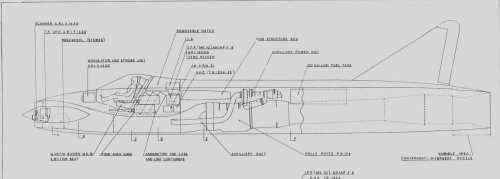

Maybe the P.6/1, which would have had a RB.106 engine, although I couldn't
find mention of an additional rocket engine
(drawing from Derek Wood "Project Cancelled")


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,291
Reaction score
2,176
That's right my dear Jemiba,


but maybe unveiled version ?.


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,520
Reaction score
543
I'm sure I've read somewhere that there was a brief plan to put a Napier Scorpion in the ventral tank.
I'd need to find the source again though to confirm that.


JFC Fuller

CLEARANCE: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
3,266
Reaction score
325
Hood,

See here: http://www.secretprojects.co.uk/forum/index.php/topic,12762.msg125858.html#msg125858


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,520
Reaction score
543
Thanks. At least I know my memory isn't failing me!


andy_d

CLEARANCE: Restricted
Joined
Aug 17, 2008
Messages
18
Reaction score
1
FlyPast recently published a special on "Cold War Warriors," which includes an article on the experiences of Trevor MacDonald Bennett, a former RAF Lightning pilot who went on to train Saudi pilots on the type. He recalls the Lightning as being pretty effective in its secondary ground-attack role with the RSAF, and remarks that the Saudi T55 (the only mark to have both twin seats and the big ventral tank) had the potential to be "the best of the breed." So perhaps the projects for naval or multi-role Lightnings weren't too far-fetched.


JFC Fuller

CLEARANCE: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
3,266
Reaction score
325
Found in "History Of The Gloster Javelin" by Ian Smith Watson:

In order to make keeping the Lightning on a more viable prospect, various options were considered, including angle of attack indicators to be fitted to all remaining Lightnings at a cost of £180,000-£190,000. Further, at a cost of £190,000, fitting a cold air unit to sixty-one Mk 6 Lightnings in order to improve low level performance was considered.
The same book states that it was expectation that two Lightning Mk.6 equipped squadrons (almost certainly including 60 Squadron) would remain in the Far East until 1972/73.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
10,217
Reaction score
819

In July 1959 he went to Germany as a wing commander in charge of air defence operations at the sector control centre at Brockzetel, near Wilhelmshaven. Three years later he returned to the test pilot arena as a squadron commander at Boscombe Down, where he was responsible for fighter development and testing the early version of the Lightning supersonic interceptor and the Hawker P 1127, the forerunner to the Harrier jump jet.
RIP. :(


Tony Williams

CLEARANCE: Secret
Joined
Jan 10, 2013
Messages
465
Reaction score
92
Website
www.quarryhs.co.uk
The Royal Air Force Historical Society published Journal 72, which came out in 2019, and is devoted entirely to the Lightning. The articles are mostly about service use, but include two by Tony Wilson: "Lightning Genesis" and "Lightning Development Studies and Proposals".

As usual, the Journal is effectively a text version of presentations given at meetings of the Society. These are very interesting, including a vast amount of direct experience from those who were there.

This is the source, although there is a delay in publishing the Journals: https://www.rafmuseum.org.uk/research/default/raf-historical-society-journals.aspx


kaiserd

I really should change my personal text
Senior Member
Joined
Oct 25, 2013
Messages
884
Reaction score
196
zen said:
P.3 Projected development of P.1 with side intakes, March 1951.
Intriguing one that. Had they dealt with the inlet issues and provided a larger scanner all sorts of things are possible.
Indeed, perhaps there was an opportunity to make something exceptional out of the Lightning prior to the P.8 design?
The Royal Air Force Historical Society published Journal 72, which came out in 2019, and is devoted entirely to the Lightning. The articles are mostly about service use, but include two by Tony Wilson: "Lightning Genesis" and "Lightning Development Studies and Proposals".

As usual, the Journal is effectively a text version of presentations given at meetings of the Society. These are very interesting, including a vast amount of direct experience from those who were there.

This is the source, although there is a delay in publishing the Journals: https://www.rafmuseum.org.uk/research/default/raf-historical-society-journals.aspx
Great resource - thanks for the link.
