Embraer EMB-145 early model

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,716
Reaction score
3,492

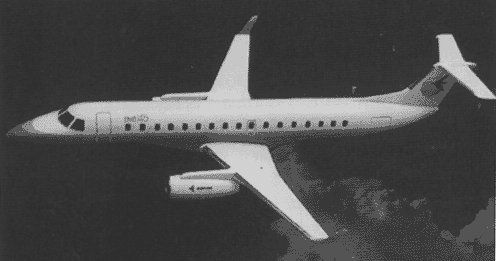

Hi,

the Embraer EMB-145 was a regional jet aircraft,and here is with engines
mounted in the wing.

http://www.flightglobal.com/PDFArchive/View/1990/1990%20-%201690.html


Attachments

  • EMB-145.JPG
    31.1 KB · Views: 394

gral_rj

ACCESS: Confidential
Joined
Sep 6, 2006
Messages
88
Reaction score
24
I remember that one. Back then, EMBRAER was going for an airplane as close to the Brasília, so the first iterations of the future ERJ-145 were essentially Jet Brasílias. I guess it wasn't worth the performance cost.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
128

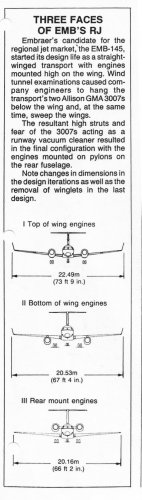

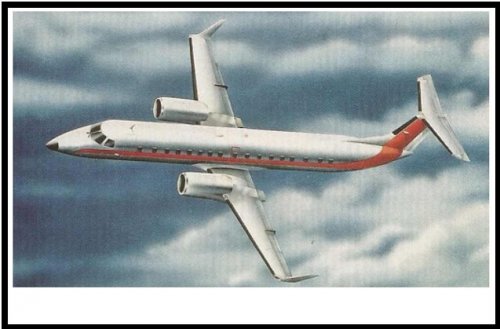

Actually the EMB-145 first version (Versao 1) had stretched fuselage too. Since Embraer wanted to use the Brasilia wing, the jet pods configuration was modeled on the Brasilia's turboprop nacelles. Embraer contracted out to Boeing extensive wind-tunnel and computational fluid dynamics studies, results of which was negative, essentially due the sweep angle and profile of the wing. Boeing suggested a pylon-nacelle configuration of the engines and a new, more swept wing, and lenghten more the fuselage to house 50 passengers. . And this was Versao 2. In the end, the final configuration was a compromise, using the more swept wing and lenghtened fuselage but putting the engine on the rear to ease the design job for the supercritical wing.


Attachments

  • EMB-145 Versao 1.gif
    EMB-145 Versao 1.gif
    15.5 KB · Views: 401
  • EMB-145 Versao 2.gif
    EMB-145 Versao 2.gif
    45.5 KB · Views: 375

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,716
Reaction score
3,492

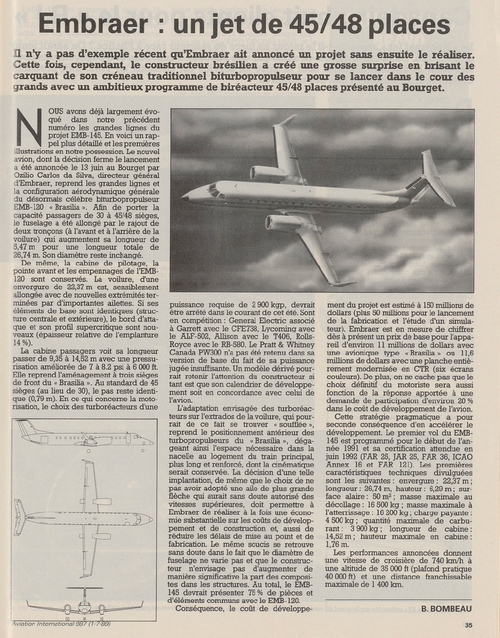

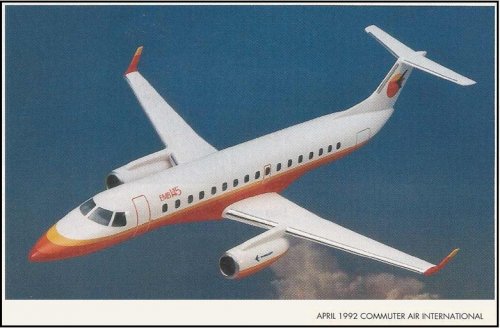

From Air International 11/1990;

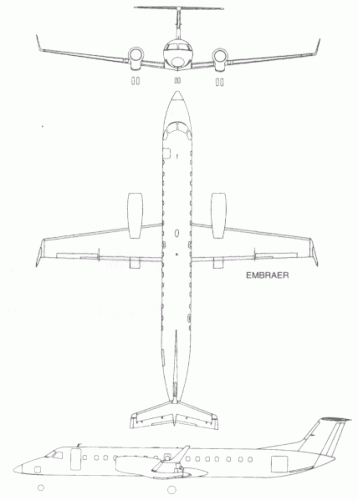

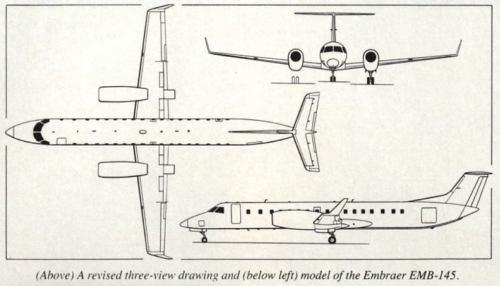

here is a clearer 3-view to Embraer EMB-145.


Attachments

  • EMB-145.png
    845.7 KB · Views: 269

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
99

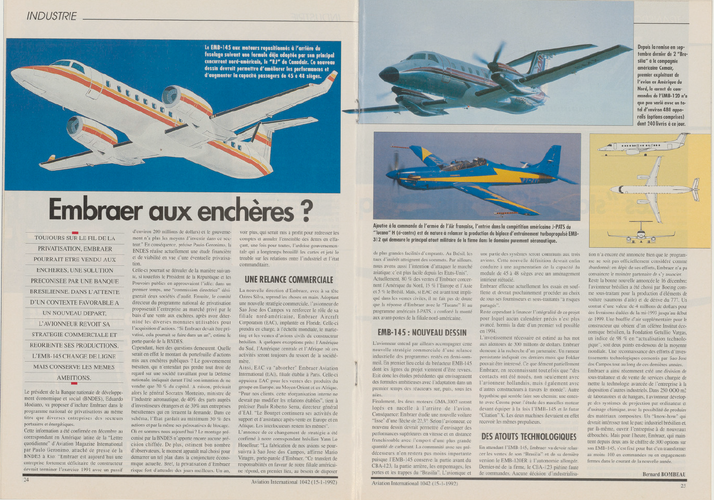

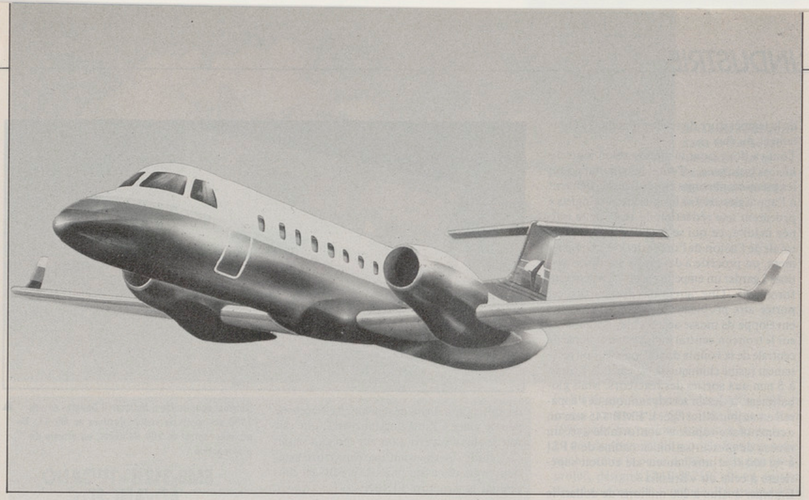

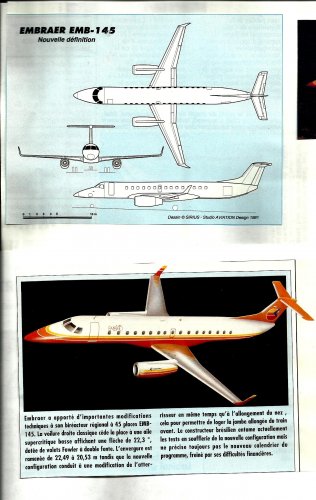

from "aviation design" and " aviation magazine"

Embraer 145 version 2


Attachments

  • test.jpg
    369 KB · Views: 199

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
503
Website
deeptowild.blogspot.com

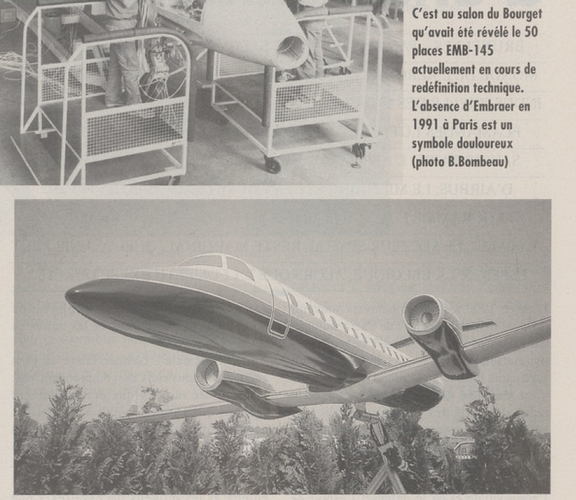

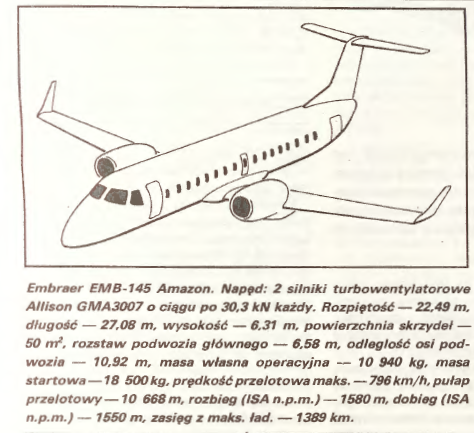

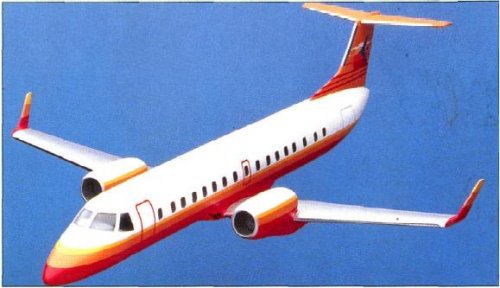

Source:
https://www.facebook.com/photo.php?fbid=1064350043583692&set=o.34366349783&type=1&theater
https://www.facebook.com/photo.php?fbid=1064350043583692&set=o.34366349783&type=1&theater
https://www.facebook.com/photo.php?fbid=1064350046917025&set=o.34366349783&type=1&theater
https://www.facebook.com/photo.php?fbid=1064350056917024&set=o.34366349783&type=1&theater


Attachments

  • 11990569_1064350040250359_5658293260611204484_n.jpg
    46.6 KB · Views: 26
  • 11953342_1064350043583692_1982930934261868104_o.jpg
    88.2 KB · Views: 27
  • 12003129_1064350046917025_4051220731122905528_n.jpg
    134 KB · Views: 26
  • 10987352_1064350056917024_8435320149316460045_o.jpg
    210.7 KB · Views: 30
