Early 'stealth' aircraft

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932

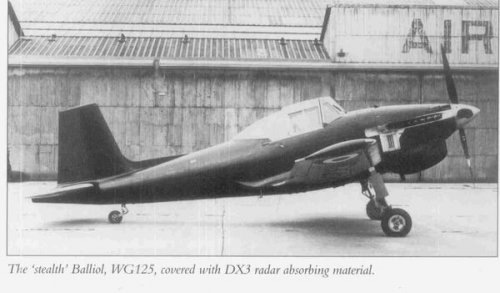

When I browsed through Alec Brews "Boulton Paul Aircraft", I realised, that one of
the first "stealth" aircraft, wasn't any kind of weird type, but a good old Balliol, covered
with radar absorbing DX3 material. Later a Canberra was modified, too, using the same
coating and IR suppression, but no photos are included in this book.
Probably there were such experiments by other companies, too, during the late 50's ?


Attachments

  • Balliol_Stealth.JPG
    33.7 KB · Views: 1,358

GUNDAM123dx

a little rusty at English
Joined
Oct 31, 2017
Messages
49
Reaction score
95

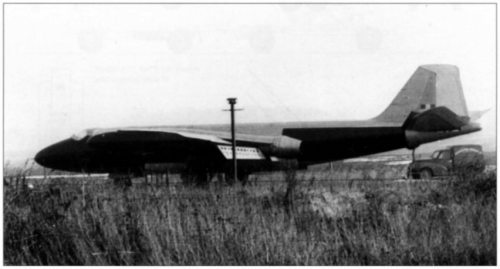

A rare photograph of the 'Stealth' Canberra WX161 at RAF Selghford while undergoing radar trials with Boulton and Paul. Dave Welch, via Phil Butler


Attachments

  • WX161.png
    201 KB · Views: 604

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,217
Reaction score
1,743
Well the first stealth aircraft was the Mosquito, as its wooden airframe didn't showed on early radars (although I never bought into that story: the Merlins were big metal masses, even if dug into the nacelles)


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,895
Reaction score
233
I thought the first 'Stealth' aeroplanes were the various Great War Types that were covered in transparent 'Cellon' . . .


cheers,
Robin.


yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,387
Reaction score
535
GUNDAM123dx said:
A rare photograph of the 'Stealth' Canberra WX161 at RAF Selghford while undergoing radar trials with Boulton and Paul. Dave Welch, via Phil Butler

More please...


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,023
Reaction score
106
Archibald said:
Well the first stealth aircraft was the Mosquito, as its wooden airframe didn't showed on early radars (although I never bought into that story: the Merlins were big metal masses, even if dug into the nacelles)

I'd have thought that the spinning propellers were much more of a large radar signature than anything else, from head on (and more than likely all other directions as well).


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932
robunos said:
I thought the first 'Stealth' aeroplanes were the various Great War Types that were covered in transparent 'Cellon' . . .

Well, it depends on definition, of course. At least today, "stealth" mainly means hiding something from radar, or other
means of detection other, than the human senses. For the latter, the word "camouflage" is more common, I think.

About the spinning prop, I don't think, that the Balliol in this guise was meant as a "stealthy aircraft" in itself, but for
testing the strength of the radar echoes of that machine, compared to a standard one.


Zoo Tycoon

ACCESS: Secret
Senior Member
Joined
May 27, 2008
Messages
387
Reaction score
416
A few years back a number of pictures appeared in Flypast showing a twin engined Halifax. This was a four engined airframe whereby the two outers engines had been removed complete with pylons, necelles and the wing skin replaced to a flghtworthy standard. The article advised that it was modified late in WW2, where the aircraft location was and that it had flown trials in that condition, but the nature of the trials was not known. Also the aircraft serial number was either not known or had no officially record of such a modification;- can’t remember which.

I remember thinking at the time if this was done to quantify the difference in radar reflection between a twin and a quad engined aircraft. It’s a relatively simple engineering task which would yield high quality experimental data, critical for aircraft detection technology and thus would be kept very secret.


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
906
Reaction score
261

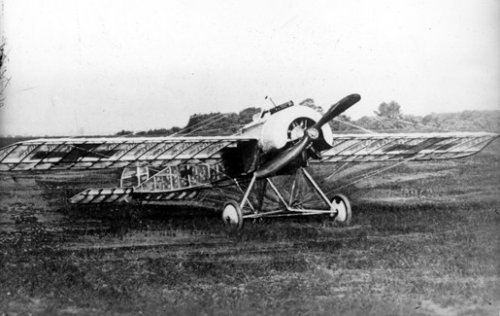

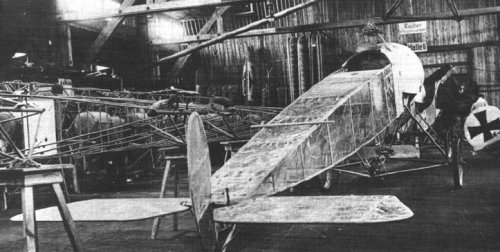

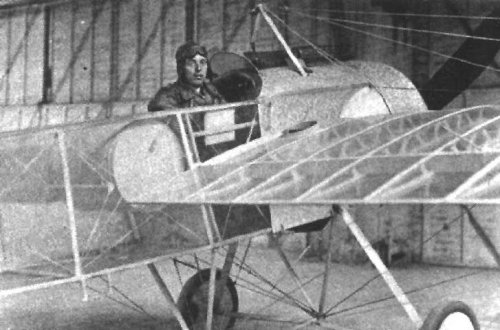

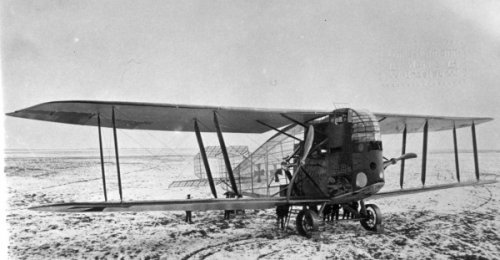

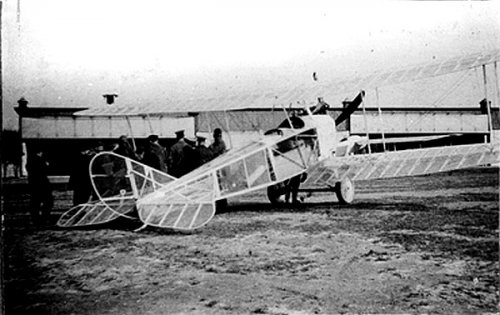

Attempts by Fokker and other German-Axis manufacturers during WWI experimented with cellon acetate coverings to reduce visibility.


Attachments

  • Acetatefokker2.jpg
    43 KB · Views: 356
  • Acetate Rumpler CI.jpg
    Acetate Rumpler CI.jpg
    70.4 KB · Views: 338
  • Cellon Acetate Fokker.jpg
    Cellon Acetate Fokker.jpg
    49.2 KB · Views: 333
  • Fokker EIII Cello Acetate.jpg
    Fokker EIII Cello Acetate.jpg
    51.3 KB · Views: 29
  • Linke-Hofmann_R.I_cellon_fuselage.jpg
    62.4 KB · Views: 36

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
906
Reaction score
261
Although not produced the German Horten Ho 229 V3 was to incorporate charcoal mixed into an adhesive that was to be used in the plywood construction of the aircraft. The thought was that the charcoal would attenuate the electromagnetic energy of the Allies radar. Air and Space magazine carried an article on it.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,023
Reaction score
106
Jemiba said:
About the spinning prop, I don't think, that the Balliol in this guise was meant as a "stealthy aircraft" in itself, but for
testing the strength of the radar echoes of that machine, compared to a standard one.

I cannot see how they overcame the problem of the spinning propeller and it's radar return...


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,432
Reaction score
649
Perhaps they compared the before and after signatures?

Any joy on this twin-engined Halifax? I have nowt, but that's no surprise.

Chris


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,023
Reaction score
106
Zootycoon said:
A few years back a number of pictures appeared in Flypast showing a twin engined Halifax. This was a four engined airframe whereby the two outers engines had been removed complete with pylons, necelles and the wing skin replaced to a flghtworthy standard. The article advised that it was modified late in WW2, where the aircraft location was and that it had flown trials in that condition, but the nature of the trials was not known. Also the aircraft serial number was either not known or had no officially record of such a modification;- can’t remember which.

I remember thinking at the time if this was done to quantify the difference in radar reflection between a twin and a quad engined aircraft. It’s a relatively simple engineering task which would yield high quality experimental data, critical for aircraft detection technology and thus would be kept very secret.

The Halifax was originally designed as a twin-engined aircraft, the H.P.56, just as the Lancaster started out as the twin-engined Manchester. However, Air Ministry dropped the idea of two engines earlier than Avro and created the Halifax four engined bomber because they didn't believe that two engines would be powerful enough to carry the bomber to Germany and back. It was originally powered by Merlins but later marks used Hercules. Are you sure you're not talking about a H.P.56?

I cannot see a twin-engined Halifax powered by either Merlins or Hercules engines getting off the ground with anything like a full bomb load, let alone being lightly loaded for experimental purposes.


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,889
Reaction score
1,192
I seem to have a vague recollection of reading something regarding a twin-engined Halifax for tests but I can't remember where I saw it (not Flypast).


yellowaster

ACCESS: Confidential
Joined
Jan 1, 2009
Messages
86
Reaction score
47
GUNDAM123dx said:
A rare photograph of the 'Stealth' Canberra WX161 at RAF Selghford while undergoing radar trials with Boulton and Paul. Dave Welch, via Phil Butler

It's WK161. Covered with DX.3 X-band absorbent tiles by Boulton Paul in 1957 (as a follow-up to the Balliol) and mostly flown on behalf of RAE Radio Dept up until 1963. The elongated and bulged jet-pipes were designed to mitigate radar reflections from the engine turbine disks. Apparently known as the "Rubber Duck" on account of the rubber composition of DX.3.


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,432
Reaction score
649
WK161 is described, with photos and diagrams, in Black Box Canberras.

See here:

http://www.crecy.co.uk/black-box-canberras

Chris


Zoo Tycoon

ACCESS: Secret
Senior Member
Joined
May 27, 2008
Messages
387
Reaction score
416
The Halifax twin- Definitely the pics I saw were in Flypast, and it’s a late production model with engines removed.

I’m sure I have the back issue but it’ll take a while for me to find it.

I agree no good for hauling bombs, or at light weight, it’s not going have a range of more than a hundred miles but powerful enough to get airborne. Hence why do something like this at a time when one these was in great demand?
