Early/mid 80s Boeing 1046 Long Range Transport

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,105
Reaction score
1,087
Demon Lord Razgriz said:
Isn't that the rival of the C-5 that was later turned into the Boeing 747?

"Heavy Logistics System" (CX-HLS) (previously CX-X) program, that lead to C-5, was a little bit earlier...20 years earlier.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
Please note that the above design appears as "1046-103", not "-105" in the rest of the document, which makes me think this is either a typo or a consequence of a poor scan.


Attachments

  • 1046-103.gif
    15 KB · Views: 151

Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
425
Reaction score
20

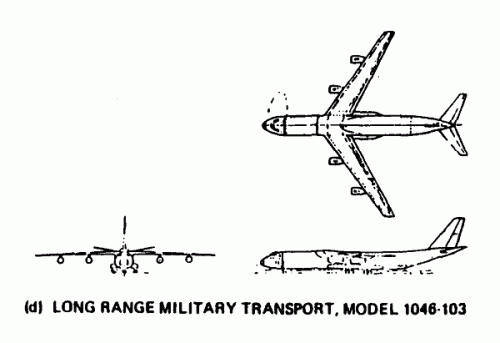

Boeing 1046-103 image from "Aeronautical Technology 2000: A Projection of Advanced Vehicle Concepts" (http://hdl.handle.net/2060/19860003767).


Attachments

  • 1986_Boeing 1046-103.jpg
    1986_Boeing 1046-103.jpg
    271.4 KB · Views: 123

taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
317
Reaction score
190
Demon Lord Razgriz said:
Isn't that the rival of the C-5 that was later turned into the Boeing 747?

Joe Sutter, the Project Engineer on the 747 program, insists that the 747 was not derived from the Boeing CX-X proposal and I think we have to take his word for it. The requirements are so fundamentally different that a CX-X derived airliner would probably be badly compromised. Looking at the proportions and shapes of the Boeing CX-X, it's hard not to see a strong family resemblance though. I suspect that it's a function of individuals applying experience gained on a previous program to similar problems.
