Early concepts for Avro Vulcan

fredgell

ACCESS: Confidential
Joined
Jun 10, 2007
Messages
78
Reaction score
16
I did a quick search and couldn't find a current topic to stick this in.

In the site

http://www.kosmoid.net/technology/hamilton

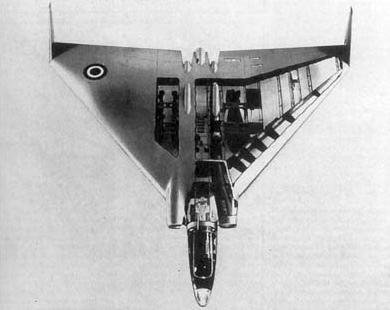

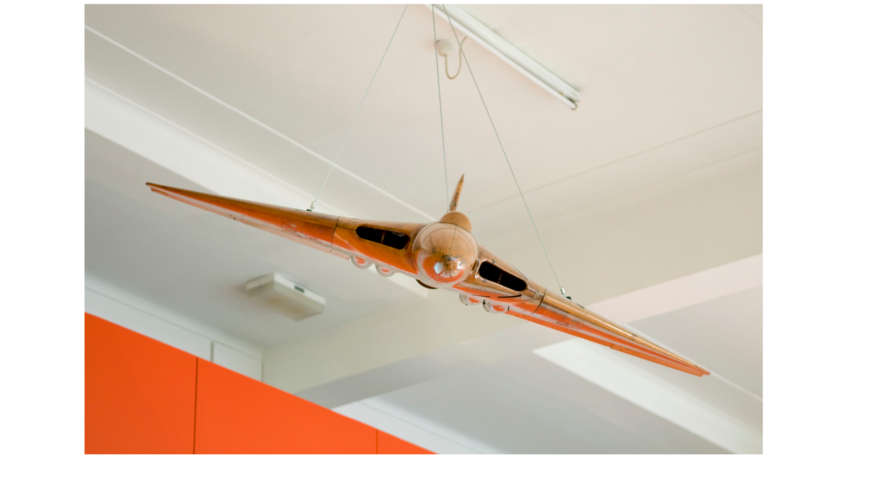

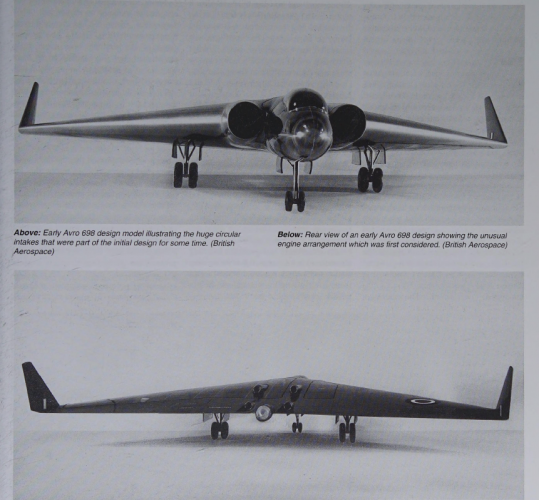

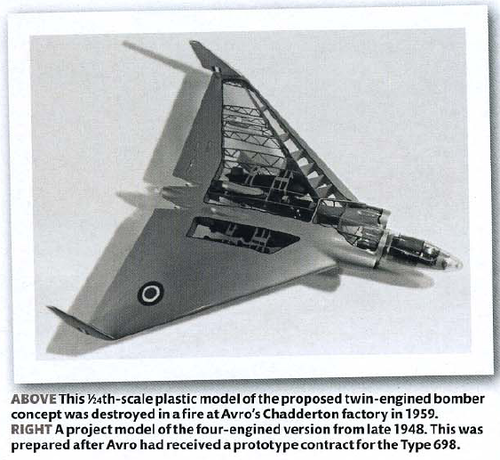

there is a picture of an early Vulcan model - one I've not seen previously.

May be old news - in which case my appologies - but here is a low res copy
grabed from the page.

Fred


Attachments

  • early vulcan model - low res.jpg
    early vulcan model - low res.jpg
    19.1 KB · Views: 1,825

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,643
Reaction score
6,510
Hi,

http://www.wingweb.co.uk/aircraft/The_Avro_Vulcan.html


Attachments

  • 691.JPG
    21.3 KB · Views: 1,004

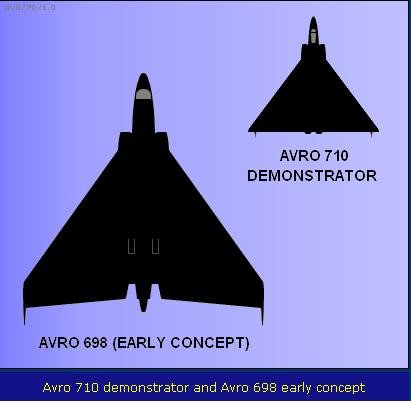

  • 698 and 710.JPG
    698 and 710.JPG
    17.7 KB · Views: 929

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,664

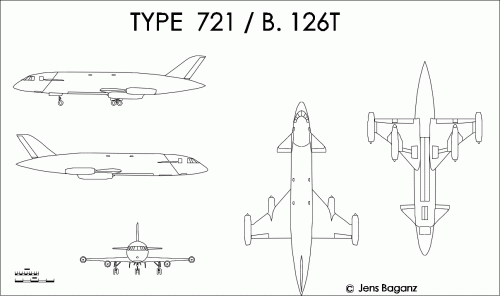

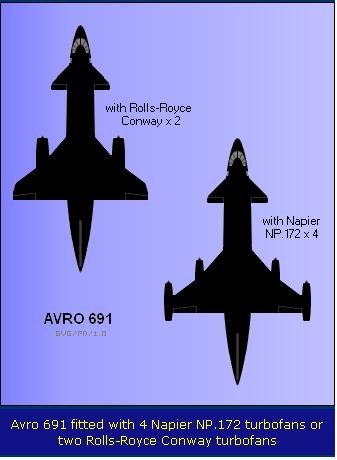

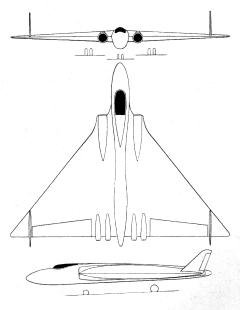

The 691 looks very similar (identical ?) to the 721, designed for B.126T, which
in fact led to the TSR.2. Couldn't find the 691 elsewhere, can anybody give a clue ?


Attachments

  • Avro_721.GIF
    37.2 KB · Views: 1,072

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
126
As far as I know , Avro type 691 was the Lancastrian, a development
of the Lancaster Mailplane of 1943.....


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,664
Well, Google is your friend ...
Now it's clear, that I couldn't have found it in "Project Cancelled" or "British Secret
Projects" ! Thank you Paul !
I hope, I learned my lesson :Never carelessly believe in unknown websites !


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
126
Agree Jens, the people who made the site have to do
their homework again.
Not only Google ,but a quick browse in a few Avro books
produced the same results about the 691...


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,555
Reaction score
1,288
Great find, hesham! :eek: B)

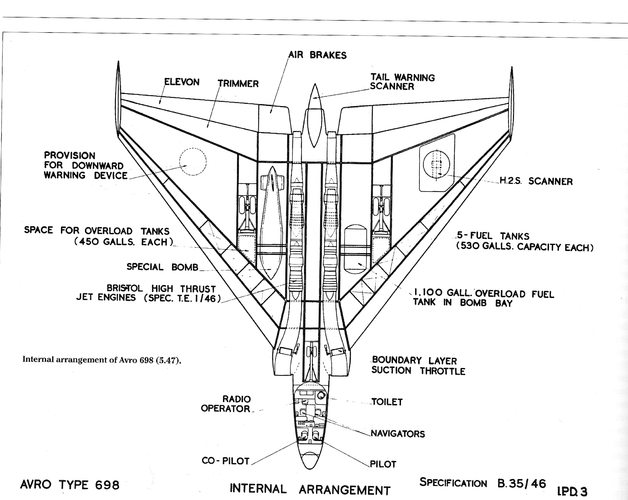

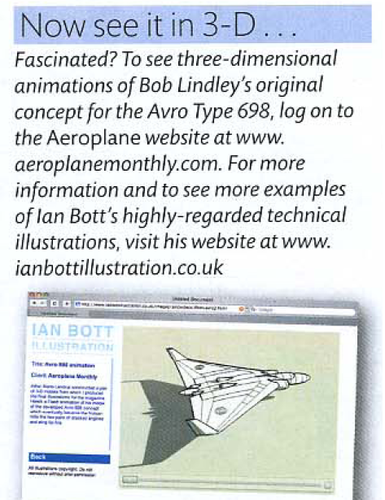

Click here to see animations of the above concept, and of the “final” version of the Avro 698 as it appeared in the tender brochure of April 1947.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
220
Website
www.hitechweb.genezis.eu

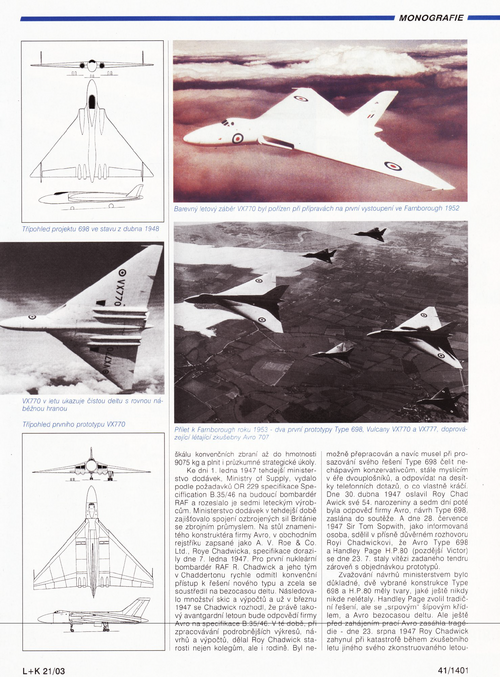

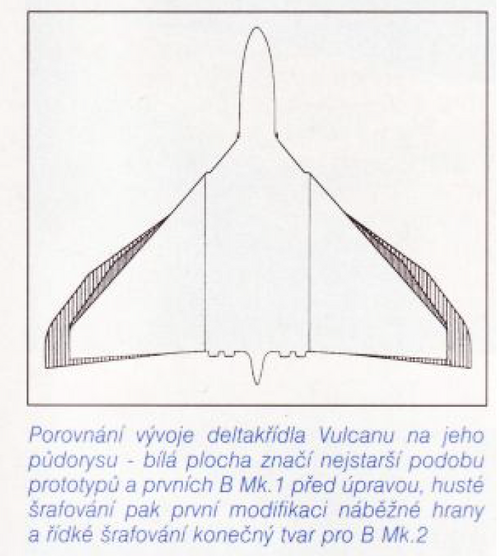

http://www.hitechweb.genezis.eu/flyingwing4b.htm (From the article in one of the L+K magazine issues. I will take a look which one.)


Attachments

  • image008.jpg
    7.6 KB · Views: 292
  • image006.jpg
    14.5 KB · Views: 292

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,104
Website
deeptowild.blogspot.com

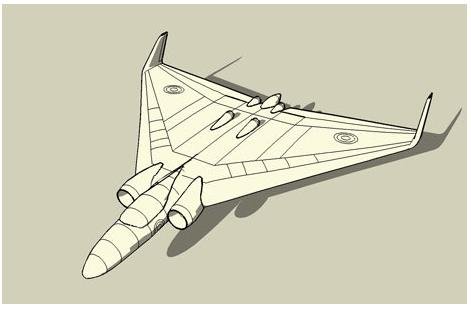

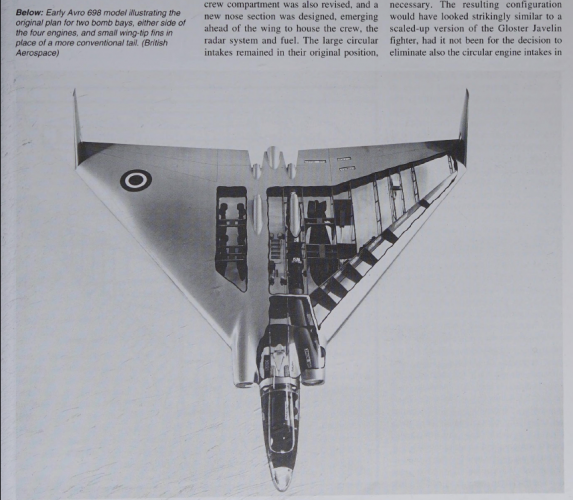

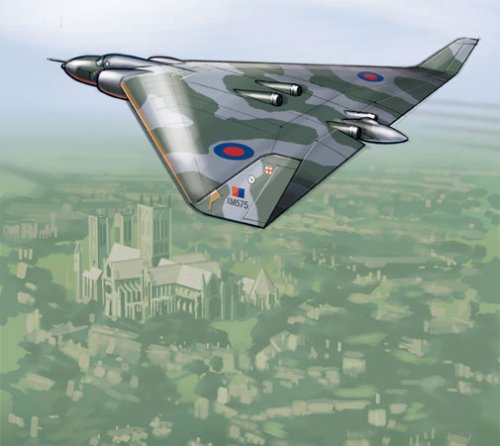

Artist's impression of Avro 698 by Ian Bott for Aeroplane magazine.

Source:
http://www.ianbottillustration.co.uk/images/avrovideos/Port-avro-main.html


Attachments

  • 698-Large.jpg
    39.4 KB · Views: 352

PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
960
Reaction score
662

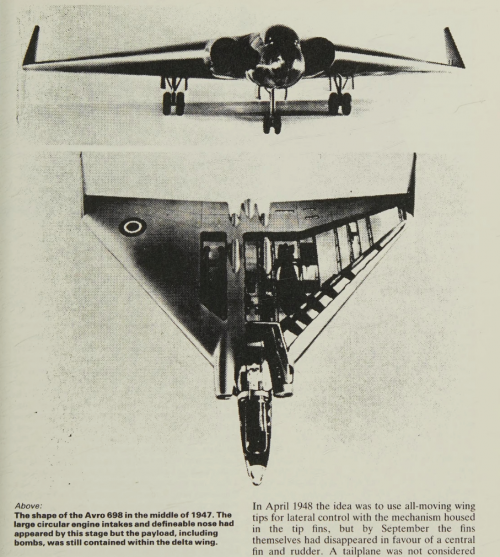

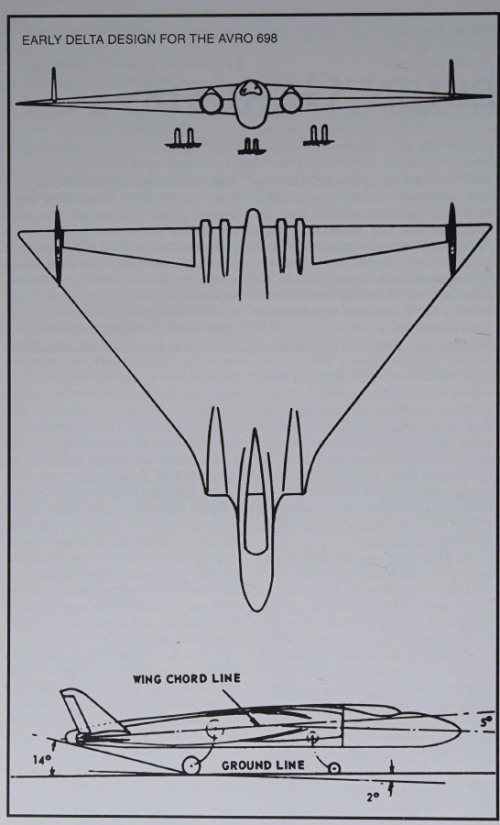

What was the reasoning for changing from the tip fins of the original 698 design and going for a central fin and rudder in the production Vulcan?


shedofdread

ACCESS: Top Secret
Joined
Nov 14, 2009
Messages
521
Reaction score
230
Can't comment on why Avro did what they did but [in general] with a central fin, you get a favourable yaw interaction when a roll is commanded. Also, the wings no longer have to carry the mass of the fins. Equally though, tip fins mitigate the effects of tip vortices. Compromises, compromises... ;)


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,120
Reaction score
699
ISTR reading somewhere, not sure where ATM, sorry, but I think it was in an 'Aeroplane Monthly', an article in which the Great Gunston stated that the switch to a central fin was made, in order that, should there be a problem with the longitudinal trim, a tailplane could be fitted, giving a similar configuration to a Javelin.
I'll try and find it, once I've got my PC working properly again...

cheers,
Robin.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
890
Topic name changed. It is obvious that the so-called "Avro 691" was in fact the Avro 721 (the Avro 691 was the Lancastrian C.I).


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,400
Hi!


Attachments

  • 02-Genesis-67-1466009459.jpg
    68.1 KB · Views: 195

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,400

Attachments

  • minicasestudyvulcan.pdf
    2.4 MB · Views: 33

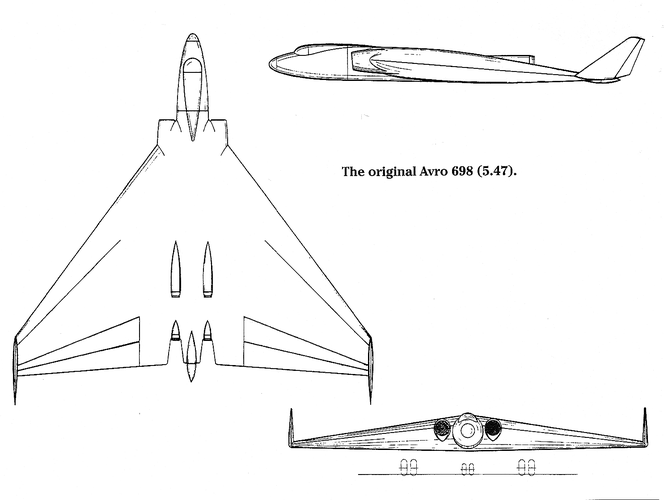

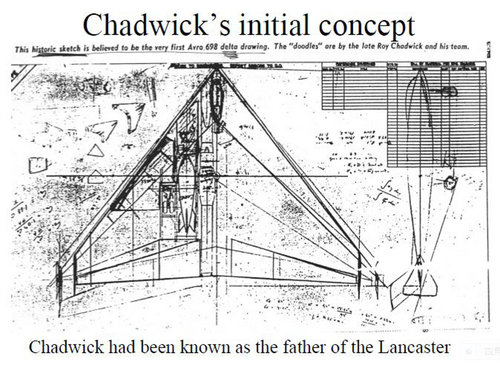

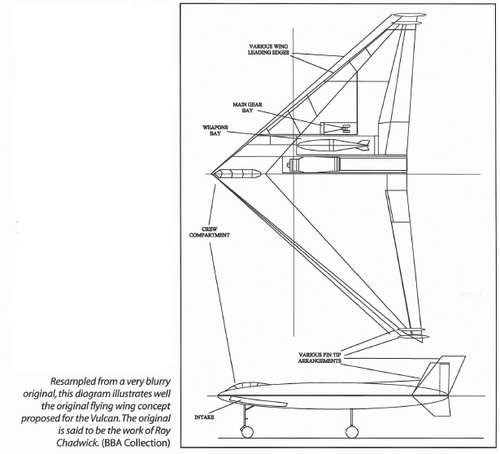

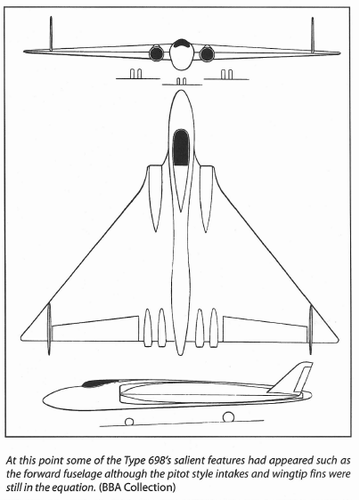

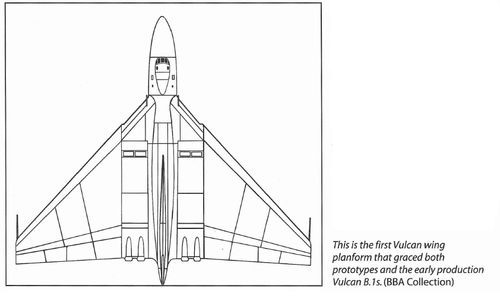

  • Initial concept.JPG
    Initial concept.JPG
    271.2 KB · Views: 169

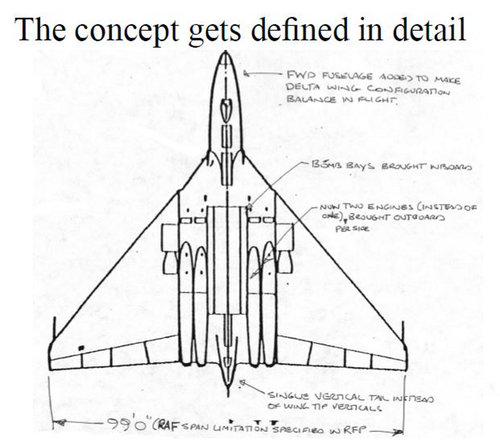

  • The concept gets defined in detail.JPG
    The concept gets defined in detail.JPG
    168.6 KB · Views: 184

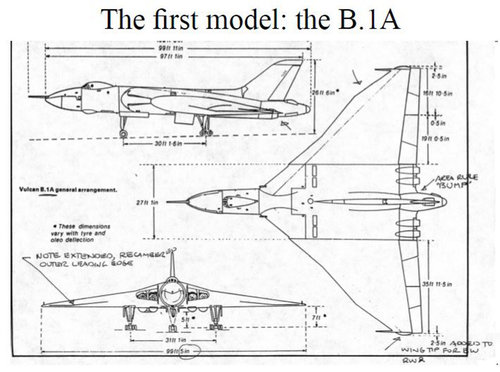

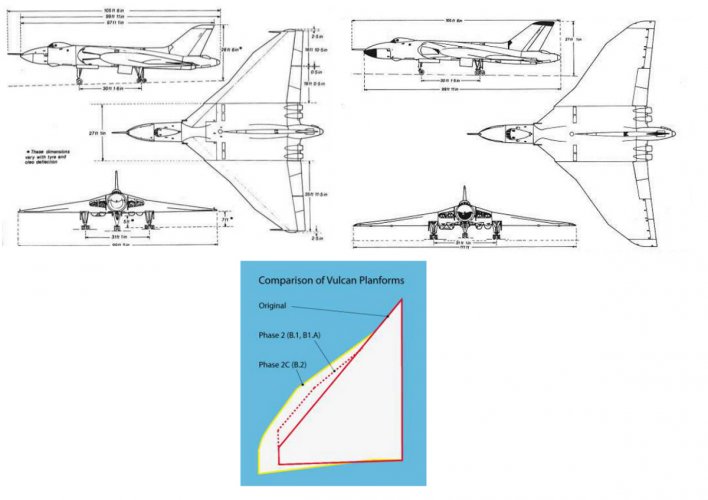

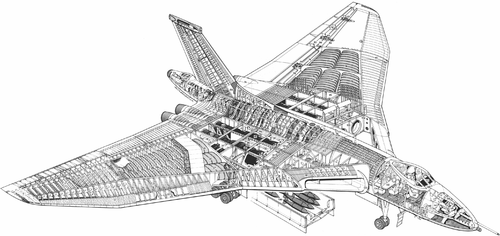

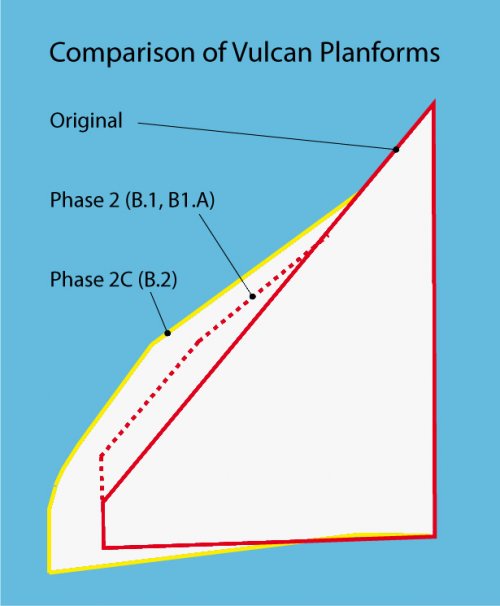

  • B1A.JPG
    176.4 KB · Views: 194

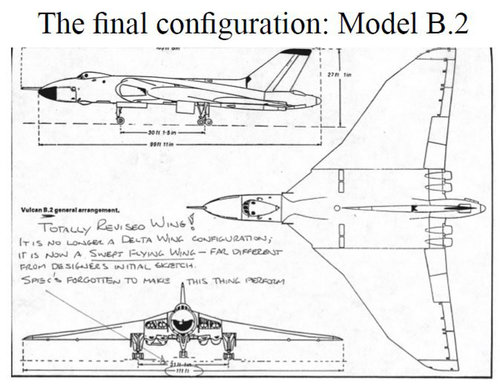

  • B2.JPG
    179.9 KB · Views: 243
Last edited by a moderator:

Wyvern

ACCESS: Top Secret
Senior Member
Joined
Jan 25, 2020
Messages
926
Reaction score
1,219

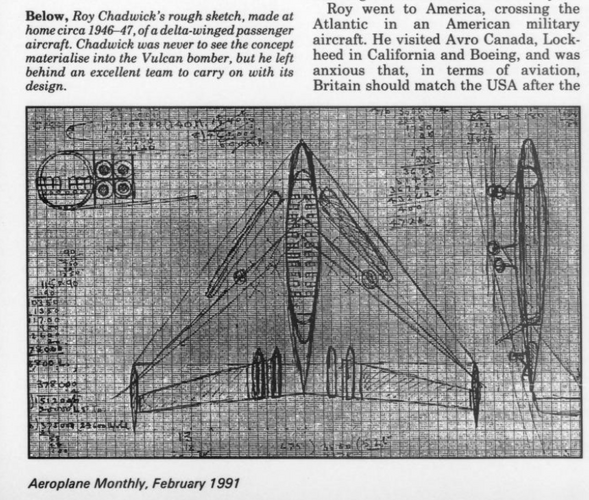

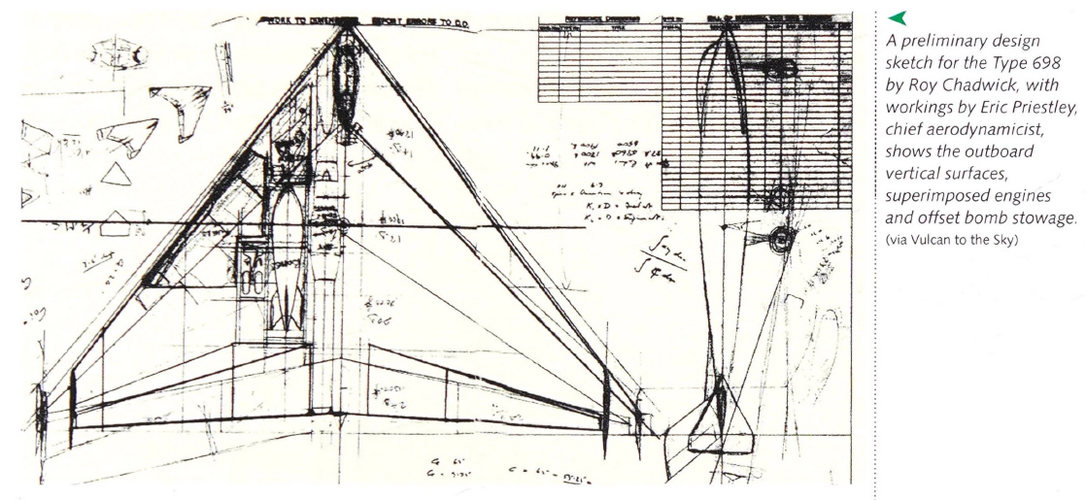

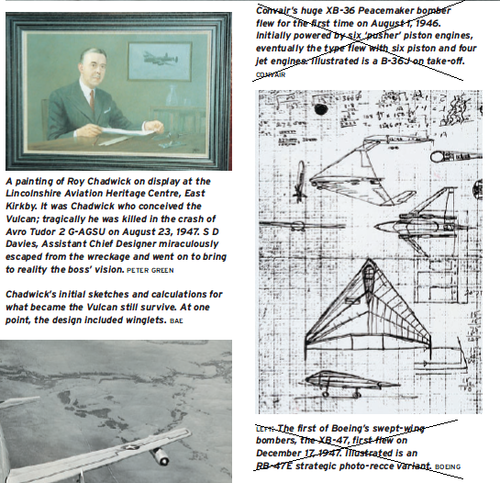

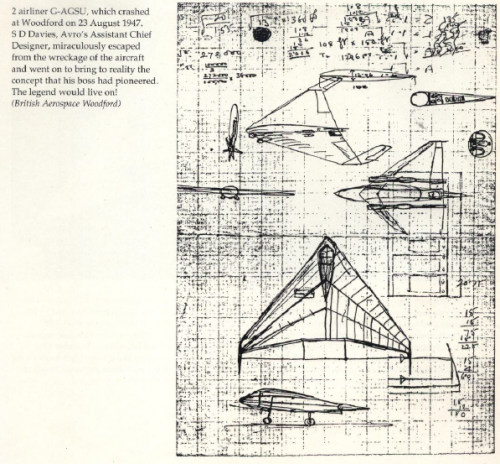

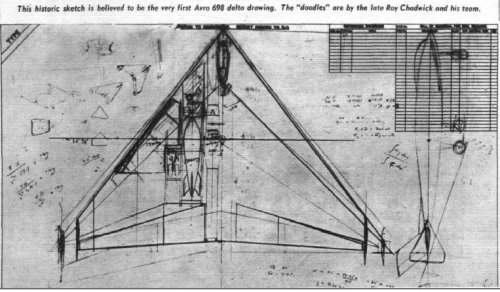

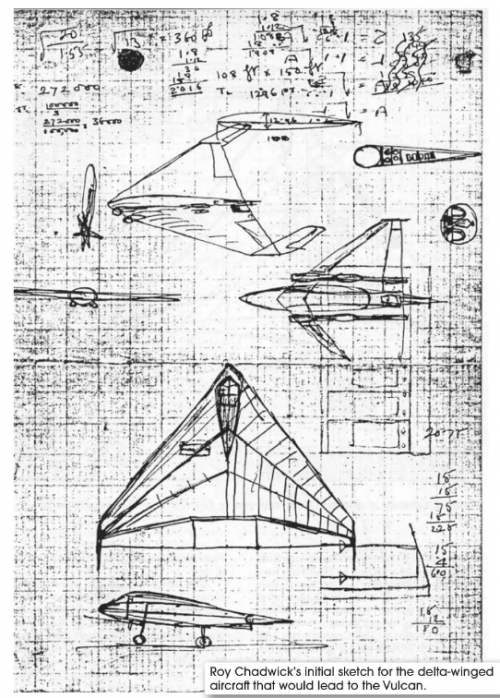

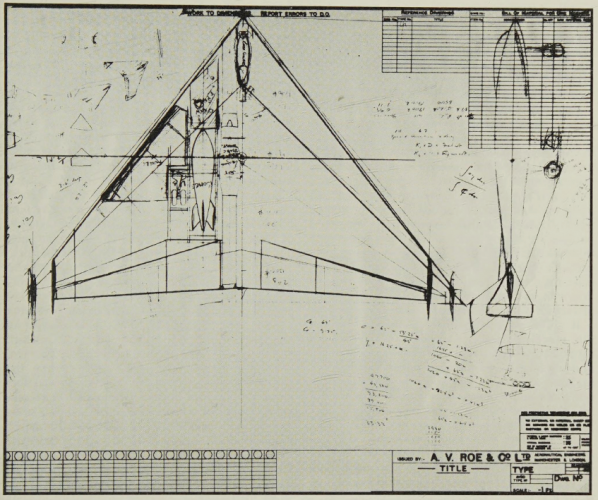

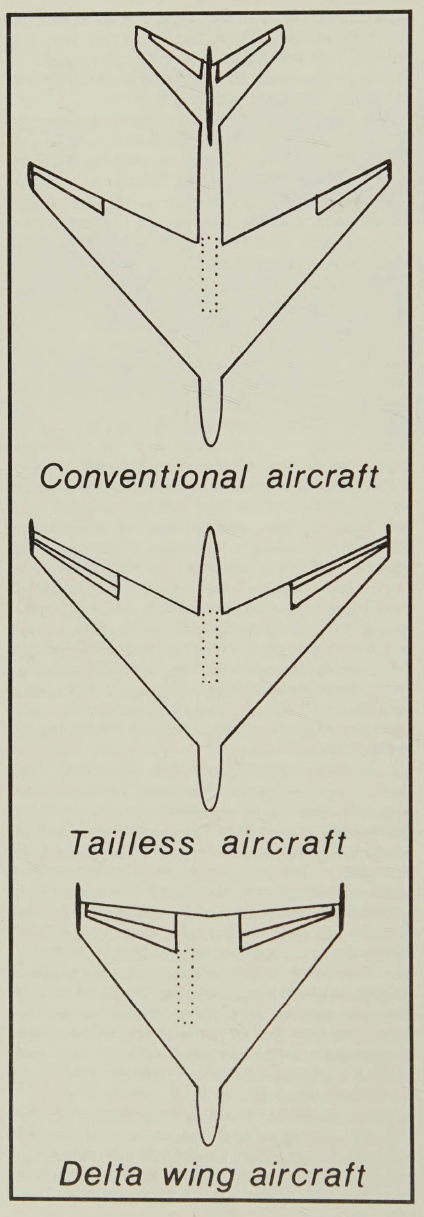

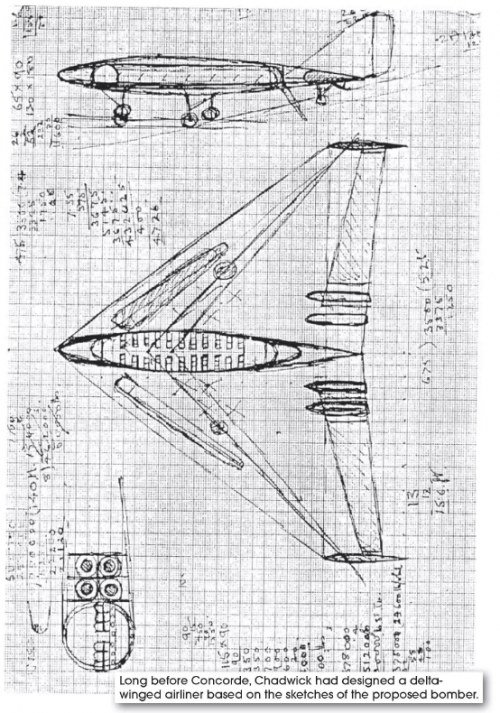

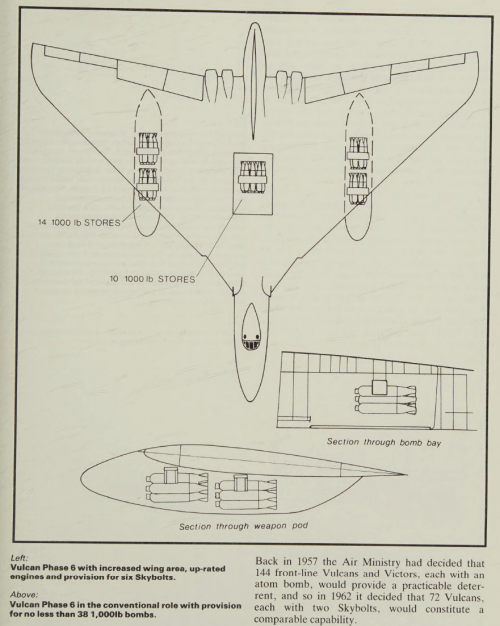

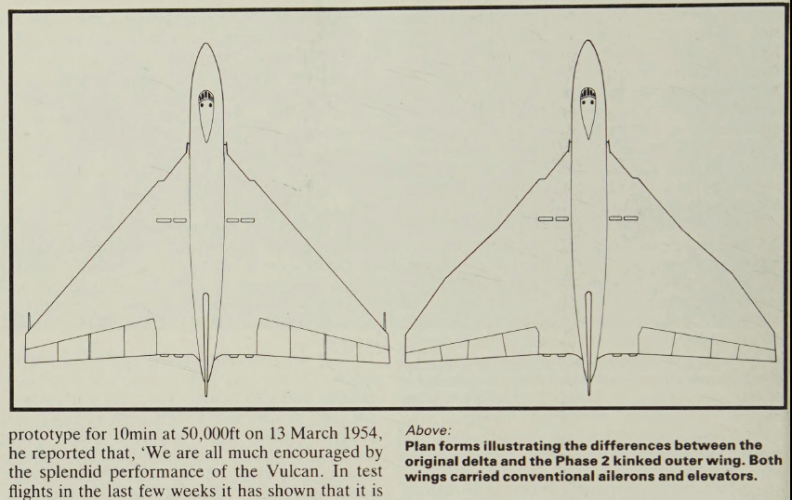

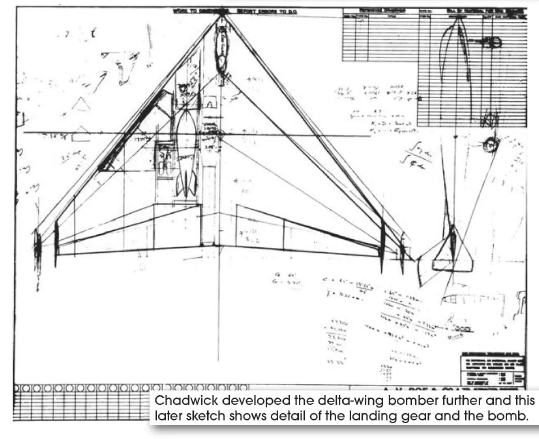

I remember seeing an early concept "drawing" that Roy Chadwick drew on a napkin. From what I remember, instead of having standard intakes, it had one large intake with a moving splitter. I'll try to find where I found it, and then message later.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,400
Hi!
https://www.key.aero/article/paving-way

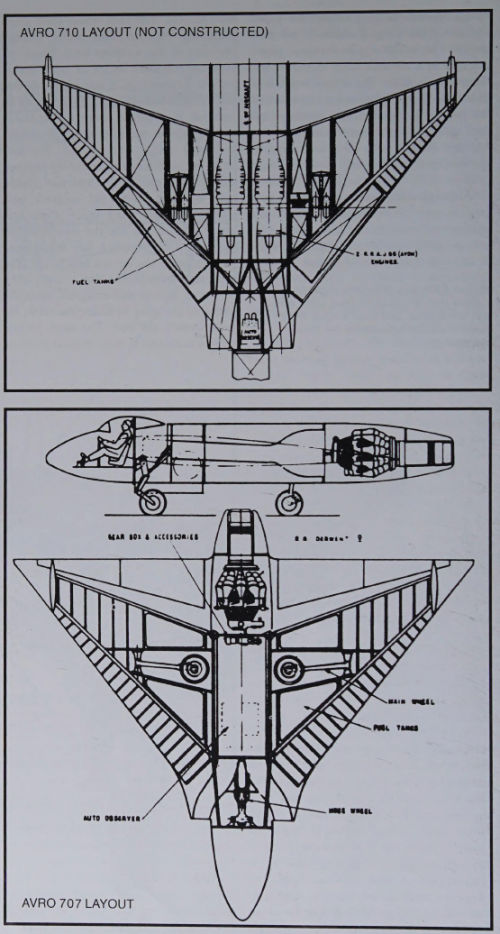

As Avro had no flight experience of the delta wing, the company planned two smaller experimental aircraft based on the 698, the one-third scale model 707 for low-speed handling and the one-half scale model 710 for high-speed handling. Two of each were ordered. However, the 710 was cancelled when it was considered too time-consuming to develop


Attachments

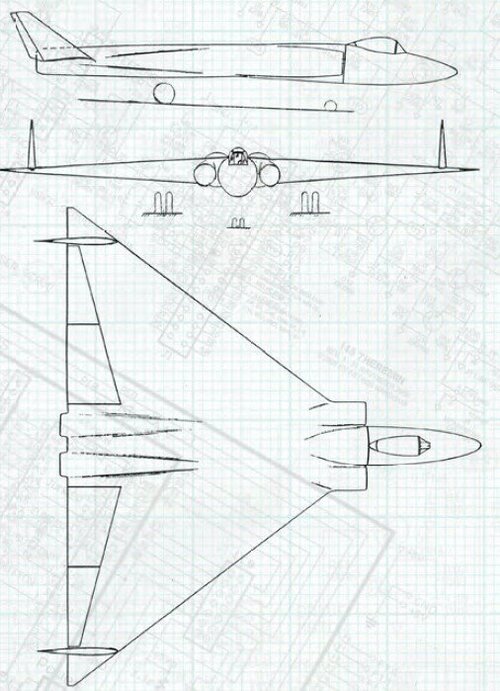

  • Layout of the unbuilt Avro 710.jpg
    Layout of the unbuilt Avro 710.jpg
    72.5 KB · Views: 79

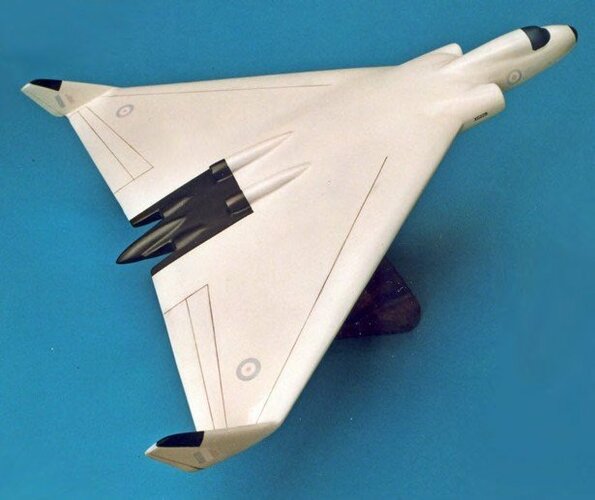

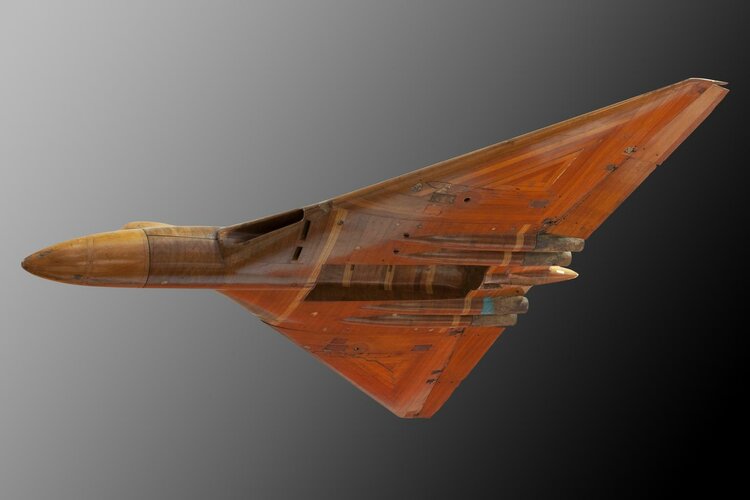

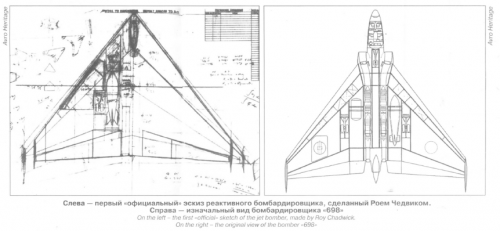

  • Model of the Avro 698 as first proposed to B3546.jpg
    Model of the Avro 698 as first proposed to B3546.jpg
    40.4 KB · Views: 88
Last edited:
