Dutch flying wing

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322

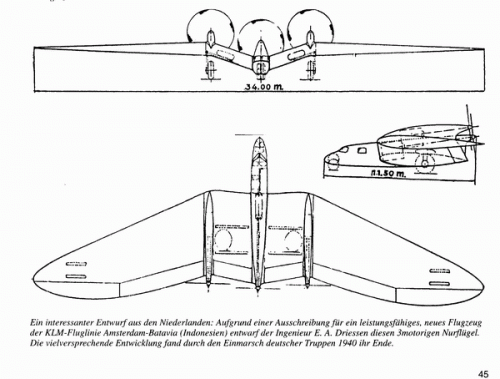

A 3-engined design made by the dutch engineer E.A.Driessen before the war for a
requirement of the KLM for the Amsterdam - Batavia route. Anyone with more informations
about it ?
(From Waffenarsenal special issue 18)


Attachments

  • E-A_Driessen.GIF
    59.6 KB · Views: 719

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
108
The Driessen design was the winning contender (of 3) in a late 1939 competition for a possible K.L.M.
long range passenger/mail aircraft.
The plane must be able to fly non-stop from Amsterdan in The Netherlands to Batavia
in the Dutch East Indies, now Djakarta in Indonesia.

The contest was organised by the 'Comité Vliegtocht Nederlands Indie'
(Committee Flight to Dutch India)
Several designs were judged by the Royal Dutch Insitute for Enineers.

3th desgin by Cremer.A conventional 4 engined aircraft with Diesel engines.
2th design by Van Lammeren.This was an aircraft with two cockpits.
One in the nose for take-off and landing and a second cockpit within the
pressurised main cabin for long distance flights above the weather.
1st and winning design, the Driessen Flying Wing.
E.A.Driessen was chief engineer of the research department of the K.L.M.

Unfortunately , Europe was at the eve of WWII and the flying wing design
never came to the hardware stadium.

some specs:

lenght:11.50m
span : 34m
height : 3.70m
wingsurface : 175m2
total weight : 17.500kg
cruising speed :328km/h
max .range : 20.000km
powered by 3 Junkers JUMO diesels. type and performence not known.

source : summary from an article in the Dutch magazine 'Vliegwereld 1939'


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
607
Reaction score
146

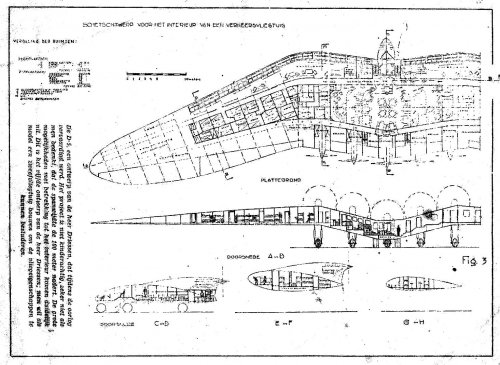

Driessen also designed a 5-engine flying-wing transport aircraft, his D-5.
Source: "Vliegwereld" magazine, March 15, 1948


Attachments

  • Driessen004.jpg
    371.9 KB · Views: 710

burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
81
Reaction score
38
Very interesting.

Had E.A.Driessen some connections with Gerard Driessen, founder of Driessen aerospace? http://www.driessen.com/pub/corporate/history/index.html?

And what company planned to build such unusual aircraft?


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
607
Reaction score
146
BTW somebody knows Driessen's full first names (i.e. E.A.) ?


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,423
Reaction score
848
How many air miles from Amsterdam to Batavia (Jakarta)?

That task was eventually assigned to Douglas DC-2 conventional airliners.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,987
Reaction score
112
A minor observation: The famous flying wing in Indiana Jones had a number of strikingly similar traits (gull wing, pusher props). So it is interesting to see a legitimate historical proposal for a similar design.


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
996
Reaction score
475
Retrofit said:
BTW somebody knows Driessen's full first names (i.e. E.A.) ?

A quick search didn't turn up anything. I found some newspaper articles on that competition, but no first names for the entrants.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
Hi,

here is a more info about Driessen Flying Wing Project.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201941%2002.pdf


Attachments

  • 1.png
    657.1 KB · Views: 219

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
Retrofit said:
Driessen also designed a 5-engine flying-wing transport aircraft, his D-5.
Source: "Vliegwereld" magazine, March 15, 1948

My dear Retrofit,

for this project,what was the number of passengers it could load ?.
