Drake-Carman two stage vehicle

hesham

ACCESS: USAP
Senior Member
Joined
26 May 2006
Messages
33,295
Reaction score
13,162
Hi,

http://www.hq.nasa.gov/pao/History/x15conf/history.html


Attachments

  • ihi-21.jpg
    13.8 KB · Views: 76
Hesh,

I'm pretty sure that was the proposed Mach 10 demonstrator. It's in Dennis Jenkin's "Space Shuttle". Good read if you have a chance to get it.

Moonbat

And I quote from Space Shuttle by Dennis Jenkins (1996 ed.):

" a vehicle with a 100,000 pound gross weight could obtain Mach 6.4 at 660,000 feet and have a sustained seed of Mach 5.3 for over one minute. The vehicle would be rocket-powered, burning liquid oxygen and water-alcohol propellants. Using this as a carrier aircraft, a vehicle the same general size and weight of the Bell X-2 could be launched at Mach 3.0 and 50,000 feet, attaining speeds up to Mach 10.0 at altitudes approaching 1,000,000 feet. It was felt that a duration time of one minute over Mach 8.0 would be achievable by this second stage."

Moonbat

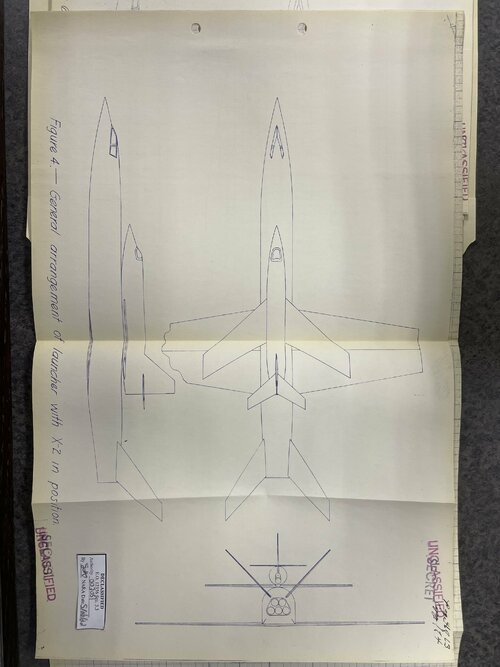

Here is the actual drawing from the 1952 NACA proposal, "A Suggestion of Means for Flight Research at Hypersonic Velocities and High Altitudes" by Hubert M. Drake and L. Robert Carman. As shown, everyone can clearly see that the Drake Carman launcher proposal originally had the Bell X-2, not the X-15 as many assume with the drawing published on pdf page 110 of The Hypersonic Revolution Volume 1 (which shows the later and watered-down 1953 proposal) also shown in John Anderson's booking on Hypersonic and High Temperature Gas Dynamics.

The Mach 10 demonstrator was a different vehicle, the NASA Ames version of the NASA High L/D project that later wound up as HYWARDS. NASA Langley also had a version - a Mach 15 glider. The vehicle was written about on pdf page 312 of The Hypersonic Revolution Volume 1. Moonbat, what Mr. Jenkins is quoting there is the second paragraph of the summary of the aforementioned NACA proposal by Drake and Carman.


Attachments

  • IMG_1375.jpg
    1.6 MB · Views: 30
Last edited:

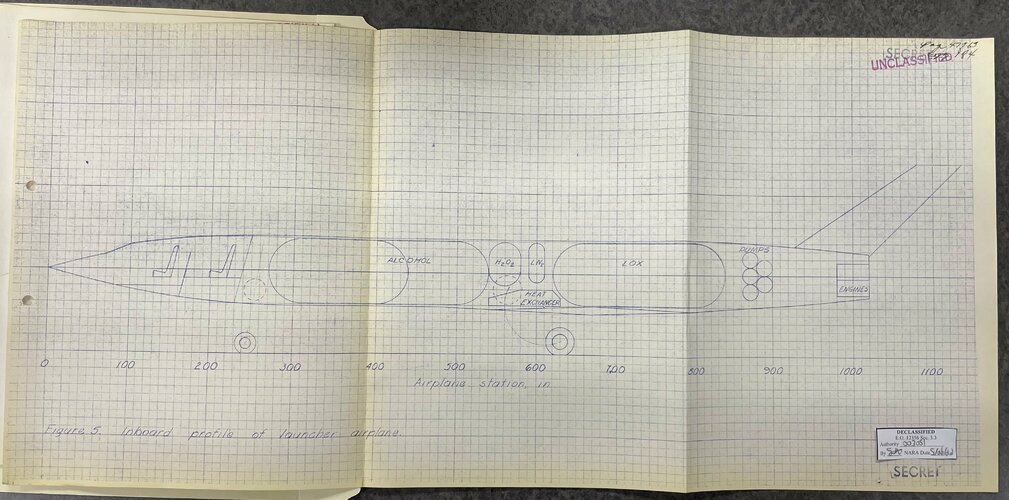

For those who say the Drake Carman Launcher would have been ginormous, what folks in academia need to know is that in the industry, airplanes are measured according to their fuselage stations in inches from the nose. The Anderson book portrays the launcher aircraft as multiple hundreds of feet long, which is incorrect - likely because the scale key is very hard to see in The Hypersonic Revolution Volume 1. Here is the original drawing from the same proposal. The launcher aircraft is over 1,000 inches long, not feet. Please note the declassification slug for both photos.


Attachments

  • IMG_1376.jpg
    1.5 MB · Views: 31
Last edited:
