Douglas MARS Model 2235 aerospaceplane

Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,850
Reaction score
1,054
Website
www.aerospaceprojectsreview.com

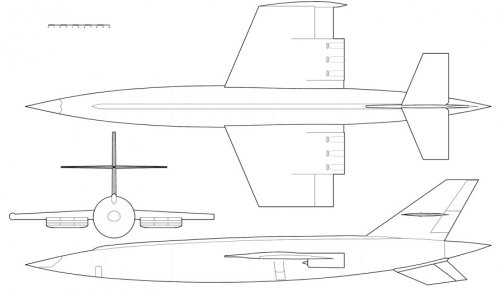

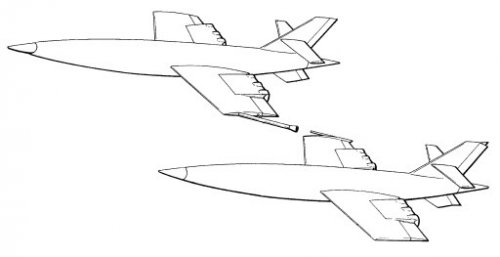

Manned Aerodynamic Reusable Spaceship. Presented by Douglas in 1962 for the Aerospaceplane (ASP) contest. Clearly, someone at Douglas had watched "When Worlds Collide" a few too many times. This was designed not as a true SSTO, but as a twin-ship formation... one carrying payload, the other carrying extra propellant. They would meet up at a speed of Mach 6.5, and the mission aircraft would be refueled. That would, undoubtedly, be entertaining.

This vehicle will be described in greater detail in an ASP article in the V2N5 issue of Aerospace Projects Review.


Attachments

  • asp-Modela.jpg
    41.5 KB · Views: 188
  • asp-Modelb.jpg
    14.6 KB · Views: 194

OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
11
Website
www.io.com
...One has to wonder if someone at Douglas hadn't watched When Worlds Collide just one too many times :-\


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,877
Reaction score
216
They would meet up at a speed of Mach 6.5, and the mission aircraft would be refueled. That would, undoubtedly, be entertaining.

OKay, so you're going to pump large quantities of highly flammable/cryogenic fuel and/or oxidiser through a relatively small bore pipe bathed in the
aerothermal heating from a Mach 6.5 airflow??? ??? :eek:

cheers,
Robin.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,325
Reaction score
1,352

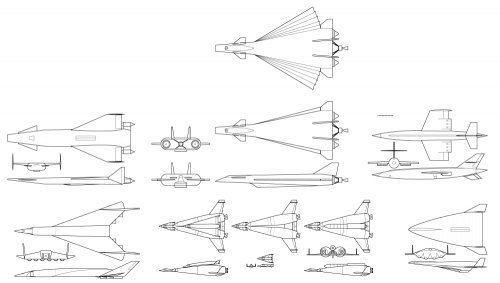

That top one (and it's other views) looks pretty interesting.


royabulgaf

CLEARANCE: Secret
Joined
Dec 29, 2008
Messages
478
Reaction score
49
A Bear of Very Little Brain.....


Re: Douglas MARS Model 2235 aerospaceplane
« Reply #2 on: August 14, 2009, 05:10:00 pm » Quote

--------------------------------------------------------------------------------
Quote
They would meet up at a speed of Mach 6.5, and the mission aircraft would be refueled. That would, undoubtedly, be entertaining.

OKay, so you're going to pump large quantities of highly flammable/cryogenic fuel and/or oxidiser through a relatively small bore pipe bathed in the
aerothermal heating from a Mach 6.5 airflow???

I can just hear the ground controllers as they are watching:

"Ooooooh" "Ahhhhhhhh" "Ooooooooh"


RP1

I see the truth in it.
Joined
Feb 22, 2006
Messages
446
Reaction score
79
Website
rp-one.net
Hmmm, that would make an interesting little CG project. Bodies of revolution and fillet-less fins = easy to model. I'm slightly confused by the engines, though. Are the inlets round or rectangular with a wedge shaped centre body?

RP1


mholt

CLEARANCE: Restricted
Joined
Sep 16, 2008
Messages
5
Reaction score
0
Could this one have been tested by the NACA:
Title: Longitudinal aerodynamic characteristics at transonic speeds of a complete model with an unswept wing and a sweptback horizontal tail at two vertical locations
Author(s): Hieser, Gerald; Kudlacik, Louis
Abstract: No Abstract Available
NASA Center: Langley Research Center
Publication Year: 1955
Document Source: CASI
Online Source: View PDF File
Document ID: 19930088858
Accession ID: 93R18148
Publication Information: Number of Pages = 28
Report Number: NACA-RM-L55F30


mholt

CLEARANCE: Restricted
Joined
Sep 16, 2008
Messages
5
Reaction score
0
I thought it might be a staring point. Before ventral fins became popular.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,012
Reaction score
1,578
Hello all

See attached two documents... seems that "supersonic refueling" studies in 1959 considered the "wing tip to wing tip " method. Now what is intriguing, is that the exact same method was considered for Aerospaceplane and "hypersonic refueling" some years later - see the pictures in the first post here. Douglas Model 2235 was to use that trick.

Was there any connection between the two ?


Attachments

  • CIA-RDP33-02415A000500390101-1.pdf
    198.2 KB · Views: 22
  • suhler2009.pdf
    6.3 MB · Views: 17
