Dornier Do-212 Experimental Seaplane

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
972
Reaction score
432

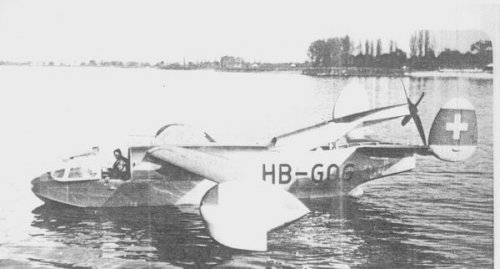

I was looking for additional information on the Do-212 developed by the Germans and the Swiss during WWII.

The unique pusher configuration may have been an effort to move the thrust-line symetrically along the longitudinal axis and through the CG, minimizing pitch changes with power changes. Note small propeller for water clearance.

Also, does anyone know what the mission for this aircraft would have been. Developed under a German directive and developed during wartime I imagine that it would have been for SAR missions or maybe agent infiltrations. However, the range may have been greatly reduced due to fuel capacity. Just a guess.

Description:
"The Do 212 from the "A.G. für Dornierflugzeuge", the Swiss Dornier works at Altenrhein, was a design for a small 4-seat amphibian according to German requirements. It was of a modern all metal construction, fitted with a 450 hp Hirth HM 512-B-0 air-cooled engine just aft of the cabin, driving a four-bladed pusher propeller through an extension shaft. To protect the propeller against splash water during take-off, the shaft could be tilted upward through 12°. Construction started in 1941 and in late July 1942 the aircraft was ready for test flight. On August 3, Egon Fath made a few attempts to start from the water, but these failed. A Do 24 was used to tow the Do 212 and it finally flew, however instability forced the pilot to ditch just after take off. Further trials ended in the same way and development was terminated. It was scrapped in 1943."





Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
Development actually started in 1938 and the aim was to develop a civil
light transport, a kind of successor to the Do 12 Libelle III. Work was done
in Althenrhein/Rorschach, the swiss branch of Dornier. The RLM wasn't
too much interested, the first and only flight revealed, that the aircraft was
underpowered and in 1943 the project was axed.

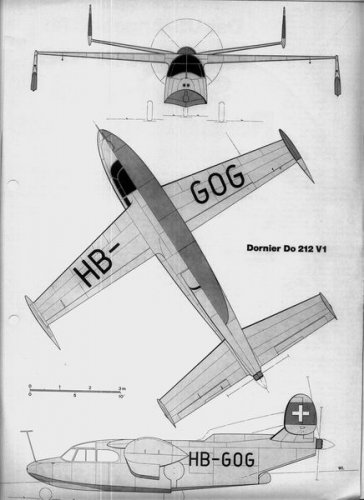

(3-view from FlugRevue 3/74)


Attachments

  • Do-212.JPG
    38.9 KB · Views: 182

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
972
Reaction score
432
Thanks Jemiba...and great three view. Its and interesting configuration, I don't think I've ever seen pontoons like these before.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
I think, the wingtip floats were used aerodynamically as endplates.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,068
Reaction score
4,154
Hi Aerodynamic engineers!
Please show us what wrong part is!
Dornier didn't do wind tunnel test?
I feel wing is small and horizontal tail stabilizer is large.
What is the effect of wing tip floats and variable angle propeller shaft for instability?


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,371
Reaction score
385
many things could be wrong, but usually these things are traced back to an unfavorable position of the cg with respect to the center of lift. I am surprised by the relative sizes on wing and tail, the latter being quite large, but usually that has a positive effect on longitudinal stability. Maybe it denotes an unsuccessful attempt to fight a rearward cg due to the engine placement in the tail, which is destabilizing.
I don't know about the tilt-shaft, but one thing is sure: if the thrust line does not pass through the cg, there will be pitch moment changes with power application.

Regarding the endplate effect of the floats, I wonder if their use was already known at that time. It strikes me as suspect, but maybe someone can clarify this :)


Gannet

ACCESS: Restricted
Joined
Mar 18, 2008
Messages
42
Reaction score
8
My first impression is that maybe it is designed to be a forerunner to a Wing in Ground Effect aircraft and that the large horizontal stabilizer is for greater pitch authority.

But probably the design intent was shorter alighting run

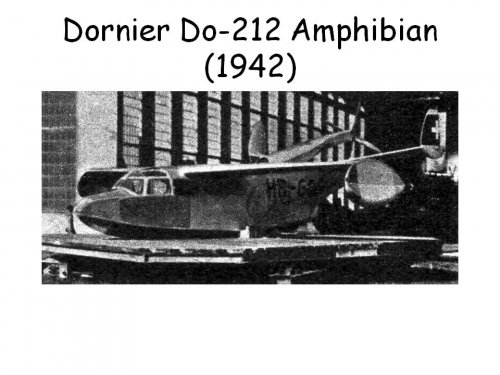

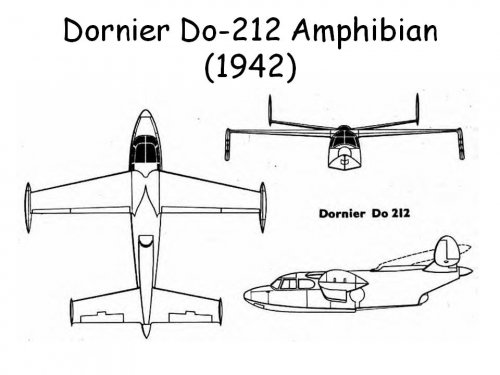

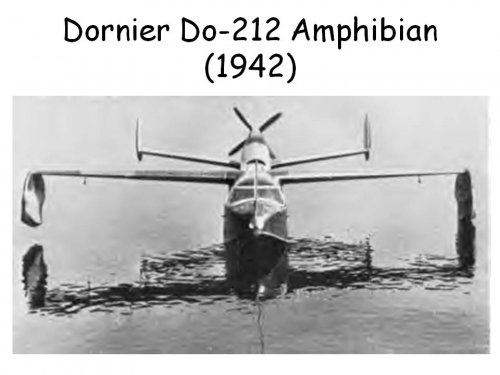

Also the picture of the actual aircraft and the model do not appear to match the prop on the model is underneath the horizontal stabilizer


Attachments

  • Dornier Do-212 Amphibian.jpg
    Dornier Do-212 Amphibian.jpg
    49.1 KB · Views: 127
  • Dornier Do-212 Amphibian 2.jpg
    Dornier Do-212 Amphibian 2.jpg
    80.9 KB · Views: 107
  • Dornier Do-212 Amphibian 3.jpg
    Dornier Do-212 Amphibian 3.jpg
    45.6 KB · Views: 91

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,068
Reaction score
4,154
AeroFranz said:
many things could be wrong, but usually these things are traced back to an unfavorable position of the cg with respect to the center of lift. I am surprised by the relative sizes on wing and tail, the latter being quite large, but usually that has a positive effect on longitudinal stability. Maybe it denotes an unsuccessful attempt to fight a rearward cg due to the engine placement in the tail, which is destabilizing.
I don't know about the tilt-shaft, but one thing is sure: if the thrust line does not pass through the cg, there will be pitch moment changes with power application.

Regarding the endplate effect of the floats, I wonder if their use was already known at that time. It strikes me as suspect, but maybe someone can clarify this :)
Many thanks AeroFranz!
Yes main wing position is little too forward.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,068
Reaction score
4,154
Gannet said:
My first impression is that maybe it is designed to be a forerunner to a Wing in Ground Effect aircraft and that the large horizontal stabilizer is for greater pitch authority.

But probably the design intent was shorter alighting run

Also the picture of the actual aircraft and the model do not appear to match the prop on the model is underneath the horizontal stabilizer
Gannet! I surprised very much to hear your opinion. You are very sharp eyed,too,


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
Today I had a look into "Dornier : die Chronik des ältesten deutschen Flugzeugwerks"
(Dornier - The chronicleof the oldest german aircraft manufacturer) exactly confirming
AeroFranz suggestion : The large tailplane was an attempt, to put the CG right, which
was positioned too far backwards due to the complicated and heavy engine installation.
In some way, Dornier had unintentionally realised a kind of Delanne design !


Attachments

  • Do-212.JPG
    28 KB · Views: 91

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161

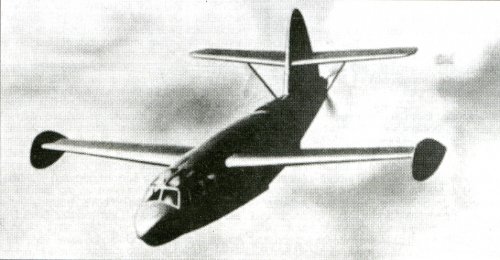

Pictures Do-212 model with a different conception (probably the initial version) /from Aero Revue/
With this form of horizontal tail stabilizer / fin, excluded problematic the possibility of using deflected up the shaft.


Attachments

  • Do-212 (initial).jpg
    Do-212 (initial).jpg
    441.5 KB · Views: 76

richard B

ACCESS: Secret
Joined
Aug 17, 2006
Messages
253
Reaction score
293
quote :

" With this form of horizontal tail stabilizer / fin, excluded the possibility of using deflected up the shaft. "

Maybe not ? :)

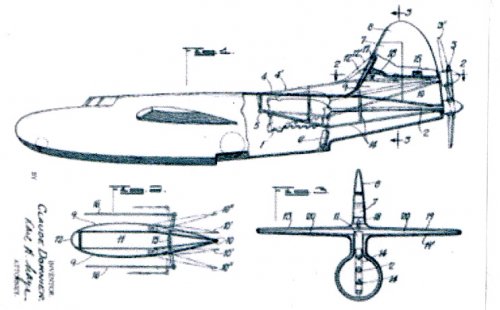

PATENT DORNIER 1939 :


Attachments

  • r.jpg
    110.2 KB · Views: 81

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
386
Reaction score
712

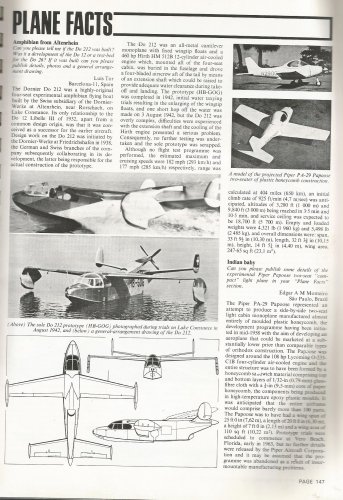

Further to the previous posts, here's the article from the Plane Facts section of Air Enthusiast's September 1973 issue regarding the Dornier Do 212


Attachments

  • Dornier Do 212.jpg
    Dornier Do 212.jpg
    637.4 KB · Views: 129

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
In my files,

and as I know there was more than one concept projected and developed from this beauty
design,can anyone light us ?.


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
42
Thanks for this. Very interesting especially as it's a new one on me.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Flitzer said:
Thanks for this. Very interesting especially as it's a new one on me.

Thank you my dear Flitzer,and I hope someone has a direct Info.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,568
Reaction score
1,051
Dornier 212's main wing looks too small and too far forward. The only it would balance is if the aft horizontal surface provided a substantial amount of lift ala. Delanne.
Also, those vertical fins look too small for yaw stability.

That pusher propeller configuration was based on the Dornier 26.
Dornier 26 had four Junkers Jumo 205 diesel engines pumping out 868 hp. Engine nacelles were mounted at the bend of the gull wings with two tractor and two pusher propellers. Driveshafts on the pusher engines titled up to keep props out of spray during takeoff a and landings. During cruise, they tilted down to horizontal to reduce drag. The Dornier 26 first flew in 1938 and hauled mail across the Atlantic (to South America) until the start of WW2 when most they were pressed into military service.


Kuno

ACCESS: Confidential
Joined
Dec 14, 2008
Messages
78
Reaction score
36
The Do 212 is an absolutely fascinating project - at least for me. Not only the unique pusher configuration but also the that they were using the Hirth HM 512 engine... as far as I know this engine was not used in any other aircraft (I would be happy if somebody could tell me something else).

Above Reply #11 on: December 12, 2009 of Borovik - would somebody know in which issue of "Aero Revue" this artists impression was shown?


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
hesham said:
... as I know there was more than one concept projected and developed from this beauty
design ...

Rear mounted pusher engines, which were tilted upwards for take-off and landing were indeed
proposed by Dornier later in the P340 6-07 design, tendered for the NATO MR requirement (Shown
by Chris in his book "Nimrod's Genesis")


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Thank you my dear Jemiba,

and there was some of them before the end of the WWII.
