Cyclogyros Aircraft

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,


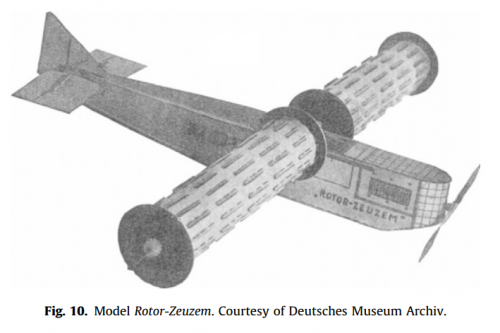

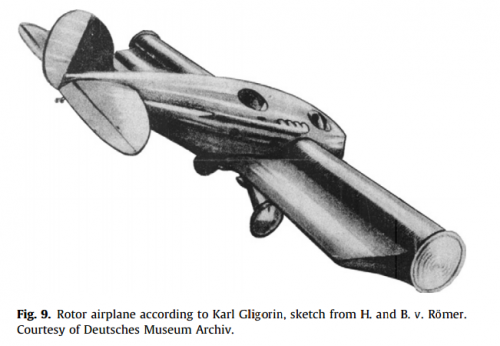

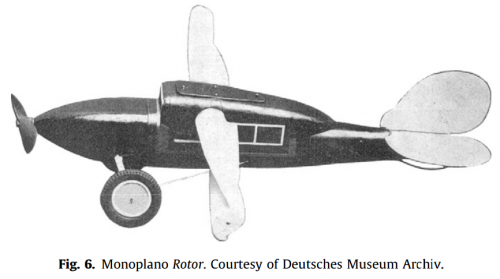

http://www.homepages.ed.ac.uk/shs/Climatechange/Flettner%20ship/Seifert%20Flettner%20apps.pdf


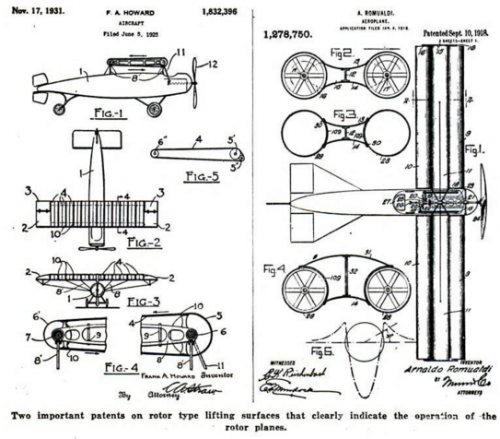

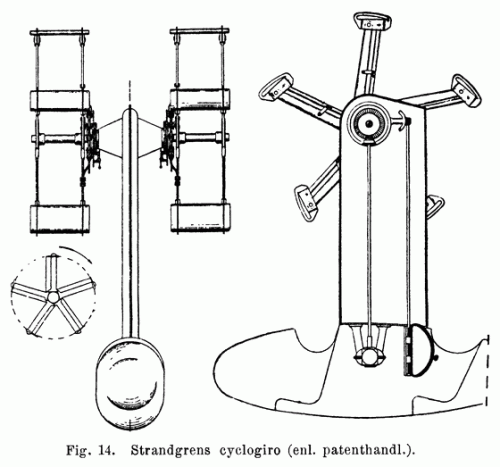

Attachments

  • a.png
    161.1 KB · Views: 254
  • b.png
    148.9 KB · Views: 282

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
16
Hi, hesham


Attachments

  • gravityaeroplane2.jpg
    19.6 KB · Views: 101

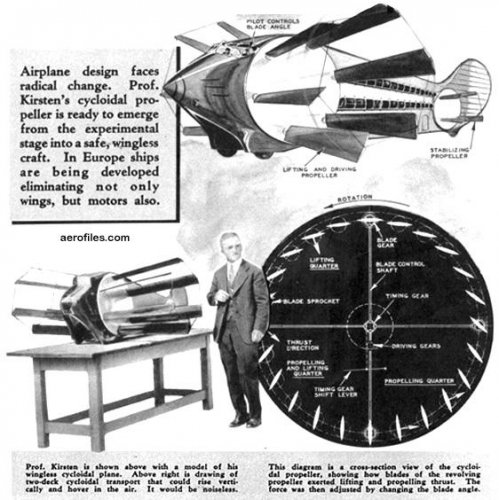

  • kirsten-02.jpg
    65.5 KB · Views: 84
  • images (29).jpg
    images (29).jpg
    10.8 KB · Views: 309

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
One suggestion: since cyclogyros are largely a theoretical technology that never resulted in any production item, indeed hardly a functional prototype even, could this topic be moved to the "Early aircraft projects" section? Thanks.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,116
Seems a bit contradictory to me. We have concepts dating pre-war, but post-war as well, so the
"Early Projects Section"wouldn't be quite correct either, I think. And besides a few unsuccessful
prototypes , we are mostly just talking about concepts and ideas, as for example in the thread
about ornithopters.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
Jemiba said:
Seems a bit contradictory to me. We have concepts dating pre-war, but post-war as well, so the
"Early Projects Section"wouldn't be quite correct either, I think. And besides a few unsuccessful
prototypes , we are mostly just talking about concepts and ideas, as for example in the thread
about ornithopters.

If I'm not mistaken, "Aerospace" is for operational aircraft, for aircraft produced in some numbers, or for information/news about the aviation industry.

This clearly does not apply to cyclogyros. And you said it yourself, "we are mostly just talking about concepts and ideas" here, so it's projects all the way!!

I haven't seen too many postwar cyclogyro projects; but even if there are, what does it matter? It's easy to have two separate "Prewar cyclogyro projects" and "Postwar cyclogyro projects" topics (with links from one to the other) just like we did with rotorcraft, VTOL types and so forth.

Just the two cents of an ex-mod with an obsession for info in its proper place...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

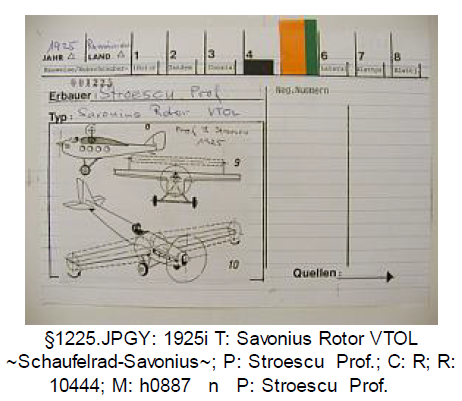

here is a cyclogyro VTOL aircraft projected by Prof. Stroescu.

http://kulturserver-nds.de/home/hubtest/medien/Typenkartei3953xGUN7x9T3Z7.pdf


Attachments

  • 1.png
    190.5 KB · Views: 51

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

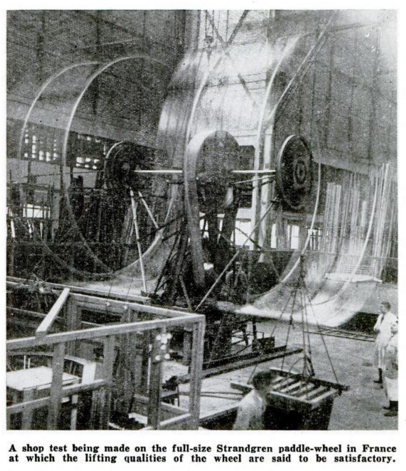

Page 359;

https://books.google.com.eg/books?id=BvhodE-MkyEC&printsec=frontcover&hl=ar&source=gbs_ge_summary_r&cad=0#v=onepage&q&f=false


Attachments

  • 1.png
    901.5 KB · Views: 22

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

https://books.google.com.eg/books?id=dauEiBtVF0AC&pg=PA301&dq=MAKHONINE+AIRPLANE&hl=ar&sa=X&ved=0ahUKEwjZ8JnIqIHLAhVDWhoKHa69BxsQ6AEIIjAB#v=onepage&q=MAKHONINE%20AIRPLANE&f=false


Attachments

  • 3.png
    469.4 KB · Views: 380
  • 2.png
    263.2 KB · Views: 419
  • 1.png
    465.2 KB · Views: 491

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Page 295;

https://books.google.com.eg/books?id=ThbkWrPiQyoC&printsec=frontcover&hl=ar&source=gbs_ge_summary_r&cad=0#v=onepage&q&f=false


Attachments

  • 1.png
    388.1 KB · Views: 285
  • 2.png
    196.2 KB · Views: 258

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Page 19;

https://books.google.com.eg/books?id=IPjZvAltA4UC&printsec=frontcover&hl=ar&source=gbs_ge_summary_r&cad=0#v=onepage&q&f=false


Attachments

  • 1.png
    466.2 KB · Views: 12
  • 2.png
    491.7 KB · Views: 18

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

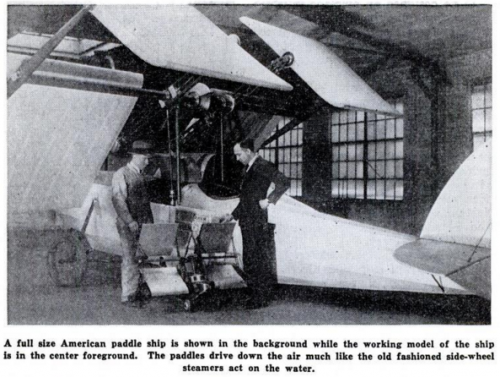

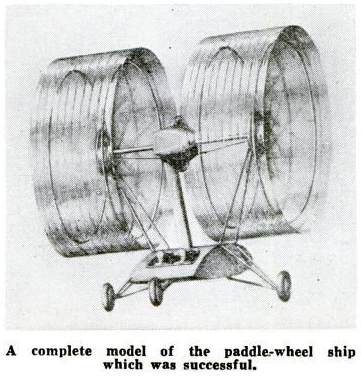

here is a paddle wheel airplane of 1920,invented by Mr. C. E. Brooks.

http://www.aerofiles.com/_bo.html


Attachments

  • brooks-exp.jpg
    39.5 KB · Views: 19

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
hesham said:
http://books.google.com.eg/books?id=EeIDAAAAMBAJ&pg=PA408&dq=rotating-wing&hl=ar&ei=HGgjTOf3NpOOOIaK0LQF&sa=X&oi=book_result&ct=result&resnum=34&ved=0CNEBEOgBMCE#v=onepage&q&f=true

This concept was from the designer Vincent Wisniewski.


Attachments

  • 1.JPG
    27.1 KB · Views: 21
  • 1 (1).png
    1 (1).png
    901.5 KB · Views: 27

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

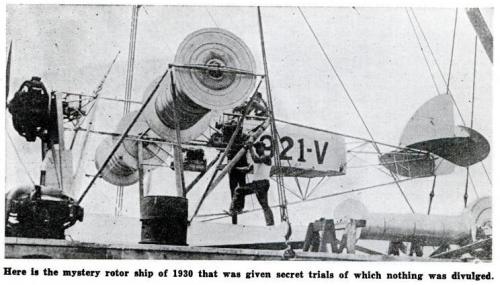

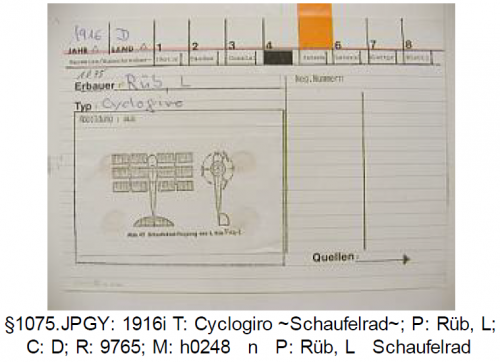

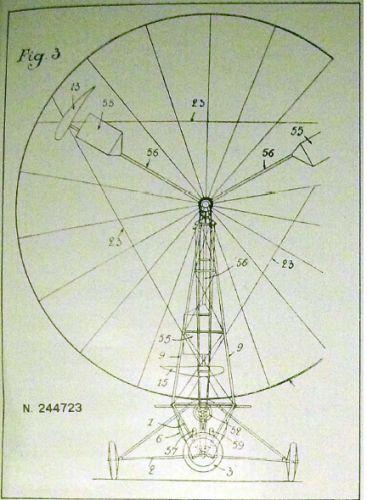

Mr. L. Rüb cyclogyro,page 25;

http://kulturserver-nds.de/home/hubtest/medien/Typenkartei3953xGUN7x9T3Z7.pdf


Attachments

  • 2.png
    274.6 KB · Views: 15

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

Attachments

  • 1.png
    542.9 KB · Views: 15

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

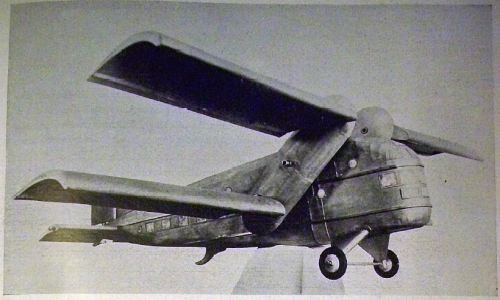

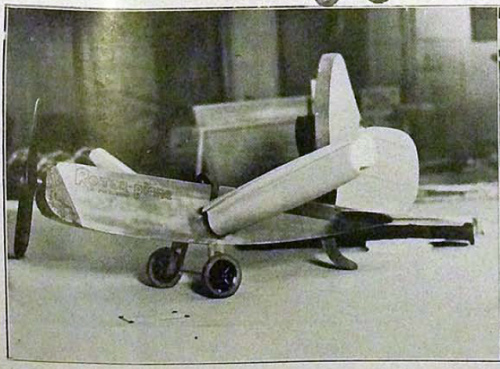

I can't ID this Model.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201929%2008.pdf


Attachments

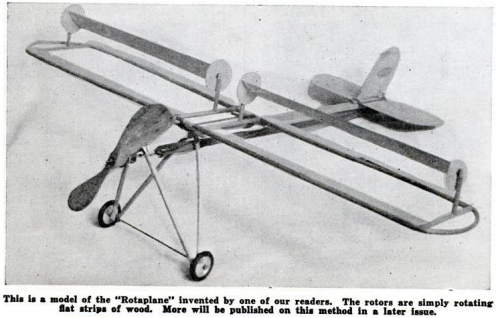

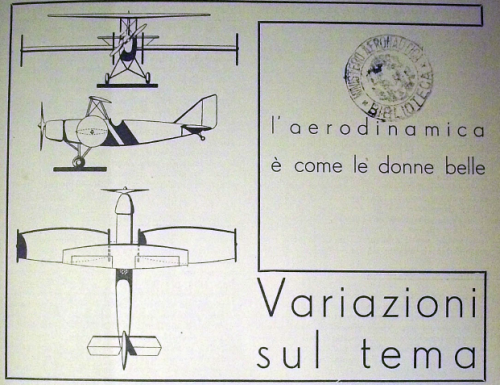

  • 1.png
    694.5 KB · Views: 20

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
41
W.Scotter model airplane showing the Rotor principle .

https://www.flightglobal.com/pdfarchive/view/1929/1929-1%20-%200733.html?search=rotor


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
richard said:
W.Scotter model airplane showing the Rotor principle .

https://www.flightglobal.com/pdfarchive/view/1929/1929-1%20-%200733.html?search=rotor

Excellent my dear Richard,many thanks.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

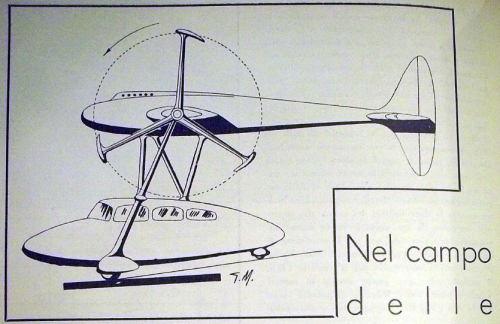

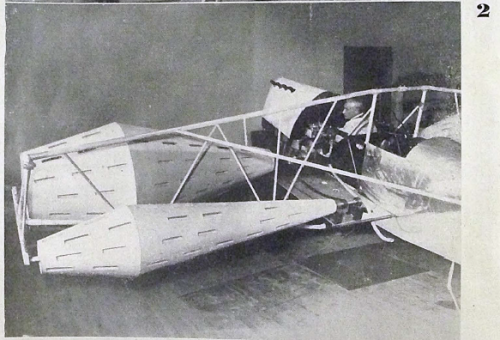

A cyclogyro.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201932%2003.pdf


Attachments

  • a.png
    471.4 KB · Views: 21

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
hesham said:
This concept was from the designer Vincent Wisniewski.

The same designer Vincent Wisniewski,but with an odd concept,I can't understand it ?.

Vincent Wisniewski


Attachments

  • 5.png
    891 KB · Views: 21
  • 6.png
    1.1 MB · Views: 22

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

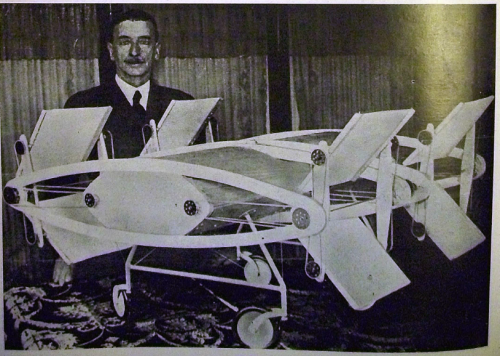

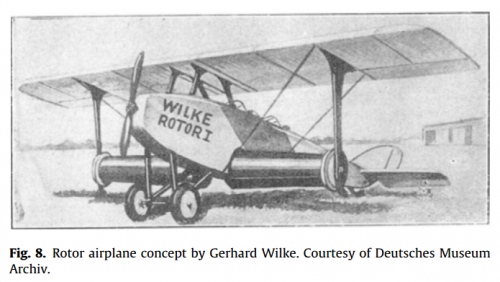

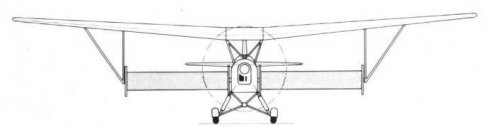

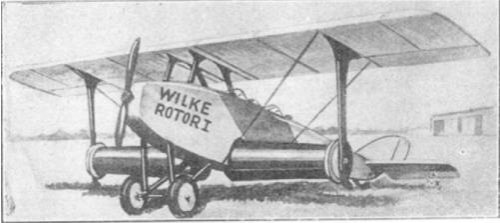

I displayed this designer's work before in replies # 42 & 80,his name is Gerhard Wilke;

http://histaviation.com/wilke.html


Attachments

  • 1.jpg
    18.5 KB · Views: 18
  • 2.jpg
    11.5 KB · Views: 15

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
The Chappedelaine design;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201934%2008.pdf


Attachments

  • 1.png
    671.7 KB · Views: 11

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201934%2009.pdf


Attachments

  • 2.png
    951.2 KB · Views: 15
  • 1.png
    998.6 KB · Views: 18

dave_t

ACCESS: Restricted
Joined
Mar 11, 2011
Messages
2
Reaction score
0

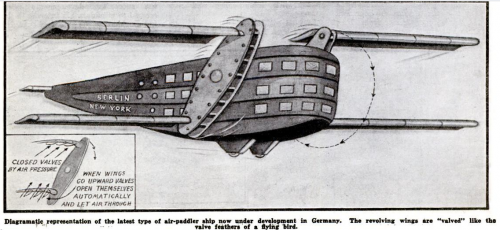

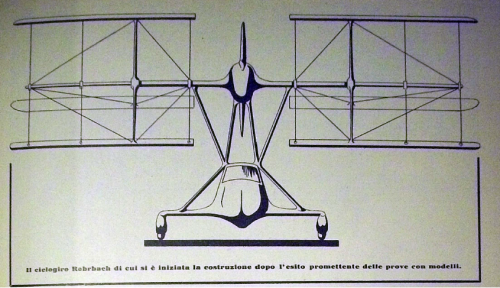

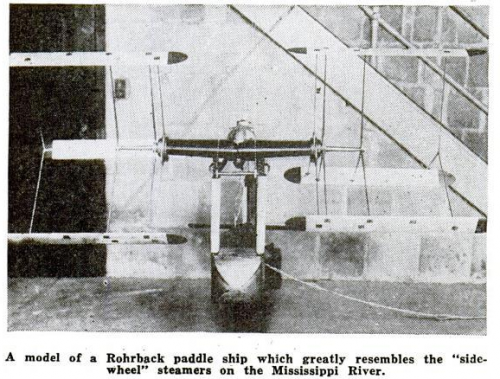

Another version of the cyclogyro concept by Adolf Rohrbach. The article is from the "Illustrated London News", January 20, 1934.


VTOLicious

ACCESS: Top Secret
Senior Member
Joined
Nov 24, 2008
Messages
706
Reaction score
319
CORP - Cycloidal Rotor Optimized for Propulsion
http://www.crop.ubi.pt/

After two years of fruitful research and cooperation, the CROP project has come to an end. We are proud to present you the main achievements of the project, which brought the CROP concept to a higher level of a technology readiness. A future of green, efficient and compact propulsion in innovative vehicles seems now closer.

http://www.crop.ubi.pt/nl/02/newsletter.html

::)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
By the way,

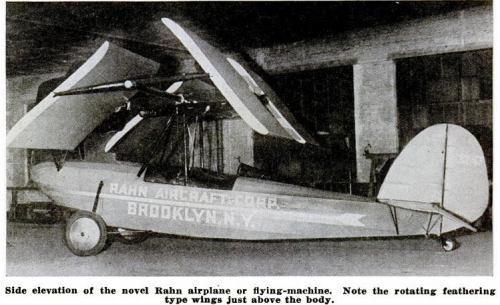

this cyclogyro airplane concept was designed by Rahn Aircraft Corporation of
Brooklyn New York USA in 1935.

https://books.google.com.eg/books?id=nfugDpbb3kgC&pg=PA152&dq=flying+magazine+september+1935&hl=ar&sa=X&ved=0ahUKEwjl7JWVn6bSAhXC0hoKHYBrBToQ6AEIJDAC#v=onepage&q=flying%20magazine%20september%201935&f=false

http://www.aerofiles.com/_ra.html


Attachments

  • 1.png
    612.6 KB · Views: 300

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
In Russia,

and from 1914 to 1916,three designers created a Cyclogyro Projects,Mr. Alexander Nikolaevich Lodygin,
Mr. A.G. Mikhailov and Mr. A.K. Medvedev.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi

Mr. Josef Sabath designed a cylogyro in 1932;

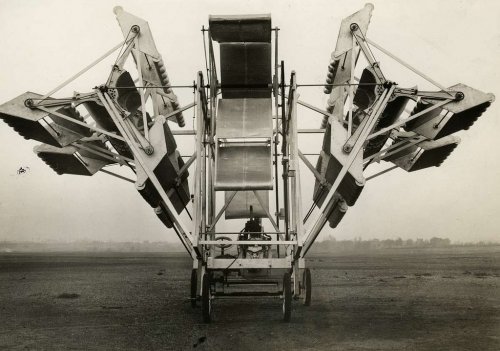

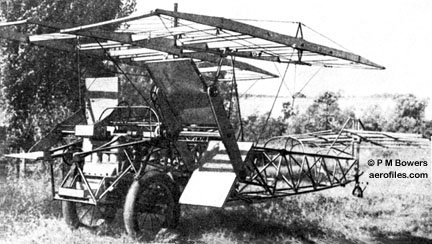

1932 = Two paddle-wheels of helices and a motorcycle engine reportedly got this contraption going almost 150mph.
No other data found, but that alone is impressive, especially if it was in the air.

http://www.aerofiles.com/_sa.html


Attachments

  • Joseph Sabath.jpg
    Joseph Sabath.jpg
    250.7 KB · Views: 135

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

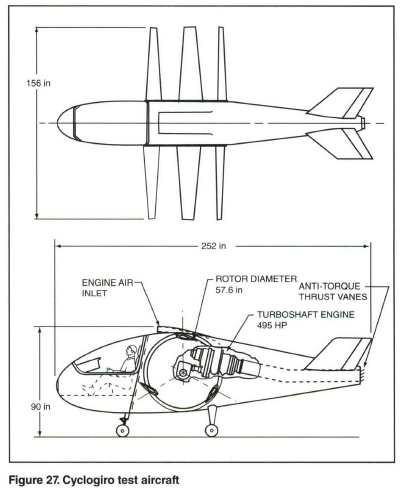

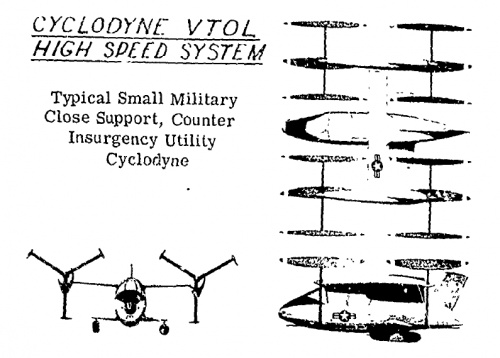

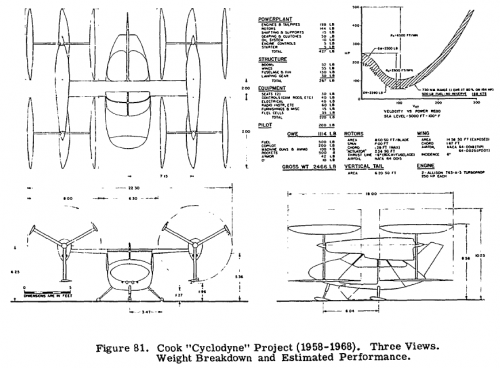

from Mr. Dave Cook,here is Cyclodyne or a Cyclogyro Projects.

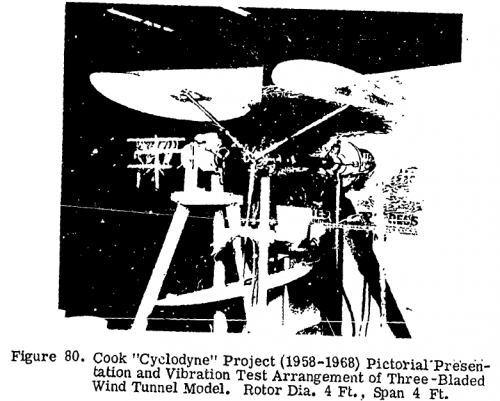

http://www.dtic.mil/dtic/tr/fulltext/u2/857462.pdf


Attachments

  • 1.png
    39.9 KB · Views: 41
  • 2.png
    58.5 KB · Views: 21
  • 3.png
    75.2 KB · Views: 25

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

after re-open of the Modern Mechanix magazine's site,I still can't find this Fighter
Cyclogyro airplane Project's page ?,I kept it from long time ago.


Attachments

  • fighter 1.png
    fighter 1.png
    98.2 KB · Views: 104
