Curtiss C-76 Caravan

fishjay

CLEARANCE: Restricted
Joined
Jan 5, 2009
Messages
23
Reaction score
0

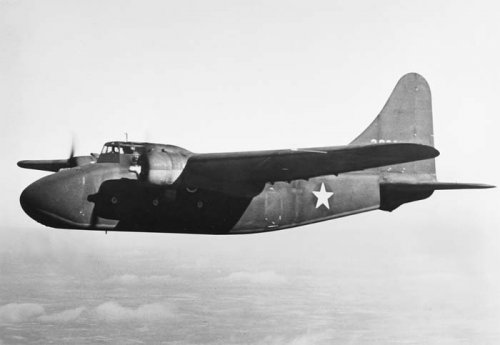

The Curtiss C-76 was designed and built of wood to conserve strategic metals (aluminum) during WWII. The shortage of these metals did not develop and the production of the plane was terminated. Besides the Budd Conestoga, were there any other planes designed to meet this conservation requirement?

fishjay


Attachments

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,007
Reaction score
198
Just in the US there were at least two fighter and one trainer programs that I'm aware of. Or are you talking about both Allied and Axis programs?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,007
Reaction score
198
Two of the fighter programs were the Bell XP-77 and the Fisher XP-75.
Some more details:

http://en.wikipedia.org/wiki/Bell_XP-77
http://en.wikipedia.org/wiki/XP-75

Also, don't forget to check out the RetroMechanix.com XP-75 article (link at SPF XP-75 topic above).


The trainer was a Beechcraft project IIRC, but can't think of the designation at the moment. I'll look around to see if I can find it on SPF or elsewhere.

For Allied 'Emergency Fighter' projects in general, have a look here.

I also seem to have a dim memory of a US bomber project related to strategic materials conservation, although my mind could be playing tricks on me there.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,007
Reaction score
198
The Beechcraft trainer was the successful Model 26 (prototype was the Model 25), service designation AT-10 Wichita.

http://en.wikipedia.org/wiki/Beechcraft_AT-10_Wichita
http://www.secretprojects.co.uk/forum/index.php/topic,12046.0.html


Boxman

CLEARANCE: Secret
Senior Member
Joined
May 6, 2007
Messages
282
Reaction score
17
fishjay said:
The Curtiss C-76 was designed and built of wood to conserve strategic metals (aluminum) during WWII. The shortage of these metals did not develop and the production of the plane was terminated. Besides the Budd Conestoga, were there any other planes designed to meet this conservation requirement?

fishjay

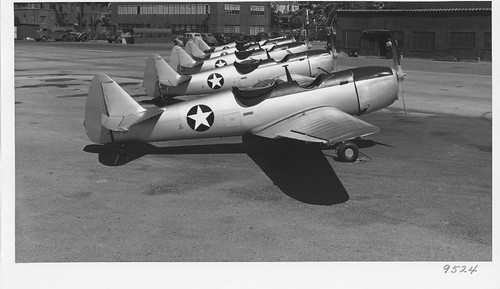

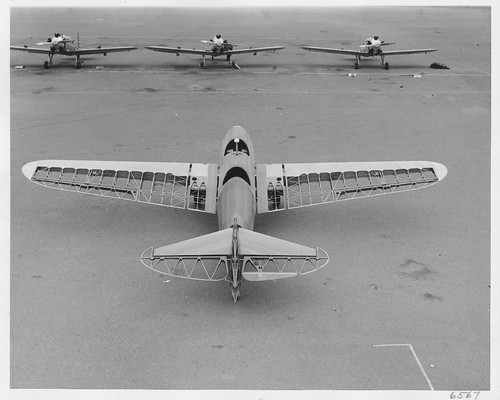

I'd also add the Ryan PT-25 (YPT-25) to the list, built of bonded plywood. Only five were built.

Some great photos (again) at the San Diego Air & Space Museum's Flickr Commons archive:
http://www.flickr.com/photos/sdasmarchives/tags/ryanpt25/

http://www.flickr.com/photos/sdasmarchives/5684489903/


http://www.flickr.com/photos/sdasmarchives/5684488907/


fishjay

CLEARANCE: Restricted
Joined
Jan 5, 2009
Messages
23
Reaction score
0
Thanks for the info guys. I didn't realize that there had been so many programs involved with the strategic resource conservation program.

Lester


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,007
Reaction score
198
The brief revival of the Consolidated XPB3Y-1 long range (Patrol/ Bomber) flying boat project, in 1942, may have been as part of the strategic resource conservation program. No confirmation of this though. A few more details, via the Axis History Forum:

The Edge on 23 Jan 2010, 17:06
<blockquote>Waleed Y. Majeed wrote:XPB3Y-1 (model 31) </blockquote>
Hmm…
(Conflicting data)
PB3Y (Model 30) 1942 - Four-engine flying boat design as XPB3Y-1 with R-2800-18s, 22,000# bomb load. 1938 project was shelved, then revived when ordered by USN in April 1942, but canceled in November. Designation unused.
As you can see from the Designations Systems link (revision on second page!), the correct Consolidated company model number was most likely Model 30 although confusingly it was also known as the Model 34 in it's 1937/38 incarnation. The Model 34 designation was recycled two times after the XPB3Y-1, once for a series of pre-war 1941 commercial flying boat studies, and then again in 1943 for the production version of the Model 33, the B-32 Dominator.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,007
Reaction score
198
The Vega Model 42 target drone project could also be considered to be part of the strategic resource conservation program.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,005
Reaction score
964
Hi,

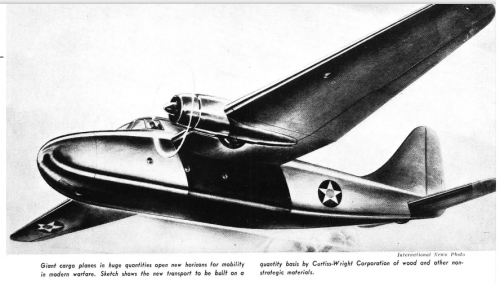

please help,I found this artist drawing to a giant cargo aircraft,maybe a Project,they said it was going to
build in Curtiss-Wright company,I don't know if it was from its design,or its a real aircraft from anther
firm,built under licence or what ?.



Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,005
Reaction score
964
Oh,I forget it at all,thanks.


riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
347
Reaction score
21
During WW2, numerous projets experimented with molded plywood: Duramold, Haskelite, Weldwood, etc. Some methods injected phenolic resin to toughen skins.

Federal Aircraft (Canada) built a thousand AvRO Anson Mark V trainers with molded plywood fuselages. They had smoother skins, increased cabin volume and vastly reduced parts count.

deHaviand of Canada built wooden Mosquito fighter-bombers.
Fairchild built AT-21, twin-engines bomber trainers.
Tim built a plywood basic trainer.
Beechcraft built molded wood light twin trainers.

Russian LaGG and Yak fighters were built of molded plywood.

As well, most assault gliders were a mixture of wood, fabric and steel tube construction.


taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
207
Reaction score
33

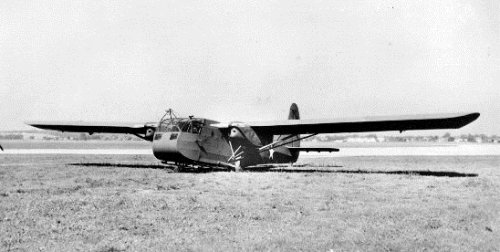

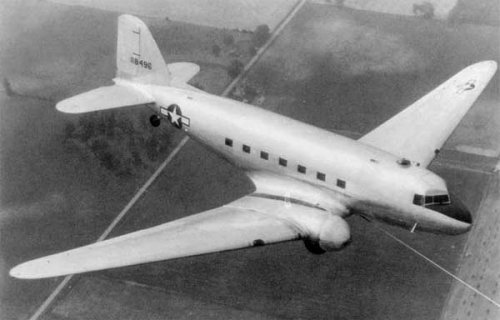

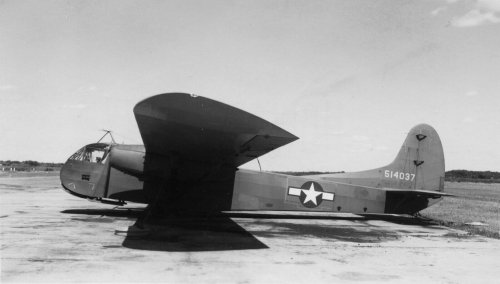

Projects to motorize the WACO CG-4 (known as the PG-2, I'm guessing PG stood for "powered glider") should also be on the list, Interestingly, and an initiative in the opposite direction, the XCG-17 - an unpowered version of the C-47 was also tested.


Attachments
