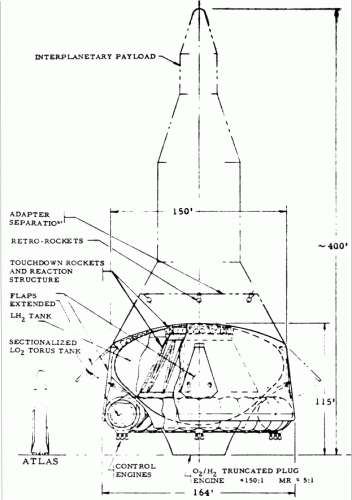

From back when rockets were supposed to be big, 1963, comes the Convair "Nexus." A single stage to orbit hydrogen-oxygen booster with one *million* pounds of payload. As a bonus, the hocky-puck-shaped vehicle was to be recoverable and resuable.

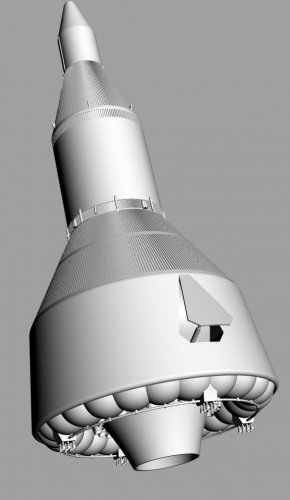

The computer rendering is of a 1/288 scale model I'm making for Fantastic Plastic, the kit will probably be released in early 2010.


Attachments

  • nex3.jpg
    46 KB · Views: 274
  • nexus2.gif
    82.5 KB · Views: 310

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,610
Reaction score
596
and this is only the Small version
were also bigger version with 2 million pounds payload (906 tons)
http://up-ship.com/blog/?p=1698

there were NEXUS two stage proposal with nuclear gascore engine !
Payload to LEO 3.2 million pounds (1443 tons)
http://up-ship.com/blog/?p=700

and SUPER NEXUS
Payload to lunar orbit 1 million pounds (453 tons)
http://up-ship.com/blog/?p=623

i wish they had build those Monster :'(


martinbayer

CLEARANCE: Top Secret
Joined
Jan 6, 2009
Messages
698
Reaction score
163
A hockey puck (at least the ones I'm aware of) is cylindrical, with straight parallel sides. This thing is conical, unless there is an (as yet) unpublished constant diameter version. Not trying to pick nits here, but to clear a potential misunderstanding.

Martin


OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
11
Website
www.io.com
Orionblamblam said:
OM said:
..."Hockey Puck"? ???
You've never heard of hockey?

...No, it's just that I don't see anything resembling a hockey puck in that rendering. In fact, it looks like the first stage is based on this attachment that comes with many washing machines, one that fits on the agitator at the top, and distributes fabric softener when the washer goes into spin cycle. However, since Hockey is basically a Canadian sport, any of you Canuckleheads see a puck in that render? Or should I just shut the puck up?


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,852
Reaction score
1,058
Website
www.aerospaceprojectsreview.com
OM said:
...No, it's just that I don't see anything resembling a hockey puck in that rendering.

Sigh. The entire Nexus vehicle has a greater diameter than length. It has a circular cross-section. While not straight-walled, it's reasonably close.

In fact, it looks like the first stage is based on this attachment that comes with many washing machines, one that fits on the agitator at the top, and distributes fabric softener when the washer goes into spin cycle.

"this attachment that comes with many washing machines, one that fits on the agitator at the top, and distributes fabric softener when the washer goes into spin cycle" or "hocky puck." Which takes less time to type and is more readily recognizable?


SAustin16

Bravo to All Brave Test Pilots
Joined
Jan 13, 2008
Messages
132
Reaction score
5
All of you have a wonderful British sense of humor ... subtle, yet amusing.

In any case Scott, your rendering is very beautiful. I look forward to following your progress.


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,852
Reaction score
1,058
Website
www.aerospaceprojectsreview.com
SAustin16 said:
All of you have a wonderful British sense of humor ... subtle, yet amusing.

I thought "British humor" meant lots of use of "Yakkity sax," flamboyant homosexuals, and skantily clad women running around on sped-up film?

In any case Scott, your rendering is very beautiful. I look forward to following your progress.

Yeah, me too. It's a ways away yet even from gettign quotes from "printers," as FP is still workign on the *previous* modesl that I and overs have worked up, but I've seena number of different test runs of various parts from different companies and with different qualities/prices. I'm currently looking at a couple bits produced by a high-end company, and it's freakin' astonishing. Crystal clear, hard plastic, with very little surface work required. Razor-edged raised lettering 2 mm high by 1 mm thick. It's too expensive to print out whole kits with yet, but it's not *too* far off (about 1.75 times what the "standard" might be, which were about 2 times what dirt-cheap was). I suspect that ina very few years the tech will be so good and so common that they'll print off the parts, and they will be *immediately* good to go, with no surface prep required.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
480
Website
deeptowild.blogspot.com

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
124
Yep, the article published in the first issue of what's now Aerospace America. BTW, the "Errata" in the first page has an error in it (the title)... ::) Well, still striving to look British-humoured...


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,237
Reaction score
430
Skybolt said:
Yep, the article published in the first issue of what's now Aerospace America. BTW, the "Errata" in the first page has an error in it (the title)... ::) Well, still striving to look British-humoured...

Errara humanum est, I guess... ;D


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,237
Reaction score
430
archipeppe said:
Stargazer2006 said:
Errara humanum est, I guess... ;D

Emh.... "Errare humanum est".... it means - more or less - "Errors is for Humans"

"To err is human" is usually the coined translation. The full version says more or less "It's human to make mistakes, it's devilish to keep making them"...


archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,662
Reaction score
290
Dear Stargazer if the Latin is tricky, sometimes English is tricky too..... ;) ;D


Nik

CLEARANCE: Secret
Joined
Jul 15, 2009
Messages
393
Reaction score
20
Slightly OT: Aerospace America

Ah, Aerospace America...

Our city technical library used to get it...

Also, a bunch of arcane astrophysics etc titles, including one whose name I forget Icarus which, IIRC, had a 'crude' planetary formation simulator which accidentally predicted 'Hot Jupiters'...

Then the mags rack was purged...

Weep.


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,610
Reaction score
596
Found A PDF at NTRS
NEXUS - CONCEPT OF A LARGE REUSABLE LAUNCH VEHICLE
by Dvincent, F.; Ehricke, K. A.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19630011856_1963011856.pdf


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
300
Reaction score
102
I love the Hazegrayart Channel. With every new video, one can expect to see something really great...!
