Convair Model 52 (OS-125 P6M Competitor)

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
706
Reaction score
521

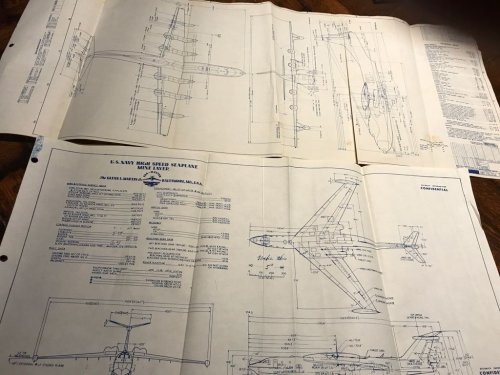

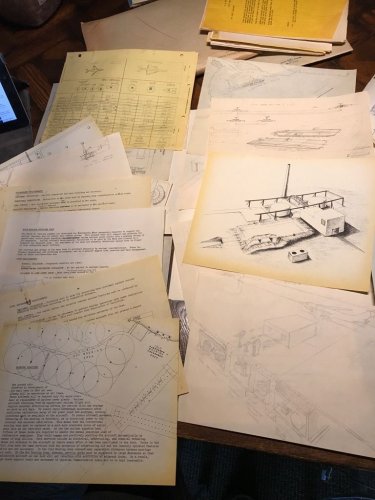

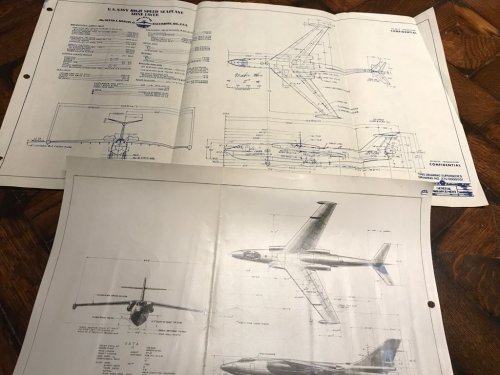

http://www.ebay.com/itm/Vintage-U-S-Navy-Ralph-Parsons-SEAPLANE-Engineer-Design-Collection-SEA-DART/142405633237?_trksid=p2047675.c100005.m1851&_trkparms=aid%3D222007%26algo%3DSIM.MBE%26ao%3D2%26asc%3D41375%26meid%3D375a58a295b04f72a08327cc107e9294%26pid%3D100005%26rk%3D1%26rkt%3D4%26sd%3D142405484521


Attachments

  • s-l1600a.jpg
    116 KB · Views: 167
  • s-l1600c.jpg
    131.8 KB · Views: 155
  • s-l1600HFP6AWRL.jpg
    112.1 KB · Views: 157

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
674
Designed for the long range high speed aerial mine laying mission in Outline Specification 125 (OS-125),
Convair's Model 52 was a competitor to the Martin P6M Seamaster.
  • The aircraft was to be powered by four Wright YJ67 axial flow turbojet engines.
  • Five man crew, Pilot and Co-pilot, Navigator-Minelayer, Radio-Radar-ECM Operator, and Tail Gunner

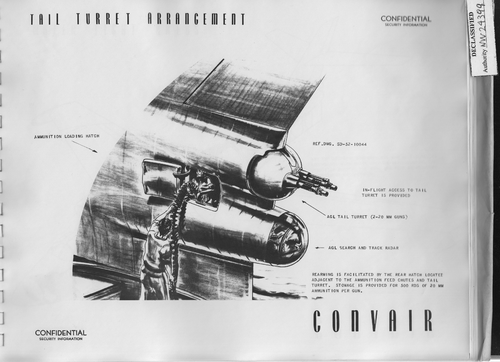

  • Inflight access to Mine Bay and Tail Turret
  • Inflight access to the engine accessory compartments

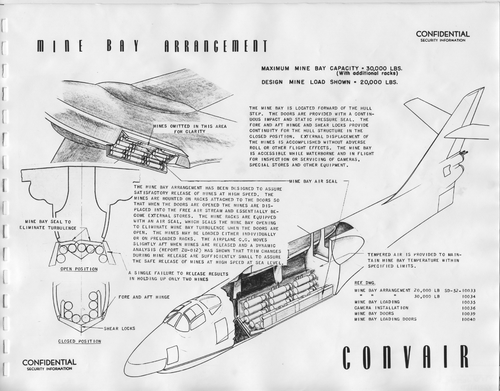

  • Mine Bay Design Capacity 20,000lbs
  • Maximum Mine Bay Capacity of 30,000lbs

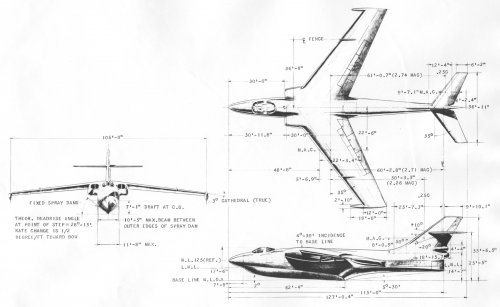

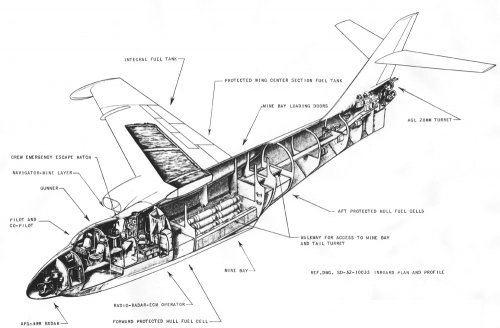

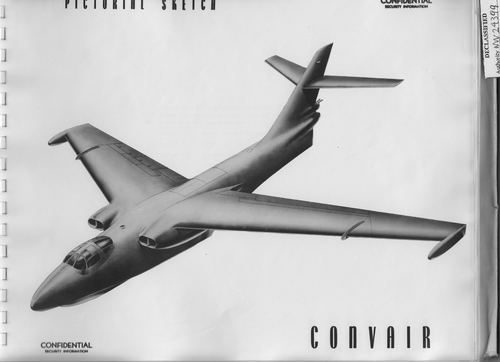

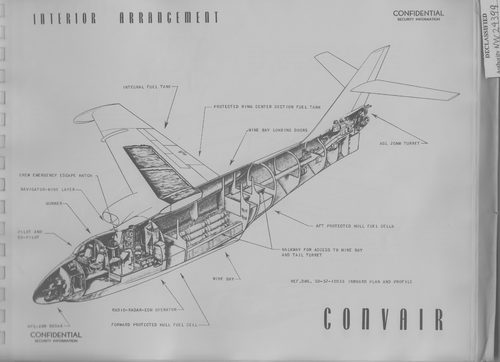

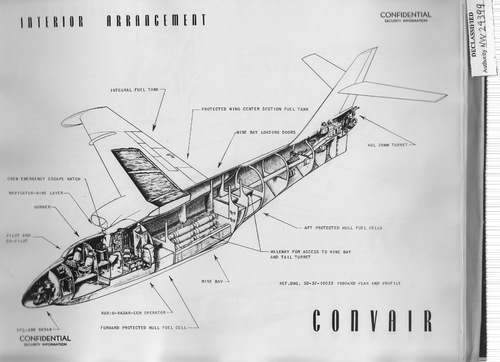

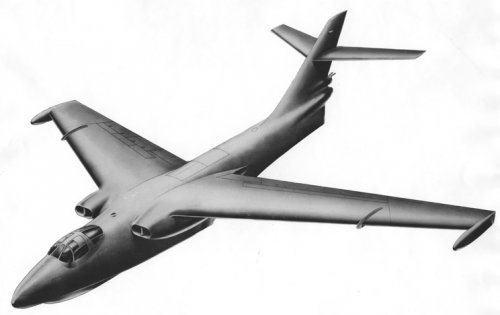

Attached are a couple of views from Convair report ZP-52-10002


Attachments

  • Convair-Model-52-High-Performance-Flying-Boat-Class-VP-Airplane.jpg
    46.7 KB · Views: 692
  • Convair-Model-52-High-Performance-Flying-Boat-Class-VP-Airplane-Cutaway.jpg
    132.9 KB · Views: 695

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,711
Reaction score
922
Nice Bill - Mark Aldrich will love it!

Enjoy the Day! Mark


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
674

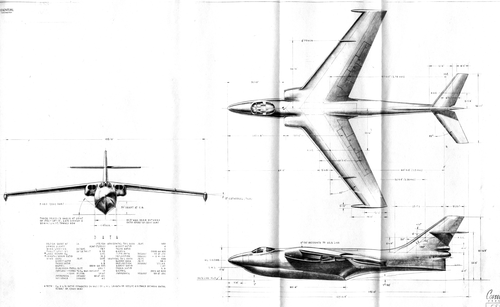

Convair Model 52 General Arrangement from the same report


Attachments

  • Convair-Model-52-General-Arrangement.jpg
    362.1 KB · Views: 663

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,539
Reaction score
6,263

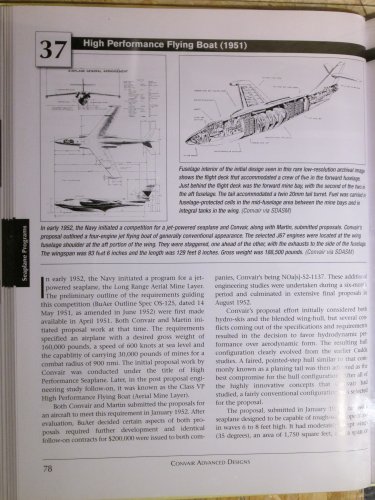

Oh My God,amazing find my dear Bill.


Attachments

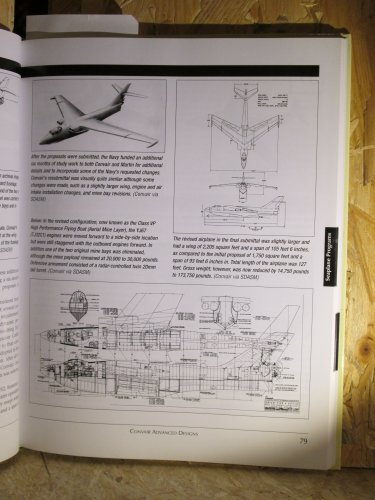

  • Bradley-CONVAIR ADVANCED DESIGNS page 079.JPG
    Bradley-CONVAIR ADVANCED DESIGNS page 079.JPG
    3.9 MB · Views: 406
  • Bradley-CONVAIR ADVANCED DESIGNS page 078.JPG
    Bradley-CONVAIR ADVANCED DESIGNS page 078.JPG
    4.1 MB · Views: 511

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
674

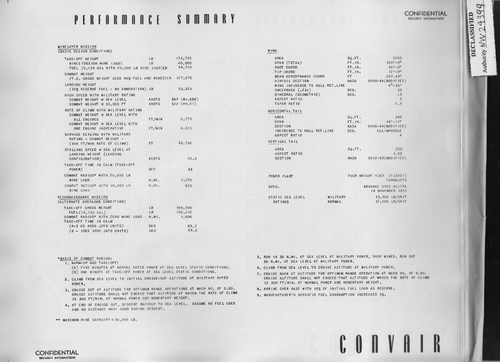

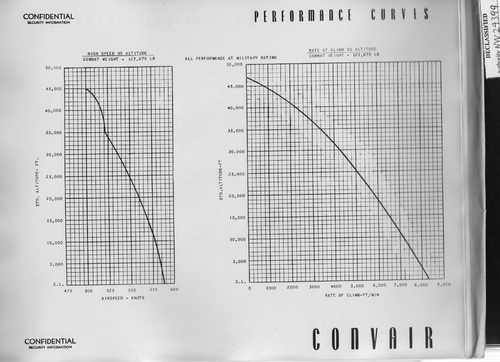

The report states High Speed With Military Rating 587 knots (M=.888) at Sea Level, 522 knots (M=.91) at 35,000 ft.

[/quote]

Awful reminiscent of the Beriev Be-10. But was it transonic like the P6M?
[/quote]


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
674

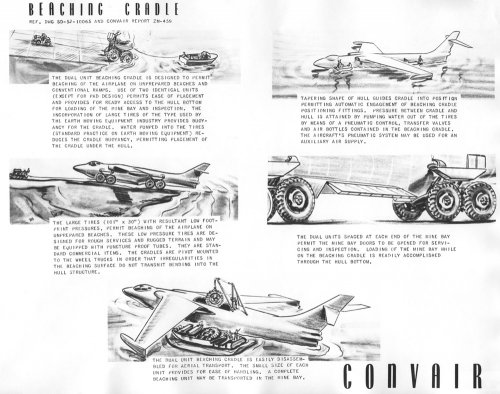

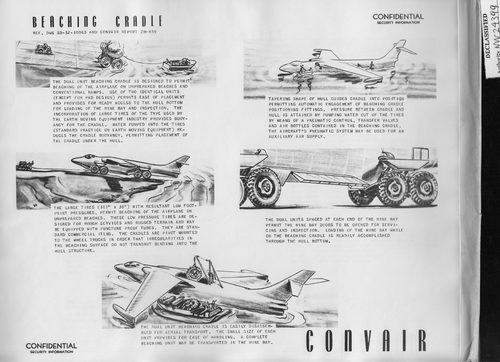

Here is information on the beaching cradle which is quite an impressive assembly.

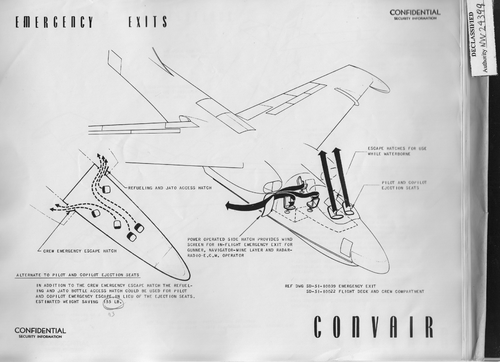

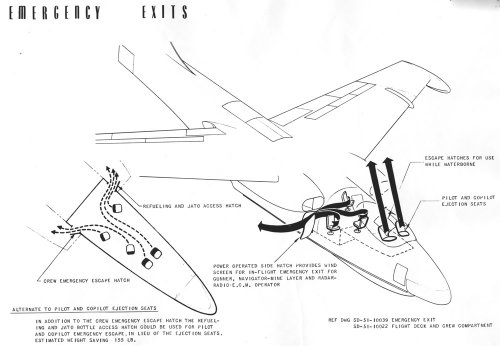

The second illustration shows the emergency exits. Ejection seats for the pilot and copilot,
everyone else uses an escape hatch.


Attachments

  • Convair-Model-52-Beaching-Cradle.jpg
    248.1 KB · Views: 148
  • Convair-Model-52-Emergency-Exits.jpg
    121.2 KB · Views: 156

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,539
Reaction score
6,263
Oh my God,thank you my dear Bill,

fantastic report seemed to be.


masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
131
Reaction score
559

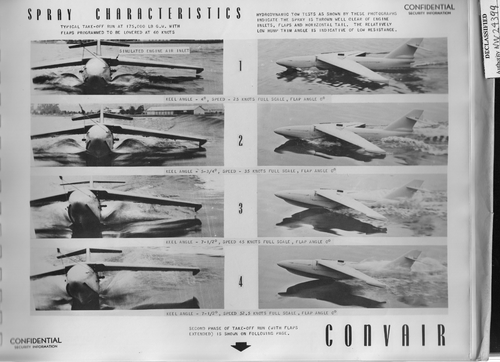

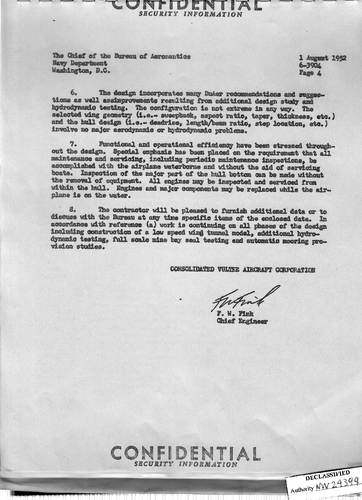

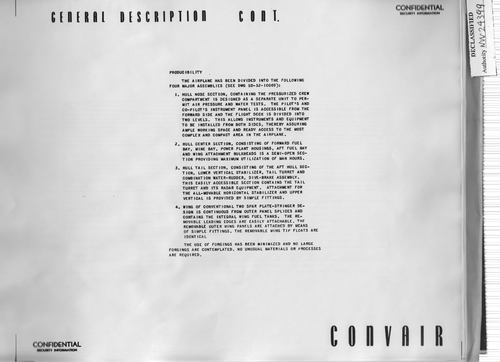

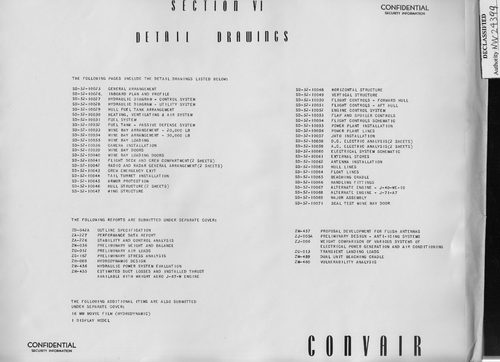

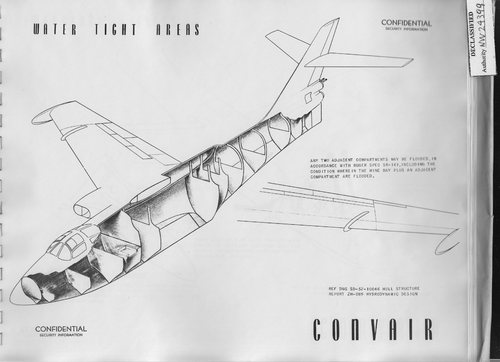

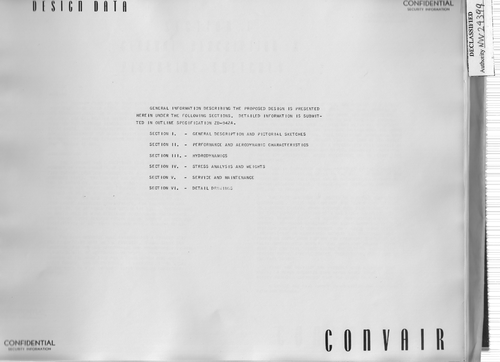

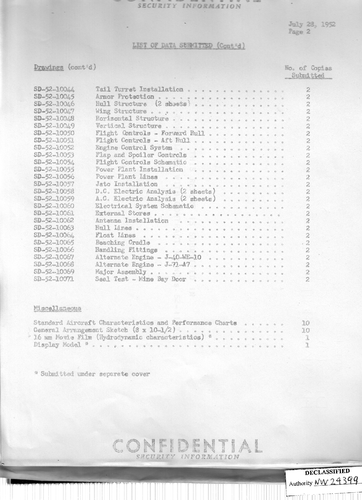

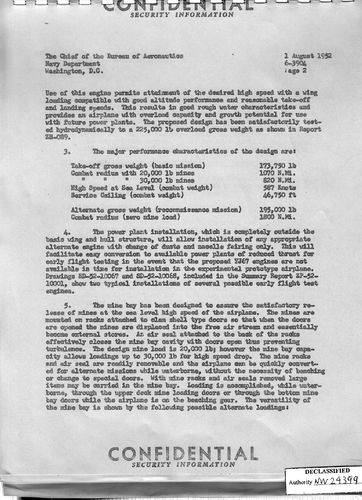

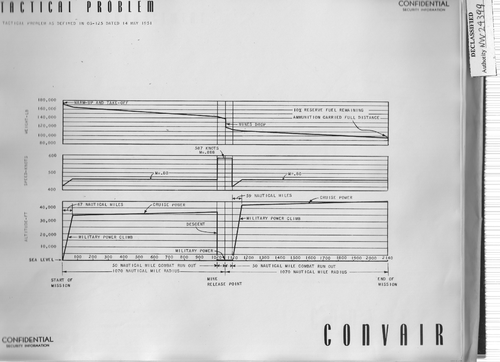

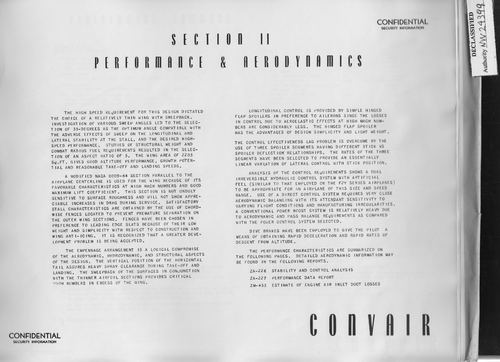

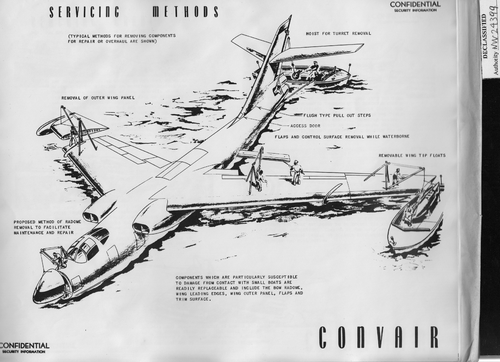

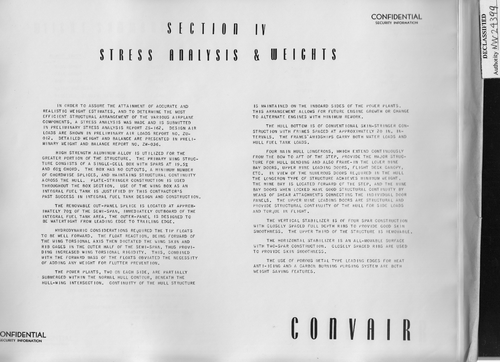

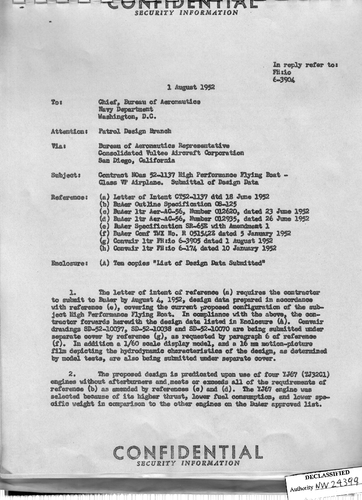

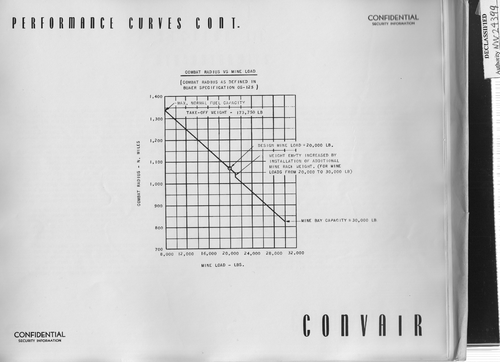

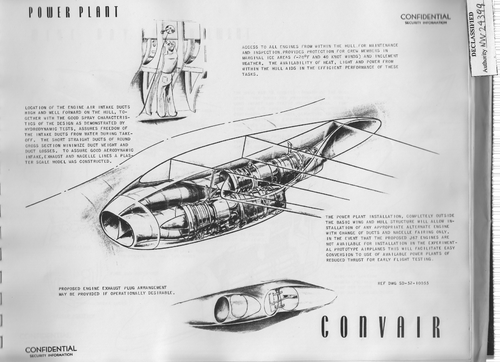

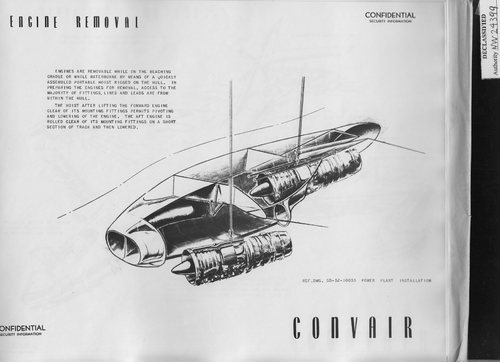

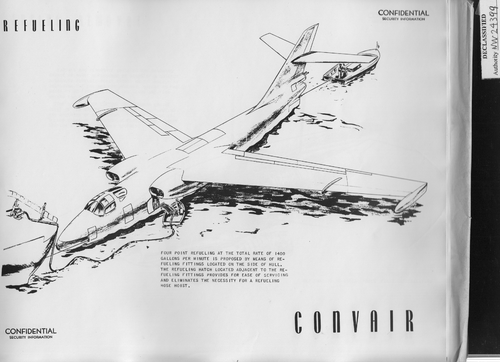

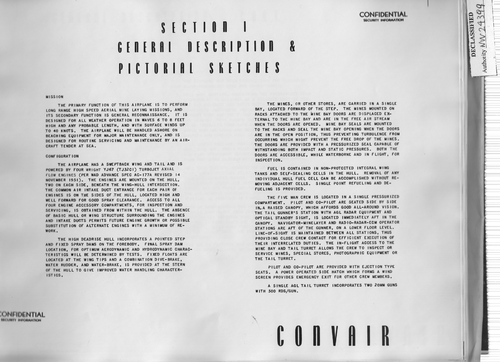

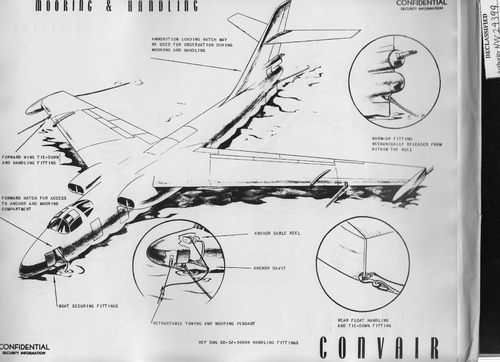

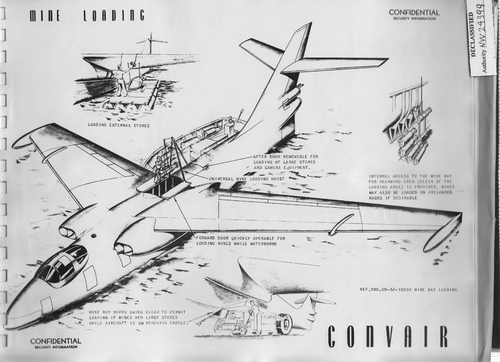

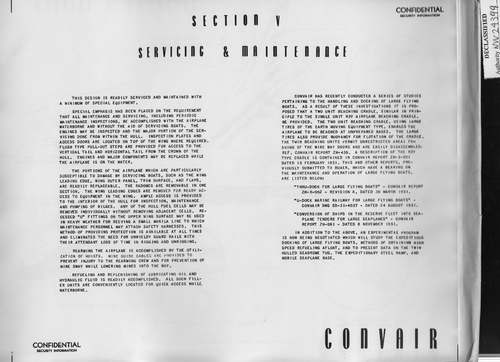

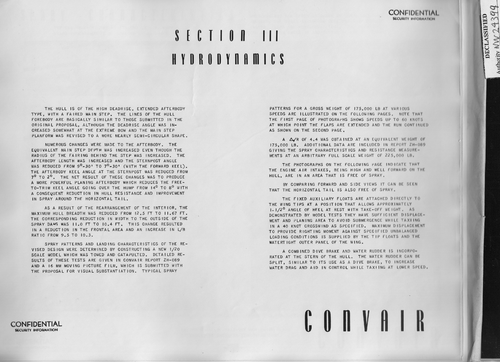

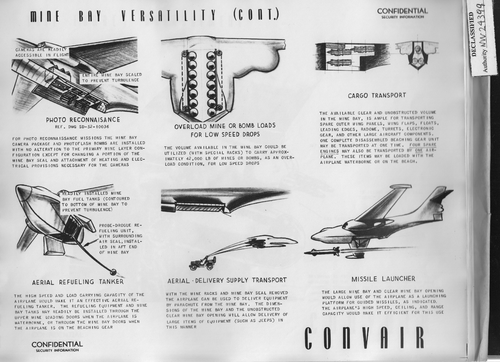

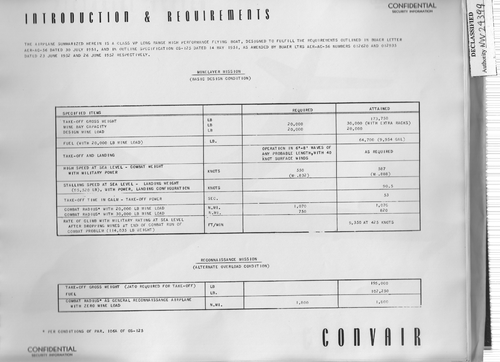

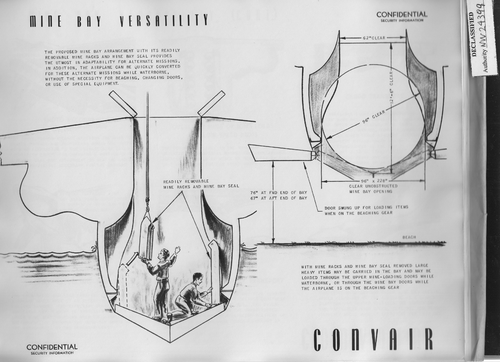

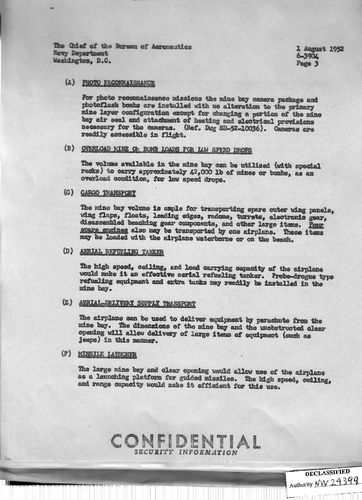

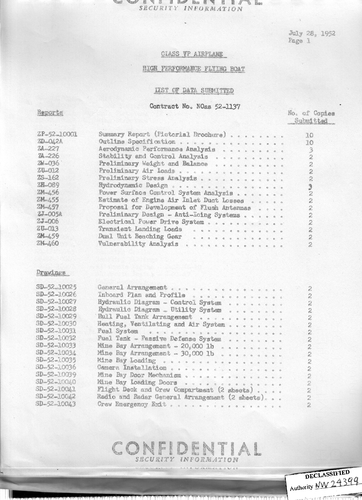

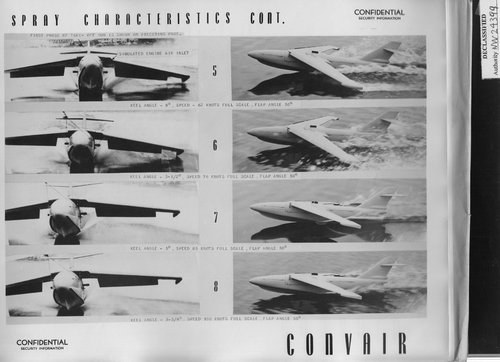

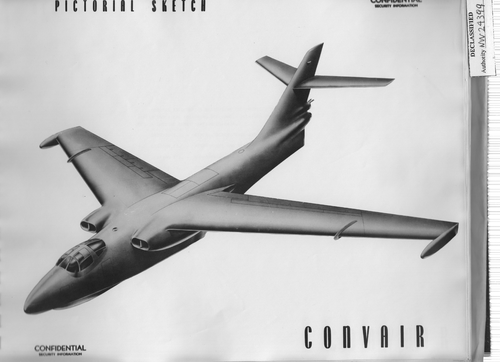

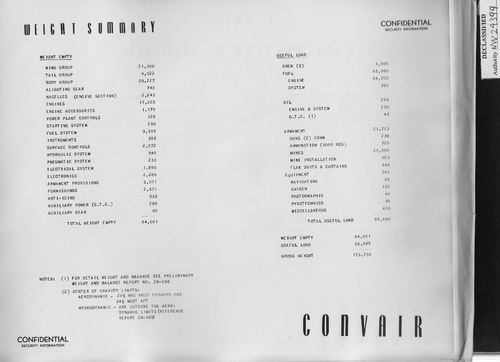

I'll load what I can, anything too big will be done at a later time... Enjoy


Attachments

  • -0043.png
    5.9 MB · Views: 104
  • -0042.png
    7.4 MB · Views: 101
  • -0041.png
    6.8 MB · Views: 98
  • -0040.png
    7.6 MB · Views: 89
  • -0039.png
    8 MB · Views: 96
  • -0038.png
    7.9 MB · Views: 99
  • -0037.png
    7.6 MB · Views: 94
  • -0036.png
    7.6 MB · Views: 86
  • -0035.png
    7.7 MB · Views: 74
  • -0034.png
    7.5 MB · Views: 69

masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
131
Reaction score
559
Actually this is the first batch....


Attachments

  • -0011.png
    6.6 MB · Views: 64
  • -0010.png
    6.7 MB · Views: 64
  • -0009.png
    7.1 MB · Views: 61
  • -0008.png
    6.4 MB · Views: 46
  • -0007.png
    4.9 MB · Views: 42
  • -0006.png
    5.3 MB · Views: 37
  • -0005.png
    5.4 MB · Views: 33
  • -0004.png
    5.4 MB · Views: 34
  • -0003.png
    5.7 MB · Views: 38
  • -0002.png
    5.6 MB · Views: 60

masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
131
Reaction score
559
Actually the second batch


Attachments

  • -0021.png
    7.5 MB · Views: 69
  • -0020.png
    7.9 MB · Views: 75
  • -0019.png
    7.6 MB · Views: 78
  • -0018.png
    8 MB · Views: 81
  • -0016.png
    7.9 MB · Views: 80
  • -0015.png
    7.5 MB · Views: 71
  • -0014.png
    7 MB · Views: 62
  • -0013.png
    6.9 MB · Views: 50
  • -0012.png
    7.4 MB · Views: 63

masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
131
Reaction score
559
Third batch


Attachments

  • -0031.png
    7.3 MB · Views: 67
  • -0030.png
    7.3 MB · Views: 63
  • -0029.png
    7.3 MB · Views: 52
  • -0028.png
    7 MB · Views: 44
  • -0027.png
    7.5 MB · Views: 43
  • -0026.png
    7.4 MB · Views: 47
  • -0025.png
    7.5 MB · Views: 60
  • -0024.png
    7.3 MB · Views: 67
  • -0023.png
    7.2 MB · Views: 67
  • -0022.png
    7.4 MB · Views: 66

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
674
Thanks Bill for filling out the booklet
It was funny, I was looking at your posts and thought that these sure seem familiar. Did you shoot the general arrangements as well? If not I can share that as well


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
674
Here is the general arrangement of Convair's entry in OS-125 High Speed Sea Plane (Aerial Mine Layer)


Attachments

  • SD-52-100025-High-Speed-Sea-Plane-VP-Type-General-Arrangement.png
    1.3 MB · Views: 60

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
674
Crud! I see some posted here and some of this post should be combined. My bad!
