Comper projects, prototypes and spin-offs

Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
258
Reaction score
12
Hai
Who can help me with drawings/dimensions/etc. concerning the following aeroplanes/projects?
Comper Fly (not completed)
Fane F.1/40 (1 prototype)
Cierva C.25 (Comper Swift fuselage)
Comper Dominion and Commerce (projects for airliners)
Thanks
Jan


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Hi Jan,

please tell us a more info about those projects,Comper Fly,Dominion and Commerce.
about the C.25,it was single seat version of C.24,powered by one 85 hp Pobjoy
Niagara R radial engine,it was actuallt built.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49
Here is an article about C.24 and C.25 on Russian site:
http://www.airwar.ru/enc/other1/c24.html

It says that C.24 and C.25 are two different aircraft. The two-seat C.24 was designed by Cierva by request of De Havilland Co., its nose part of fuselage was from DH-80 Puss Moth, and engine was 120hp Gipsy III. C.24 was fitted by mechanism of rotor spin-up from engine, also it was first Cierva's machine with closed canopy and tricycle landing gear. It was built in 1931 by De Havilland plant in Stag Lane, but the tests weren't successful.

The single-seat C.25 was one of the smallest autogyros, it was built by Comper Aircraft company and its first flight was in the beginning of 1933. It had a fuselage from Comper Swift, but with modified tain fins and low-mounted, shortened wings. The engine was Pobjoy Niagara R (63 kW / 86 hp).


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
The packers just took my scanner and books, but Richard Riding's ULTRALIGHTS: THE EARLY BRITISH CLASSICS has a couple of pics and specs of the Comper C.25 but I don't remember if there is a three-view or not.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,588
Reaction score
890
http://nickcomper.co.uk/wp-content/gallery/nick-comper/c25-plans.jpg


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
258
Reaction score
12
Hesham
Here some details
Scamp was a high-wing Pusher with tricycle undercarriage design. Is single seater it was proposed to be fit with a Praga-B and as two-seater with a Walter Mikron. It had twin booms.
The College of Aeronautical Engineering of Chelsea and Brooklands was working on a scaled down model to test the undercarriage.

There are sources who mention that the aero plane was under construction and not completed. But other sources mention that Comper redesigned the model without the two booms and a low fuselage behind to get space for the propellor.
This version was named Fly and should be under construction and never completed.
With version is correct??????????

Who can help me with the following question: Is the Collega of Aeronautical Engineering of Chelsea and Brooklands still excisting?
Under this name or an other and what is there adress?

So the Scamp or Fly was not completed Capt. Gerard Fane, a supporter of Comper, redesigned the design with was in 1940 build and flown in 1941, the Fane F.1/40.

Cierva C.25 was an autogyro with the Swift fuselage.
Apophenia thank you for the site of Nick Comper which I already found. Do you know how I can get the complete article, because there is missing a page?

Concerning the projects Dominion and Commerce I only know that this should be airliners.

Jan


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100
Hi all.
On "Nick Comper and his aircraft" I read
"The two seater Scamp was never built"
(I found a three view drawing)
"The fane F1 (later f1/40) first flew 03.21.1941
registerd G.AGDJ
(I found a photo)
Bye


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
258
Reaction score
12
Hi
Thats what I also found.
What I found until now is that 3 types, Scamp/Fly/Fane F.1/40, had to do with each other.

Scamp not build (only the college who was working on a scale down model to test the landing gear)
There is prewar article with a drawing and a picture of a model or drawing.

Fly, maybe they have started to build it or still a project???
Further no details/materials.

F.1/40 only one prototype.
only a few pictures

Jan


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Hi Jan,

for the Scamp ,please see;
http://www.secretprojects.co.uk/forum/index.php/topic,3914.0.html
And for Chelsea and Brooklands,I don't know if they still exist ot not.


Attachments

  • Scamp.JPG
    26.8 KB · Views: 403

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
945

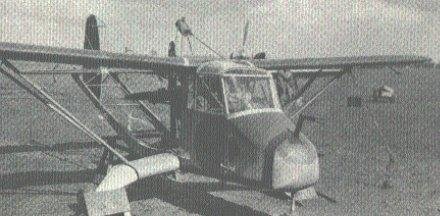

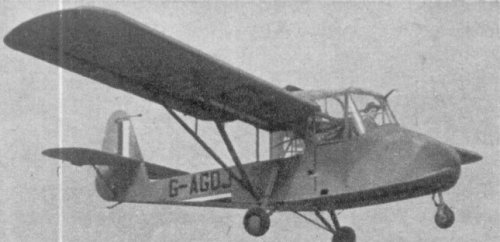

Just found while browsing through a number of mags (searching for
something completely else ...) : The Fane F.1/40 :

(from Flying Review 9/95)


Attachments

  • Fane_F1-40_01.JPG
    99.5 KB · Views: 393

Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
258
Reaction score
12
Jemiba thanks for the picture.
Is there any one who has a 3-view and dimensions of the Fan F.1/40 as well from the Fly?
Jan


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,588
Reaction score
890
Fane F.1/40 (ww2aircraft.net)

80 hp Continental A-80
Gross weight, 1,500 lb (681 kg). Span, 37ftO in (11.28m). Length, 23ft 5 in (7.14 m).

The RAF Museum may have your 3-view drawing. From their document "Aviation Company Records"
http://www.rafmuseum.org.uk/london/policy-performance/documents/freedom_of_information/Aviation%2520Company%2520Records.doc

"Fane Aircraft Company
Captain Gerard Fane set up the Fane Aircraft Company at Norbury, London. Only one aircraft was produced - an Air Observation Post (i.e. artillery spotting) design, to Air Ministry specification F.1/40 - which first flew in 1941 but did not enter production.

Drawings of the Fane F.1/40, correspondence with engine manufacturers (AC 76/7) "


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,896
Reaction score
234
Found this, here :-

http://www.wonwinglo.scale-models.net/id31.htm

small picture of the comper fly, picture is captioned "Comper Fly (scaled down Scamp) serial number T1788"......


cheers,
Robin.


Attachments

  • comper fly.jpg
    comper fly.jpg
    23.1 KB · Views: 360

avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
273
Reaction score
79
hesham said:
And for Chelsea and Brooklands,I don't know if they still exist ot not.
Chelsea College of Engineering moved to Shoreham Airport and is still there now albeit under the title Northbrook College (q.v. http://www.northbrook.ac.uk/departments/engineeringautoaero/).


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457

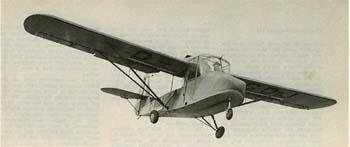

:eek: What EXACTLY is the purpose of this topic?

Unless there is a specification in common or a designer in common, there is no justification for this kind of thread...

We have Cierva topics elsewhere, so please use them and leave this one topic for Fane and Comper, at the least! ;)


Attachments

  • Fane F1~40 AOP.jpg
    Fane F1~40 AOP.jpg
    7.5 KB · Views: 337

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
cluttonfred said:
The Cierva was built on an a Comper Swift fuselage, there is a direct link here, Stéphane.

No, the Cierva C.24 was built on a De Havilland DH.80 Puss Moth's fuselage, and already had a topic of its own, that's why I moved the post there.

There could be a link between Comper and Fane, perhaps even Cierva, but I believe it must be made clear in the topic's title, otherwise the members will think they can use this topic to post random pics and info on these three companies, which I don't think was the intention here at the start.


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info

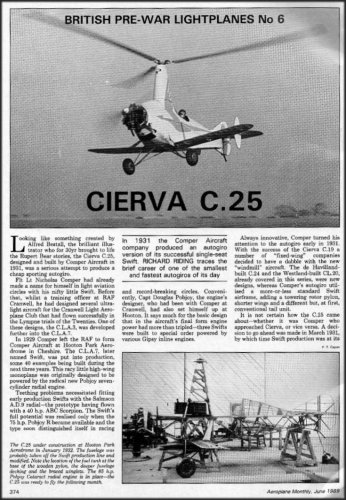

Understood, but I was talking about the C.25, see attached. I agree that the title is a bit vague, perhaps "Comper projects, prototypes and spin-offs" would be an improvement. Cheers, Matthew


Attachments

  • c25.jpg
    181.1 KB · Views: 307

Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
258
Reaction score
12
Hai
The Comper Dominion and Commerce were designed as airliners.
They were prabebly the last projects by Nick Comper.
This is the only information I have.
So everything is welcome.
Jan


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576

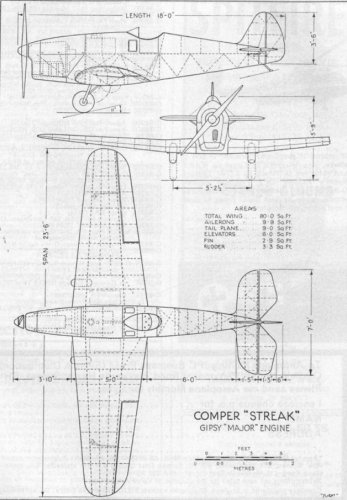

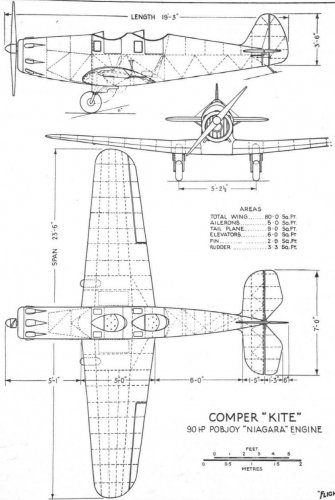

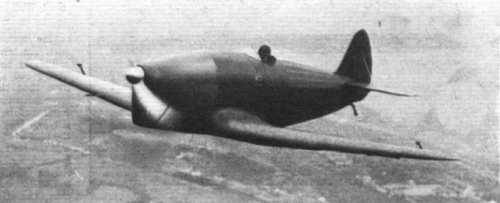

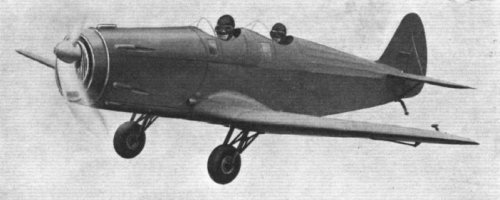

Hi! Streak and Kite.
http://aviadejavu.ru/Site/Crafts/Craft32644.htm

https://en.wikipedia.org/wiki/Comper_Streak
"The Comper Streak was a single-engined, single-seat racing monoplane built in the UK in the mid-1930s. It was not successful as a racer and only one was produced."

https://en.wikipedia.org/wiki/Comper_Kite
"The Comper Kite was a single-engined, two-seat touring monoplane built in the UK, derived from the contemporary Comper Streak racer. Only one was built."

Comper Aircraft Company
https://en.wikipedia.org/wiki/Comper_Aircraft_Company


Attachments

  • kite picture.jpg
    kite picture.jpg
    50.7 KB · Views: 23
  • Streak picture.jpg
    Streak picture.jpg
    41.3 KB · Views: 100
  • Kite.jpg
    134.7 KB · Views: 107
  • Streak.jpg
    102.2 KB · Views: 111

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576

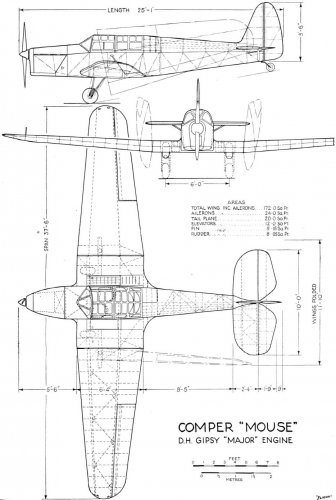

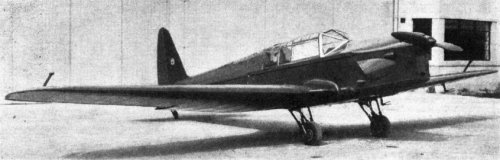

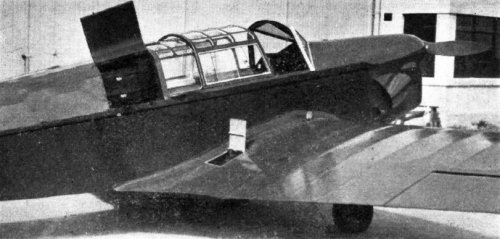

And Mouse.

https://en.wikipedia.org/wiki/Comper_Mouse
"The Comper Mouse was a 1930s British three-seat cabin monoplane designed by Nicholas Comper, and built by the Comper Aircraft Company at Heston Aerodrome in 1933."

http://aviadejavu.ru/Site/Crafts/Craft34510.htm


Attachments

  • Mouse.jpg
    168.5 KB · Views: 28
  • Mouse picture1.jpg
    Mouse picture1.jpg
    65.8 KB · Views: 28
  • Mouse picture2.jpg
    Mouse picture2.jpg
    85.8 KB · Views: 20

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Well known aircraft,no need to send them in this section.


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
Actually, as I think all three were one-off prototypes, I think this is exactly where they should be unless we have some other Comper thread of which I am not aware.
