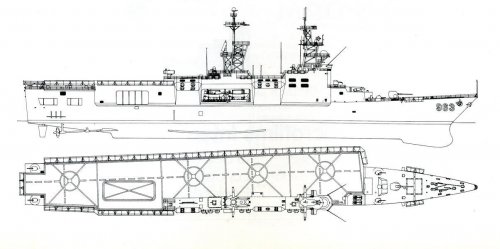

Commander Ghiradella's Air-Capable Spruance was a proposal for a modified flight deck Spruance-class destroyer that appeared in the article "Maintaining a Western Carrier Capability" in the journal US Naval Institute Proceedings, July 1978. Some references incorrectly identify this design as the Grumman/Sante Fe Air-Capable Spruance proposal or confuse it as a proposal for USS Hayler DDH-997 (Destroyer, Helicopter) or Flight Deck Spruance. Thank you TomS for your help in identifying this drawing.

Length Over All (LOA): 606 feet
Beam (hull and sponsor): 66 feet
Overall beam (width) with the ducted uptakes and angled fight deck: 87 feet

Fight deck length: 470 feet and can support simultaneous takeoff of 5 medium-sized helicopters


Weapons: 1- 5 inch/54 dual purpose gun
4-30 mm General Electric GAU 8 (a) guns
1 Harpoon launcher (An ASROC could be substitute)
1 Basic point defense missile system

Elevator measures: 62 x 26 feet

Embarked aircraft: 12 medium-sized helicopters or 8 medium-sized helicopters and 4 Harrier-type aircraft

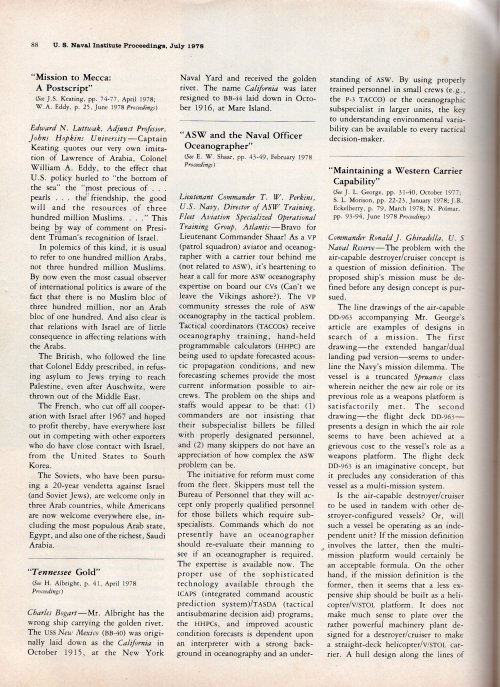

Links to scans of the original article:
http://i21.photobucket.com/albums/b291/barquitos/P-Files/GhirandellaSpruance1.jpg
http://i21.photobucket.com/albums/b291/barquitos/P-Files/GhirandellaSpruance2.jpg


Attachments

  • CommanderGhiradellaAirCapableSpruance.JPG
    100.6 KB · Views: 253

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
Artist impression of Commander Ghiradella's Air-Capable Spruance drawn by "shiplover" from Shipbucket. Incorrectly identified as Grumman Sante Fe Air-Capable Spruance Design.



archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,806
Reaction score
617
Really interesting, a sort of "American Kiev Class".....
This means that US NAVY wanted to acquire Harriers (or AV-8As)?
Or the VTOL carried component was to be provided by Marines as actually happens?
