Civilian versions of bomber aircraft

Dronte

Argentinean ugly bird
Joined
Feb 19, 2006
Messages
96
Reaction score
30
Why to spend money in a development from zero if military designs can adapt?

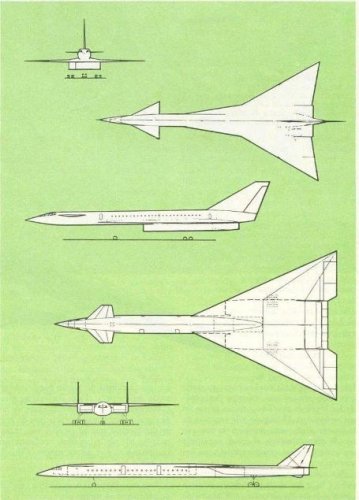

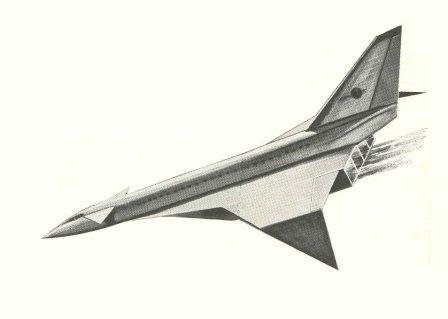

Proposals for a SST based on the North American XB-70 Valkyrie (I cannot avoid to imagine to the boys of Green Peace in a MIG-31 with the colors of the rainbow trying him to give hunt to one of these apparatuses) ;D


Attachments

  • B70SST_1.jpg
    41.7 KB · Views: 1,866
  • B70SST_2.jpg
    11.8 KB · Views: 1,618

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,914
Reaction score
963
Nice shots hesham.

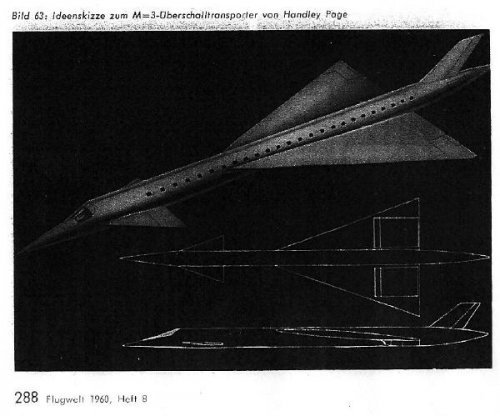

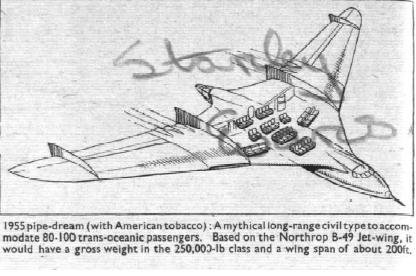

I knew about the project to convert XB 35 into civil airliner and, of course, at least Boeing Model 377 Stratocruiser was directly derived from B 29/B 50.
Also Russians did a lot of developments of their bomber into civil airliners, starting by Tupolev Tu 16 and Tu 20, in mid '50s.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
In the current issue of Air International a proposed conversion
of the TupolevTu-22M3 Backfire into a bizz jet for 12 to 18
passengers, designated Tu 344 is mentioned.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,639
Reaction score
498

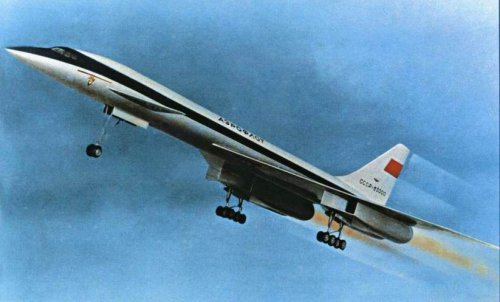

There is a beautiful colour pic from A Tu-344 desktop model on page 127 Red Star Volume 24 "Tupolev Tu-144" which is a highly recomended book for unbuilt projects enthusiasts.

Another B&W photo on page 102 with a brief description on the project.

Both pics are also available following this link of our great forum:

http://www.secretprojects.co.uk/forum/index.php/topic,1411.0.html
;D


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
Ah, thank you, had used the search function, but found no direct hit amongst the lots
for " tu 344", sorry ...

Indeed, was it really intended as a civil transport ? Or was it just a kind of a fast military
communications aircraft ? Ok, for all those russian nabobs, money may not matter and
so, maintenance and fuel costs either, but I can't see a real market for such an aircraft.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Hi,

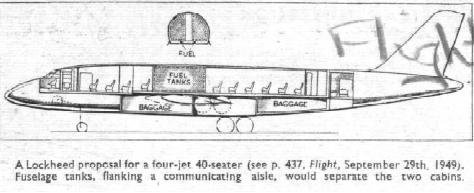

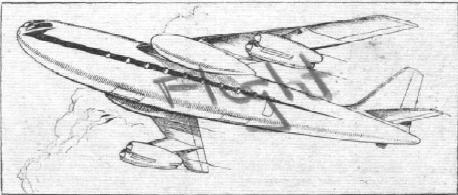

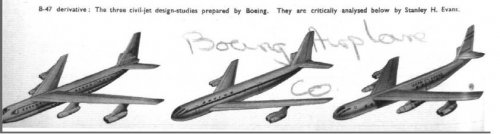

a three civil version derivative projects fron Boeing B-47.
http://www.flightglobal.com/PDFArchive/View/1950/1950%20-%200860.html


Attachments

  • Boeing civil derivative of B-47.JPG
    Boeing civil derivative of B-47.JPG
    26.6 KB · Views: 644

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,639
Reaction score
498
Jens,

the Tu-344 was a bizjet not a military aircraft project. However, as a straightforward adaptation of a combat aircraft its shortcomings for the bizjet role were so evident that it never progressed from the desktop model stage.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
From aero 1954:

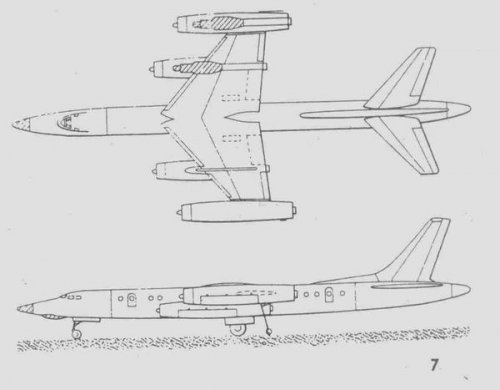

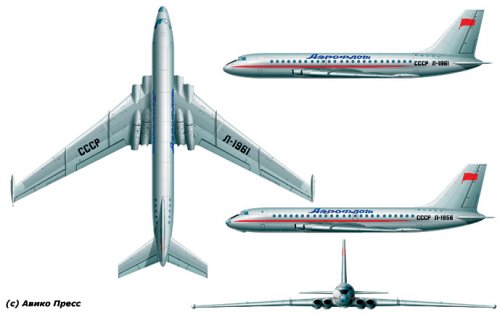

A civil derivative of the Myasyshev Bounder for 75 passengers:


Attachments

  • civil_Bounder.JPG
    24.6 KB · Views: 458
A

avatar

Guest
all images from www.sergib.agava.ru


Attachments

  • tu244.jpg
    30.1 KB · Views: 184

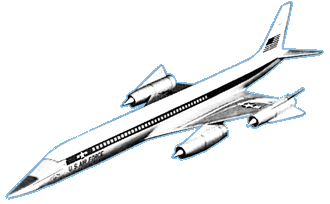

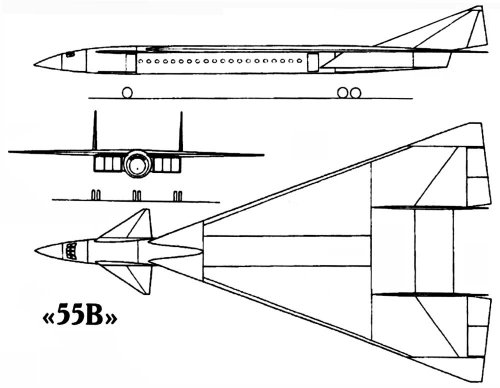

  • m55v_3.jpg
    52.9 KB · Views: 198
  • m55.gif
    7.5 KB · Views: 2,909
  • b58-9.gif
    12.4 KB · Views: 212
A

avatar

Guest
lest we forget the Platypus is a bomber too...
http://www.secretprojects.co.uk/forum/index.php/topic,2846.msg22766.html#msg22766


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,542
Reaction score
1,210
The Baade 152 was developed out of the Alexejew 150 / Junkers EF 150.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Hi,

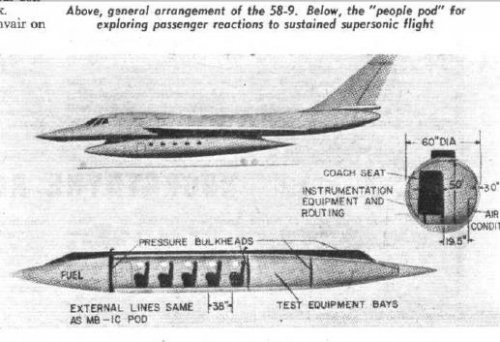

the B-58 bomber with people pod.

http://www.flightglobal.com/PDFArchive/View/1960/1960%20-%202646.html


Attachments

  • untitled.JPG
    35.3 KB · Views: 479

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
17

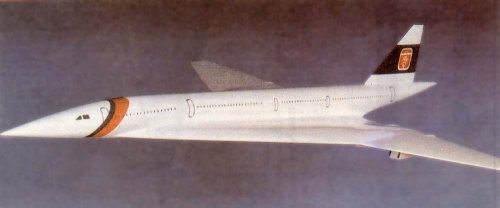

According to the book "Soviet SST: The Techno-Politics of the Tu-144" by Howard Moon (Amazon.com link, it's a really good book I highly recommend it), such an arrangement with a B-58 and a "people pod" was considered for President Kennedy but dropped as it was feared the safety record of the B-58 was unsatisfactory (though I'm not aware of any hull losses off the top of my head).


SSgt Baloo

ACCESS: Restricted
Joined
Sep 26, 2008
Messages
6
Reaction score
2
Website
www.geocities.com
Just call me Ray said:
According to the book "Soviet SST: The Techno-Politics of the Tu-144" by Howard Moon (Amazon.com link, it's a really good book I highly recommend it), such an arrangement with a B-58 and a "people pod" was considered for President Kennedy but dropped as it was feared the safety record of the B-58 was unsatisfactory (though I'm not aware of any hull losses off the top of my head).

ISTR hearing that the B-58 had a fragile nose gear strut that was prone to collapse unless you set her down just right. The passenger pod still seems like a cool use for the bird though!


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,167
Reaction score
109

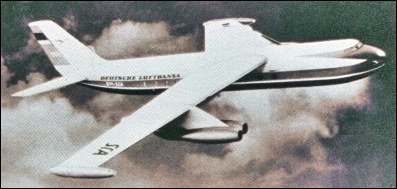

Hailing all the way from formerly East Germany....the Baade-152!
http://en.wikipedia.org/wiki/Baade_B-152


Attachments

  • Baade 152.JPG
    Baade 152.JPG
    57.5 KB · Views: 587

quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,215
Reaction score
311
Just call me Ray said:
According to the book "Soviet SST: The Techno-Politics of the Tu-144" by Howard Moon (Amazon.com link, it's a really good book I highly recommend it), such an arrangement with a B-58 and a "people pod" was considered for President Kennedy but dropped as it was feared the safety record of the B-58 was unsatisfactory (though I'm not aware of any hull losses off the top of my head).

Sometime in the early/mid 90s AvWeek had a short piece about a Russian "people pod" that could be carried on bombers. It was (as I recall) a cylinder about 20 feet long, carrying 6-8 people side by side in Soyuz-derived seats. The idea here was that small rescue teams could be dropped into remote disaster areas quickly. The AvWeek piece showed the pod, it was not clear if it was a mockup or a flight vehicle. I have never been able to find anything else in the open literature on this.

That's one way to convert a bomber!


Hammer Birchgrove

ACCESS: Top Secret
Joined
May 13, 2009
Messages
583
Reaction score
15
Avro Lancastrian (from Avro Lancaster)

Vickers Swallow (might have become TSR-2, civilian SST was also proposed by Barnes Wallis)


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,213
Reaction score
89
There was an SST derivative/relation of the XB-70 studied at one point.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,039
Reaction score
562
Airliner versions of V-Bombers :-

Avro 722 Atlantic,

http://www.secretprojects.co.uk/forum/index.php/topic,482.0/highlight,avro%20atlantic.html

Putnam's 'Avro', page 475, 'Stuck on the Drawing Board', page 13.

Vickers VC5 and VC7,

http://www.secretprojects.co.uk/forum/index.php/topic,1067.0/highlight,v%201000.html

Putnam's 'Vickers', pp.565-571, and 574, 'Stuck on the Drawing Board', pp.38-42, and 245.

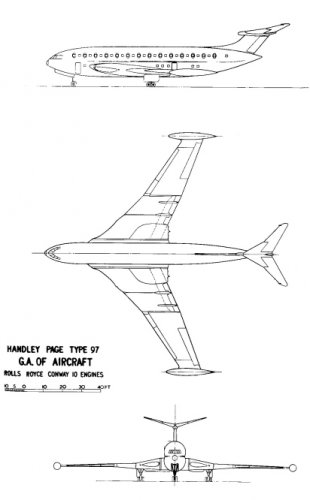

Handley-Page HP.97,
Putnam's 'Handley-Page', pp.498-499, 'Stuck on the Drawing Board', pp 47-49.

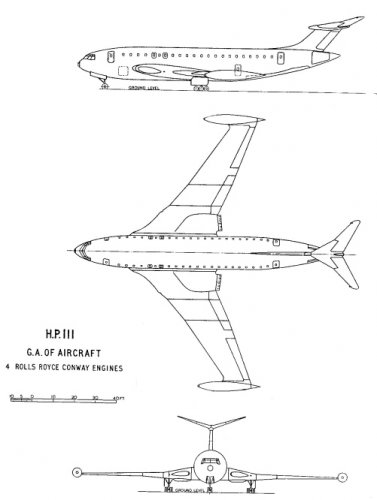

HandleyPage HP.111,
Putnam's 'Handley-Page', pp.527-528, 'Stuck on the Drawing Board', page 50.

Cheers,
Robin.


Attachments

  • HP.97.jpg
    56 KB · Views: 582
  • HP.111.jpg
    66.2 KB · Views: 550
  • high-wing VC5.jpg
    high-wing VC5.jpg
    48.2 KB · Views: 535

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
73
About Baade 152 / VEB-152. Though it was derived from Alexeev-Baade "150" bomber, it couldn't be considered as a version or a modification of "150". Only principal aerodynamic scheme and basic principles of design were inherited, but any "150" aggregate or assembly unit wasn't taken directly. The "152" was considerably larger (especially its fuselage - 31.3 m instead of 26.7 m in length, 3.3 m instead of 2.6 m in diameter), heavier, and it had 4 engines while the "150" had only 2. Also it has classic-mounted horisontal tail, instead of T-tail of the "150".

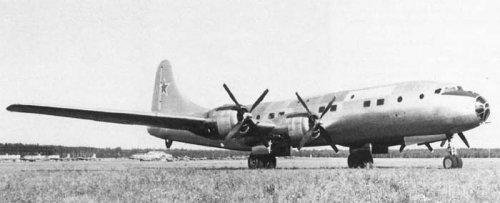

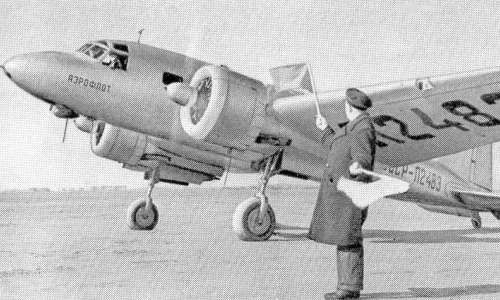

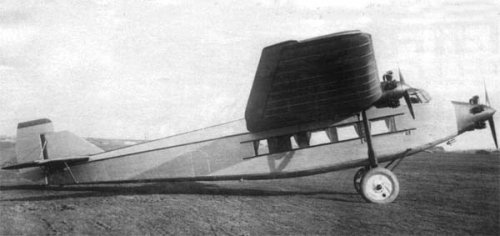

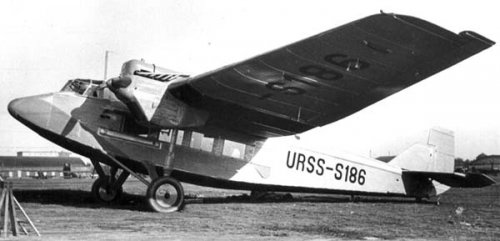

About Tupolev: Almost all his bombers had civil derivatives, and it was beginned not in middle 1950s, but in late 1920s. The first Tupolev airliner, 9-seat trimotor ANT-9 from 1929, was derived from R-6 (ANT-7) twin-engine recon/bomber aircraft: the wing and tail unit were the same, combined with new fuselage. Also engines were different: while R-6 had two inline 630-hp M-17s (Soviet license-built BMW-VIs), the ANT-9 had three radial engines: 3x230-hp Gnome-Rhone Titan on a prototype, 3x300-hp Bessonov M-26 on serial aircrafts. But the M-26 engine was unsuccesssful, and in 1931 a version called PS-9 was designed; it had two M-17s and the powerplant was completely taken from the R-6!

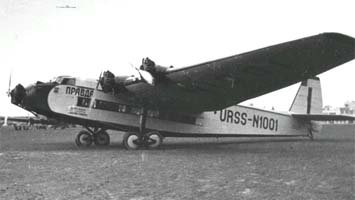

The 32-seat ANT-14 Pravda from 1931 was derived from the famous TB-3, with the same wings and many other aggregates. Another Tupolev bomber legend of 1930s, the SB (ANT-40), also had a civil "brother" - it was 10-seat ANT-35 (PS-35), the first Soviet twin-engine high-speed airliner. The passenger version of TB-7 (ANT-42, later renamed into Pe-8) was also projected, but left unbuilt. And the civil "brother" of Tu-4 was Tu-70 prototype from 1946.


Attachments

  • tu70-3.jpg
    45.9 KB · Views: 135
  • ant35.jpg
    24.6 KB · Views: 101
  • ant14-i.jpg
    12.2 KB · Views: 94
  • ps9-6.jpg
    43.8 KB · Views: 73
  • ant9-1.jpg
    35 KB · Views: 429

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
73
Yes, of course. The Tu-104 is based on Tu-16, while the Tu-114 is a Tu-95 version.
I didn't mention this because it is common known (I think).
Also, Archipeppe mentioned this in the beginning of this theme:

archipeppe said:
Also Russians did a lot of developments of their bomber into civil airliners, starting by Tupolev Tu 16 and Tu 20, in mid '50s.

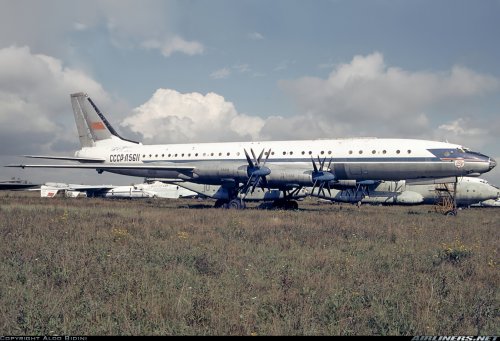

Here is a photo of Tu-114 in Monino Air Museum. The photo is from http://www.airliners.net/photo/Tupolev-Tu-114/1316972/L/


Attachments

  • 1316972.jpg
    482.7 KB · Views: 181

JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
258

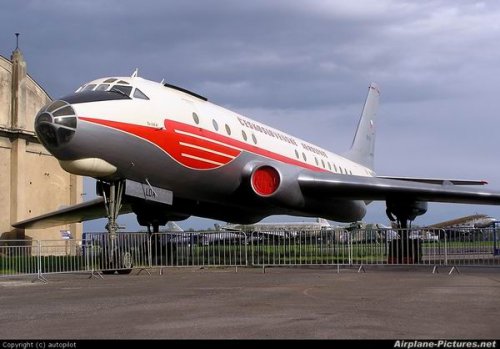

A detail that has intrigued me for years, why did the T104 have a "bomb aimers" position?


Kokoro

ACCESS: Confidential
Joined
Apr 8, 2009
Messages
50
Reaction score
4
redstar72 said:
Yes, of course. The Tu-104 is based on Tu-16, while the Tu-114 is a Tu-95 version.
I didn't mention this because it is common known (I think).

Its the two Tu-116 few people have heard of.


Firefly 2

ACCESS: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
14
JohnR said:
A detail that has intrigued me for years, why did the T104 have a "bomb aimers" position?

For the navigator, to see which way they are heading?

I always gathered it was because the plane simply used the nose section of a bomber.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
I don't think it was the nose section of a bomber, I don't think it would have interchanged, it's just that they liked to put the nav in the nose. Remember, pure transports not derived from bombers, like the An-8, 10, 12 & 22 & Il-76 used the same set-up.


Firefly 2 said:
JohnR said:
A detail that has intrigued me for years, why did the T104 have a "bomb aimers" position?

For the navigator, to see which way they are heading?

I always gathered it was because the plane simply used the nose section of a bomber.


Firefly 2

ACCESS: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
14
You are correct.
I can honestly not think of a logical reason for a cargo plane to have a glass nose other than a help for low level cargo drop operations ( although it must be said that western cargo planes don't seem to need this for such operations).
I simply do not know. The thought I mention above is entirely speculative.


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
258
Do the aircraft listed not have nav/weather radars, if so the were is the antenna located; which is western aircraft located in the nose?


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
At least in the case of the Tu-104 (and in several other soviet a/c)
the nav/weather radar was located in a fairing under the nose, just
behind the glazed nose.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161
Kokoro said:
Its the two Tu-116 few people have heard of.

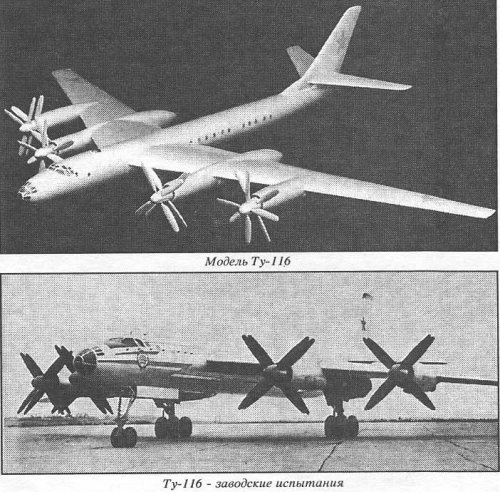

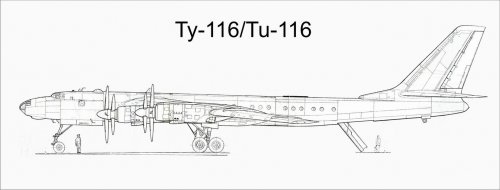

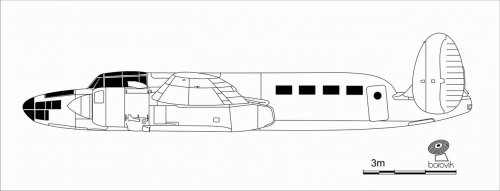

Unlike the Tu-114 aircraft "116" (two copies) are almost entirely consistent with the constructive TU-95, with the exception of built-hermetic cabins with windows, the volume of 70.5 m3.
Another project Tupolev Design Bureau in March 1945 invited the engineer Nikolai Kirsanov (the future chief designer of the plane TU-142).
The original modification of aircraft "62 T" / TU-2 T in high-speed passenger aircraft, designed to transport 15 people.


Attachments

  • '62'P  (Tu-2P).jpg
    '62'P (Tu-2P).jpg
    43.5 KB · Views: 581
  • Tu '62'.jpg
    Tu '62'.jpg
    35.3 KB · Views: 591
  • Tu-116..jpg
    61.5 KB · Views: 657
  • Tu-116.jpg
    157.7 KB · Views: 665

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
213
SOC said:
There was an SST derivative/relation of the XB-70 studied at one point.

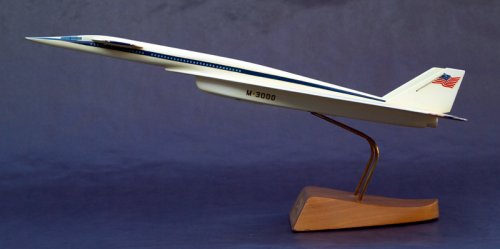

Attached is a manufacturer's model of the North American Aviation M-3000, the direct civilian variant of the XB-70 bomber. The fuselage "hump" was increased in size, to accommodate 48 passengers (an un-modified hump could only fit 36 passengers). Even then, the M-3000 had one J-93 engine for every eight passengers -- not your ideal, eco-friendly carbon footprint. With the M-3000, the U.S. could have had the ultimate, trisonic SST in service by 1965-66, a full decade before Concorde!


Attachments

  • NAA M-3000 SST 03.jpg
    NAA M-3000 SST 03.jpg
    201.3 KB · Views: 650

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
213

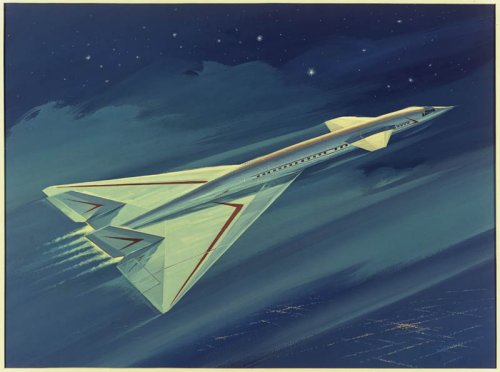

... And here is a North American Aviation artist rendering of an M-3000 SST in flight. This is the 76-passenger variant, with an even bigger fuselage "hump". While still capable of Mach 3 flight, this larger variant was rejected early because projections showed the range would be reduced to 3600nm.


Attachments

  • NAA M-3000 Rendering.jpg
    NAA M-3000 Rendering.jpg
    68.8 KB · Views: 253

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161

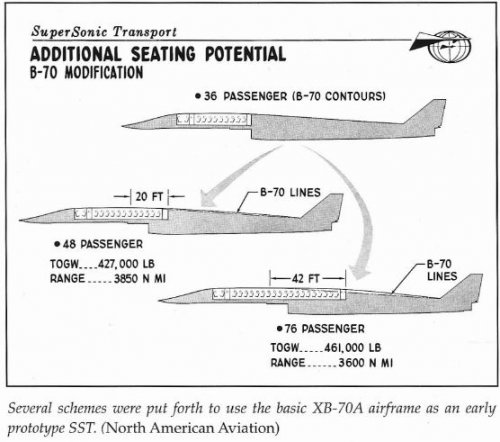

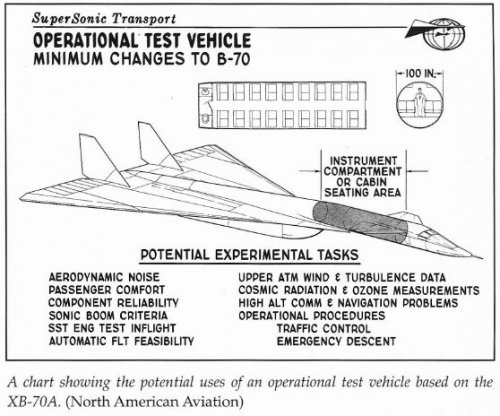

from book "NA XB-70 Valkyrie" by D. Jenkins and T. Landis
___________________________________

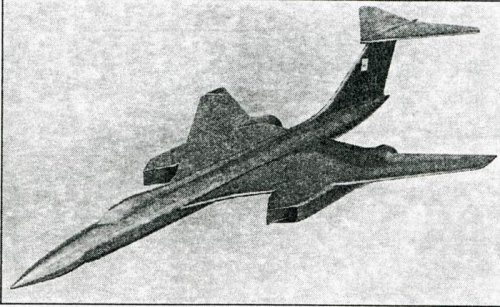

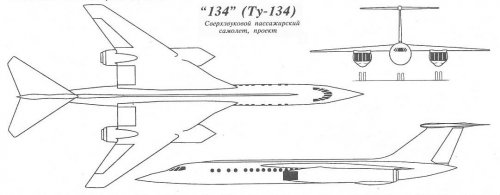

Tu-134 SST (the first with this name)
For the foundation was taken into one of the options for the project "106" aircraft "106A".
Have been worked out four options for the project: two with two engines NK-6 and two with four engines WD-19R2.
Work stopped at the preliminary design.
from "Aviation & Cosmonautic mag. # 10/99
____________________________________
Tu-135 SST


Attachments

  • B-70.jpg
    56.1 KB · Views: 292
  • B-70 mod..jpg
    B-70 mod..jpg
    41.9 KB · Views: 349
  • '134' 2xNK6.jpg
    '134' 2xNK6.jpg
    102.4 KB · Views: 316
  • '106A'.jpg
    89.6 KB · Views: 213
  • '135' passeng..jpg
    '135' passeng..jpg
    58.5 KB · Views: 238
