Chinese Z-9 variant with large nose radar

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
90
Website
sites.google.com
Found a new Z-9 variant with a modified nose-cone ebodying some kind of device inside. The photo is not altered in any way at all. It is a true picture.



Here is the source, but its in Chinese:

http://tuku.military.china.com/military/html/2006-05-08/29996.htm

.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86
Re: New Chinese Z-9 variant with ECM

Hi, Stingray,

The link you attached to your last post goes directly to IAI's last system installed, on the photo, on an Eurocopter AS565 (named "Atalef" I think in the Israely Navy), not to a Chinese Z-9.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,354
Reaction score
3,377
Re: New Chinese Z-9 variant with ECM

Thats the Elta EL-M 2022H radar on a Eurocopter, as explained above. I think you meant Hebrew, not Chinese...


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,726
Reaction score
487
Re: New Chinese Z-9 variant with ECM

overscan said:
Thats the Elta EL-M 2022H radar on a Eurocopter, as explained above. ...

So does this mean that this picture with the PLAAF-symbol is a ps-ed FAKE ... or has CHina acquired this radar ?? ... as this helicopter-picture is cyrcling araound for some while in several CHinese news-groups !

Deino ???


Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
90
Website
sites.google.com
Re: New Chinese Z-9 variant with ECM

The picture was overlooked by a person with LOTS of experience with photoshop and other picture editing programs, and he explains that he is 99% sure that the picture was not altered.

EDIT: I posted the wrong link above. Sorry about that.

Here is the real link:

http://tuku.military.china.com/military/html/2006-05-08/29996.htm

[Added pic - Overscan]


Attachments

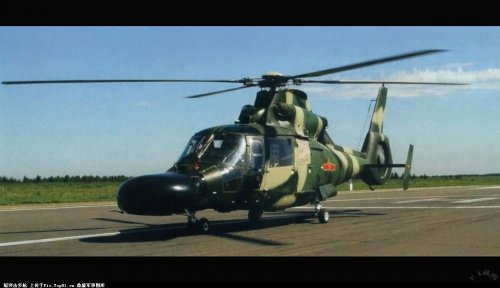

  • 1020487_045557647.jpg
    118.5 KB · Views: 137

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
90
Website
sites.google.com
This is one of two Electronic Warfare (EW) variants of the model Z-9A, specifically "Type II".
http://cnair.top81.cn/z-8_z-9_z-11.htm

See attachments for both versions.


Attachments

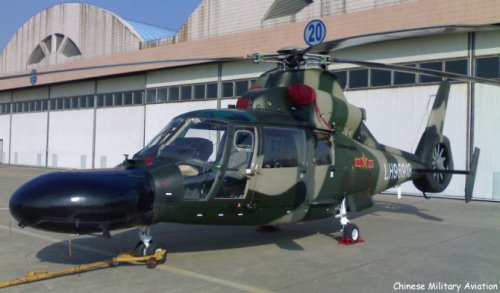

  • Z-9EW1.jpg
    42.4 KB · Views: 64

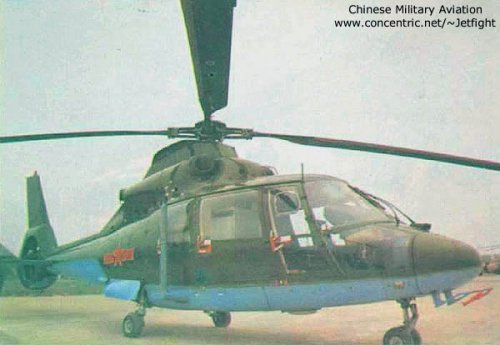

  • Z-9ECM1.jpg
    88 KB · Views: 75
