Chinese turboprop Yak-18 ???

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146
I believe it was in the Czech aviation magazine L+K where I've seen a tiny picture of a turboprop derivative of the Yak-18, realized in China, probably in the 1970s. Does anybody know more about this aircraft? A picture would be nice, of course.

Matej? Deino? Rousseau?

E

Exit

Guest
This is probably the CJ-6 (of course derivated from the Yak-18), it is still used by the PLAAF for basic pilot training.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146
The CJ-6 is fitted with a piston engine ... ;)

E

Exit

Guest
Turboprop ? Maybe the CJ-6B project using a new engine, try to find infos about the HS-6D engine (what kind of engine it is).


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
It will really help to say at least the era or year, when you saw it. I will take a look tomorrow, but I have complete issues only from 1999.

CJ-6: http://orbat.com/site/andreas/china.html#_List
HS-6D is also piston: http://orbat.com/site/andreas/parschgehrspahl.html#_Engines


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,727
Reaction score
496
boxkite said:
I believe it was in the Czech aviation magazine L+K where I've seen a tiny picture of a turboprop derivative of the Yak-18, realized in China, probably in the 1970s. Does anybody know more about this aircraft? A picture would be nice, of course.

Matej? Deino? Rousseau?

Hmmm .... ??? Sorry; never heard about that ! The latest Info I got about a Yak-18 / CJ-6 replacement were these projects and only the last one is a turboprop:

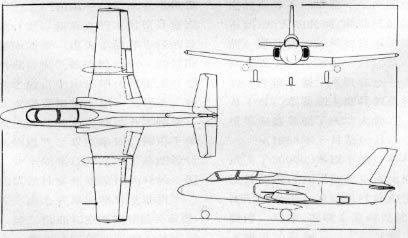

The first looks very much like a "development" of the L-29 "Delfin" (just my opinion), but sadly I don't know any more about other than these two illustrations. Maybe it's an improved indigenious version of the L-29 based on the around 40 aircraft, which were delivered to PLAAF by 1967.

Can anyone at least translate what's written under the side-drawing !!??

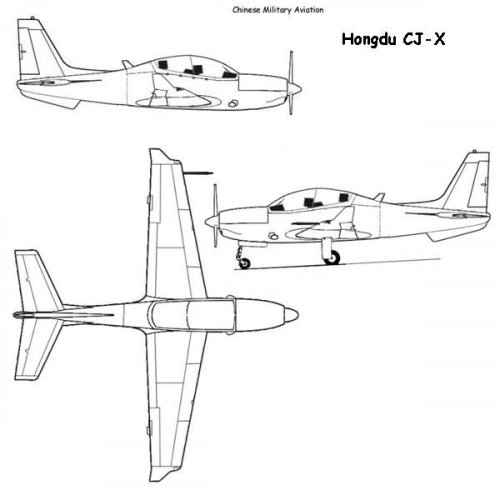

The next is only a very recent "concept" of a planned successor based on the Yak-52 currently under development at Hongdu as the CJ-X "Baby Eagle" !


.... but nothing from around the 1970s !

Cheers, Deino :)


Attachments

  • CJ-7-prototype-2.jpg
    18.6 KB · Views: 109
  • CJ-7-prototype.jpg
    27.1 KB · Views: 97
  • Hongdu CJ-X smaller.jpg
    Hongdu CJ-X smaller.jpg
    30.1 KB · Views: 137

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146
In that issues that I have I found nothing, sorry. However "nearly L-29" :) is interesting.

Matej, I believe the picture was published in a L+K in the late 1970s. I'm still looking for a track and keep you informed.

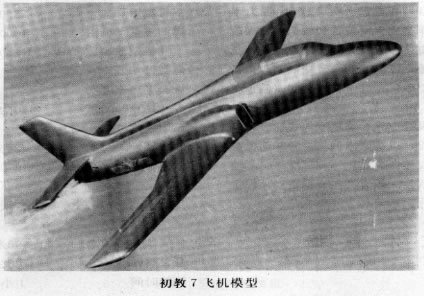

Deino, the caption below CJ-7-prototype.jpg image is simply 'model of the Chujiao (i. e. basic trainer) 7' - nothing more (I've asked the teacher for Chinese language here in town).

E

Exit

Guest
The canopy of the CJ-7 is very similar to the Embraer 312.

So I'll be very curious to see features of this aircraft (avionics, systems, perfs, etc...)


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,727
Reaction score
496
boxkite said:
...
Deino, the caption below CJ-7-prototype.jpg image is simply 'model of the Chujiao (i. e. basic trainer) 7' - nothing more (I've asked the teacher for Chinese language here in town).

Thanks ... I had the hope that at least the mystery of the designer (Nanchang/Hongdu, ???) was solved !

Thanks a lot !

Deino :)


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146
It was my fault. I thought, if there is no reference to an turboprop Yak-18 in the Yakovlev OKB history books, such a conversion could only be done by Chinese engineers (remember the original piston-engined Tu-4 and Be-6 later fitted with turboprop engines). But I was on the wrong track. The turboprop Yak-18 was a product of the OKB Yakovlev by itself! A good friend was able to name the source (Matej, my speculation was very close on it): A picture was in “Letectvi + Kosmonautika” # 15/1977 (pg 585), but unfortunately, my collection of this Czechoslovakian magazine starts with 1982. Can anybody from the Czech Republik or Slovakia help to post a scan of the picture?

In spite of my mistake, it’s very interesting, that the Yakovlev specialist(s) at Aerofax seems to be ignorant on this engine upgrade …


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146
Correction: The „Yak-18PM turboprop conversion“ is mentioned in „OKB Yakovlev. A History of the Design Bureau and its Aircraft” after all. At page 273 is a short description – but without any illustration.

Sorry for the chaos I made, but I’m still looking for the L+K picture, probably the only pictorial reference for this conversion.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,727
Reaction score
496
Deino said:
The first looks very much like a "development" of the L-29 "Delfin" (just my opinion), but sadly I don't know any more about other than these two illustrations. Maybe it's an improved indigenious version of the L-29 based on the around 40 aircraft, which were delivered to PLAAF by 1967.

Cheers, Deino :)

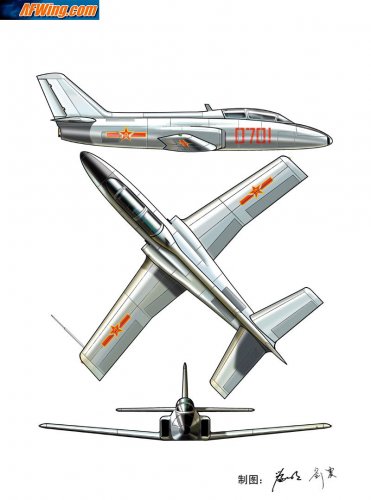

Here's something more on Chinese trainer developments ... and also from the CJ-7 (maybe now we can discover from what manufactor)

http://www.afwing.com/intro/platrainer/1.htm .... to page 6 !

Cheers, Deino


Attachments

  • CJ-7 colour.jpg
    CJ-7 colour.jpg
    89.5 KB · Views: 127

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
Unfortunatelly nobody from people around me (some of them are authors of articles in L+K!!) have so old L+K issues. I wrote to the redaction, but my experience is, that they didint answer very often. If they do, I will inform you.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146

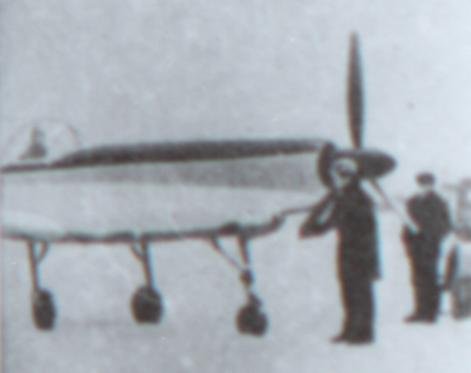

It lasted a little bit longer, but I have discovered 23 years old negatives of the L+K (long before copier became a usual instrument of our daily routine). The picture of the turboprop Yak-18 is of crude quality (seems to be heavy retouched), but it's the only one, I've ever seen. It was fitted by the OKB itself with a TVD-10 (no Chinese participation ;-).

If anybody gets a better picture of this sole turboprop conversion of a Yak-18, please let me know. Thanks!


Attachments

  • Jak-18 mit PTL.jpg.jpg
    Jak-18 mit PTL.jpg.jpg
    12.3 KB · Views: 87
