Charpentier projects and prototypes

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,321
Reaction score
256
Re: Charpentier 310 C1

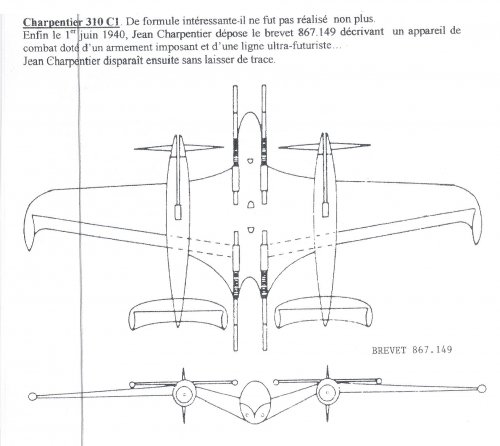

"Jean Charpentier disparait ensuite sans laisser de trace"

he must have been interned in an insane asylum! ;D

seriously, very cool plane. What are the barrels on the fuselage? recoilless rifles?
I assume the additional armament consisted of motor-cannons?


CAO 700

ACCESS: Confidential
Joined
Nov 22, 2009
Messages
91
Reaction score
3
Re: Charpentier 310 C1

Armament had certainly to be 6 20mm Hispano HS.404.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
Re: Charpentier 310 C1

More is at http://v3.espacenet.com/publicationDetails/mosaics?CC=FR&NR=867149&KC=&FT=E
(as linked on my site http://cmeunier.chez-alice.fr/update_FG.htm#7 )


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,805
Reaction score
4,972
Re: Charpentier 310 C1

Hi,


the TU issue is 182,but was this fighter involved in 1937 C.1 competition ?.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
104
Re: Charpentier 310 C1

There is something strange here..

The Charpentier 310C.1 should be based on additive n° 17 125. A model was tested
in the windtunnel of d'Issy-les-Moulineaux between 30.121937 and 31 janvier 1938.

The patent n° 867 149 (7 juillet 1941 delivered) was deposed at Bordeaux , during the plain collapse of France on 1 June 1940
describing the concept as in the illustration.

The plane was armed with two 20mm motorguns and four 75mm guns firing foreward and aft.
Because of the higly speculative and futuristic layout the idea was never further investigated..

Souce : Le fana de' L'Aviation Novembre 1977 issue 96.
article by Michel Borget


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,805
Reaction score
4,972
Re: Charpentier 310 C1

Thank you my dear Lark,


but what was that mean ?,there is anther drawing to Type-310C.1 ?.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
104
Re: Charpentier 310 C1

The gun type is not further described in the article Avimimus.

Since a model of the 310 C1 was tested Hesham , we have the look for a
photo of the model.
According to the text in Le Fana ,the drawing in this thread was not the 310 C1.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
104
Re: Charpentier 310 C1

The text in T.U 182 ( thanks Hesham ) confirms..
The brevet 867.149 heavy gun fighter concept is not the Charpentier 310C1.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,805
Reaction score
4,972
Re: Charpentier 310 C1

lark said:
The text in T.U 182 ( thanks Hesham ) confirms..
The brevet 867.149 heavy gun fighter concept is not the Charpentier 310C1.


New info,many thanks my dear Lark.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109
Hi all
From an old " le Fana de l'aviation"


Attachments

  • c1.pdf
    304.7 KB · Views: 72
  • c2.pdf
    220.7 KB · Views: 46
  • c3.pdf
    131.7 KB · Views: 48
  • c4.pdf
    340.6 KB · Views: 54

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,805
Reaction score
4,972
Via my dear Tophe;

maybe this patent solve the problem of C.310,there is a three different shapes to
this aircraft,I think one of them was C.310 ?.


Attachments

  • 1.png
    14 KB · Views: 187
  • 2.png
    12.5 KB · Views: 185
  • 3.png
    13.4 KB · Views: 185

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
104

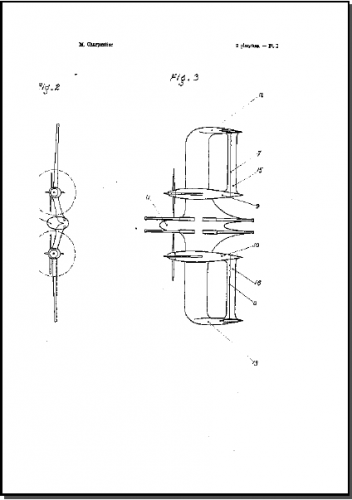

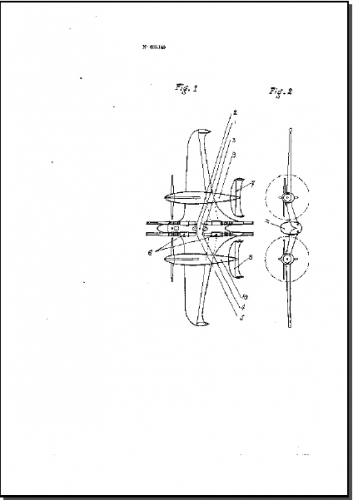

These are infact the patent drawings and variants of the 867.149 concept (1940)

The fighter design Charpentier 310C1 was three years earlier. (1937)

The confusion came in because the last sentence of a former phrase about the 310C1 was scanned with the
text about the brevet 867.149 . (see text T.U 182 with lettering in bold Charpentier 310C1)

If one reads the text from Le Fana (scan 4 Toura) starting with ' Le 20 Septembre 1937 ... ' and further
all must be clear.
