Carrier Airborne Early Warning

danielgrimes

ACCESS: Confidential
Joined
Oct 8, 2007
Messages
57
Reaction score
2
One of the limitations of the UK's small carriers was/is a lack of an airborne early warning aircraft such as an E-2 Hawkeye. Indeed, this was apparently one of the deficiencies of the UKs air strategy during the Falklands - although Nimrods did fly from Ascension.

Has the UK MOD ever investigated this capability (or lack of)?

An aircraft with STOL performance and long mission duration is obviously difficult, so thinking about this I though an unmanned airship would be a good vehicle (as well as a good target!!). Have any navies ever investigated this idea, or is there something obviously stupid I haven't considered - like it would give away the position of the fleet?

Thanks


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,214
Reaction score
197
The US Navy was getting quite serious for a while with the Westinghouse/Airship Technologies YEZ-2A. But somebody decided that it had to be joint and Army-led (because it had to do with cruise missile defense, and overland missile defense is the Army's job) and the Army decided to use aerostats instead.

http://query.nytimes.com/gst/fullpage.html?res=950DEFD61539F933A25752C0A96F948260&sec=health&spon=&pagewanted=all


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
906
Reaction score
461
danielgrimes said:
One of the limitations of the UK's small carriers was/is a lack of an airborne early warning aircraft such as an E-2 Hawkeye. Indeed, this was apparently one of the deficiencies of the UKs air strategy during the Falklands - although Nimrods did fly from Ascension.

Has the UK MOD ever investigated this capability (or lack of)?

This is why they developed the Westland Seaking AEW variants: AEW2A, AEW7 and now AAaC7



Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
15
There are proposals for either a Merlin or Osprey-derived AEW variant to replace the Sea King AEW as well. Prior to that they had Gannet AEW aircraft, and prior to that they had the Avenger AEW. I imagine they probably also relied on shore-based AEW as a supplement too.

A

avatar

Guest
what about these
http://www.aoe.vt.edu/~mason/Mason_f/Vertigo.pdf
http://www.aoe.vt.edu/~mason/Mason_f/Chimera.pdf

interesting studies , wot?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,315
"An aircraft with STOL performance and long mission duration"

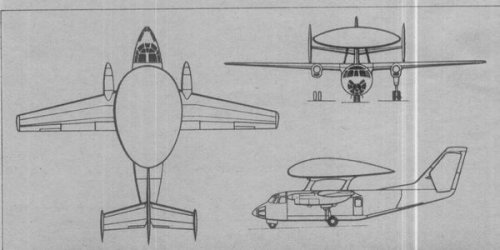

The french navy once considered an AEW version of the Dassault Spirale III,
STOL tactical transport, although its short field performance probably wasn't
the main reason for it, as it would have been launched by catapult from the
Foch/Clemenceau. But such an aircraft may be adaptable to being launched
from a ski-jump.
(From RAF Flying Review 4/1962)


Attachments

  • Dassault_Spirale-III-AEW.JPG
    24.4 KB · Views: 230

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
296
Reaction score
98

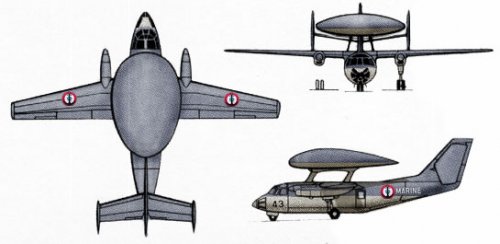

Rendered..


Attachments

  • FR- Dassault Spirale_AEW_001.jpg
    FR- Dassault Spirale_AEW_001.jpg
    32.5 KB · Views: 254

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
avatar said:
what about these
http://www.aoe.vt.edu/~mason/Mason_f/Vertigo.pdf
http://www.aoe.vt.edu/~mason/Mason_f/Chimera.pdf

interesting studies , wot?


Attachments

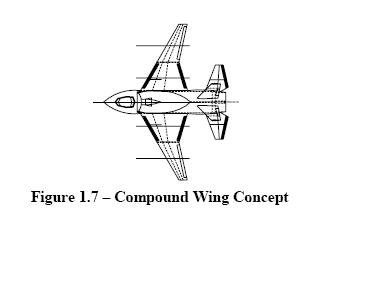

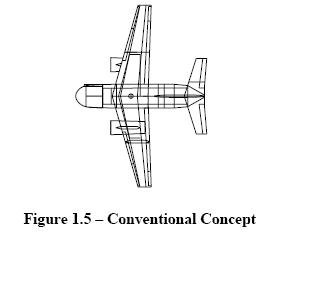

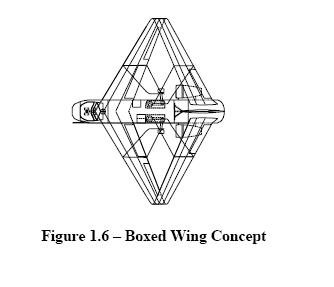

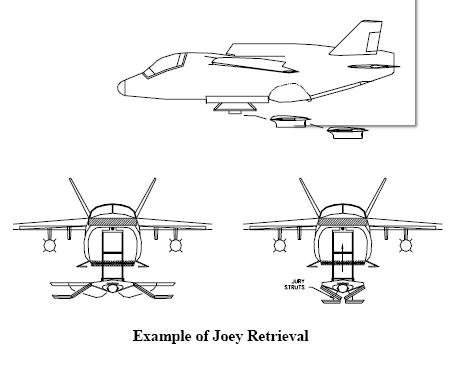

  • Virginia .JPG
    Virginia .JPG
    19.1 KB · Views: 164
  • Virginia 1.JPG
    Virginia 1.JPG
    41.1 KB · Views: 129
  • Virginia 2.JPG
    Virginia 2.JPG
    7.5 KB · Views: 52
  • Virginia 3.JPG
    Virginia 3.JPG
    11.3 KB · Views: 46
  • Virginia 4.JPG
    Virginia 4.JPG
    9 KB · Views: 55

Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
255
For CVA-01 the Royal Navy planned to develop a new Airborne Early Warning (AEW) and Carrier On-board Delivery (COD) aircraft, the Hawker Siddeley (Blackburn Division) P.139B. When CVA-01 was cancelled in 1966 funding for the the P.139B, which was well advanced, dried up. The P139B was to carry a new Frequency Modulated Interrupted Continuous Wave Radar with fore and aft scanners. After the aircraft was abandoned the radar was further developed – unsuccessfully – for the Nimrod AEW.3.


Attachments

  • aew.ht1.gif
    13.8 KB · Views: 133

ouroboros

ACCESS: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
8
Aren't there pictures of JSF's using wingtip pods, that supposedly would cover a mission like this? And weren't those pods originally from some other program...
