Camco Mk.IIA V-Liner

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,227
Reaction score
935

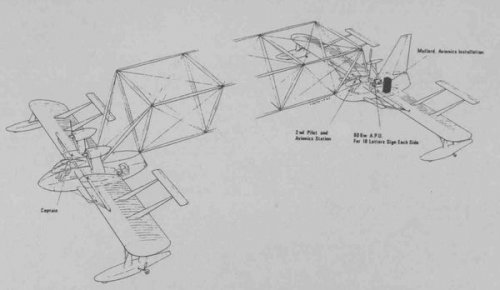

Already mentioned by hesham in another thread, I've found a
drawing of the Camco Mk.IIA V-Liner, I've once copied from
A.J. Jackson "British Civil Aircraft, 1919 - 1972, Vol.I". Interestingly,
this very weird design didn't remain just a project, but the prototype
was scrapped after it was damaged in the factory at 18th November
1968. So there could have been photos of the unfinished prototype,
I think. And, as it was designated Mk.IIA, there probably was a Mk.I? ???


Attachments

  • Camco_V-liner.jpg
    22.5 KB · Views: 684

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
IIRC the V-Liner emerged from nowhere just before the September 1968 Farnborough show. It was being built by the Slingsby sailplane company at Kirbymoorside under contract to Camco, a US company. (Aerial advertising was not legal in the UK at that time.) A portion of the truss structure was shown at Farnborough, along with a model. I think first flight was planned for 1969, but the factory burned and the company went under.

http://www.flightglobal.com/pdfarchive/view/1968/1968%20-%202035.html

http://www.flightglobal.com/pdfarchive/view/1968/1968%20-%201960.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,703
Reaction score
3,484

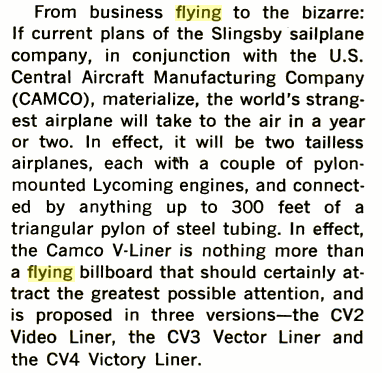

It was offered in three versions;

https://books.google.com.au/books?id=3r_N-1k-QbAC&pg=PA26&dq=Flying+magazine+VTOL&hl=en&sa=X&ved=0ahUKEwiG_ZLwqJHKAhVIiRoKHWf2DfY4PBDoAQgmMAM#v=onepage&q=Flying%20magazine%20VTOL&f=false


Attachments

  • Untitled.png
    45.1 KB · Views: 401

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,107
Reaction score
552
Eventually an American company invented "sky-typing" to replace the flying billboard concept. They hired a half-dozen T-6 Texans to fly in formation and linked their smoke-generators (electronically) to type messages in the sky. Smoke messages are easiest to read against a clear blue sky.


Kiltonge

Greetings Earthling
Joined
Jan 24, 2013
Messages
202
Reaction score
12

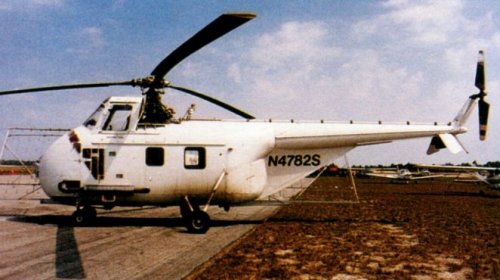

An alternative approach was Orlando Helicopter's [ Sikorsky ] S-55 Nite-Writer, which had immense 40 x 8 ft electronic advertising display-grid mounted on the starboard side which generated messages visible from a couple of miles distant.

It was mentioned in Jane's for several years in the 1980s and there are numerous incidental references to it online ( probably all deriving from the same source ) but I've never determined whether it was actually used. The test-bed was N4782S which is now preserved in the Udvar-Hazy Center.

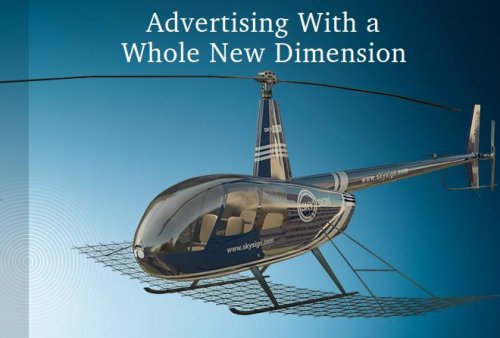

The manufacturer of the display, Sky Sign, is still in business and offers an LED-based array of similar dimensions for small aircraft like the R44, now mounted ventrally.


Attachments

  • N4782S_Sky_Sign_starboard.jpeg
    61.9 KB · Views: 342
  • Sky_Sign_R44.JPEG
    37.5 KB · Views: 323

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
563
Reaction score
164

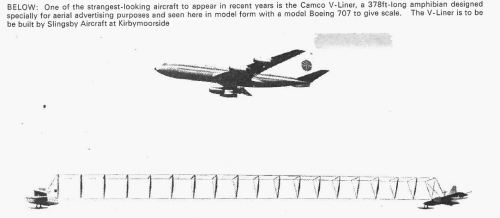

There was a full page article on the Camco V-Liner design in the November 1968 issue of Aircraft Illustrated.

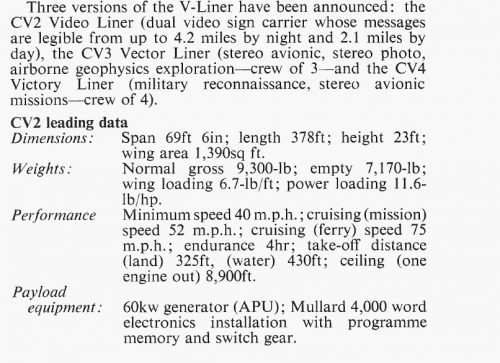

No mention of the CV-1, just the CV-2 , CV-2 and CV-4 versions. Brief details of the differences are included in the specification image below.

The V-liner concept was originally conceived by Lewis McCarthy Junior of the Central Aircraft Manufacturing Company (Camco) as an amphibious vehicle for aerial advertising. Camco saw a potential market for 42 of these V-Liners. The first two examples were earmarked for First National City Bank and Canada Dry for advertising over New York.

Roles were also envisaged for survey work, traffic control, public appeals and TV licence dodging detection (a popular sport in the UK in the late 80's).

The triangular tubular fuselage could flash three word signs at the rate of 90 words a minute on both sides.

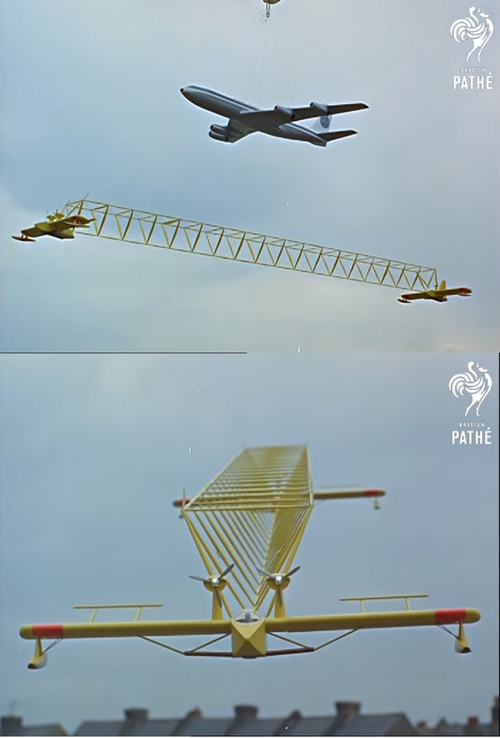

Shown at Farnborough 1968 in model form. The Slingsby (Kirbymoorside) constructed aircraft would have 40 miles of wiring, 3,348 light bulbs. The total length of the aluminium tubing was 2,193 feet !

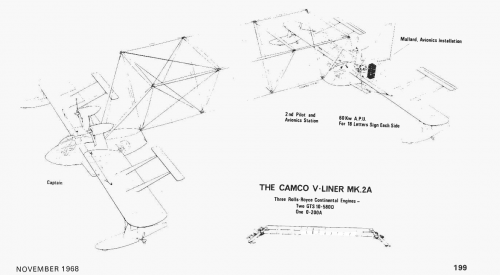

Specs, drawing of the CV-2A and the type in model form below.

I bet take-off would be a great sight!


Attachments

  • Camco_(Slingsby)_V-Liner_2A_AI_Nov_1968_Model.PNG
    115.7 KB · Views: 60
  • Camco_(Slingsby)_V-Liner_2A_AI_Nov_1968_Artwork.PNG
    294.1 KB · Views: 36
  • Camco_(Slingsby)_V-Liner_AI_Nov_1968_Article.PNG
    127.7 KB · Views: 242

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
A page on the V-Liner:

http://aviadejavu.ru/Site/Crafts/Craft32100.htm

I can't say that it looks very practical. It might fly in a straight line but the dynamics in any kind of maneuvering flight would have been... entertaining. I hope that there was a button that either crew member could push that would change the advertising message to MAYDAY MAYDAY MAYDAY.

If you could make it work today it would be a hell of a VHF radar platform.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,046
Reaction score
873
https://kenneth-lovellsmith.muchloved.com/Timeline/13697085

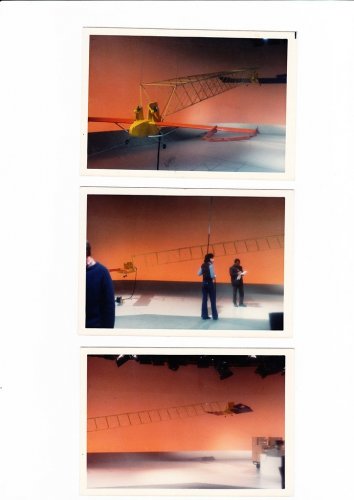

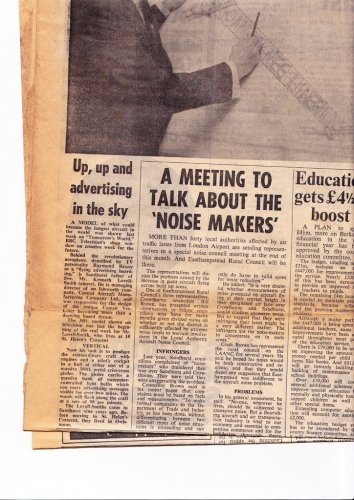

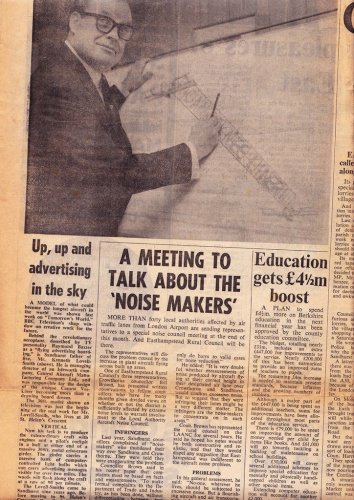

Very touching dedication to Kenneth Lovell-Smith (1928 - 2013) author of V-Liner idea, by one of his sons, Justin.


Attachments

  • 0013717529.jpg
    95.7 KB · Views: 17
  • 0013697633.jpg
    30.7 KB · Views: 25
  • 0013717646.jpg
    87.4 KB · Views: 31
  • 0013717657.jpg
    316.1 KB · Views: 25
  • 0013717682.jpg
    275.5 KB · Views: 9
