British Human Powered Aircraft

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85

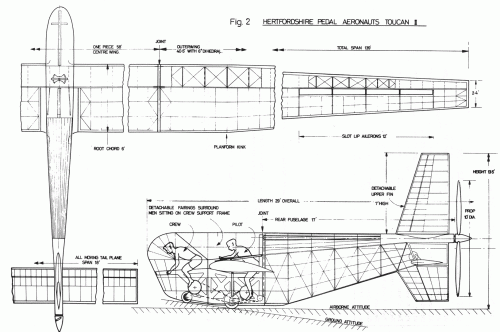

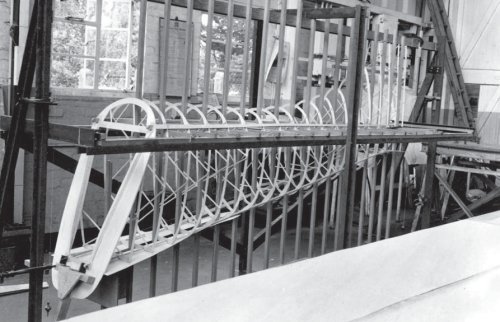

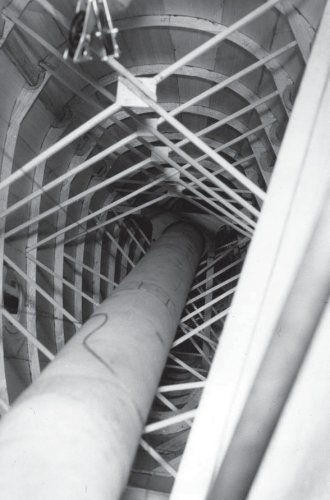

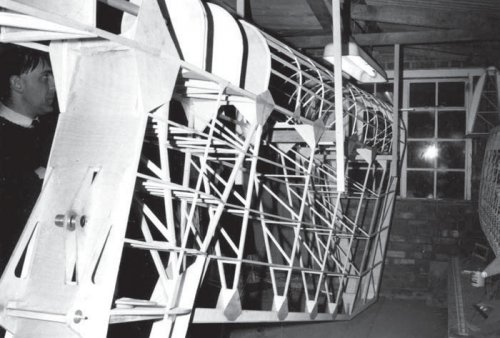

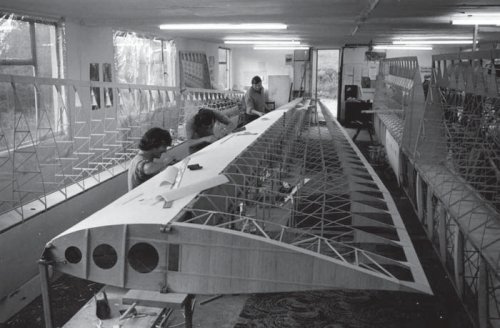

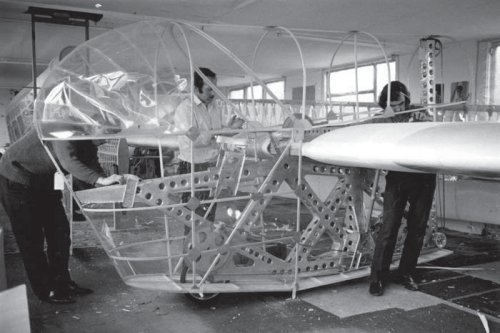

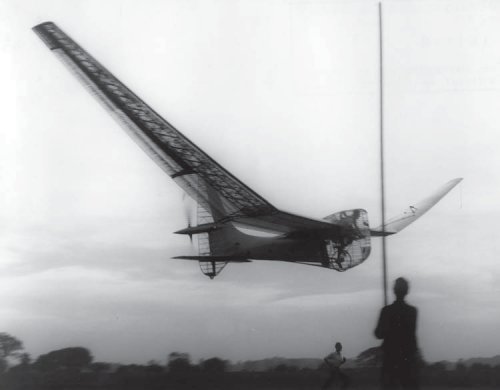

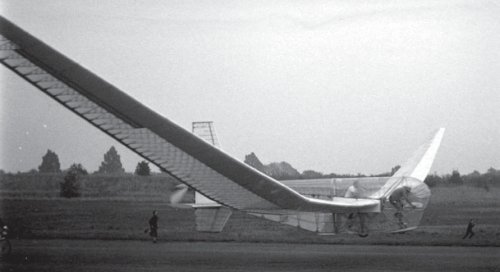

The Hertfordshire Pedal Aeronauts Toucan I man-powered two-seat monoplane, which flew in 1973.

More photos and information in the source document:

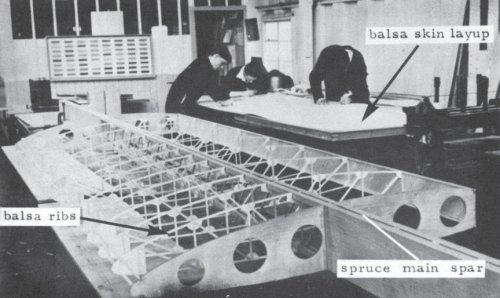

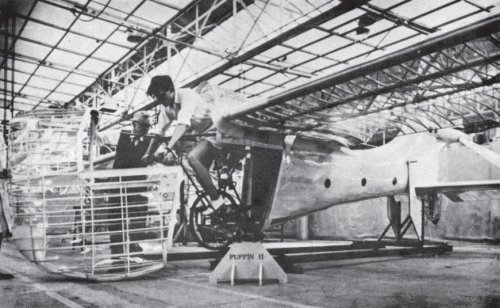

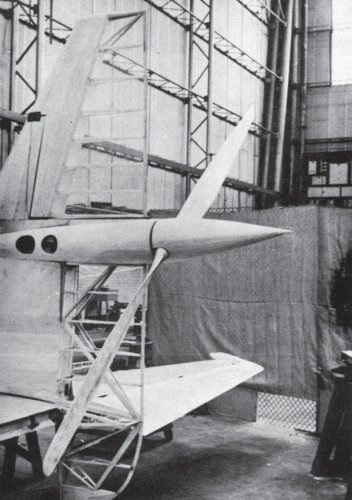

The Structural Design and Construction of Man Powered Aircraft
by M. S. Pressnell, Hatfield Polytechnic
Man Powered Aircraft Group, Royal Aeronautical Society

Paper Presented at the Royal Aeronautical Society Symposium on "Man Powered Flight - The Way Ahead" held on 7 February 1977.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85

Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
172
Thanks for pointing us to those reports, I was unaware of the attempts, to build even
two-seater hp aircraft.
What I've read about hp helicopters, increasing the number of crew in hp aircraft, actually
should worsen the problems, as they are mainly based in the bad power-to-wait ration of men.
That's the reason, too, that in the future we probably will have to fight for "proportion of
males" in relation to hp flight records, instead of the much debated "proportion of females" ! ;)


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85

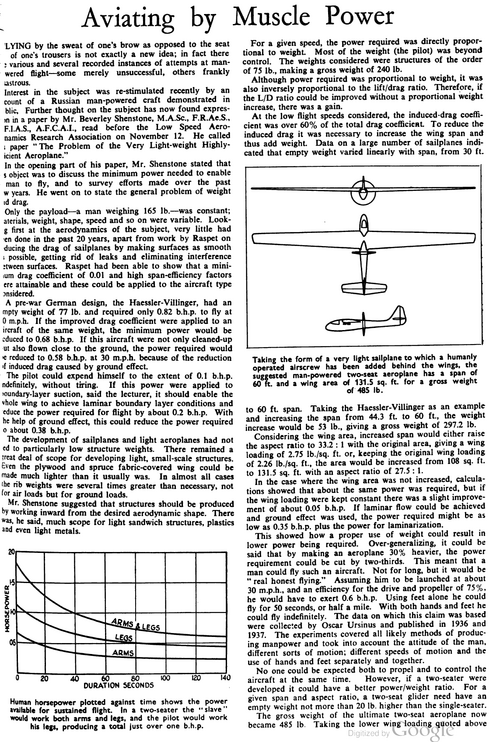

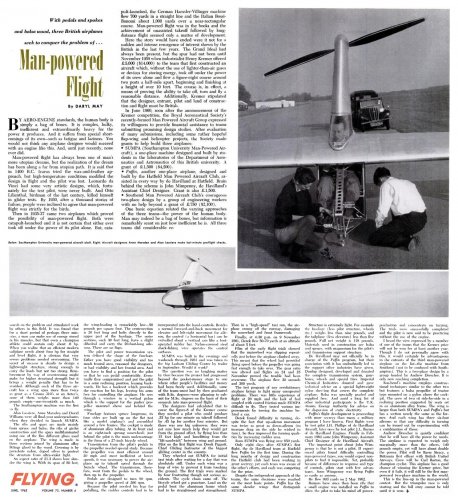

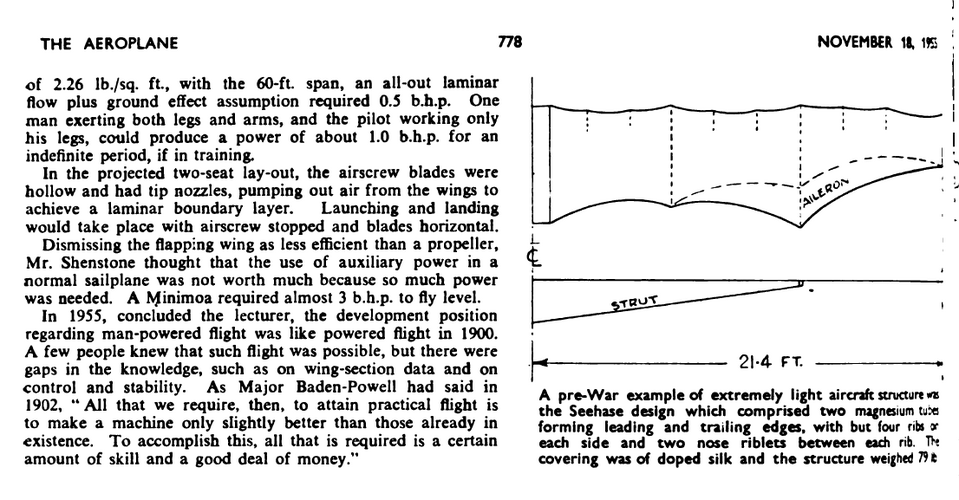

An interesting article on British man-powered aircraft taken from the American Flying magazine dated June 1963:


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
172
Two older human powewerd british prototypes/concepts, I've found in "Der Flieger" magazine, February 1960.

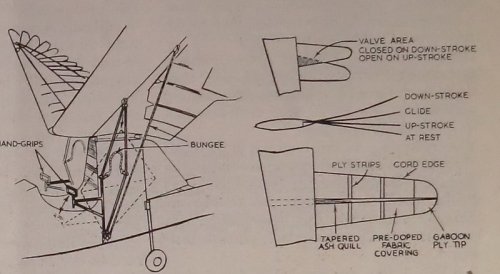

The first, designed and actually built by the british sculptor Emil Hartmann, was a glider like type, but fitted
with flapping wings. It was flown successfully up to a height of about 6 m, but only after it was towed by
a car (the second picture shows details of the aircraft).

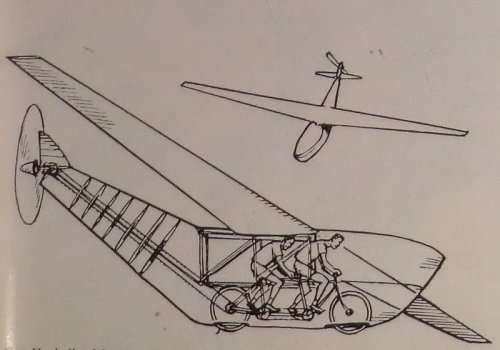

The tandem seat pusher prop design, drawn by T.R.F. Nonweiler from the university Belfast remained a project.


Attachments

Bill Walker

Per Ardua ad Nauseum
Joined
Feb 13, 2012
Messages
482
Reaction score
0
Website
rwrwalker.ca
Jemiba said:
Thanks for pointing us to those reports, I was unaware of the attempts, to build even
two-seater hp aircraft.
Back in my undergrad days I was part of a project at Northrop Tech working on a 2 "person" human powered aircraft. We did extensive power output measurements as part of the transmission design and crew selection, and discovered a considerable variation in power output with the person's mental work load. You could fly the airplane, or pedal like hell, but not both at the same time. We determined our best bet was two persons: one pedalling like hell, one flying and pedalling as much as they could.

Purely by accident, I think, we assembled a team consisting of a female competion glider pilot and bicycle racer in the front, and a scrawny little 19 year old US Marine in the back who had the highest power to weight ratio we measured, but no piloting experience.

Sadly, the project never flew, as far as I know.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
172

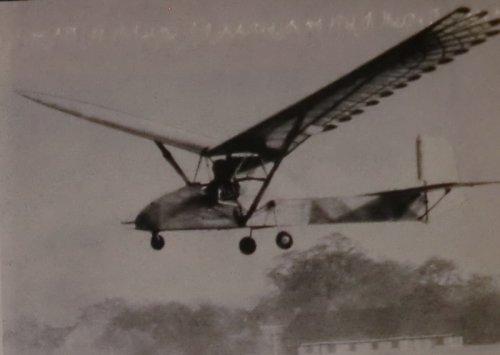

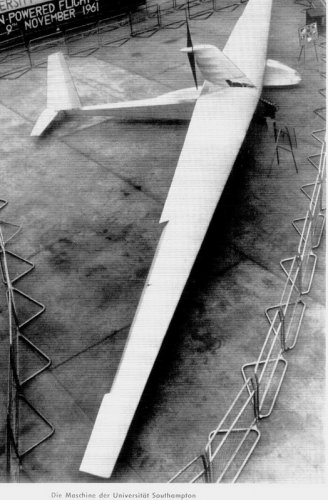

In "Der Flieger", August 1961 an human powered aircraft designed and constructed by the University
of Southampton is presented, which made its first flight on the 9. November 1961. Actually I'm not quite
sure if it really qualify as a HPA, as it is mentioned, that an 8 ccm model engine is installed to support
the pilot.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
172

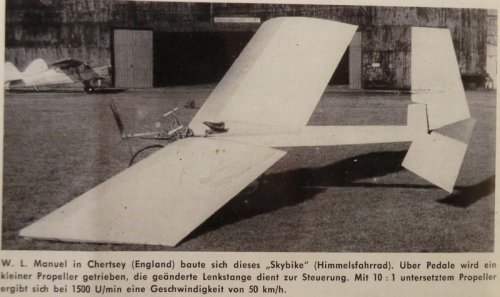

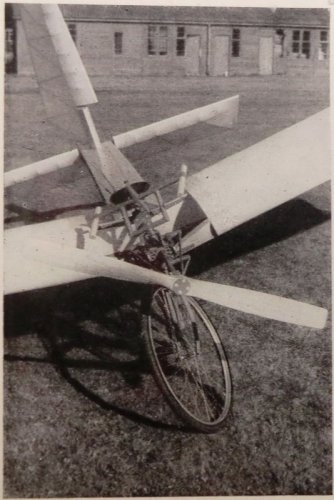

Another British attempt to build a human powered flying vehicle: W.L. Manuel from Chertsey/GB
chose the "traditional" way around 1962/63, obviously using a bicycle, adding a propeller at the front.
He succeeded in short hops at a speed of around 50 km/h with is "Skybike"


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Hi,

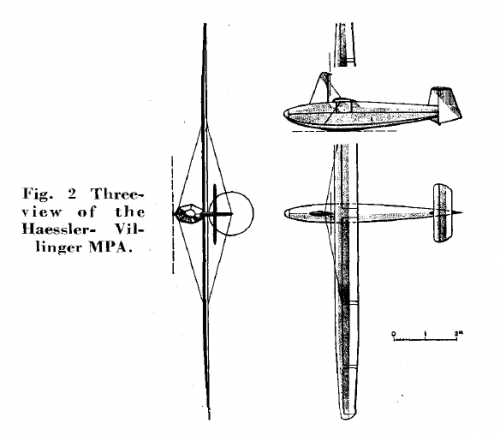

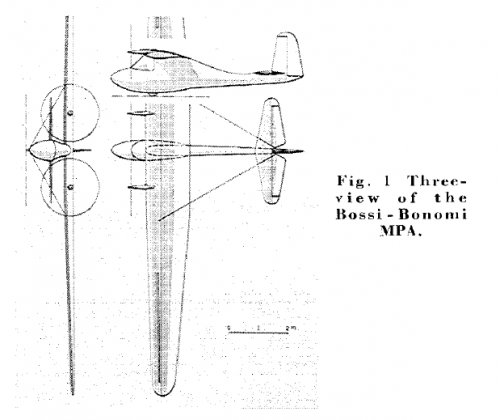

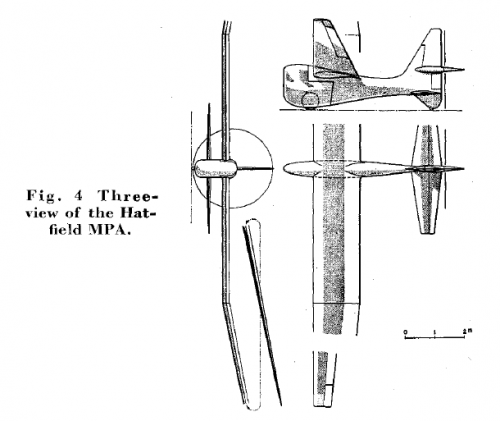

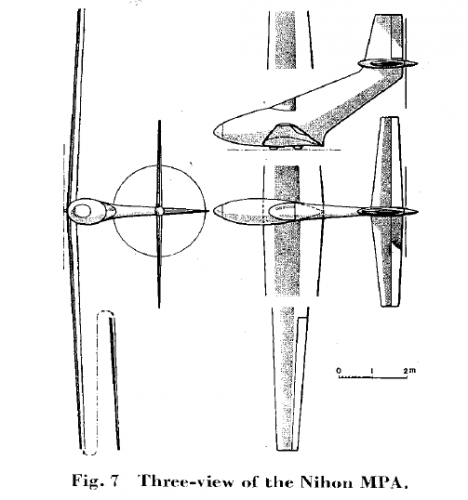

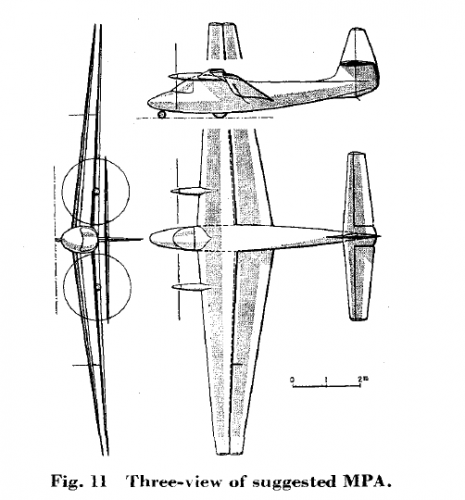

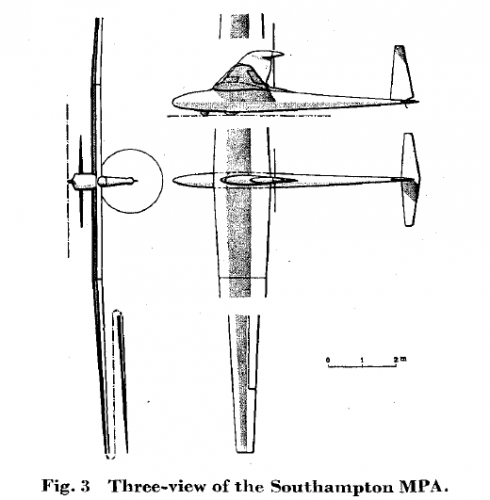

here is a British MPA concepts with a suggested design.


http://arc.aiaa.org/doi/abs/10.2514/3.44154


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922

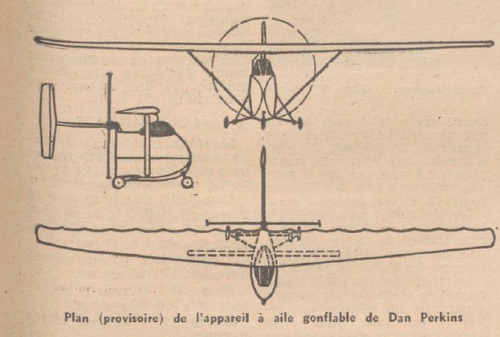

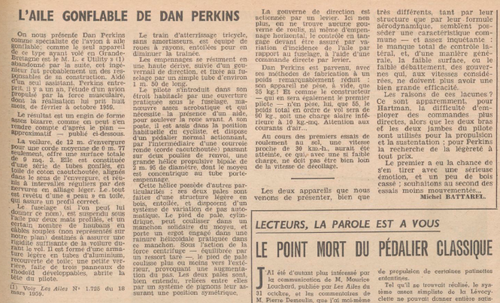

From Ailes 14/11/1959,

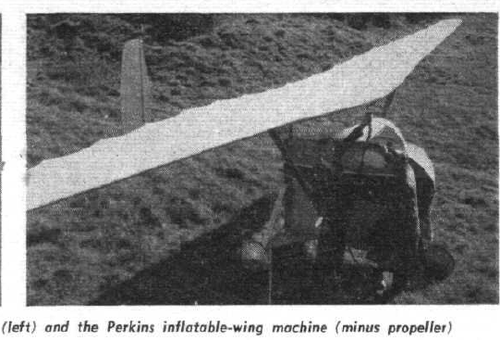

here is an airplane designed by Mr. Dan Perkins;



Attachments
