British Fast Mothership concept

minoslas

CLEARANCE: Restricted
Joined
Jan 29, 2008
Messages
34
Reaction score
0
I found this ship in shipbucket, but I not found any specs from this ship and the "child" ships


RP1

I see the truth in it.
Joined
Feb 22, 2006
Messages
441
Reaction score
19
Website
rp-one.net
This was one of a series of Mother/Daughter combinations studies by BMT DSL ( http://www.bmtdsl.co.uk/ ) and the UCL DRC ( http://www.mecheng.ucl.ac.uk/research/marine/design-research/ ) in 2003, to meet the requirements of the FSC programme. A little background is about 80% of the way down this page:

http://navy-matters.beedall.com/fsc-pre2005.htm

UCL designed 7 motherships and 2 variants, whilst BMT, with their greater expertise in small craft, assessed the daughter craft and two highly radical mothership options. Most of the motherships were 30-50,000 tonnes and all could make 25knots - the variant version shown was a special study capable of 40 knots. Each of the mothership variants used a different method of daughter craft deployment - cranes, stern gantry, internal dock etc. The daughter craft themselves varied in size, with small assets being around 200 tonnes, and medium around 600 tonnes. One variant carried a 1600te SSK. As you can see from the BMT graphic at the supplied link, there was some variation in the daughter craft size, type and equipment.

The fast crane ship was 270m long at the waterline, displaced 46200te (deep) and carried 14000 tonnes of fuel for the 5 50MW gas turbine / waterjet propulsion lines, being a semi-planing monohull in operation. It could carry four small assets, or two medium ones.

Interestingly, this project subsequently lead to the BMT DSL "Venator" design for a reconfigurable corvette / light frigate.

RP1


SteveO

CLEARANCE: Secret
Joined
Jun 24, 2007
Messages
383
Reaction score
24
Some interesting images and studies here too http://www.meng.ucl.ac.uk/~nag_web/

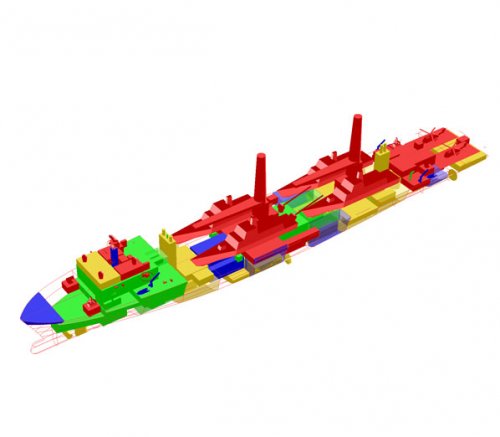

Fast mothership feasibility study, conducted using SURFCON with BMT Defence Services Limited (DSL) for the UK MoD http://www.meng.ucl.ac.uk/~nag_web/pages/surfcon_3.htm


Attachments

Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,558
Reaction score
105
The terrible irony is one of these vessels loaded with combat boats should be en route to the Gulf of Aden right now... :(


Firefly 2

CLEARANCE: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
7
So, theoretically, this design could offer global projection of two Visby class missile armed FPC's or equivalent... Impressive, projection wise, it would decrease the need for huge projects with blue water capabilities for " show of force" actions and brown water patrolling. Please not that I used the word decrease and not eliminate.
I do think that the high speed requirement would increase the development costs significantly. Oh well, another great idea down the drain. There is just no money to develop it all, let allone build it.
