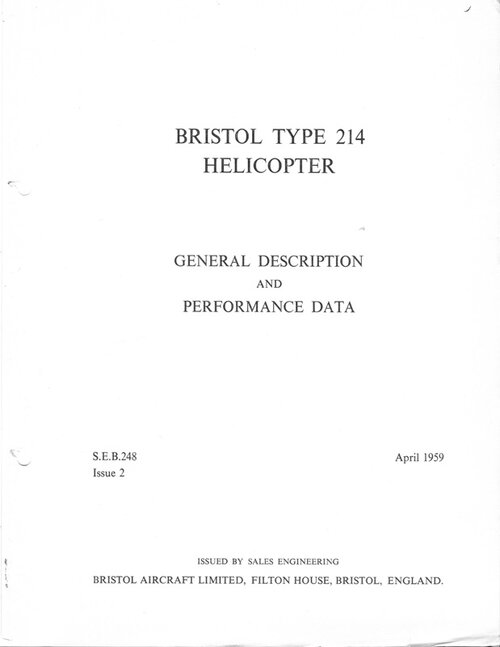

Bristol Unbuilt Helicopter project GA images and Type 214 General Description and Performance Data

GT6Boy

I really should change my personal text
Joined
Nov 3, 2017
Messages
40
Reaction score
131
My late father worked in the Helicopter Drawing Office at Westland Helicopters. He started with them in 1953 in what was then Raoul Hafner's Design Team at the Bristol Aeroplane Company. My father collated these paper images in 1981 from his own and the company archives, for a display in his office in the HDO, for the Westland Open Day. Thankfully for me(and you), he kept them.
I would love to find out more about the Sycamore replacement: the single engined Type 203 and its later twin engined derivative; the type 214. Just how speculative were these 2 projects? Were they in response to any Air Staff or General Staff requirements, or were they merely trying to raise the potential of interest, seeing as they would have; the relentless march of Westland and their licenced production of Sikorsky designs?


Attachments

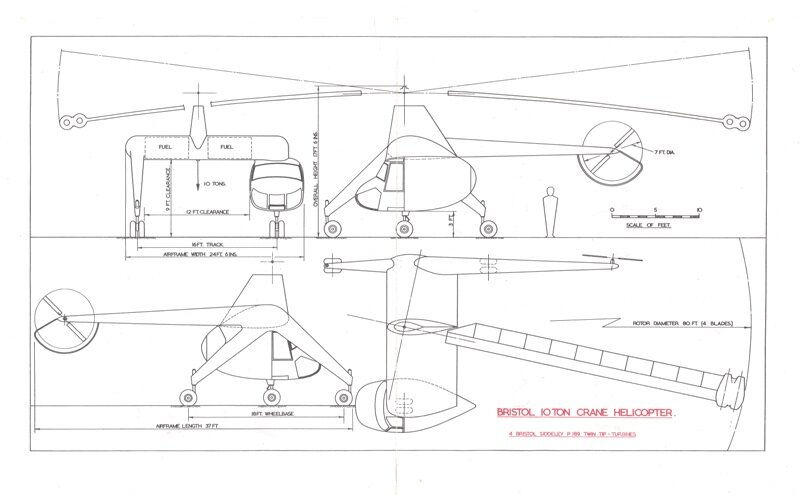

  • Bristol 10 Ton Crane Helicopter 4 Siddeley P.189. Twin Tip - Turbines front and rear small jpeg.jpg
    Bristol 10 Ton Crane Helicopter 4 Siddeley P.189. Twin Tip - Turbines front and rear small jpeg.jpg
    89.6 KB · Views: 193
  • Bristol 10 Ton Crane Helicopter 4 Siddeley P.189. Twin Tip - Turbines Internal small.jpg
    Bristol 10 Ton Crane Helicopter 4 Siddeley P.189. Twin Tip - Turbines Internal small.jpg
    78.7 KB · Views: 154

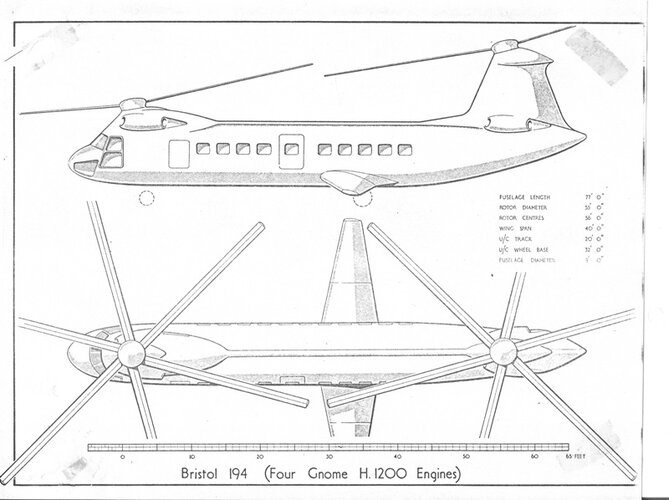

  • Bristol 194 (four Gnome H.1200 Engines) small.jpg
    Bristol 194 (four Gnome H.1200 Engines) small.jpg
    123.5 KB · Views: 145

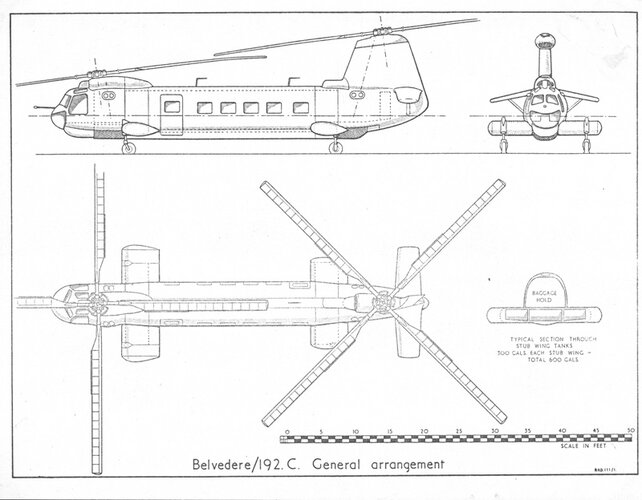

  • GA Belvedere 192C small.jpg
    GA Belvedere 192C small.jpg
    127.5 KB · Views: 143

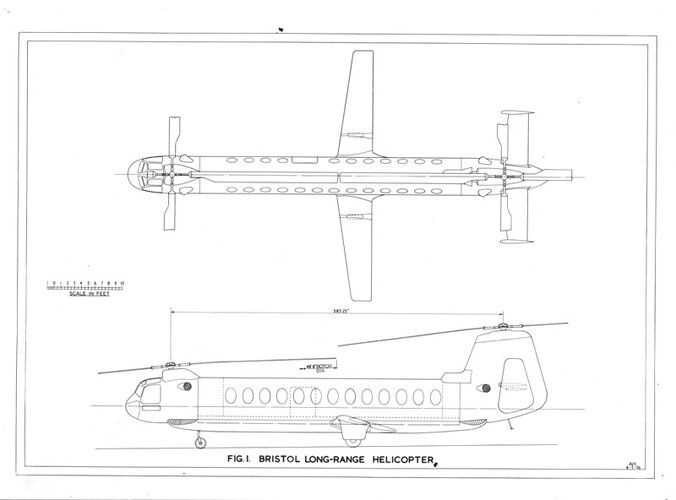

  • GA Bristol Long Range Helicopter drawn by AH 04 05 56 small.jpg
    GA Bristol Long Range Helicopter drawn by AH 04 05 56 small.jpg
    71.2 KB · Views: 151

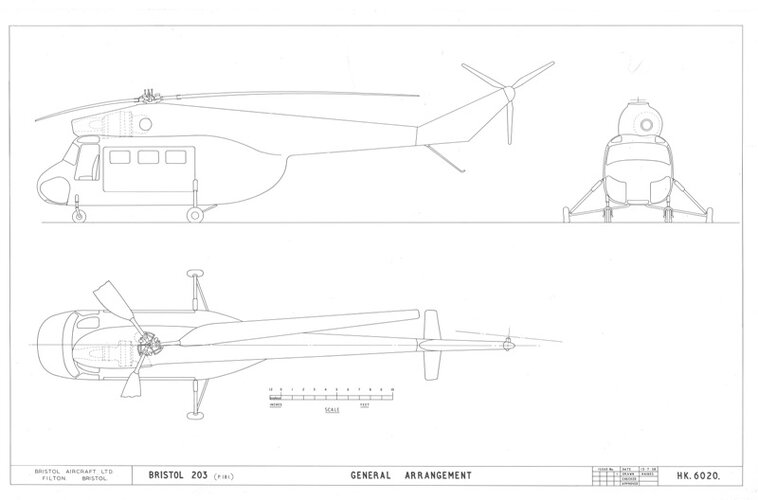

  • GA of Bristol Type 203 Drawn 15 07 58 by Haines small.jpg
    GA of Bristol Type 203 Drawn 15 07 58 by Haines small.jpg
    58.5 KB · Views: 151

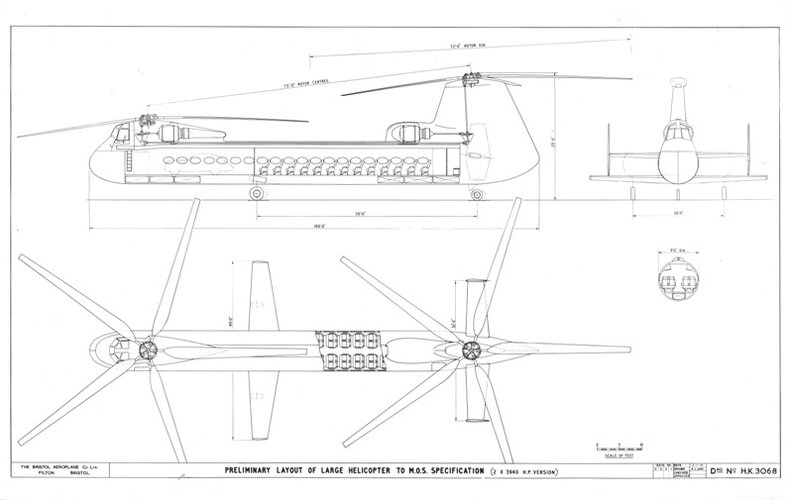

  • Preliminary Layout of Large Helicopter to M.o.S Specification Drawn 02 01 53 by R. J. Jupe small.jpg
    Preliminary Layout of Large Helicopter to M.o.S Specification Drawn 02 01 53 by R. J. Jupe small.jpg
    75.2 KB · Views: 157

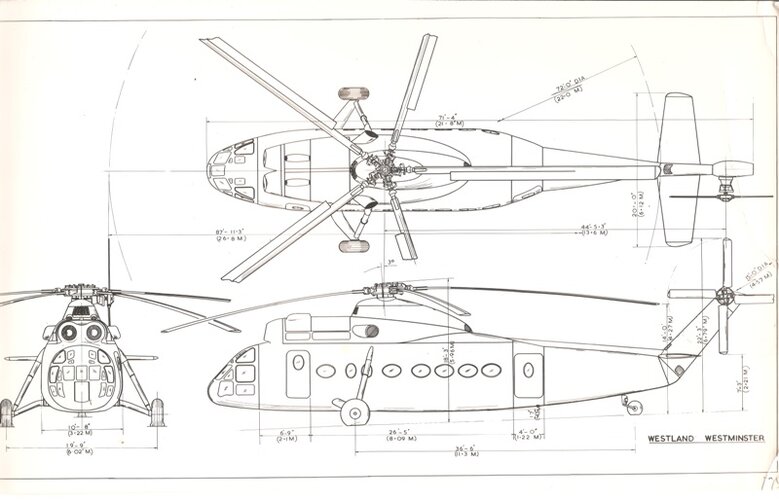

  • GA Westminster small.jpg
    GA Westminster small.jpg
    101 KB · Views: 160

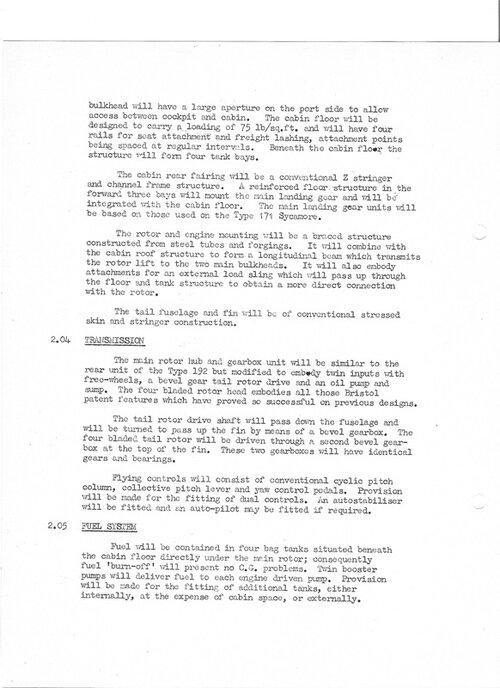

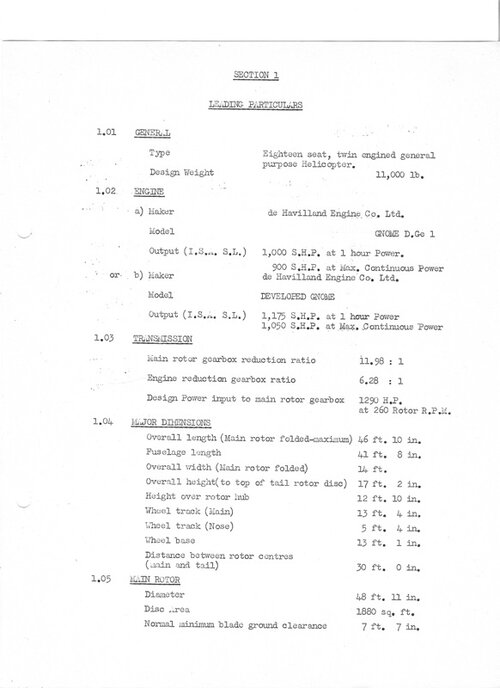

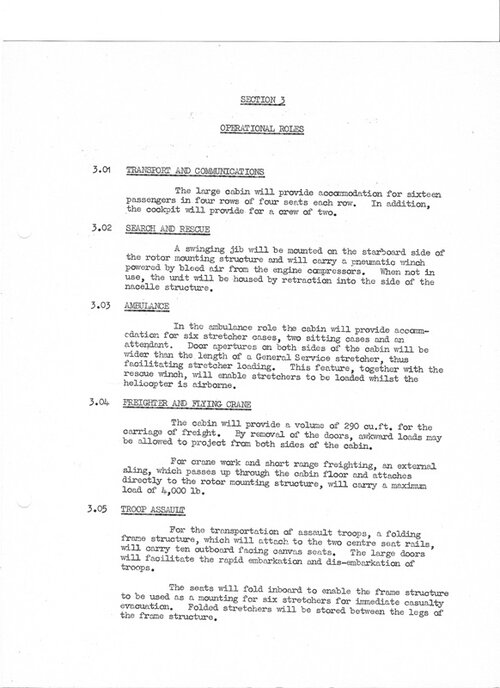

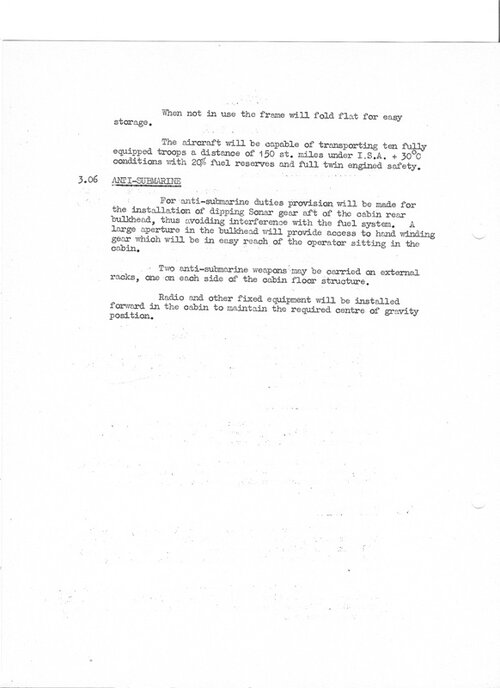

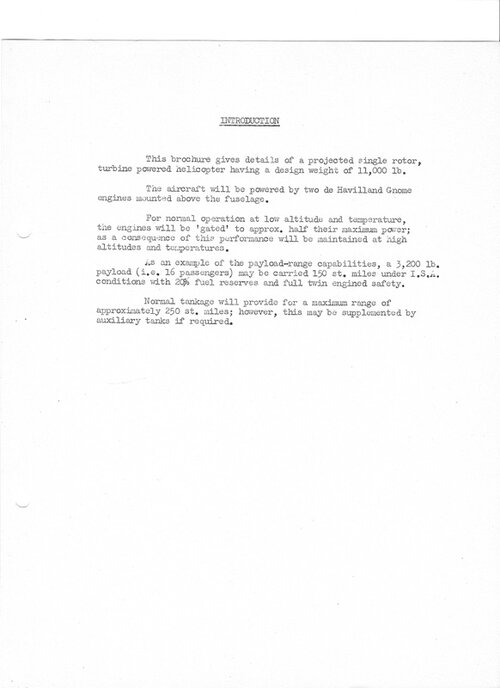

  • Scan_20201108 (1) small.jpg
    Scan_20201108 (1) small.jpg
    49.9 KB · Views: 139
  • Scan_20201108 (2) small.jpg
    Scan_20201108 (2) small.jpg
    42.6 KB · Views: 113

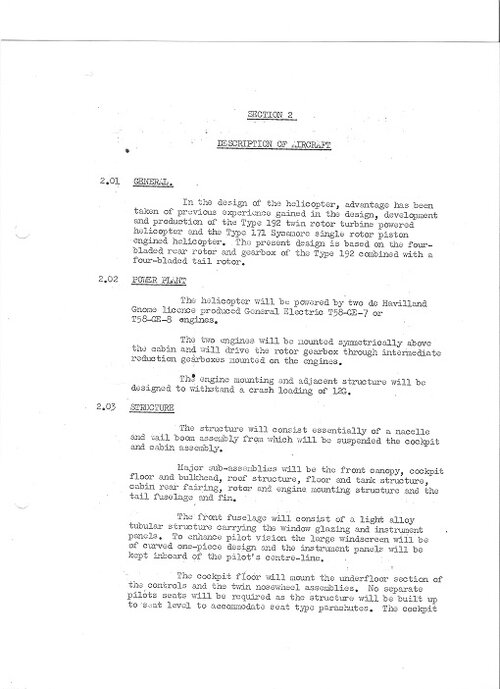

  • Scan_20201108 (3) small.jpg
    Scan_20201108 (3) small.jpg
    79 KB · Views: 111
  • Scan_20201108 (6) small.jpg
    Scan_20201108 (6) small.jpg
    73.2 KB · Views: 124
  • Scan_20201108 (5) small.jpg
    Scan_20201108 (5) small.jpg
    95.1 KB · Views: 110
  • Scan_20201108 (4) small.jpg
    Scan_20201108 (4) small.jpg
    50.1 KB · Views: 122
  • Scan_20201108 (7) small.jpg
    Scan_20201108 (7) small.jpg
    126 KB · Views: 158

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,248
Reaction score
1,668
thank you for sharing!


Hood

ACCESS: Top Secret
Staff member
Senior Member
Joined
Sep 6, 2006
Messages
2,527
Reaction score
2,852
This is a lovely collection, we have much to thank your father for saving these and you for sharing them with us.


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
258
I particularly like the Type 194, but it again raises the question why has the Chinook always kept to its 3 bladed rotors, wouldn't that have improved performance?


GT6Boy

I really should change my personal text
Joined
Nov 3, 2017
Messages
40
Reaction score
131
That's a great question- the 173 in 3 blade form suffered vibration issues which were in-part resolved by fitment of 4 blade rotors(different drag damping provision?) and changes in the undercarriage oleo pressures.
Another question my Dad would no doubt have answered, were he still with us!


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
636
Reaction score
386
My late father worked in the Helicopter Drawing Office at Westland Helicopters. He started with them in 1953 in what was then Raoul Hafner's Design Team at the Bristol Aeroplane Company. My father collated these paper images in 1981 from his own and the company archives, for a display in his office in the HDO, for the Westland Open Day. Thankfully for me(and you), he kept them.
I would love to find out more about the Sycamore replacement: the single engined Type 203 and its later twin engined derivative; the type 214. Just how speculative were these 2 projects? Were they in response to any Air Staff or General Staff requirements, or were they merely trying to raise the potential of interest, seeing as they would have; the relentless march of Westland and their licenced production of Sikorsky designs?

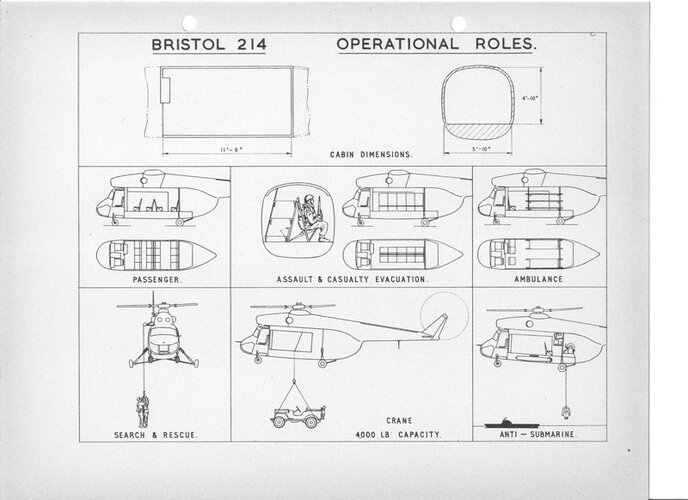

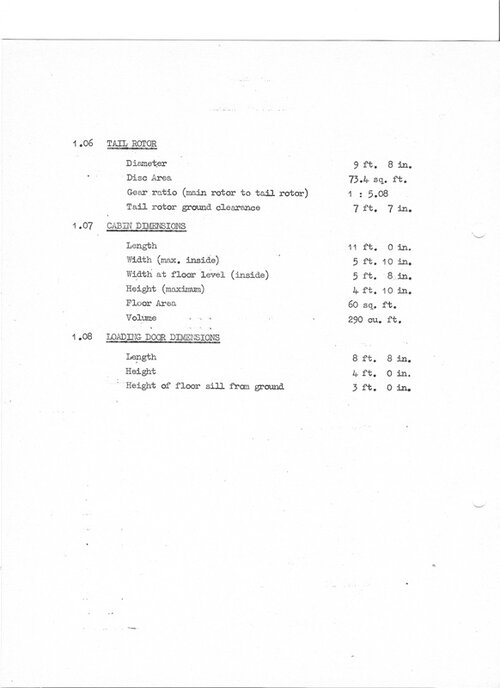

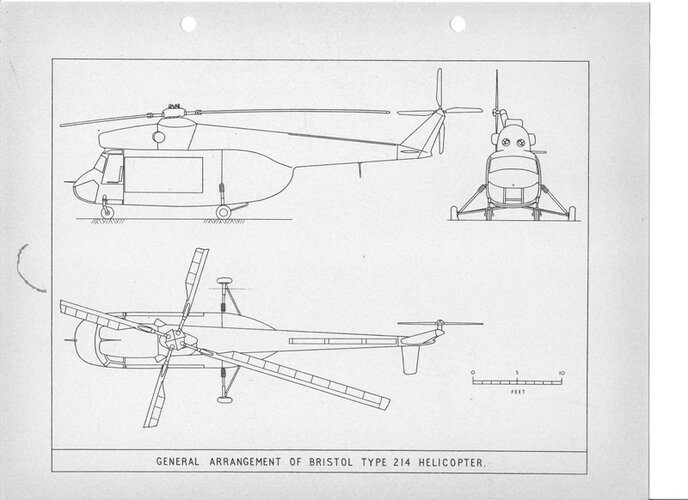

As may be seen in those drawings both Type 203 and 214 had very large doors (for the 214: cabin lenght was 11 ft, height 4 ft 10 in, door's lenght was 8 ft 8 in and height 4 ft). Directly aft of the door there were undercarriage struts that probably made sliding the door aft impossible. So how did the door open? Perhaps the door was hinged and opened upwards, or it opened like the door in the Mi-24: one half upwards and the other one downwards?
Another question regards the troop seating arrangement in the 203 and 214. Do you have any info in that?
Piotr


GT6Boy

I really should change my personal text
Joined
Nov 3, 2017
Messages
40
Reaction score
131
Hi Piotr- There's no detail on the door arrangement sadly. By this stage, Bristol's Helicopter designers could see the inevitable end game in-play after Westland had stolen a march with their anglicised licence production. Where the Wessex orders snuffed out the potential 214, the re-engining of the piston engine Whirlwind with Gnomes was the denouement of the 203.


Attachments

  • Scan_20201108 (8) small.jpg
    Scan_20201108 (8) small.jpg
    43.3 KB · Views: 63
  • Scan_20201108 (9) small.jpg
    Scan_20201108 (9) small.jpg
    144.7 KB · Views: 45
  • Scan_20201108 (10) small.jpg
    Scan_20201108 (10) small.jpg
    47.3 KB · Views: 45
  • Scan_20201108 (11) small.jpg
    Scan_20201108 (11) small.jpg
    125.5 KB · Views: 56
  • Scan_20201108 (13) small.jpg
    Scan_20201108 (13) small.jpg
    133.9 KB · Views: 99
  • Scan_20201108 (12) small.jpg
    Scan_20201108 (12) small.jpg
    85.9 KB · Views: 92
  • Scan_20201124 (2) Small JPEG.jpg
    Scan_20201124 (2) Small JPEG.jpg
    146.3 KB · Views: 100

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
636
Reaction score
386
Hi Piotr- There's no detail on the door arrangement sadly. By this stage, Bristol's Helicopter designers could see the inevitable end game in-play after Westland had stolen a march with their anglicised licence production. Where the Wessex orders snuffed out the potential 214, the re-engining of the piston engine Whirlwind with Gnomes was the denouement of the 203.
Do you have sketches showing cabin arrangement variants (and further data) for the 203? It would be really interesting to compare both designs.
Piotr


GT6Boy

I really should change my personal text
Joined
Nov 3, 2017
Messages
40
Reaction score
131
Hi Piotr- There's no detail on the door arrangement sadly. By this stage, Bristol's Helicopter designers could see the inevitable end game in-play after Westland had stolen a march with their anglicised licence production. Where the Wessex orders snuffed out the potential 214, the re-engining of the piston engine Whirlwind with Gnomes was the denouement of the 203.
Do you have sketches showing cabin arrangement variants (and further data) for the 203? It would be really interesting to compare both designs.
Piotr

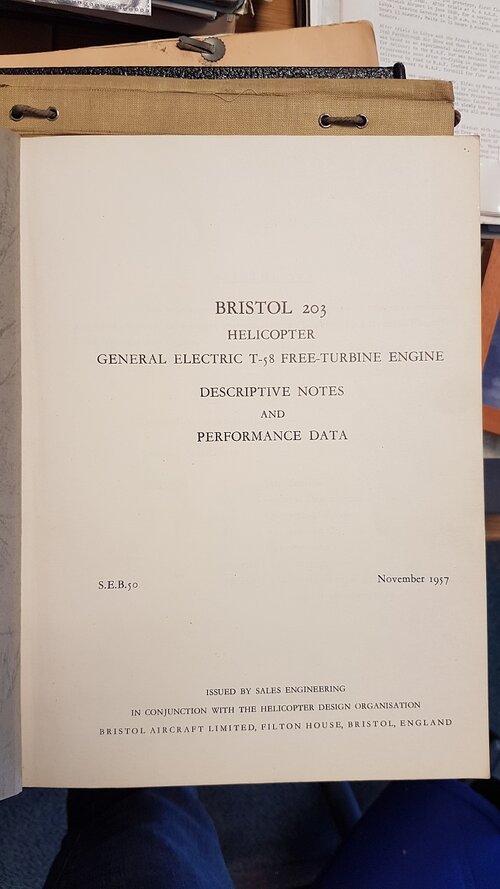

Sorry Piotr- these are the only images I took of the 203 spec when I was at the Archive.


Attachments

  • Bristol 203 small 1.jpg
    Bristol 203 small 1.jpg
    379.4 KB · Views: 27
  • Bristol 203 small 2.jpg
    Bristol 203 small 2.jpg
    216.1 KB · Views: 63
  • Bristol 203 small 3 .jpg
    Bristol 203 small 3 .jpg
    194.4 KB · Views: 65
