Boulton Paul P.99

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
30
Hi all...
just testing image placement...well it is my first time...lol.

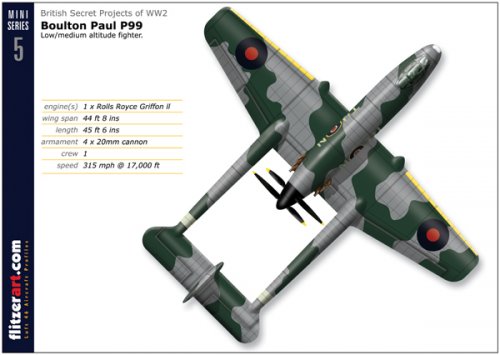

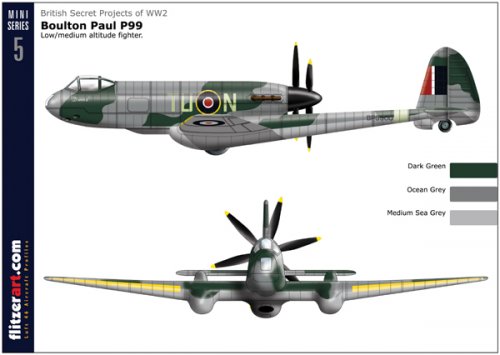

These are some British Secret Project profiles of WW2 I've recently completed.

Thanks
Peter
:)


Attachments

  • 1.jpg
    88.9 KB · Views: 383

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
30
Re: Boulton Paul P.99

Only one image appeared.
I'll try again...

Eyes down....
Thanks
Peter


Attachments

  • 2.jpg
    112.7 KB · Views: 333

merlin

ACCESS: Restricted
Joined
Sep 12, 2009
Messages
17
Reaction score
2
It was bad enough for the Germans, over Normandy, with all the Typhons etc., but love the thought of this heavily armed 'bird' prowling overhead!!
Pilot would've had an excellent field of view - as long as they could solve the cooling problems usual with pusher engine layouts.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,064
Reaction score
3,745

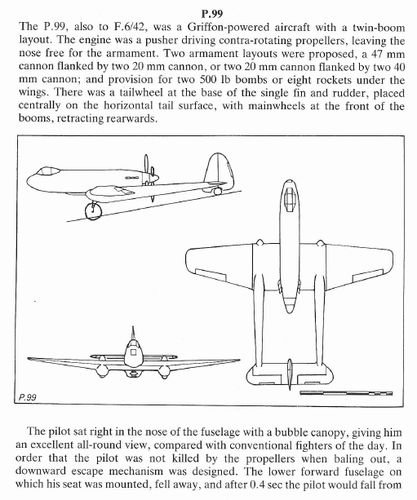

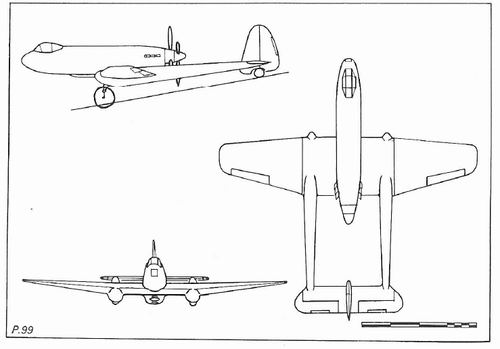

From Putnam book.


Attachments

  • 1.png
    91 KB · Views: 68
  • 2.png
    124.7 KB · Views: 59
  • 3.png
    16.5 KB · Views: 78

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,221
Reaction score
612
Water spray is only a short term solution for engine cooling. The long term solution requires larger radiators with adjustable louvers and maybe ground cooling fans.
The primary reason for fuselage-mounted radiators is minimizing the weight and length of hoses. Nothing forbids mounting radiators farther outboard on wings or even on tail booms.

Air flow around the aft end of pusher cowlings is always problematic because you need to quickly taper the cowling from full engine width to the mere diameter of the spinner. At best, this distance is twice as long as on a tractor engine nacelle.
The other problem is combining airflow off a nacelle/pod/gondola with airflow over the top of the wing root. One way to improve airflow is giving it a longer transition zone. Since this requires mounting the propeller farther aft or mounting the engine farther aft. Drive shafts are always at risk of developing bizarre vibrations. OTOH mounting the engine too far aft un-balances the airplane. Balance can be resotred by seating the pilot or guns farther forward, but that also requires a longer and heavier fuselage pod,nacelle/gondola.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,487
Reaction score
2,777
Of course it's better to have a grond coolin fan as we already discussed. But I imagine that ground cooling fan generate drag when flight.
