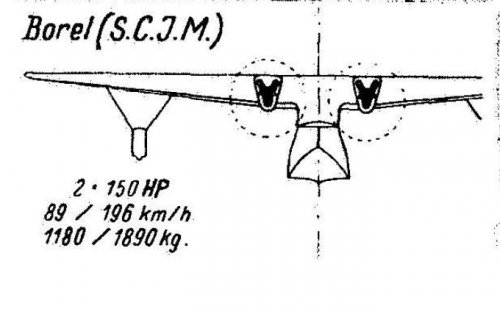

Sorry Hesham, I can't ID the flying boat.

For what it's worth, what appears to read "S.C.J.M" is actually SCIM. This isn't a model name, it's the abbreviation for the Société Générale des Constructions Industrielles et Mécaniques (as Gabriel Borel's firm was named after its re-establishment in 1922).

The acronym should read SGCIM but, for some reason, the "Générale" usually got dropped. Other company names were Societe Anonyme des Aeroplanes Borel or plain Établissements Borel.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990
Hi,

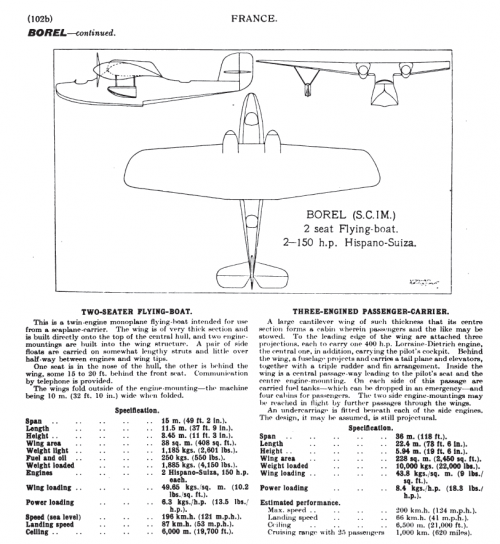

although I can ID more than about 20 types of aircraft for Borel,but that aircraft
may be the project of 1924 for two seat flying boat which design by the new
Borel company.


vigair

ACCESS: Restricted
Joined
Jul 29, 2009
Messages
28
Reaction score
4
drawings in le Trait d'Union n°202 p 63.sorry no scan! probably a postal transport.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

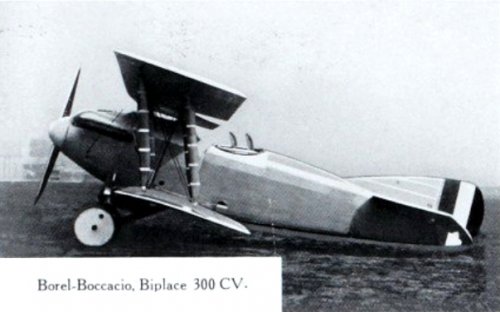

After the Wibault-Boccacio, now a Borel-Boccacio... Never heard that name before! Perhaps the engineer/designer who worked on both airplanes?


Attachments

  • Borel-Boccacio.jpg
    107.8 KB · Views: 393

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

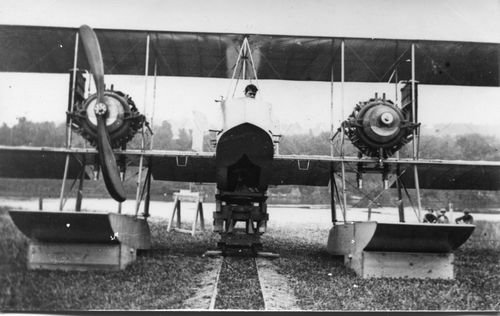

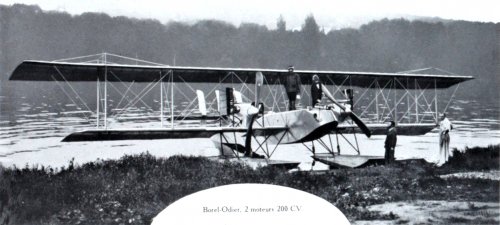

Here is a Borel-Odier twin-engine seaplane. Another type that is totally unknown to me, though Borel is probably the same as in the Borel-Boccacio.


Attachments

  • Borel-Odier.jpg
    376.5 KB · Views: 382

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990
Hi Stargazer,

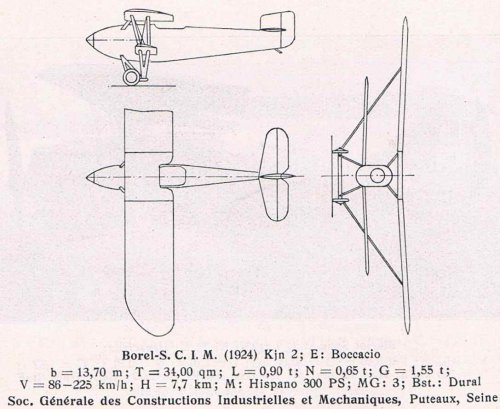

the Borel-Boccacio was called Type 3000,single seat fighter,and Borel designed
more than 20 types of aircraft,and Borel-Odier was Bo-T torpedo recce twin
engined floatplane,later developed into Bo-C,a ten passenger transport
derivative.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
137

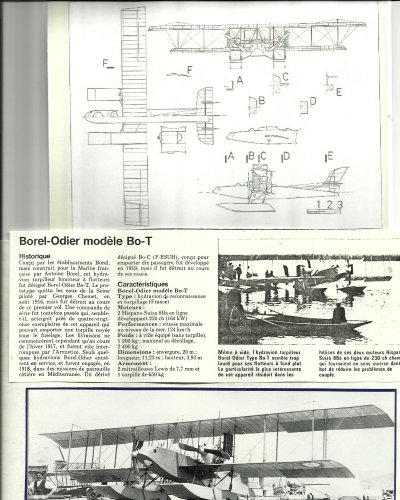

from "le Fana " and "aviation magazine


Attachments

  • borel.jpg
    541.7 KB · Views: 349

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Very nice, folks, thanks!

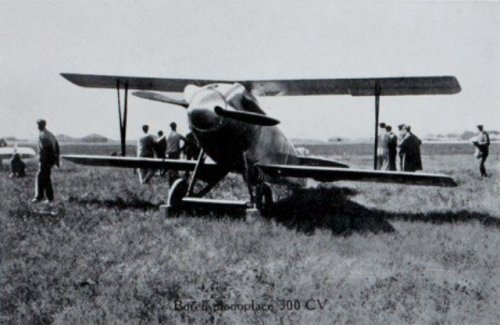

Here's another view of a Borel biplane (probably also the Type 3000):


Attachments

  • Borel single-seater, 300 hp.jpg
    Borel single-seater, 300 hp.jpg
    146.4 KB · Views: 296

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Stargazer2006 said:
And after the Wibault-Boccacio, now a Borel-Boccacio... Never heard that name before! Perhaps the engineer/designer who worked on both airplanes?


You are right : the designer of the aircraft was Boccaccio . E is for Entwiklung (Taschenbuch der Luftflotten 1924 and 1926)


Attachments

  • Boccacio.jpg
    64.2 KB · Views: 84
  • Borel.jpg
    125.8 KB · Views: 80

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,025
Reaction score
430
Stargazer2006 said:
Here is a Borel-Odier twin-engine seaplane. Another type that is totally unknown to me, though Borel is probably the same as in the Borel-Boccacio.

The aircraft was also named Borel-Odier B.O. 2.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990
By the way,


after Borel built a small group of aircraft,he started his sequence by Bo.1 and
almost ended by Bo.19,before opened the new firm; SCIM.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,852
Reaction score
1,487
Stargazer2006 said:
After the Wibault-Boccacio, now a Borel-Boccacio... Never heard that name before! Perhaps the engineer/designer who worked on both airplanes?

That should read Boccaccio not Boccacio. Paul Boccaccio trained with Michel Wibault in 1917 but had already been working on aircraft designs.

There is a (to me) cryptic comment in L'Aéronautique, 2 Jul 1923 which reads as follows:

"Ces deux avions ont été établis par M. Paul Boccaccio, ancien élève de l'Ecole supérieure des Mines, qui avait étudié dès 1916 un avion de bombardement muni de deux moteurs Hispano étages et accouplés. Actuellement il étudie un biplace de chasse entièrement métallique muni d'un turbo-compresseur."

So a 1916 project for a twin-engined bomber. I presume that "étages" refers to compressor stages. But what of "accouplés"? Am I right in thinking that the two Hispano engines were to be 'coupled' in some way?

http://archive.org/stream/la02b9eronautiqu03pari/la02b9eronautiqu03pari_djvu.txt


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Thanks a lot for the information, folks!

"Ces deux avions ont été établis par M. Paul Boccaccio, ancien élève de l'Ecole supérieure des Mines, qui avait étudié dès 1916 un avion de bombardement muni de deux moteurs Hispano étages et accouplés. Actuellement il étudie un biplace de chasse entièrement métallique muni d'un turbo-compresseur."

I believe this should read "étagés", as in "placed one above the other." As for "accouplés", it can mean "coupled", "paired" or "connected." I'm suggesting this translation:

"These two aircraft were developed by Mr. Paul Boccaccio, a former student at the Ecole supérieure des Mines who studied, as early as 1916, a bomber with two staggered and coupled engines. He is currently studying an all-metal two-seat pursuit with a turbocharger."


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,852
Reaction score
1,487
Ooo, that sounds like an even more interesting arrangement! Thanks Stéphane :)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Borel torpedo seaplane (1916):


Attachments

  • Borel Torpedo Seaplane (1916).JPG
    Borel Torpedo Seaplane (1916).JPG
    32.6 KB · Views: 522

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990
Hi,


the Borel or SCIM designed in 1922 a transport triplane project,but I haven't
no more Info about it ?.


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31
Hi,

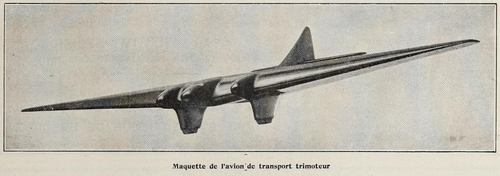

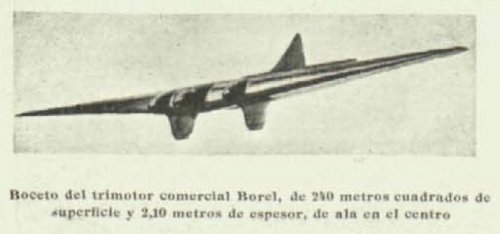

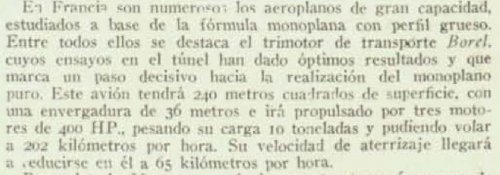

From the Spanish magazine Aérea, Apr. 1924, here is a three-engine monoplane transport project by Borel.


Attachments

  • borel_trimoteur_Aérea_011_p16.jpg
    86.2 KB · Views: 372
  • borel_trimoteur_Aérea_011_p17.jpg
    63.3 KB · Views: 392

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990
hesham said:
Hi,


the Borel or SCIM designed in 1922 a transport triplane project,but I haven't
no more Info about it ?.


Great find my dear C460,


and Borel also designed a triplane transport in 1922,I hope to get its drawing.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990
Hi,

In 1918,Borel had a uncompleted three-seat float seaplane,powered by two 400 hp
Liberty engines,maybe new design or developed from Borel-Odier floatplane,and had
an estimated speed of 150 km/h.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
137

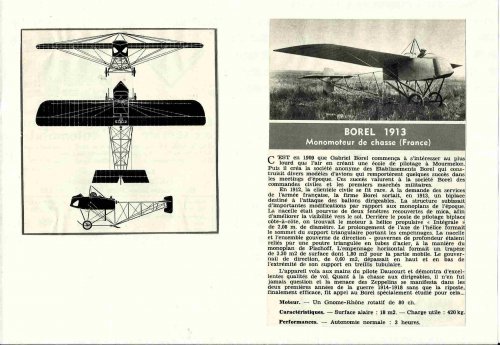

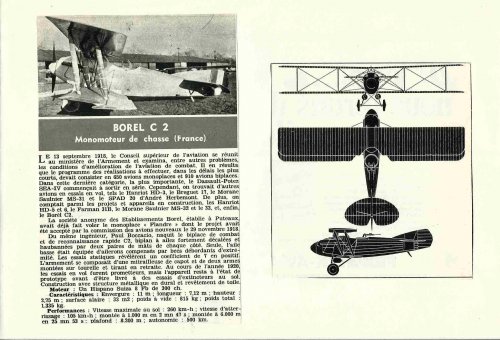

some Borel...from old "aviation magazine"


Attachments

  • Scan.jpg
    572.3 KB · Views: 259

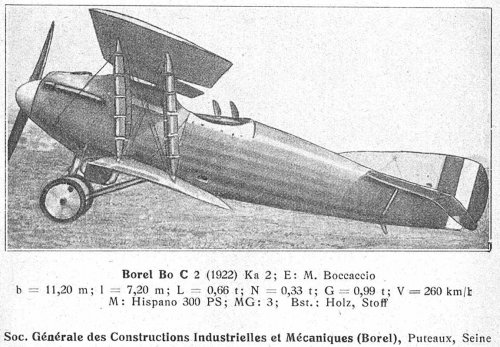

  • bo c 2.jpg
    bo c 2.jpg
    607.7 KB · Views: 232

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990
Thank you my dear Toura,

and in 1918,the French Navy issue a request for a large,multi-engine flying
boat compared to Britsih Felixstowe series,Borel submitted a three seat
design with two 75-mm cannon, and powered by three 400 hp Lorraine
or Liberty engines,remained a Project only.

Last edited:

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
100
Reaction score
51
Borel was one of the very early aircraft designer
Some Borel Hydros were racing in the first contests and Italy operated some of them during the first world war
http://celticowboy.com/CMV%20Drwgs/Borel%20Hydroaeroplane%20Drwgr.JPG


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990
ermeio said:
Borel was one of the very early aircraft designer
Some Borel Hydros were racing in the first contests and Italy operated some of them during the first world war
http://celticowboy.com/CMV%20Drwgs/Borel%20Hydroaeroplane%20Drwgr.JPG

That's right Ermeio.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990

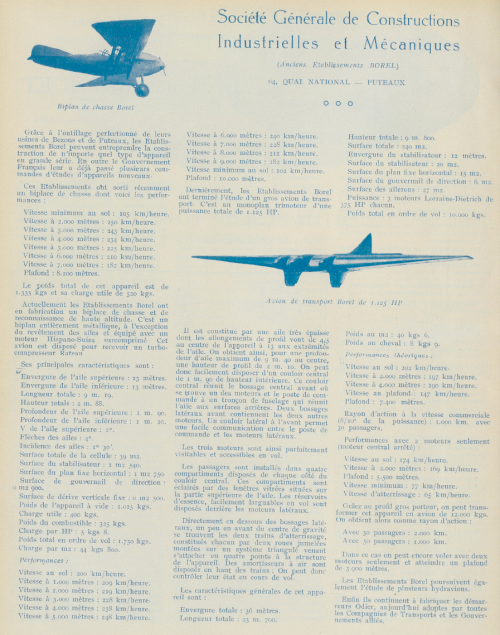

Hi,

was that an airplane for Borel ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201923%2001-02.pdf


Attachments

  • 1.png
    255.4 KB · Views: 64

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990

Attachments

  • 1.png
    456.6 KB · Views: 39

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990

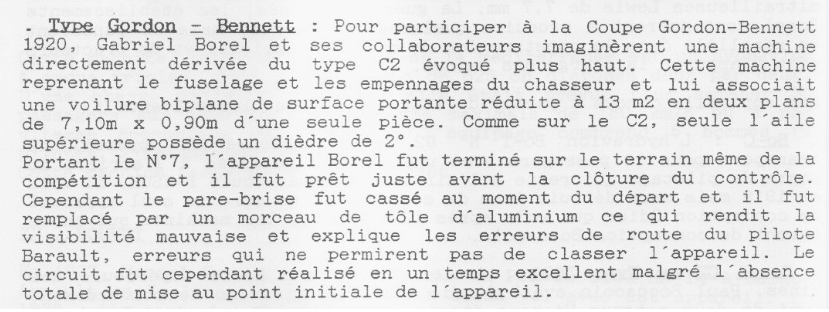

From TU 162;

Type Gordon - Bennett: To participate in the Gordon-Bennett Cup
1920, Gabriel Borel and his collaborators imagined a machine
directly derived from the C2 type mentioned above. This machine
taking over the fuselage and the empennages of the hunter and associated
a biplane wing with a bearing surface reduced to 13 m2 in two planes
of 7.10m x 0O, 90m in one piece. As on the C2, only the wing
upper has a dihedral of 2 °.

Bearing the N ° 7, the Borel device was completed on the site of the
competition and he was ready just before the close of the test.
However the windshield was broken upon departure and it was
replaced by a piece of aluminum sheet which made the
poor visibility and explains the pilot's course errors Barault,
errors which did not allow classification of the apparatus. The
circuit was however achieved in an excellent time despite the
absence total initial focus of the camera.


Attachments

  • 1.png
    236.3 KB · Views: 12

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990

Here is the translating of the text,but I don't know if it was an aircraft,flying bomb or what,who can help? ;

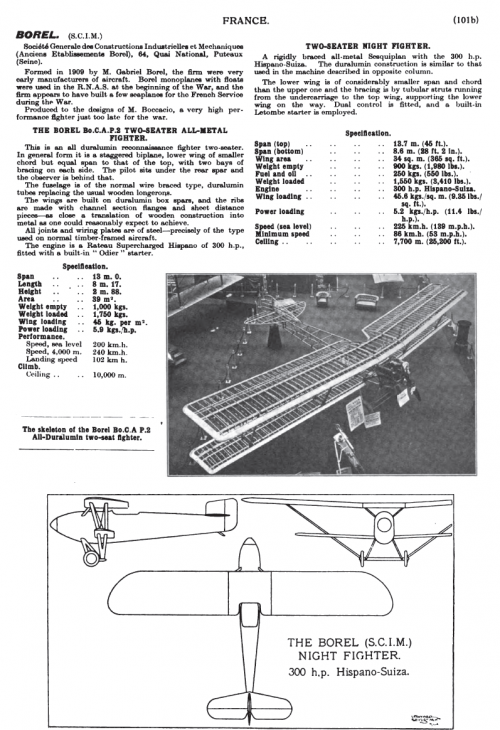

Borel exhibits a fast reconnaissance device, completely metallic skeleton,
300 hp engine with turbo-compressor Rateau which should allow him a
ceiling of 10,000 m.
It was airplane for CAN/CAP 2;

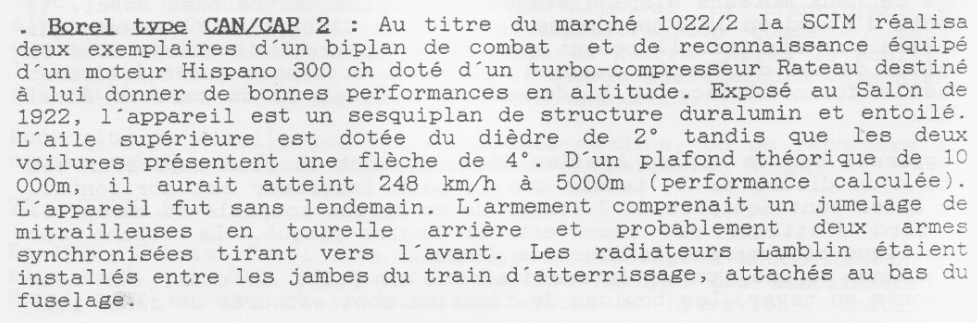

Borel type CAN / CAP 2: Under the 1922/2 contract, SCIM produced
two copies of a combat and reconnaissance biplane equipped with a
Hispano 300 hp engine fitted with a Rateau turbocharger intended to
give it good performance in altitude. Exhibited at the 1922 Salon, the
device is a sesquiplan of duralumin structure and canvas.
The upper wing has a 2 ° dihedron while the two wings have a 4 °
deflection. From a theoretical ceiling of 10,000m, it would have
reached 248 km / h at 5,000m (calculated Performance).
The apparatus was without tomorrow. The armament included a pair
of rear turret machine guns and probably two synchronized forward
firing weapons. Lamblin radiators were installed between the legs of
the landing gear, attached to the bottom fuselage.

TU 162


Attachments

  • 1.png
    287.3 KB · Views: 6

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,990
Hi,
From the Spanish magazine Aérea, Apr. 1924, here is a three-engine monoplane transport project by Borel.

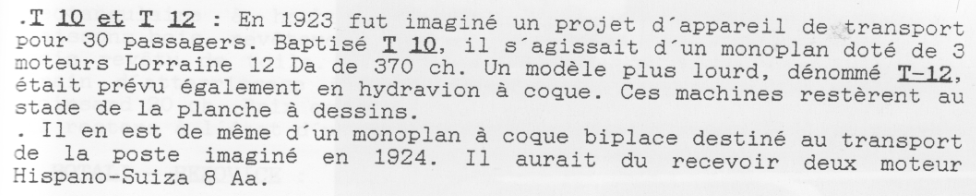

From TU 162,this Project was called T-10,and in total three Projects;

T-10 and T-12: In 1923 a project for a transport device for 30 passengers
was imagined. Called T-10, it was a monoplane equipped with 3 Lorraine
12 Da engines of 370 hp. A heavier model, called T-12, was also planned
in a hulled seaplane. These machines remained at the stage of the drawing board.

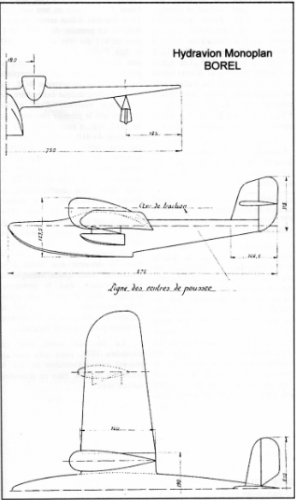

- The same is true of a two-seater hull monoplane Seaplane intended for
the transport of the post office imagined in 1924. It should have received
two Hispano-Suiza 8 Aa engines.


Attachments

  • b.png
    154.9 KB · Views: 2
