Bolkow Bo.104 helicopter project

Nordman

ACCESS: Restricted
Joined
Oct 8, 2006
Messages
3
Reaction score
1
I am looking for pictures linedrawings, anything you can find!

Have searched everywhere. I am hoping one of you can help me :)


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,642
Reaction score
966
Sorry, can't help drectly. However, since the Hubschraubermuseum Bückeburg holds the sole Bölkow BO 103 as well as BO 105s (which brackets the BO 104 design), it may be worth contacting them:

http://www.hubschraubermuseum.de/contact-info


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
Hello
The Bo 104 was a two seats project with 2X120ps NSU Wankel motors (total weight 880kg )

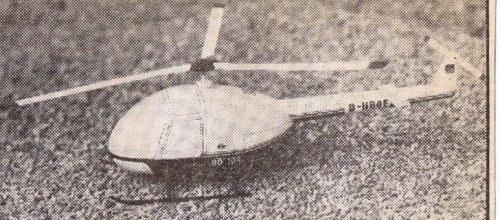

This bad picture is the only I have ever seen ,and comes from the 1961 Salon de l'Air -Le Bourget - report in " Les Ailes "
Later ,the very same drawing was named Bo 105 when fitted with 2 " Kleingasturbinen "
The concept - 2 turbined was continued in the later much bigger Bo 105 .


Attachments

  • 4rELqY.jpg
    173.4 KB · Views: 179

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
javascript:void(0);My mistake !
Here the Bo 104


Attachments

  • zbWABk.jpg
    203.6 KB · Views: 157

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
Sorry , looking closer,the 2 pictures depict the Bo 104 .
The turbines were from the beginning for the bigger Bo 105 .

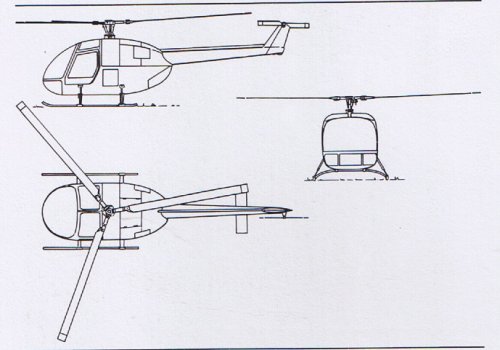

Here the Bo 104 3 views published in "Hubshrauber und tragshrauber ,die deutsche Luftfahrt Bd 3" Bernard&Graefe Verlag 1982 .


Attachments

  • 0O9on6.jpg
    137.8 KB · Views: 186

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,090
Reaction score
3,767
Hi,

http://www.flightglobal.com/pdfarchive/view/1962/1962%20-%200689.html
http://www.heliport.sk/00840-eurocopter-mbb-bolkow-bo-104


Attachments

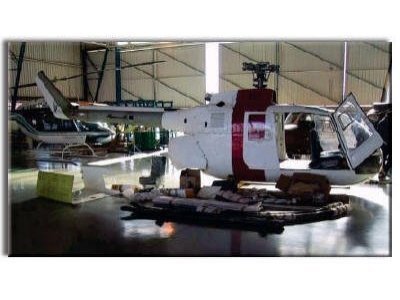

  • Bo.104.JPG
    106.2 KB · Views: 108
  • Bo.104    2.jpg
    Bo.104 2.jpg
    24.3 KB · Views: 129

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
14
Isn't the bottom pic a Bo 105?

hesham said:
Hi,

http://www.flightglobal.com/pdfarchive/view/1962/1962%20-%200689.html
http://www.heliport.sk/00840-eurocopter-mbb-bolkow-bo-104


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,023
Here's another picture of the BO 104 design (from AviationWeek1963). The photos
from the second link actually all show the BO 105. ;)


Attachments

  • BO-104.JPG
    55.2 KB · Views: 47

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,032
Reaction score
209
Dear Moderators, this Topic should be merged with……

http://www.secretprojects.co.uk/forum/index.php/topic,9678.0/highlight,bolkow.html

Terry (Caravellarella)


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,032
Reaction score
209
Dear Moderators, this Topic should be merged with……

http://www.secretprojects.co.uk/forum/index.php/topic,2800.0.html

Terry (Caravellarella)
