Boeing QSP studies (military and civil)

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

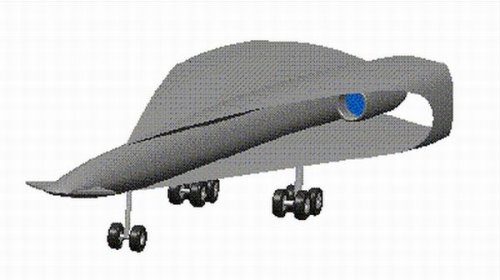

Boeing QSP studies were divided in 'mission-derived' and 'shape-derived' (in terms od aerodynamic configuration to supress sonic boom) vehicles, some of second group were patented and represented really weird beasts. Note how 'strike' mission-derived configuration resembles Northrop Grumman X-47C JUCAS and thier possible (while being nearsonic) NGLRS congiguration. Year is 2003.

AIAA 2003-0556

DESIGN DEVELOPMENT STRATEGIES AND TECHNOLGY INTEGRATION FOR SUPERSONIC AIRCRAFT OF LOW PERCEIVED SONIC BOOM
Peter M. Hartwich, Billy A. Burroughs, James S. Herzberg, and Curtiss D. Wiler
The Boeing Company – Phantom Works
Huntington Beach, CA 92647-2099


Attachments

  • boeQSPairlifterconcepts.jpg
    15.4 KB · Views: 281
  • boeQSPshapederived4s.jpg
    8 KB · Views: 138
  • boeQSPshapederived3s.jpg
    11.6 KB · Views: 123
  • boeQSPshapederived1as.jpg
    35.6 KB · Views: 118

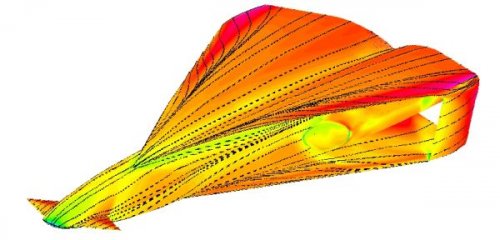

  • boeQSPshapederived2s.jpg
    24.7 KB · Views: 220
  • boeQSPshapederived1s.jpg
    8.5 KB · Views: 218
  • boeQSPstrikeconcepts.jpg
    26.1 KB · Views: 256
  • boeQSPrecceconcepts.jpg
    9.5 KB · Views: 236

Simon666

ACCESS: Confidential
Joined
May 9, 2007
Messages
106
Reaction score
0
flateric said:
DESIGN DEVELOPMENT STRATEGIES AND TECHNOLGY INTEGRATION FOR SUPERSONIC AIRCRAFT OF LOW PERCEIVED SONIC BOOM
Can't read the entire thing but are some of those things derivations of Busemann's sonic boomless biplane or is it just a coincidence?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Boeing calls it 'an unique Arch(ed) Wing'. Seems that they stated it as their propertiary design.
If you'l check Boeing patent http://tinyurl.com/2hcc6g, you will see that idea is not dead and used in quite a hell interesting vehicles, I assume that some has relationship to FALCON (Force Application and Launch from CONUS) Phase I research, but can be wrong. At least, talks are about global reach, hypersonic bus vehicles spreading submunitions and able to land at aircraft carriers after completing the mission.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Originally posted by CammNut
"Boeing ended up working on a QSP design using Reno's supersonic natural laminar flow technology. The only thing I have to hand on that concept is PopSci's artwork..."


Attachments

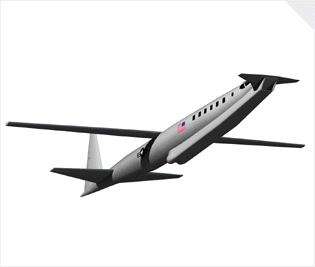

  • BoeingQSP.gif
    8.1 KB · Views: 102

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
It's not Reno/Tracy - it's much more horrible than that. The middle wing rotates to lie flat along the top of the fuselage, and there is some weird energy-addition stuff going on with the mid-body exhaust.

I suspect that the DARPA people thought that it was another attempt by Boeing (cf their brilliantly executed whacking of the HSCT project) to infiltrate and destroy any supersonic transport project.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

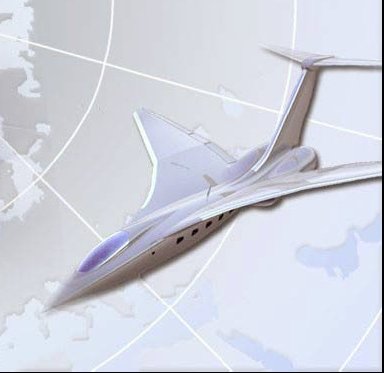

To illustrate this nightmare - scan courtesy by Matej
Top view is here http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=2628.0;attach=21045


Attachments

  • 07-12-2004 07_09_20PM.JPG
    07-12-2004 07_09_20PM.JPG
    81.4 KB · Views: 115

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

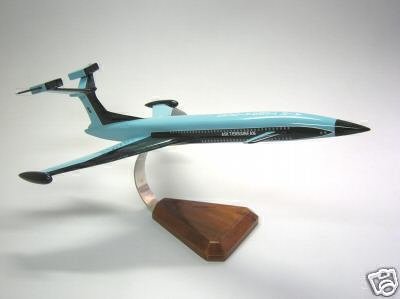

Another Boeing QSJ


Attachments

  • BoeingQSJ.jpg
    66.9 KB · Views: 148

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
It's either a Mach 2 Victor or the Fireflash SST from Thunderbirds.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,482
LowObservable said:
It's either a Mach 2 Victor or the Fireflash SST from Thunderbirds.

The Fireflash.


Attachments

  • Fireflash.jpg
    11.5 KB · Views: 58
