Boeing Patents

Having copies of a series of Boeing heavy bomber design studies from the 1941-43 period - and many of them are VERY odd - I have no doubt that all the above designs were ideas that Boeing engineers put to paper.

AlanG

A fun patent;

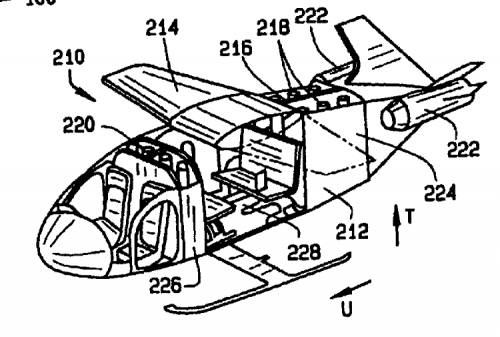

"An aircraft adapted for covert deployment and having low vulnerability to hostile detection and aggression is provided. The aircraft includes a fuselage having a pair of Sidewalls and a bottom. The sidewalls and bottom form an armored payload bay. The aircraft additionally includes a pair of wings connected to the fuselage. The wings have a fixed wingspan constrained Such that the aircraft can be transported within a larger aircraft. This allows for the aircraft to be aerial deployed from the larger aircraft. Each of the Sidewalls include at least one pulse ejector thrust augmentor bank that is canted outward. Therefore, a thrust exhaust produced by each PETA bank is directed down and away from a centerline of the payload bay. Furthermore, the bottom of the aircraft is adapted to allow ingress and egress- military troops, from the payload bay."

boeing vtol.png
boeing vtol 3.png
boeing vtol 2.png

Having copies of a series of Boeing heavy bomber design studies from the 1941-43 period - and many of them are VERY odd - I have no doubt that all the above designs were ideas that Boeing engineers put to paper.

AlanG

Stuff like the massive twin boom is out there but what were some of the other designs?

I'm not sure which "massive twin boom" you're talking about, but I have top view and some multi-view drawings of at LEAST 15 different twin-boom heavy long-range bomber designs from Boeing in that time frame.

AlanG

A fun patent;

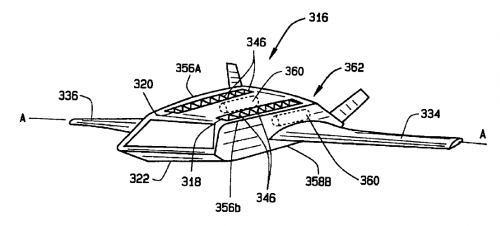

"An aircraft adapted for covert deployment and having low vulnerability to hostile detection and aggression is provided. The aircraft includes a fuselage having a pair of Sidewalls and a bottom. The sidewalls and bottom form an armored payload bay. The aircraft additionally includes a pair of wings connected to the fuselage. The wings have a fixed wingspan constrained Such that the aircraft can be transported within a larger aircraft. This allows for the aircraft to be aerial deployed from the larger aircraft. Each of the Sidewalls include at least one pulse ejector thrust augmentor bank that is canted outward. Therefore, a thrust exhaust produced by each PETA bank is directed down and away from a centerline of the payload bay. Furthermore, the bottom of the aircraft is adapted to allow ingress and egress- military troops, from the payload bay."

View attachment 615239
View attachment 615240
View attachment 615241


Not exactly energy shielding as seen in sci-fi, but getting closer:

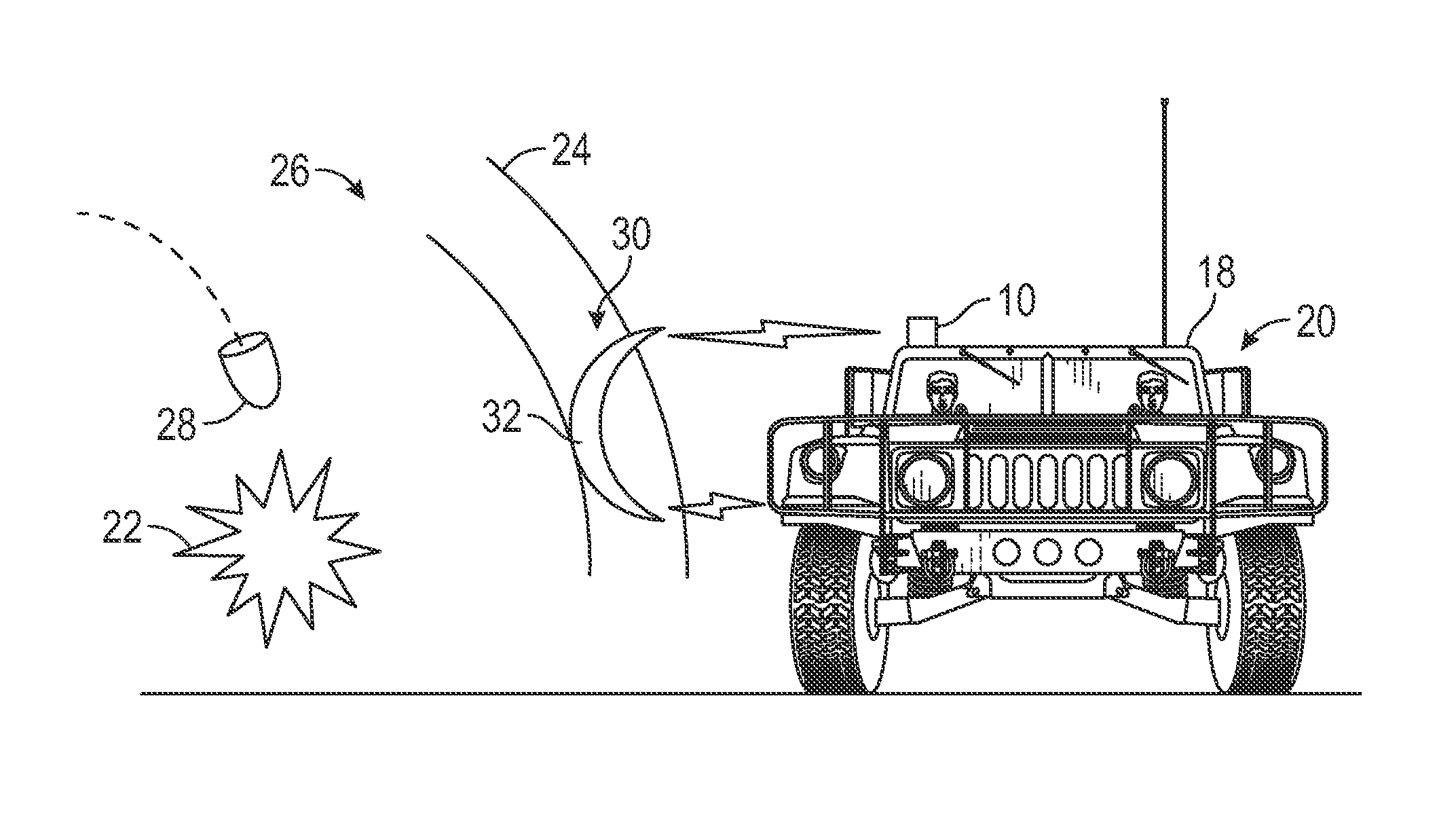

A method and system for attenuating a shockwave propagating through a first medium by heating a selected region of the first fluid medium rapidly to create a second, transient medium that intercepts the shockwave and attenuates its energy density before it reaches a protected asset[...] by creating an electric arc that travels along an electrically conductive path utilizing at least one of high intensity laser pulses, pellets forming a conductive ion trail, sacrificial conductors, projectiles trailing electrical wires, and magnetic induction.
