Hi,

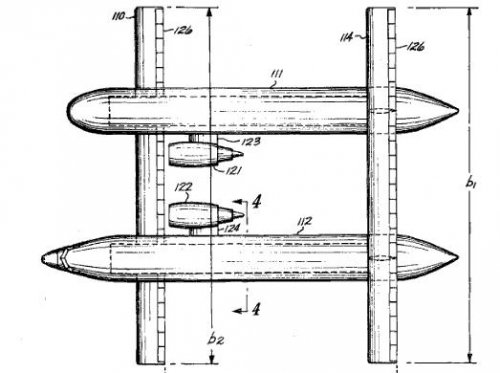

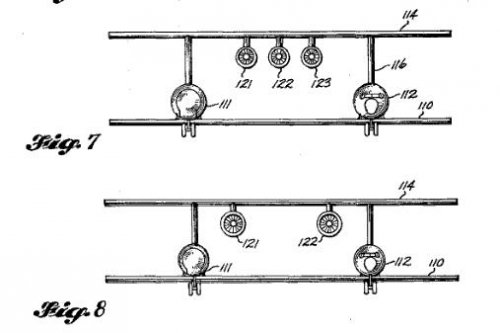

A tandem wing airliner and transport aircraft projects,for
Boeing from 1979 to 1983.
http://www.google.com/patents?id=2jo9AAAAEBAJ&pg=PA2&dq=PEYRET+airplane


Attachments

  • Boeing .JPG
    Boeing .JPG
    25.3 KB · Views: 639
  • Boeing 1.JPG
    Boeing 1.JPG
    10.7 KB · Views: 554
  • Boeing 2.JPG
    Boeing 2.JPG
    14.6 KB · Views: 534
  • Boeing 3.JPG
    Boeing 3.JPG
    13.5 KB · Views: 524

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,209
Reaction score
170
The idea was to maintain laminar flow. To do that they needed short chord - so to keep the aspect ratio from getting silly while providing enough wing, they went for a biplane.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Hi,

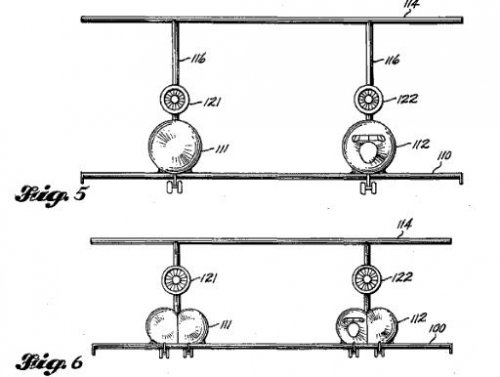

anther projects to Boeing but I think it was imagine
projects not really;
http://www.google.com/patents?id=1BNeAAAAEBAJ&pg=PP1&dq=tandem+wing+airplane&num=100#PPP1,M1


Attachments

  • Boeing 5.JPG
    Boeing 5.JPG
    25.2 KB · Views: 164
  • Boeing 4.JPG
    Boeing 4.JPG
    23.4 KB · Views: 143
  • Boeing 3.JPG
    Boeing 3.JPG
    11.6 KB · Views: 130
  • Boeing 2.JPG
    Boeing 2.JPG
    21.6 KB · Views: 160
  • Boeing 1.JPG
    Boeing 1.JPG
    20.5 KB · Views: 519

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320
Patents taken out by random inventors/lunatics are too far off topic in my opinion.

I agree with Overscan

The last patent is totally lunatic and has no interest to this forum


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
"The last patent is totally lunatic "

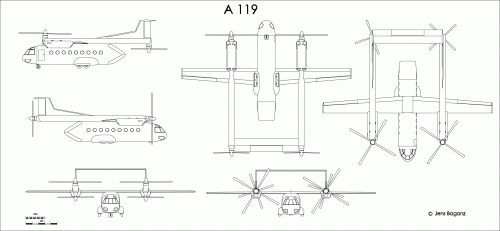

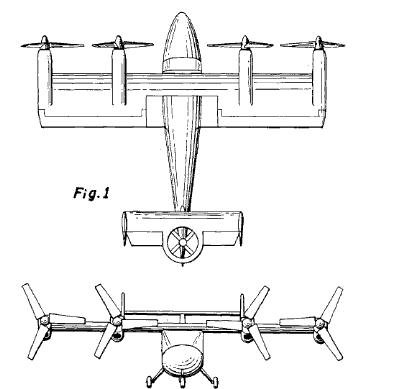

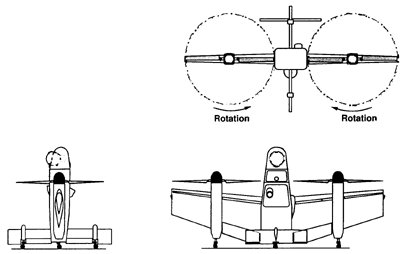

Well, this principal was used for the Agusta A 119 in four engined form,
a contender for NBMR 4 from 1961, although I could imagine, that
flight control in a hover would be easier to achive with 4 lift vectors,
instead of only two.
(also see http://www.vtol.org/pdf/stov59.pdf )


Attachments

  • Agusta_A-119.GIF
    100.7 KB · Views: 283

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320
Jemiba,

I was talking about that Boeing 1 and Boeing 2 drawings...are they real? :eek:


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Oh, sorry, I was reffering to the last drawings in the post !
Yes, these tandem and triple wings really look comic like,
especially as all wings are carrying engines ! ::)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
pometablava said:
Patents taken out by random inventors/lunatics are too far off topic in my opinion.

I agree with Overscan

The last patent is totally lunatic and has no interest to this forum

And I agree with you,but not all patents are imagine projects,
such as that project from Boeing,who can say it was really
or not ?


Attachments

  • Boeing.JPG
    19.9 KB · Views: 141

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Hi,

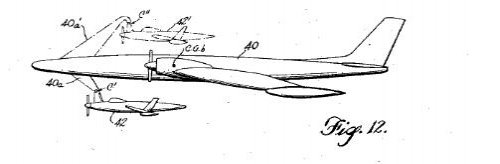

a comosite aircraft by Boeing.
http://www.google.com/patents?id=R40PAAAAEBAJ&printsec=abstract&zoom=4&dq=aerodyne+airplane&num=100#PPA69,M1


Attachments

  • Boeing.JPG
    11 KB · Views: 181

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,101
Reaction score
1,592
Website
www.aerospaceprojectsreview.com
pometablava said:
Jemiba,

I was talking about that Boeing 1 and Boeing 2 drawings...are they real? :eek:

Actually... yes. The design is slightly different in details, but Boeing did put together such a beast. I don't have the data hear in front of me, but it was meant as a VTOL heavy lifter... and two of the intended payloads were the first and second stages of the Model 813 hypersonic bomber that I describe in my "Preview."

Sometimes the wacky patents aren't complete nonsense.


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
882
Reaction score
437
hesham said:
that project from Boeing,who can say it was really or not ?

It looks like a quick and dirty counter to the Bréguet 941 aka McDonnell 188...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Hi,

Anther beautiful design to Richard Vogt for Boeing.
http://www.google.com/patents?id=PRdzAAAAEBAJ&pg=PA1963&dq=vogt+design+of+airplane&num=100#PPA1963,M1


Attachments

  • Boeing.JPG
    11.4 KB · Views: 185

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
45
By the way, Richard Vogt designed the famous Blohm und Voss planes in Germany in the late 30' and early 40' .(and some planes in Japan before )


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
richard said:
By the way, Richard Vogt designed the famous Blohm und Voss planes in Germany in the late 30' and early 40' .(and some planes in Japan before )

Of couse my dear richard,
Richard Vogt was undying fame person.

The very larg aircraft for Boeing.
http://www.google.com/patents?id=3kw9AAAAEBAJ&printsec=abstract&zoom=4&dq=brown+design+of+airplane&num=100#PPP1,M1


Attachments

  • boeing 1.JPG
    boeing 1.JPG
    11 KB · Views: 151
  • boeing 2.JPG
    boeing 2.JPG
    12.9 KB · Views: 147

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Hi,

was that a really project to Boeing ?.
http://www.google.com/patents?id=09U8AAAAEBAJ&printsec=abstract&zoom=4&dq=douglas+design+of+airplane&num=100


Attachments

  • Boeing.JPG
    21.3 KB · Views: 213

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Hi Orionblamblam,

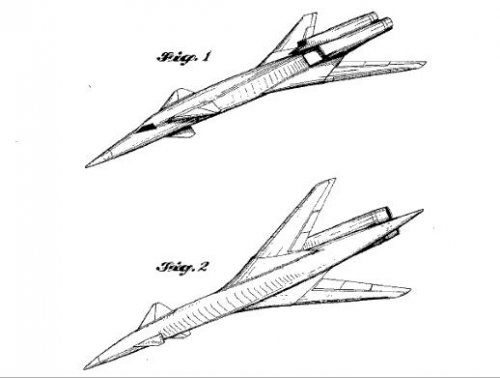

here is anther beautiful bomber for Boeing.
http://www.google.com/patents?id=N1lxAAAAEBAJ&pg=PP1&dq=convair+design+for+an+airplane&num=100


Attachments

  • Boeing.JPG
    15.5 KB · Views: 383

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Sorry for this double post,

and anther boeing patent.
http://www.google.com/patents?id=PH0nAAAAEBAJ&pg=PP2&dq=boeing+design+for+an+airplane&num=100#PPP1,M1


Attachments

  • Boeing.JPG
    29.8 KB · Views: 348

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Hi,

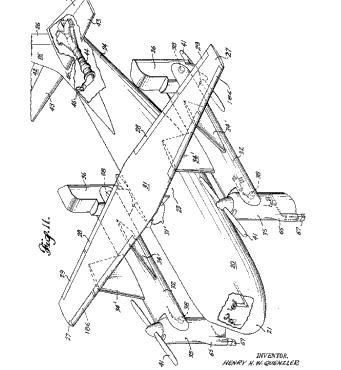

the Boeing VTOL aircraft.
http://www.google.com/patents?id=lcJWAAAAEBAJ&pg=PA1961&dq=boeing+design+of+airplane&num=100#PPA1961,M1


Attachments

  • Boeing.JPG
    33.5 KB · Views: 266

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Hi,

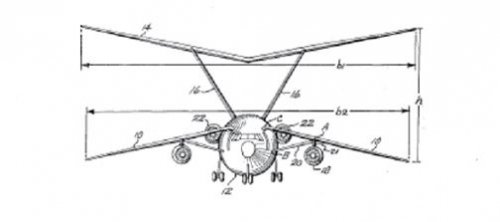

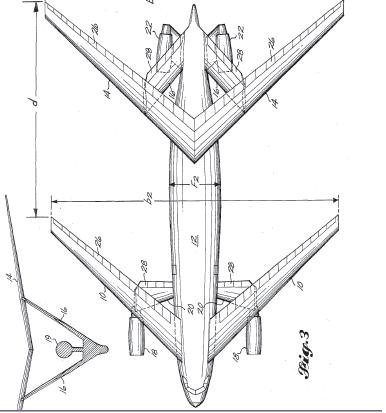

the Boeing tandem wing airliner from 1976.
http://www.google.com/patents?id=AXEtAAAAEBAJ&printsec=abstract&zoom=4&dq=boeing+design+of+airplane&num=100


Attachments

  • Boeing variants 3.JPG
    Boeing variants 3.JPG
    11.3 KB · Views: 95
  • Boeing variants 2.JPG
    Boeing variants 2.JPG
    19.9 KB · Views: 87
  • Boeing variants 1.JPG
    Boeing variants 1.JPG
    23.5 KB · Views: 87
  • Boeing 1.JPG
    Boeing 1.JPG
    16.1 KB · Views: 218
  • Boeing.JPG
    31.7 KB · Views: 238

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Hi,

The Boeing designed aircraft with integral antena in 1960.
http://www.google.com/patents?id=plNEAAAAEBAJ&printsec=abstract&zoom=4&dq=boeing+design+of+airplane&num=100#PPA1958,M1


Attachments

  • Boeing.JPG
    38.3 KB · Views: 169

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,101
Reaction score
1,592
Website
www.aerospaceprojectsreview.com
hesham said:
Hi,

The Boeing designed aircraft with integral antena in 1960.
http://www.google.com/patents?id=plNEAAAAEBAJ&printsec=abstract&zoom=4&dq=boeing+design+of+airplane&num=100#PPA1958,M1

Note... this was at least a *somewhat* serious design. I've got drawings of it somewhere. I don't think that it had a Model number, though.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
I hope to find it dear Orion,

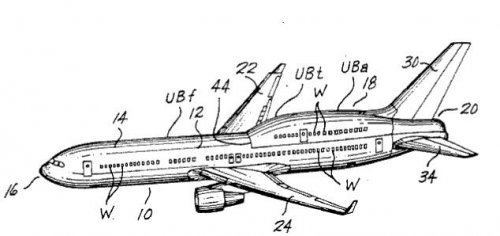

the Boeing tandem wing airliner and aft double deck
airplane.
http://www.google.com/patents?id=26onAAAAEBAJ&printsec=abstract&zoom=4&dq=douglas+design+of+airplane&num=100#PPP1,M1
http://www.google.com/patents?id=YRsiAAAAEBAJ&printsec=abstract&zoom=4&dq=douglas+design+of+airplane&num=100


Attachments

  • Boeing 1.JPG
    Boeing 1.JPG
    12.8 KB · Views: 123
  • Boeing 2.JPG
    Boeing 2.JPG
    29.3 KB · Views: 150

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
108
Website
theavgeeks.com
That second one is the famed "Hunchback of Mulkiteo" design when Boeing was looking for ways to increase the capacity of the 767 design (ultimately moving ahead with the 777 and the 767-400 designs). The nickname came from a Seattle surburb. From what I recall, airlines polled were very lukewarm at best with the idea of a hunchbacked 767......


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Good info dear Sentinel,

more strange aircraft designed by Boeing and North
American.
http://www.google.com/patents?id=my0ZAAAAEBAJ&printsec=abstract&zoom=4&dq=lawrence+b+airplane&num=100


Attachments

  • Boeing-North American.JPG
    Boeing-North American.JPG
    15 KB · Views: 153

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,150
Reaction score
1,287
Hesham, NOT Boeing AND North American, BUT Boeing North American, Inc.

Boeing North American (BNA), Inc. acquired this Seal Beach facility in late 1996 from North American Rockwell. The multi-building facility was used by Rockwell to build large defense and space hardware including Apollo launch vehicle stages. Boeing has two major divisions: commercial space (primarily airplanes), and defense and space. This Seal Beach facility was acquired to enhance the capabilities of the defense and space division.

http://www.wtec.org/loyola/satcom2/e_02.htm


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Thank you dear flateric,

anther strange engines for Boeing airliner aircraft.
http://www.google.com/patents?id=gJMnAAAAEBAJ&printsec=abstract&zoom=4&dq=bennet+design+of+airplane&num=100#PPP1,M1


Attachments

  • Boeing.JPG
    21.3 KB · Views: 143

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
108
Website
theavgeeks.com
That last one appears to be the aborted 7J7 program which would have had a twin aisle jetliner powered by GE UDF engines. I believe the "J" came from plans to have significant participation by the Japanese aerospace industry.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Yes dear Sentinel,

I found a drawing to Boeing 7J7,it was it.

And there is Boeing-754 (with Burnelli) and Boeing-1878
ATF study fighter.
http://www.google.com/patents?id=41Q9AAAAEBAJ&printsec=abstract&zoom=4&dq=douglas+design+of+airplane&num=100
http://www.google.com/patents?id=aXgpAAAAEBAJ&pg=PP2&dq=douglas+design+of+airplane&num=100


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Hi,

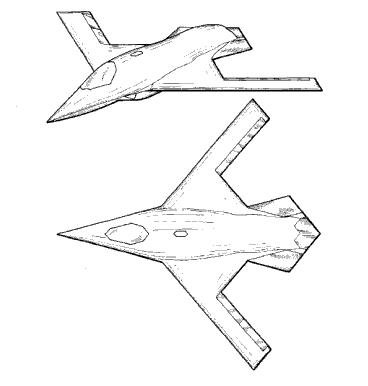

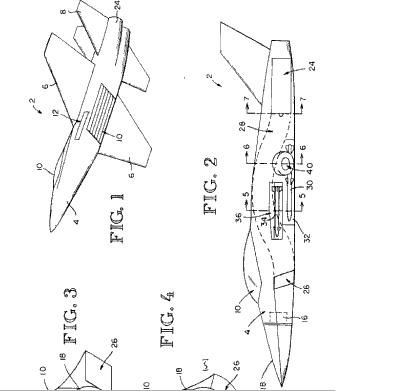

the Boeing fighter had low aerodynamic drag and
lower radar signature.
http://www.google.com/patents?id=P7shAAAAEBAJ&printsec=abstract&zoom=4&dq=AVIATION+WEEK+airplane&num=100#PPA1,M1


Attachments

  • Boeing.JPG
    19.4 KB · Views: 319

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,150
Reaction score
1,287

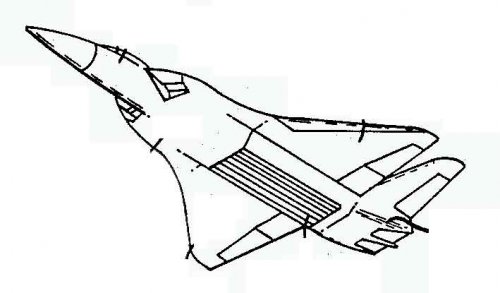

Interesting...does it mean that Boeing guys invented weapon bays disposition on YF-22 and just tried to left this copyrighted?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,727
According to published accounts Boeing's ATF proposal concentrated heavily on their weapons bay, so its quite possible the YF-22 arrangement was their "baby".


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,150
Reaction score
1,287
We have it here, BTW
http://www.google.com/patents?id=MkM1AAAAEBAJ&dq=4697764

Patent that Hesham found was prolongated in 1995
http://www.google.com/patents?id=tQMgAAAAEBAJ&dq=4697764

Another interesting patent from Boeing with some clue to their ATF weapons bay
http://www.google.com/patents?id=dpEbAAAAEBAJ&pg=PA2&dq=4697764#PPA1,M1


Attachments

  • boe1985preatf.jpg
    20.2 KB · Views: 275

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
My dears,

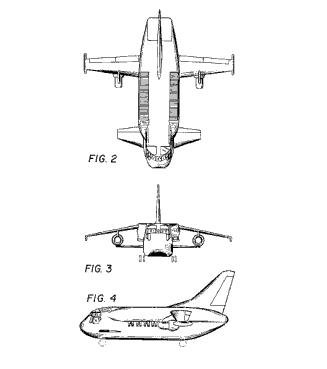

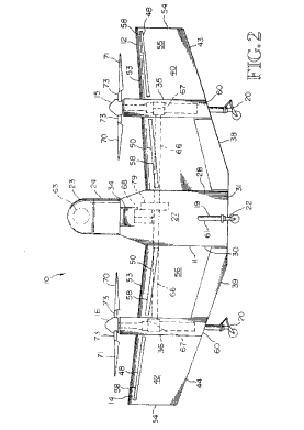

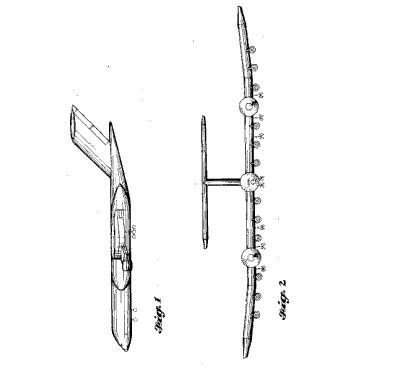

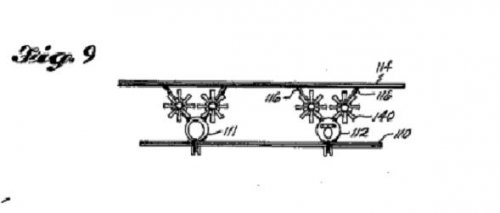

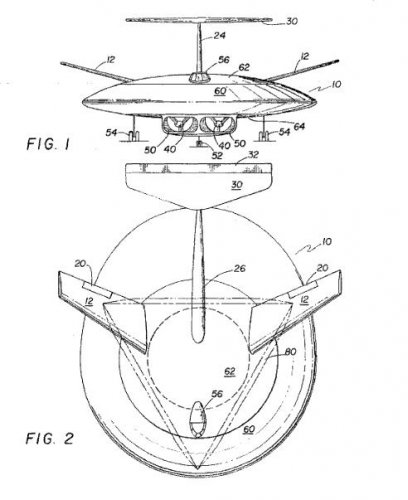

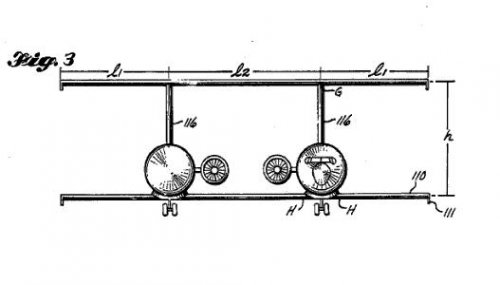

please look to that Boeing vertically launchable and
recoverable wing aircraft.
http://www.google.com/patents?id=6fkhAAAAEBAJ&printsec=abstract&zoom=4&dq=Aviation+Week+airplane&num=100#PPA2,M1


Attachments

  • Boeing 1.JPG
    Boeing 1.JPG
    26.6 KB · Views: 268
  • Boeing 2.JPG
    Boeing 2.JPG
    17.5 KB · Views: 248

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,150
Reaction score
1,287

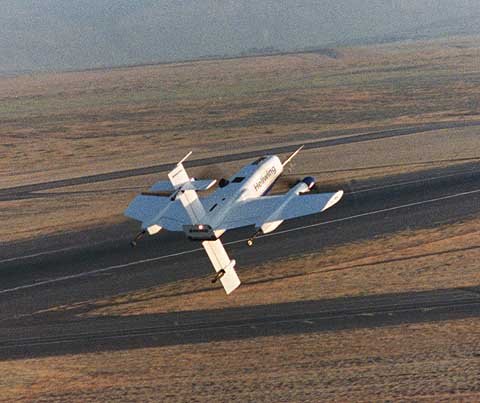

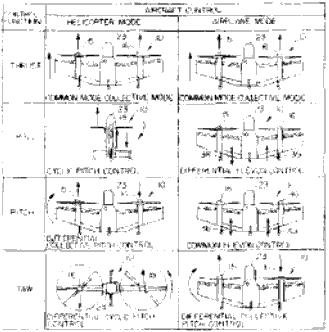

Boeing Heliwing

Boeing Heliwing vehicle of the early 1990s. This vehicle had a 1450-lb maximum takeoff weight (MTOW) with a 200-lb payload, 5-hour endurance and 180 kts maximum speed and used twin rotors powered by a single 240 SHP turbine engine/

Boeing's Heliwing VTOL UAV took off and landed vertically from a tail-sitting position, but transitioned from hover into fixed-wing forward flight by nosing over. One demonstrator was built, which crashed while attempting its first retransition from forward flight to landing hover on its sixth flight on 13 Jun 95.

http://www.uavforum.com/vehicles/developmental/heliwing.htm


Attachments

  • heliwin.jpg
    30.9 KB · Views: 131
  • heliwing.gif
    17.5 KB · Views: 110
  • Boeing Heliwing.jpg
    Boeing Heliwing.jpg
    24.2 KB · Views: 246

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Thank you my dear flateric,

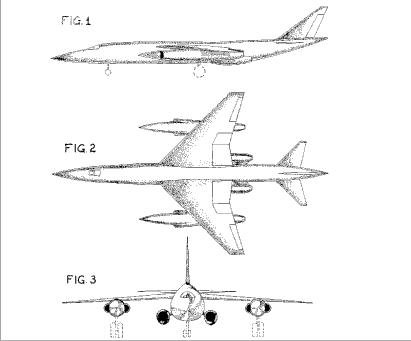

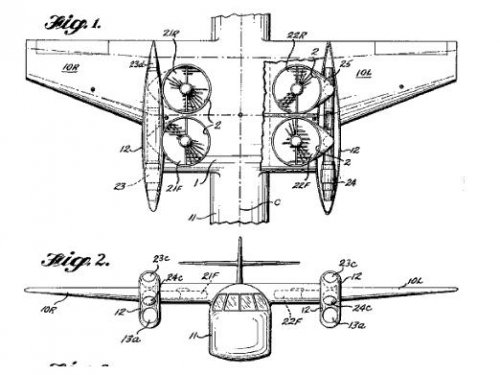

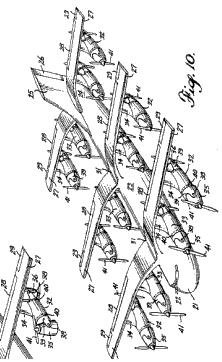

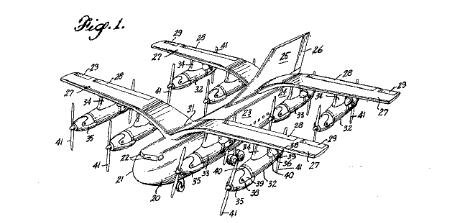

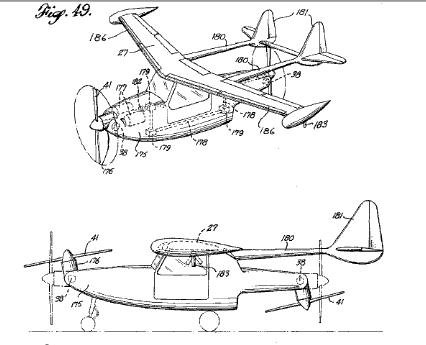

and that aircraft I see a really movie about it,it was tandem
wing aircraft and alternative for engines mounting.http://www.google.com/patents?id=QdcPAAAAEBAJ&printsec=abstract&zoom=4&dq=Aviation+Week+Boeing+airplane&num=100#PPP1,M1


Attachments

  • Boeing 1.JPG
    Boeing 1.JPG
    28.2 KB · Views: 148
  • Boeing 2.JPG
    425.7 KB · Views: 100

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,764
Reaction score
4,880
Hi,

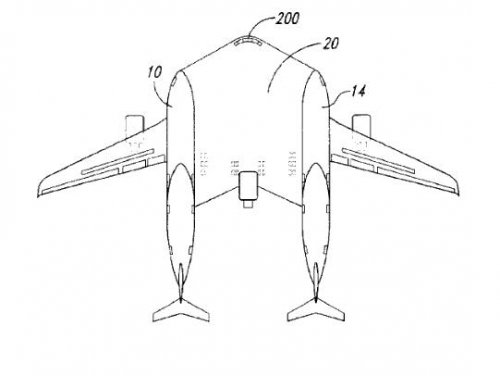

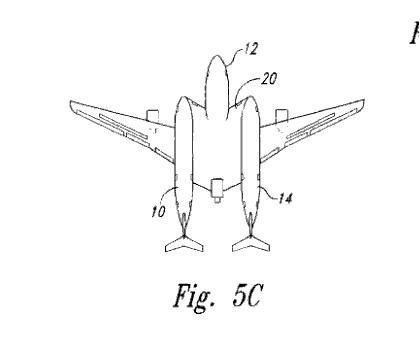

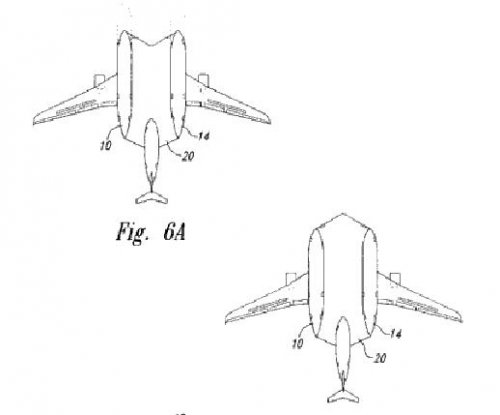

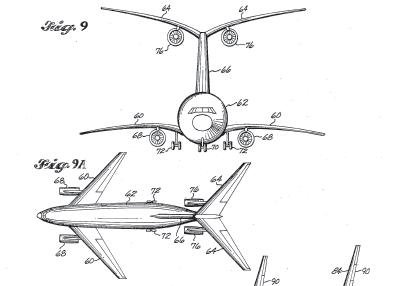

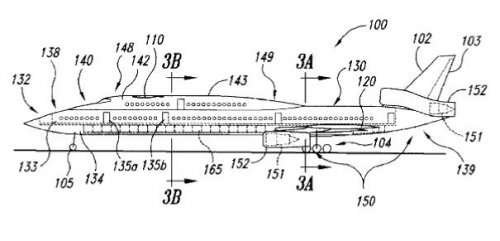

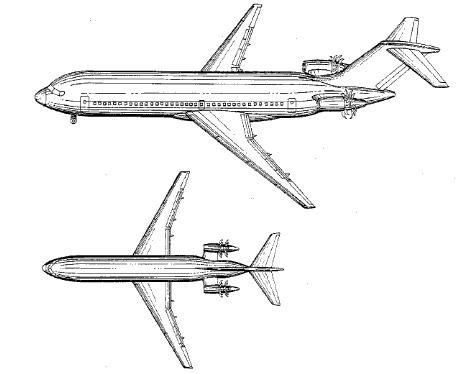

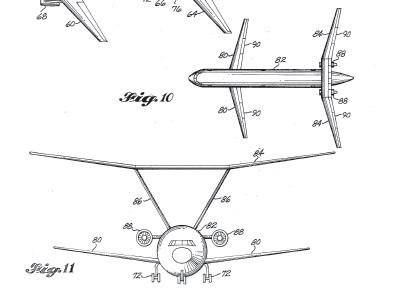

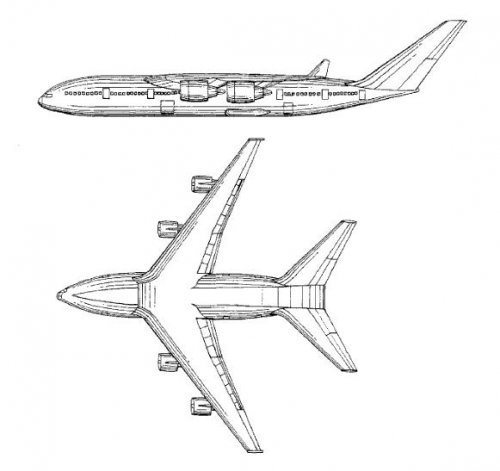

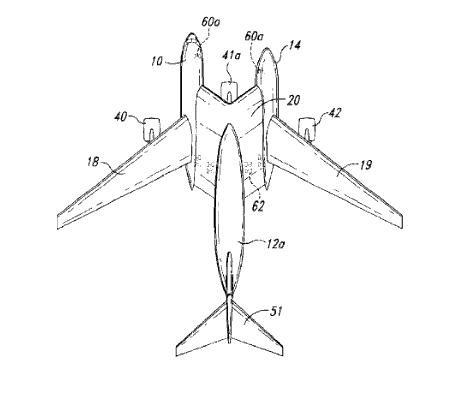

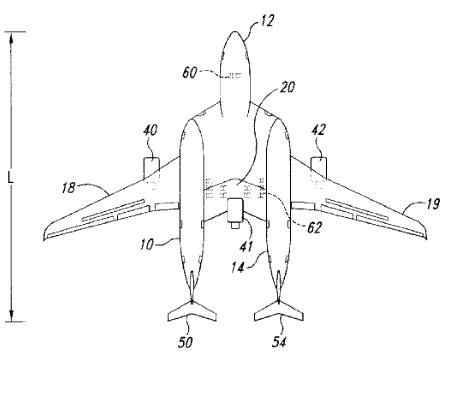

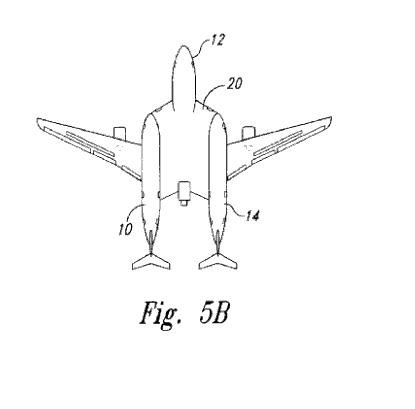

There is the Boeing blended wing and multiple-body
airplanes.
http://www.google.com/patents?id=EaQNAAAAEBAJ&printsec=abstract&zoom=4#PPP1,M1


Attachments

  • Boeing 1.JPG
    Boeing 1.JPG
    16.5 KB · Views: 126
  • Boeing 2.JPG
    Boeing 2.JPG
    16.7 KB · Views: 110
  • Boeing 3.JPG
    Boeing 3.JPG
    17 KB · Views: 101
  • Boeing 4.JPG
    Boeing 4.JPG
    11.3 KB · Views: 95
  • Boeing 5.JPG
    Boeing 5.JPG
    11 KB · Views: 91
  • Boeing 6.JPG
    Boeing 6.JPG
    14.7 KB · Views: 94

Similar threads

Top
