Boeing Model 320

[hesham]

Hi,

The Boeing Model-320 was a project of twin boom fighter,
I am not sure,any confirm about that please.



[hesham]

Hi,

No one hears about the Boeing Model-320 ?!.



[Tophe]

I received a 3-view drawing of the Boeing Model 320 years ago, from an unknown source.
Twin-hull flying boat, November 1938 design, with 6 engines. Span 200 feet, length 116 feet. Not a fighter at all...



[hesham]

Thanks.



[toura]

HI ALL
I've found on the French site " air combat le forum"
this 3 views of the Boeing 320 project.

Do you know more ?

Thanks
PAUL



[Johnbr]

It is upside down.



[blackkite]

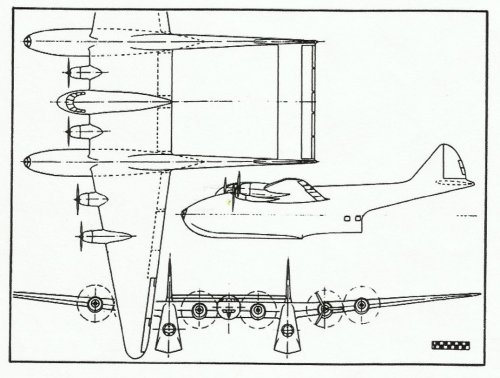

Hi! I did some treatment. Interesting shape.



[Stargazer]

Nice! We have a similarly configured Seversky project somewhere on the forum.



[Antonio]

The drawing comes from Putnam Boeing Aircraft since 1916 (Peter M. Bowers). 2nd Edition 1968. Appendix I: selection of unbuilt projects prepared by L.E. Bradford from Boeing project drawings. Page 410.

The associated text is:

A 1938 study for a 8-seat twin-hull Navy patrol aircraft. Six 1,200 hp Wright R2600 Twin Cyclone engines. Span 200 ft, lenght 116 ft, gross weight 134,000 lb



[theponja]

Thanks a lot for the data about this bird.

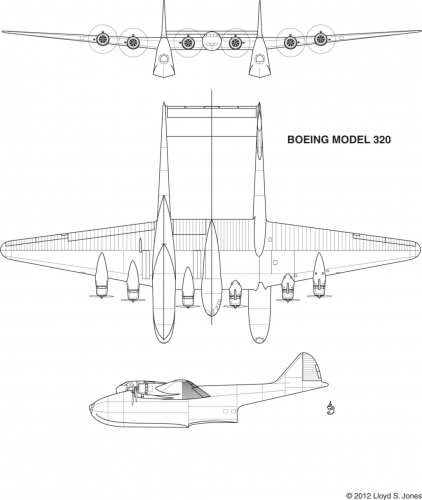

I've a drawing which I've from a yahoo group. I'm putting here a low resolution version. Contact by pm if need another resolution.



[blackkite]

What a wonderful drawing it is! Thank you very much.
Cabin shape is little different from previous post.



[toura]

Hello
Thanks Blackite for the better drawing And yes, two different drawings !?
Thanks Alcides for a complete 3 views
and, yes, Stephane, I've a drawing of a same Seversky from"adventurelounge.com
Bye
PAUL

[scan removed and replaced by better version below—Mod.]



[Stargazer]

Thanks Paul.

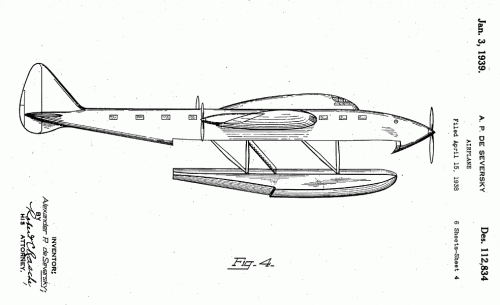

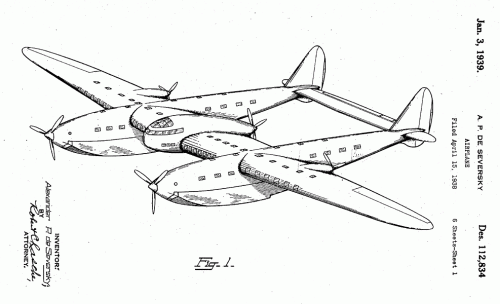

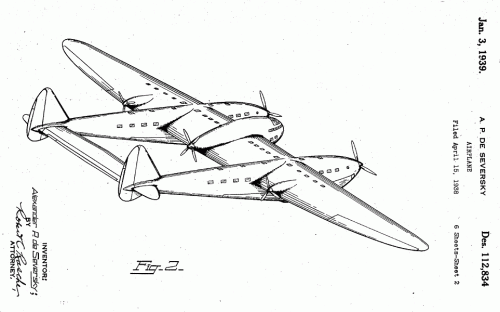

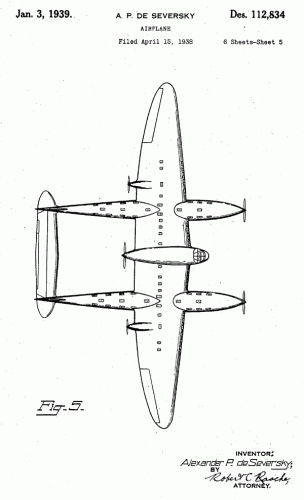

Here are the four pages of the Seversky design. They make for an interesting comparison (note the way the hulls separate to form giant floats).



[toura]

thanks to Pometablava
And thanks Stephan
Interesting ! Bye
PAUL



[Orionblamblam]

Thanks Paul.

Here are the four pages of the Seversky design.

That's the Seversky Super Clipper: http://aerospaceprojectsreview.com/ev1n1.htm



[blackkite]

Hello
Thanks Blackite for the better drawing And yes, two different drawings !?

Sorry I mean previous post is your first post of this topic.
I compared your drawing and Alcides's drawing.



[toura]

Thanks Orionblamblam. very good.



[lark]

A bit more info...

The model 320 , designed 1936-1938 represented a last ditch effort by Boeing to come up
a candidate for the U.S.Navy's Flying Dreadnough competition.
With the Sikorsky XPBS-1,Consolidated XPB2Y-1 and the Martin XPB2M-1 forthcoming
Buer had no interest in adding an other project.
Some sources mentioned it would have received de VPB designation by the U.S.Navy.

A bit more data to Pome's info.

wing area:410.17 m2
max.t.o. weight 60.781 kg.
max.level speed 319km/h
service ceiling 4.415m
range 11.345Km.

The drawing provided by Alcides is made by Lloyd S.Jones
for the book 'American Flying Boats and Amphibious Aircraft by E.R.Johnston.
I found no sources or info why it shows a slightly different crew gondola
without the glazing at the upper back end.

sources.
PlaneMaker: Boeing MJH Taylor-Janes.
Boeing-FlyPast library
Boeing Aircraft since 1916-Bowers-Putnam
and the already mentioned book by E.R.Johnston.



[Stargazer]

Paul, "VPB" designated a Navy class of aircraft, in this case the Patrol Bombers. No designation here. "Boeing's VPB flying boat" means it was just their submission in that category of aircraft.
