Boeing Integrated Manned Interplanetary Spacecraft (IMIS) 1968

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
2
Website
deeptowild.blogspot.com
The six volumes of reports for the Boeing Integrated Manned Interplanetary Spacecraft (IMIS) for a manned mission to Mars are available on the NASA Technical Reports Server.

Boeing, Integrated Manned Interplanetary Spacecraft Concept Definition, Final Report Vol.1, Summary, January, 1968
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19680009769_1968009769.pdf

Boeing, Integrated Manned Interplanetary Spacecraft Concept Definition, Final Report Vol.2, System Assessment & Sensitivities, January, 1968
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19680009673_1968009673.pdf

Boeing, Integrated Manned Interplanetary Spacecraft Concept Definition, Final Report Vol.3(a), Systems Analysis (Missions & Operations), January, 1968
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19680009770_1968009770.pdf

Boeing, Integrated Manned Interplanetary Spacecraft Concept Definition, Final Report Vol.3(b), Systems Analysis (Experiment Program), January, 1968
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19680009780_1968009780.pdf

Boeing, Integrated Manned Interplanetary Spacecraft Concept Definition, Final Report Vol.4, System Definition, January, 1968
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19680009779_1968009779.pdf

Boeing, Integrated Manned Interplanetary Spacecraft Concept Definition, Final Report Vol.5, Plans & Costs, January, 1968
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19680010368_1968010368.pdf

Boeing, Integrated Manned Interplanetary Spacecraft Concept Definition, Final Report Vol.6, Cost Effective Subsystem Selection & Evolutionary Development, January, 1968
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19680009778_1968009778.pdf


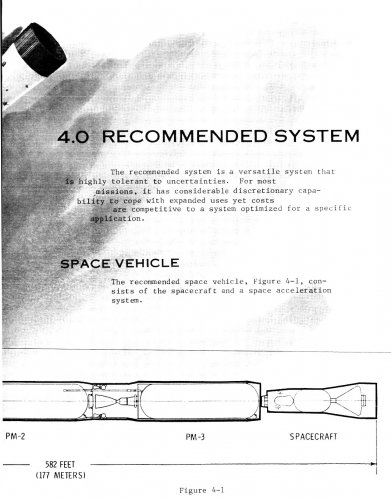

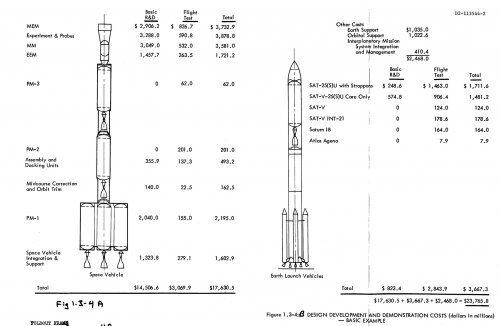

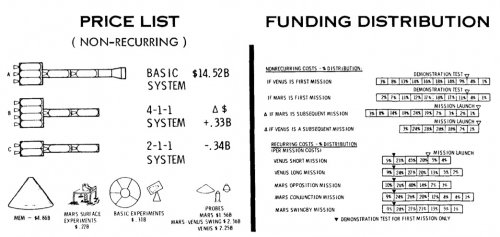

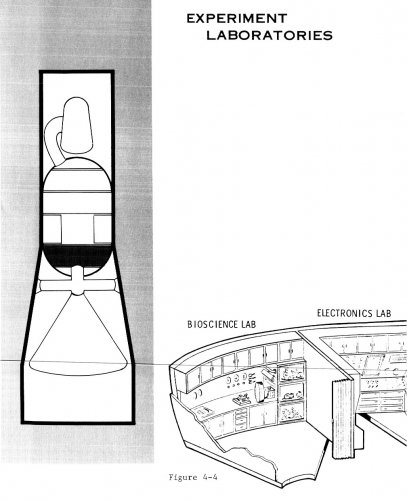

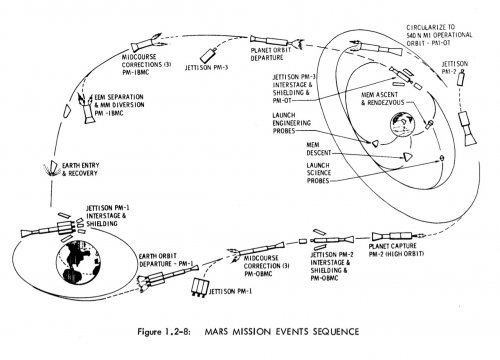

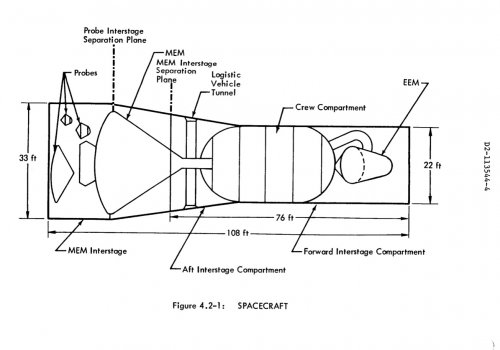

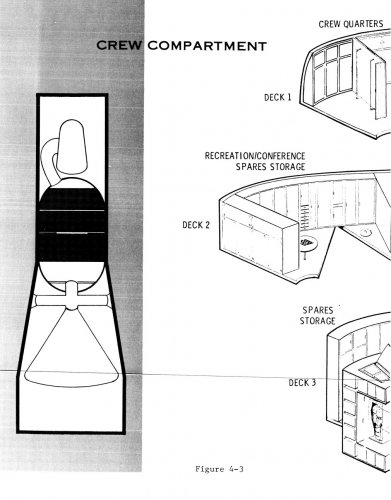

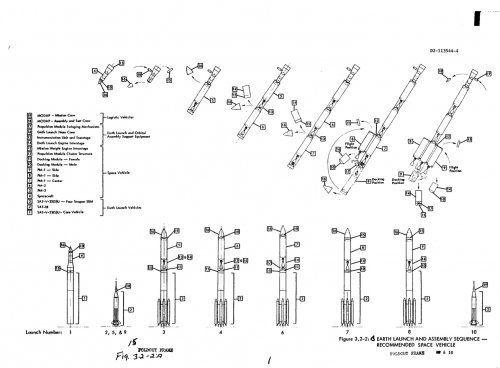

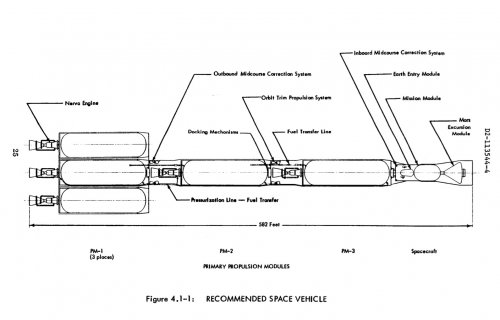

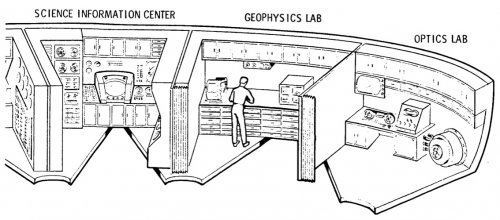

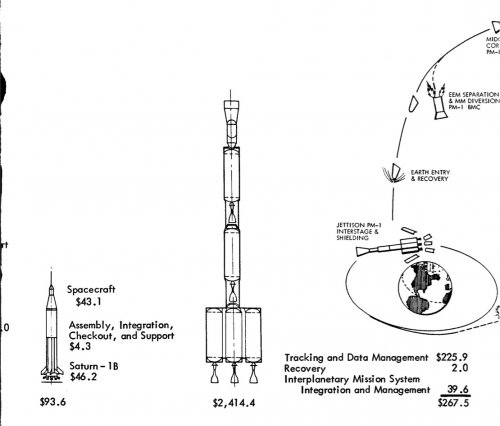

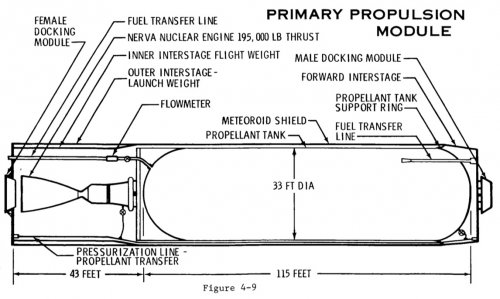

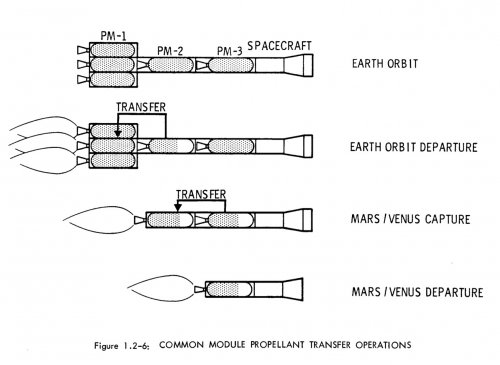

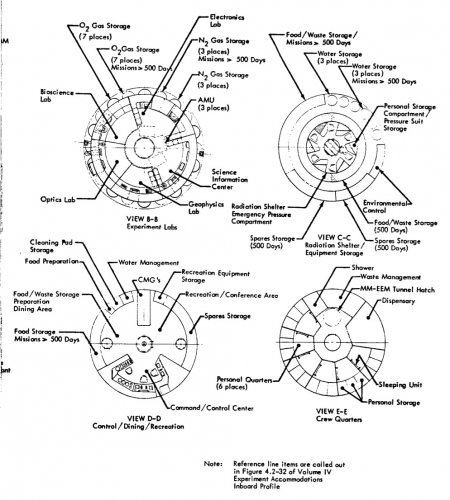

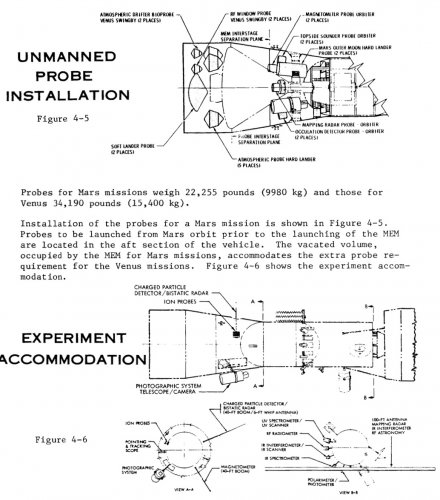

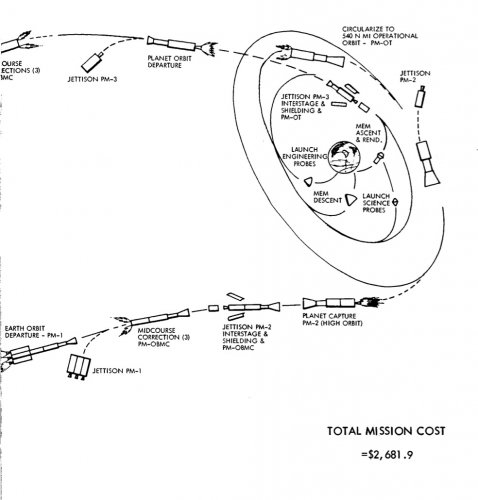

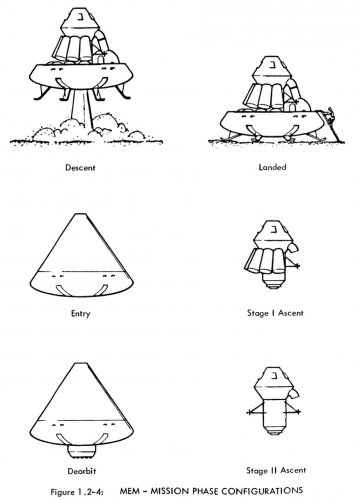

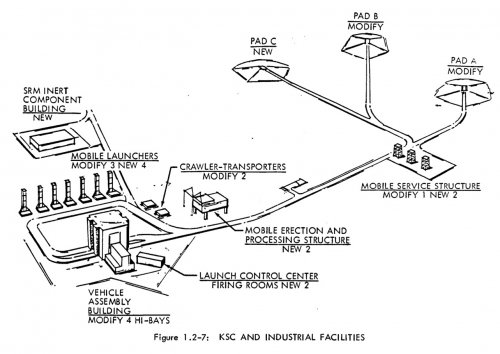

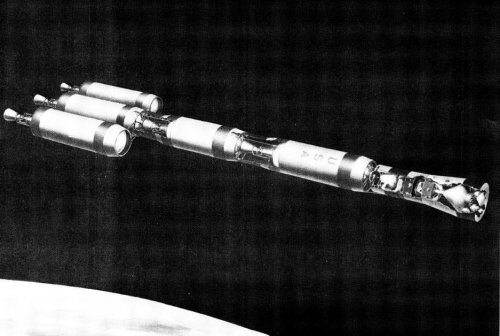

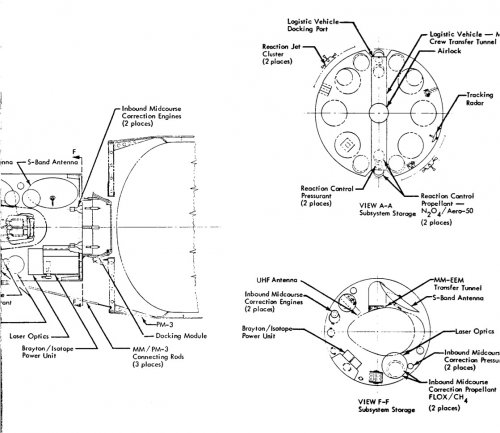

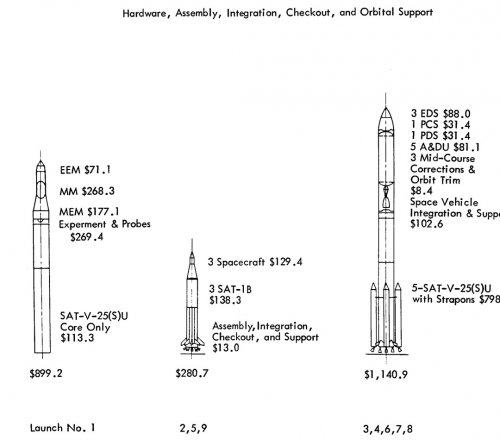

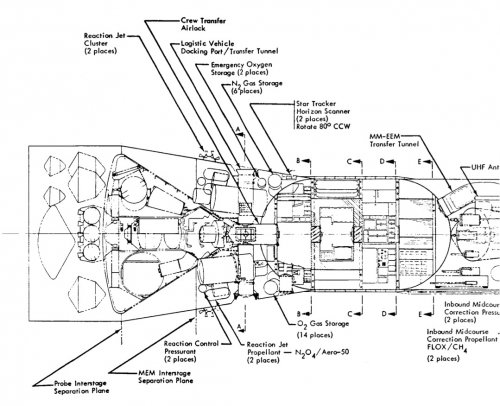

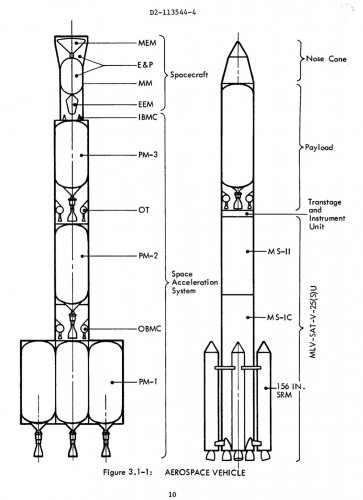

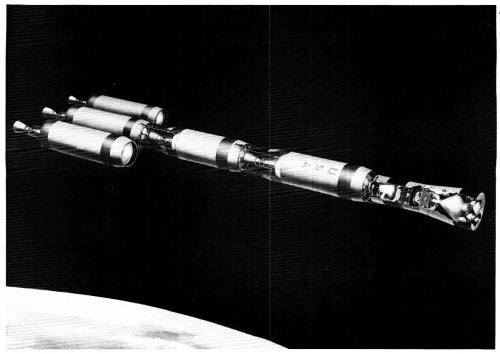

Attachments

blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,676
Reaction score
0

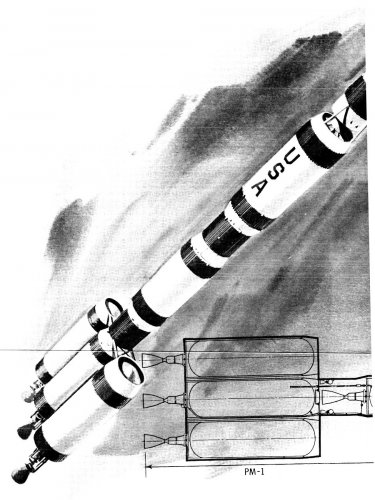

I've been looking at this and trying to figure out how this compares to the Von Braun "Integrated Plan."

The Boeing version shows FIVE NERVA-type rockets. Three at the base, and two stacked on top. But the Von Braun one apparently only had three. I'm not sure what was the last version. Was it the Von Braun one?


GeorgeA

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
794
Reaction score
2

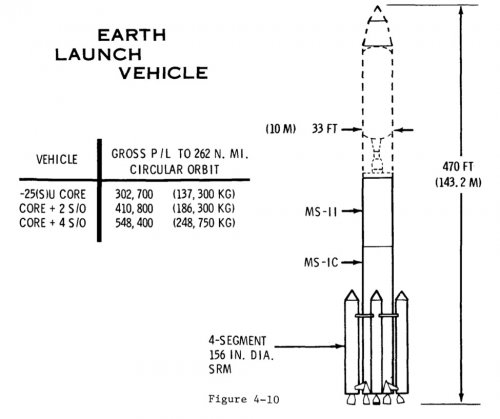

The IMIS study is pretty exhaustive and is a serious attempt to define a manned interplanetary mission, including both technical and programmatic issues. (The launch vehicle study for me was worth the price of admission.) The STG report and IPP were more about the high-level program visions and some of the mission modeling, but assumed the existence of systems like the NERVA shuttle and the space base without a great deal of technical detail. Here's an example of a von Tiesenhausen-authored report on the various STG missions and components:

http://hdl.handle.net/2060/19700026519

And here's the STG summary report:

http://hdl.handle.net/2060/19710002945

The Boeing study was conducted in 1967-68 (concurrent with the AMLLV study in it's original 75-foot-diameter guise). The STG/IPP was in 1969-1970, concurrent with the incoming Nixon Administration. I don't know of a specific spacecraft configuration study, but there must have been one. Might be worth a look through Beyond Apollo to check the references at the end of Portee's blog entries. The Bellcomm documents have useful references as well, but those titles are somewhat unhelpful so it takes a little digging to find the nuggets of information you need.


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,676
Reaction score
0
George Allegrezza said:
The IMIS study is pretty exhaustive and is a serious attempt to define a manned interplanetary mission, including both technical and programmatic issues. (The launch vehicle study for me was worth the price of admission.) The STG report and IPP were more about the high-level program visions and some of the mission modeling, but assumed the existence of systems like the NERVA shuttle and the space base without a great deal of technical detail. Here's an example of a von Tiesenhausen-authored report on the various STG missions and components:

http://hdl.handle.net/2060/19700026519

And here's the STG summary report:

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19710002945_1971002945.pdf

The Boeing study was conducted in 1967-68 (concurrent with the AMLLV study in it's original 75-foot-diameter guise). The STG/IPP was in 1969-1970, concurrent with the incoming Nixon Administration. I don't know of a specific spacecraft configuration study, but there must have been one. Might be worth a look through Beyond Apollo to check the references at the end of Portee's blog entries. The Bellcomm documents have useful references as well, but those titles are somewhat unhelpful so it takes a little digging to find the nuggets of information you need.
I got some feedback here:

https://falsesteps.wordpress.com/2012/08/08/mars-expedition-1969-nasas-waterloo/

He wrote:

"The coordinating document is “America’s Next Decades in Space: A Report to the Space Task Group”, but it’s only 84 pages long (and there’s no copies on the web that I’ve ever been able to find). Most of the meat is scattered everywhere, though."

I don't have that document, although they may have it at the NASA History Office and I will contact them. So I get the sense that Boeing did a very detailed study, but they proposed a very big vehicle. Then Von Braun (and probably George Mueller) scaled it down.

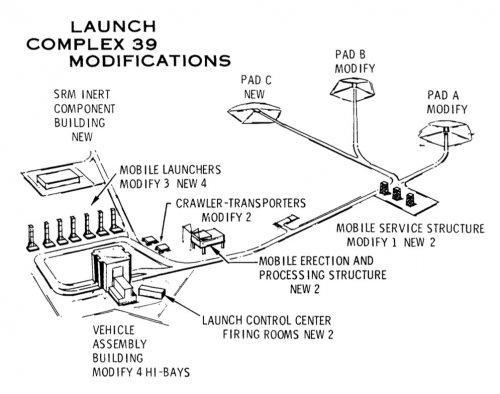

The Boeing study is interesting, but they were proposing a pretty massive project. Just looking at the required upgrades to the Cape indicates that they wanted something bigger than Apollo. In the 1968 timeframe that was not realistic at all. They must have been oblivious to the political winds.


GeorgeA

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
794
Reaction score
2
It's on NTRS. I entered a faulty link to it in my post above. I corrected it there and here it is:

http://hdl.handle.net/2060/19710002945

I concur that the Boeing program wasn't in sync with the likely funding and desire in 1969-70, but of course it had been started in 1967, which means it was probably conceived in 1966, and things were much less bleak then in terns of NASA's future. Also, bureaucracy being what it is, there was probably a certain desire to complete the study as contracted even if there wasn't much of a chance that the program would be implemented.


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,676
Reaction score
0
George Allegrezza said:
It's on NTRS. I entered a faulty link to it in my post above. I corrected it there and here it is:

http://hdl.handle.net/2060/19710002945

I concur that the Boeing program wasn't in sync with the likely funding and desire in 1969-70, but of course it had been started in 1967, which means it was probably conceived in 1966, and things were much less bleak then in terns of NASA's future. Also, bureaucracy being what it is, there was probably a certain desire to complete the study as contracted even if there wasn't much of a chance that the program would be implemented.
Thanks. I just found it after I posted.

As for the Boeing study, they did what they were told to do. The problem was the overall mentality, and that was reflected in the Apollo Applications Program as well. They were all thinking way too big. No grounding at all. Now if somebody at the top had approached the subject differently, more realistically, they might have gotten a better outcome. For instance, what if their ground rules were: "Design a minimal system for sending X number of men to the Moon by X date. Minimize new hardware development and ground modifications wherever possible. Keep costs below Apollo program costs." That might have provided a different answer. Perhaps one 4-man spacecraft, instead of two 6-man spacecraft. That's partly why I'm interested in how they went from the big Boeing spacecraft to the smaller version that WvB advocated a short time later. What were the trades that got them down in size?


GeorgeA

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
794
Reaction score
2
Not to go down the path of one of those dreadful NSF alternative history “discussions”, but with perfect hindsight we can see that had we deferred some things and found a way to maintain the Saturn-Apollo system and the Skylab design, we could have had an austere cislunar infrastructure in the 1970s with even an ability to do flybys of Venus and under certain circumstances, Mars. Both the S-II and S-IVB could have been used as Earth departure stages, Skylab as a habitat, and Apollo in the Orion role as the crew transportation system.

Modest upgrades such as orbital refueling, uprated Saturn engines for an INT-2X, and a LEM-based shelter could have provided an extended surface stay capability.

If a modest increase in the budget had become available, we could have been able to develop a minimal NERVA, and eventually a MEM. A NAC design (Nuclear TMI, Aerodynamic Mars Capture, Chemical Mars departure) and a four-man crew would have had a Saturn-friendly IMLEO and a decent chance at success in the 1980s.

Obviously this all costs money, so the question remains, if the managers of the day had seen the writing on the wall and had been willing to sacrifice the Shuttle and the STG/IPP vision, would these programs have fit under the funding curve for say FY 1970-1985? Perhaps, a major lunar or planetary expedition (but not both) every couple of years and an ongoing BEO presence in Skylabs? Impossible to know, of course, but from a technical perspective it would have been feasible.

Clearly, and again with perfect hindsight, the Shuttle was an unfortunate excursion that required the sacrifice of the BEO infrastructure to build an LEO infrastructure that took 30 years to come to fruition.

And a final note, von Braun himself argued against expensive and ultimately unsustainable programs in his 1962 LOR decision argument (fearing he might have been faced with trying to support Advanced Saturn, Saturn C-8/Nova, and two different versions of Apollo.) It’s well worth the read and a tribute to his pragmatism.


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,676
Reaction score
0
I personally don't believe that the Mars proposal was at all realistic, no matter how scaled back from this Boeing proposal or the Integrated Plan version. I do think that it would have been possible to continue a lunar program and maybe a manned space station program, if NASA had made the right pitch and brought the costs down (there was a good discussion on NSF awhile ago about actual plans to reduce Apollo hardware costs, which is something I was never aware of).

I think that one of the things that so fascinates me is how completely unrealistic these ideas were. The Boeing Mars study was really proposing a level of effort that was greater than Apollo. By the time they were performing that study they should have realized that the arrows were going in the other direction. Had they been truly smart, they might have included a "minimal" option that could have formed the basis of a more realistic program.


Quindar Beep

"I really hope they fix that"
Joined
Sep 1, 2012
Messages
32
Reaction score
0
Website
falsesteps.wordpress.com
I think the difficulty with anything post-1969 is that the OMB was is the midst of being reorganized and Ehrlichman and Haldeman made it clear that budget cuts were the way to move forward in the Nixon administration. They were looking for a way to keep all costs to a minimum without political fallout, and NASA was the easiest to squeeze -- the general public weren't actually all that interested in space, post-Apollo revisionism to the contrary.

The Shuttle had the advantage of being (at the time) relatively cheap, without putting on Nixon the onus of being the Man Who Killed the Space Program. The costs would have ramped up on the far side of his second administration (post-1976, in other words, Watergate still being a hotel at the time), so "The Berlin Wall" could get it off his worry list and dump the issue on whoever followed him.

(This is off the top of my head here at work, so I am most willing to be corrected on this.)


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,676
Reaction score
0
Okay, here are the captions for the slides the Von Braun used for his presentation to the Space Task Group about the Integrated Plan. I think that what I uploaded earlier (I have not read it yet) was the report, and these are the captions that he would have read.

I don't have the images, but some of them have already been posted elsewhere. See NSF, for instance.



UPDATE: Still have not read what I uploaded earlier, but the guy who sent it to me said that he thought it was the draft, and the second group of stuff is the final version. What we still don't have is the study/report/work that these slides are based upon. There must have been something more detailed than this. After all, they went from the monster Boeing spacecraft concept to something smaller, with reusable nuclear tugs, and that would have required some engineering analysis.


Attachments

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,125
Reaction score
0
Here more on NAA Mars lander used in Boeing IMIPS study






More here
http://www.secretprojects.co.uk/forum/index.php/topic,14221.0.html


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,676
Reaction score
0
Michel Van said:
Here more on NAA Mars lander used in Boeing IMIPS study
That lander is rather cool. But I'm really curious if it was actually practical. The 2006 Braun/Manning paper on Mars entry, descent and landing (you can Google it) indicates that conventional approaches to deceleration and landing like we have used so far cannot scale up above one ton. We've pretty much maxed them out now. So this Apollo capsule shape might have slammed into the ground before it could have slowed down enough to land.


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,125
Reaction score
0
blackstar said:
That lander is rather cool. But I'm really curious if it was actually practical. The 2006 Braun/Manning paper on Mars entry, descent and landing (you can Google it) indicates that conventional approaches to deceleration and landing like we have used so far cannot scale up above one ton. We've pretty much maxed them out now. So this Apollo capsule shape might have slammed into the ground before it could have slowed down enough to land.

The Von Braun proposal use the same NAA Mars Lander MEM like Boeing
in fact the design was so good that Marshall Flight Center overwork the MEM Design in 1985 for a Manned Mars Mission proposal

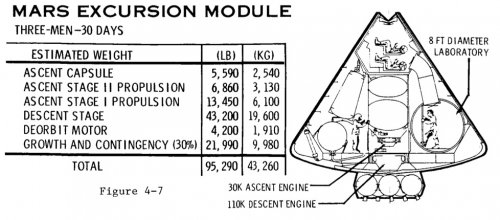

On Landing the NAA Mars lander MEM compare to Curiosity
MEM use a de-orbit engine, means it's much slower as Curiosity on entering the Mars atmosphere coming direct from Earth,
it use a 9 meter ø heatshield vs. 4.75 meter shield used on Curiosity, MEM got almost 4 times more surface.
the MEM use Mars Atmosphere to slow down with 7 G from Mars orbit. Curiosity coming with much higher speed, need 15 G.
MEM deplores a drag chute then a ballute to slow down, Curiosity use a supersonic parachute in 10 km hight and mach 1,7 and slow down the probe with High G force
MEM cut the ballute 3 km over ground and goes on powered descent, Curiosity at 1.8 km hight
MEM got 13834 kg fuel with ISP of 405sec for landing. Curiosity skycrane only 380kg Fuel with ISP of 221 sec. MEM got almost double ISP


of course the ballute is not efficient for Mars, would had be replace by a supersonic parachute
and there is this problem, Contamination that one of reason the Skycrane was used to keep rocket fuel away from Mars surface and the dust low.
MEM design using FLOX/CH4 on decent engine and toxic ClF5/MHF-5 fuel on rcs, would Contaminate the Mars surface on landing site...


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,125
Reaction score
0
i forgot some details

Curiosity entering the Mars atmosphere with 5.8 km/sec
While MEM comes entering with 4.6 km/sec

also is the MEM Mars orbit 500km x 32910 km, Why ?
it was a compromise for Mothership to stay in Communication with MEM crew on Mars and study the Mars surface from 500 km hight.

other ideas was enter in 500km x 32910 km around Mars drop MEM at 500 km, then Mothership goes in Mars GEO over MEM landing site
if MEM return in orbit, the Mothership goes back 500km x 32910 km. pick up the crew and soil samples.
for rest of Mars stay the Mothership mapping the Mars surface with high resolution cameras.


Quindar Beep

"I really hope they fix that"
Joined
Sep 1, 2012
Messages
32
Reaction score
0
Website
falsesteps.wordpress.com
Michel Van said:
also is the MEM Mars orbit 500km x 32910 km, Why ?
it was a compromise for Mothership to stay in Communication with MEM crew on Mars and study the Mars surface from 500 km hight.
Von Braun also discovered that using an elliptical orbit around Mars instead of a circular one let him drastically reduce the amount of propellant he had to send along. It's one of the major reasons for the differences between the IMIS and the IPP versions of the Mars mission.


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,676
Reaction score
0
Interesting stuff. I have been away on travel a lot lately and also busy with work (trying--and failing--to save the nation's civil space program) and so I haven't really gotten back to writing about this subject. I'm going to have to go through this material carefully.

I still wonder how much they did the engineering trades. Reusing the nuclear stages might have seemed like a good idea, but I really wonder about the practicality. There is a performance penalty for that. But it's worth asking if you would really want to bring a hot nuclear reactor back to low Earth orbit. I personally think that the risk of accidental reentry would be very low, but it would not be zero. And the reactors would contain hundreds of pounds of uranium. They'd be a serious menace if they reentered.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,157
Reaction score
1

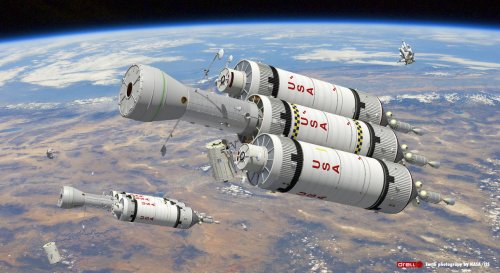

Oh that's so good. There's a gallery there http://drell-7.deviantart.com/gallery/34148119 and more galleries there http://drell-7.deviantart.com/gallery/


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,676
Reaction score
0
Yes, I should have posted a link to his gallery. Some really nice stuff there.


Quindar Beep

"I really hope they fix that"
Joined
Sep 1, 2012
Messages
32
Reaction score
0
Website
falsesteps.wordpress.com
blackstar said:
Drell7 on DeviantArt has done some great illustrations of the WvB version of this Mars mission.
From PMs asking me about my sordid past I know that there's some overlap between the two communities, so I'll mention that Drell7 is Tom Peters. He's a friend of a friend because most of our professional work has been related to the SF role-playing game Traveller -- he as a well-known artist for Digest Group Publications in the 80s and 90s, and myself as a writer slightly later for Steve Jackson Games.

When he isn't drawing SF spaceships he has a very good handle on realistic ones. I believe he worked/works in the telecoms satellite industry as an illustrator.


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,676
Reaction score
0
I've been trying to get to writing about this one and am working on trying to bridge the gap between the Boeing study and the proposal that was presented to the Space Task Group in 1969. The question I have is who revised the Boeing study. Was it Wernher von Braun and his team, or George Mueller and his team? I should have some data on that soon. I was told that von Braun had little input to Mueller's "Integrated Plan," but it is possible that von Braun's team handled the Mars stuff and Mueller's team passed on some things like the space tug for them to incorporate into the Mars architecture design.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,157
Reaction score
1
blackstar said:
Reusing the nuclear stages might have seemed like a good idea, but I really wonder about the practicality. There is a performance penalty for that. But it's worth asking if you would really want to bring a hot nuclear reactor back to low Earth orbit. I personally think that the risk of accidental reentry would be very low, but it would not be zero. And the reactors would contain hundreds of pounds of uranium. They'd be a serious menace if they reentered.
Some hindsight at NERVA safety issues here
http://www.wired.com/wiredscience/2012/09/nuclear-flight-system-definition-studies-1971/

Osias postulated a maximum allowable radiation dose for an astronaut from sources other than cosmic rays of between 10 and 25 Roentgen Equivalent Man (REM) per year. Astronauts riding an RNS would, however, receive 10 REM each time its NERVA I engine operated. An astronaut 10 miles behind or to the side of an RNS operating at full power would receive a radiation dose of between 25 and 30 REM per hour. Osias noted that the NFSD contractors had recommended that no piloted spacecraft approach to within 100 miles of an operating NERVA I engine.
A little scary, isn't it ?


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,676
Reaction score
0
Archibald said:
A little scary, isn't it ?
I read that. Have to reread it. But I think that as long as you're at the front of it, you're shielded. But you cannot go to the sides or behind it.

Top
