Hi,

Of course,I am not sure if the numbers indicate for a real Boeing Models
or it is just reports numbers in the company.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720012246_1972012246.pdf
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720005230_1972005230.pdf


Attachments

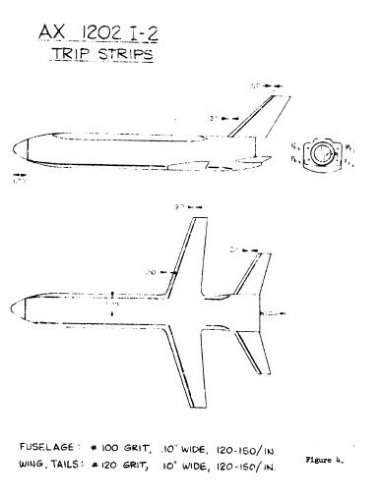

  • 1202.JPG
    18.7 KB · Views: 44

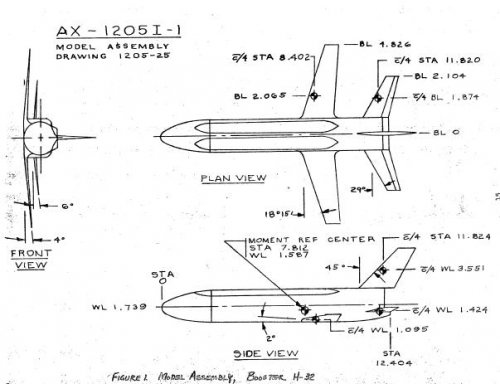

  • 1205.JPG
    39.5 KB · Views: 38

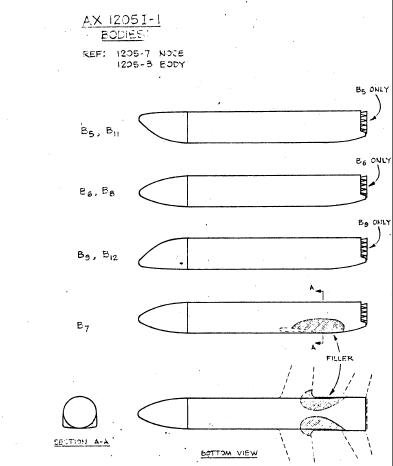

  • 1205 2.JPG
    1205 2.JPG
    35.5 KB · Views: 33

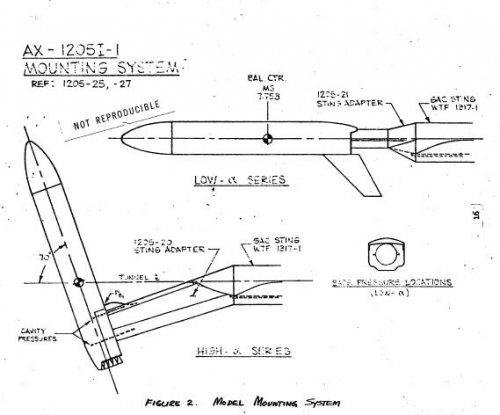

  • 1205 3.JPG
    1205 3.JPG
    19.4 KB · Views: 30
  • 1206.JPG
    41.7 KB · Views: 26
