Boeing Fighter Studies, 1970s to ATF

Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431

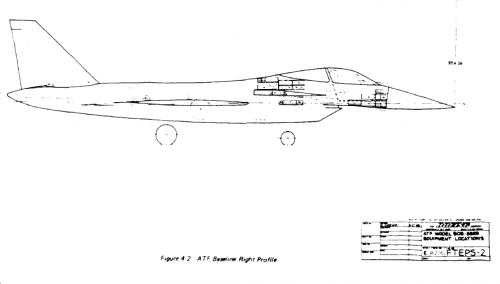

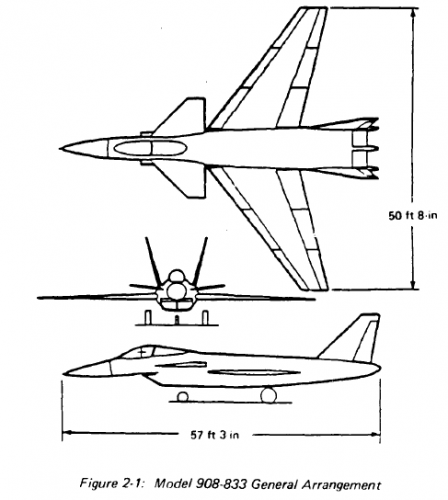

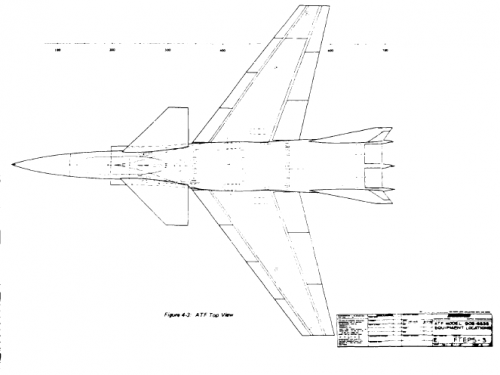

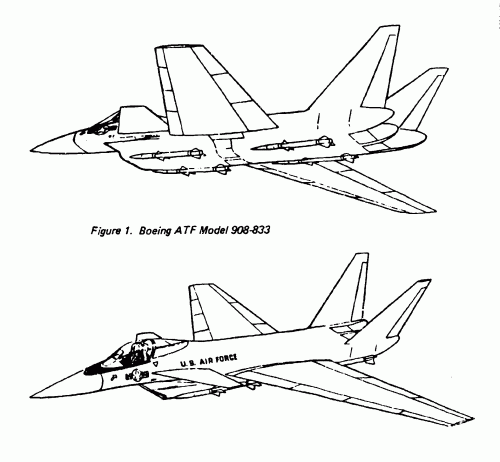

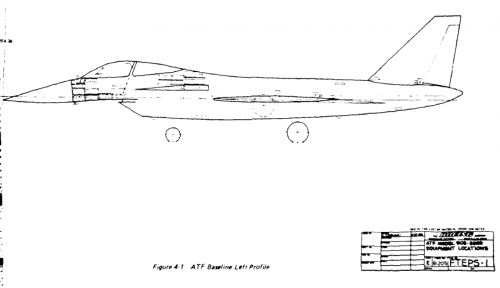

Much more interesting is this very unusually shaped ATF design, the Model 908-833. Its particularity is to use the the on-board inert gas generation system or OBIGGS.

(OBIGGS) processes engine bleed air into a nitrogen rich gas suitable for fuel tank inerting. Since the inert gas is produced during aircraft operation, the logistics problems of resupply vanish. Furthermore, the OBIGGS has weight and maintenance advantages over the foam system. (...)

The objective of this study was to develop a prototype development plan for installing the best choice OBIGGS in an Advanced Tactical Fiqhter (ATF). The best choice OBIGGS was based on detailed studies of inert qas requirements for AIF missions and trade-off studies to arrive at the best systcm preliminary desiqn. Detailed specifications were defined for' the best choice OBIGGS and life cycle cost studies were conducted to compare this OBIGGS with other fuel tank fire protection techniques.

Interestingly the basic model number "908" goes back to the LightWeight Fighter (LWF) competitions of the early 1970s, so it's interesting that it was reused here for a mid-1980s project (I really hope that one day we can understand the Boeing logic in designating their projects...).


Source:
FIGHTER AIRCRAFT OBIGGS STUDY Volume I
BOEING MILITARY AIRPLANE COMPANY, June 1987
AIR FORCE WRIGHT AERONAUTICAL LABORATORIES AFWAL-TR-87-2024


Attachments

  • 908-833 ATF.gif
    908-833 ATF.gif
    36.2 KB · Views: 218

Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Here is a little "oddity" as far as the designation is concerned. This mid-1990s ATF configuration, developed as part of the INNOVATIVE CONTROL EFFECTORS (ICE) program, is described simply as the Boeing Model-24F. It does appears later in the document as the Model 1798 but that designation only applies to a "0.05 Scale Model of Configuration -24F" (also called "Wind Tunnel Model 1798"). The better-known MRF-24X (falsely described as "F-24") is exactly the same design but without a tail (it is also attached here for reference).

The baseline aircraft chosen for this effort was the Boeing developed advanced tactical aircraft designated the Model-24F, which is a single engine, diamond wing configuration with a conventional empennage designed for both the air-to-air and air-to-ground missions. The wing design is similar to the F-22, with standard control surfaces including ailerons, flaperons, horizontal tail, and rudders. Thrust vectoring (TV) is available on the baseline vehicle, resulting in reduced empennage size to take advantage of this capability. The reduced vertical fin size results in directionally unstable aircraft at supersonic speeds, but stability is augmented by sideslip feedback to the rudders.

Note that a second baseline aircraft was defined to meet the USN carrier suitability requirements.

Source:
INNOVATIVE CONTROL EFFECTORS (ICE)
Boeing Defense and Space Group, March 1996
AIR FORCE MATERIEL COMMAND - WRIGHT LABORATORY WL-TR-96-3074


Attachments

  • Model-24F.gif
    351.4 KB · Views: 494
  • Wind Tunnel Model 1798.gif
    Wind Tunnel Model 1798.gif
    35.3 KB · Views: 515
  • MRF-24X General Arrangement.gif
    MRF-24X General Arrangement.gif
    60.9 KB · Views: 546

Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,815
Reaction score
256
Stargazer2006 said:
Here is a little "oddity" as far as the designation is concerned. This mid-1990s ATF configuration, developed as part of the INNOVATIVE CONTROL EFFECTORS (ICE) program, is described simply as the Boeing Model-24F. It does appears later in the document as the Model 1798 but that designation only applies to a "0.05 Scale Model of Configuration -24F" (also called "Wind Tunnel Model 1798"). The better-known MRF-24X (falsely described as "F-24") is exactly the same design but without a tail (it is also attached here for reference).

Source:
INNOVATIVE CONTROL EFFECTORS (ICE)
Boeing Defense and Space Group, March 1996
AIR FORCE MATERIEL COMMAND - WRIGHT LABORATORY WL-TR-96-3074

I believe the same info is already in the thread on the ICE program.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
484
Website
deeptowild.blogspot.com

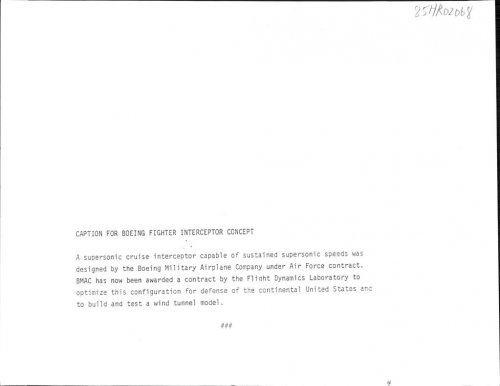

Boeing fighter interceptor concept photo found on ebay.

Source:
http://www.ebay.com/itm/2012-Boeing-Airplanes-Press-Photo-/200769046271?pt=Art_Photo_Images&hash=item2ebec486ff


Attachments

  • 4-18_F_img420000204A.jpg
    56.9 KB · Views: 166
  • 4-18_F_img420000204B.jpg
    32.1 KB · Views: 153

Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,815
Reaction score
256
Wow, thanks Quellish! I've wanted that info for a long time. Especially with all of the great cross sections and details. :)


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,815
Reaction score
256
Regarding the Model 987, has anyone found the report covering phase I, which is the development of the layout? The paper Quellish posted is for phase III. The reason I ask is the paper states that the standard layout was the four advanced air to ground weapons you see on the bottom of the fuselage, a 25mm cannon and two SRAAMs. I've not seen any indication of where the cannon is located or where the SRAAMs would be carried. At this point I'm assuming the SRAAMs would be carried externally on wing pylons outboard of the main gear, but I've been unable to find any evidence, so I just thought I would ask.

I'm still searching, if I find anything I'll post it.


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,815
Reaction score
256


The vehicle shown in this image, based on the text, is the Grumman design, not Boeing's.


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,357
Reaction score
640
Here a drawing of a Boeing Interceptor for the ATF program.
The picture caption mentions, that this project should weigh less than 22,700 kg and cost less than $40m (1985).


According to this topic, this drawing was posted in b/w before and its designation is Boeing 985-430 Supersonic Interceptor.


Attachment source: Interavia Germany, June 1985, page 605


Attachments

  • Boeing_Interceptor_ATF_Interavia_Germany_June_1985_page605_1080x451.png
    1.2 MB · Views: 1,791

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,262
Reaction score
3,149
hesham said:
flateric said:
Originally posted by Sundog in McDonnell Douglas pre-ATF / ATF studies thread re-identified as Boeing's various airframe inlet concepts from

AIAA 80-1106
Performance Variations in High Aspect Ratio Subsonic Diffusers Due to Geometric Constraints in Supersonic Tactical Aircraft Inlet Installations
Jan Syberg and Joseph Koncsek,
Boeing Military Airplane Co.,
Seattle, Washington
Lewis Surber
Air Force Wright Aeronautical Laboratories
Wright-Patterson AFB, Ohio


And from DTIC;

http://www.dtic.mil/dtic/tr/fulltext/u2/a108300.pdf


And from

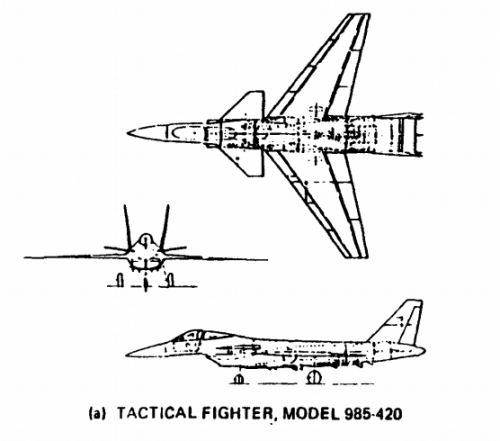

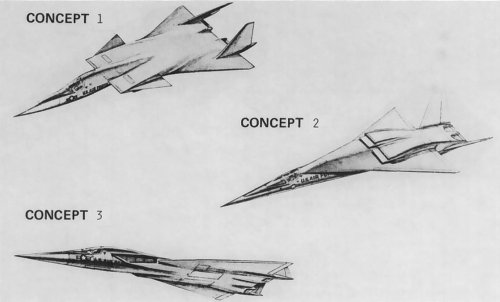

PERFORMANCE OF HIGHLY INTEGRATED INLETS FOR SUPERSONIC AIRCRAFT
by L.Surber, J. Sy berg and J.Koncsek in


AGARD CP-301 AERODYNAMICS OF POWER PLANT INSTALLATION


Attachments

  • BoeingTacticalFighterConcepts.jpg
    87 KB · Views: 2,198

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
That's a clearer drawings,thank you my dear Paul.


PlanesPictures

CLEARANCE: Top Secret
Senior Member
Joined
May 13, 2006
Messages
957
Reaction score
299
Those concepts are really master pieces. What a pitty no basic 3D drawings


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431

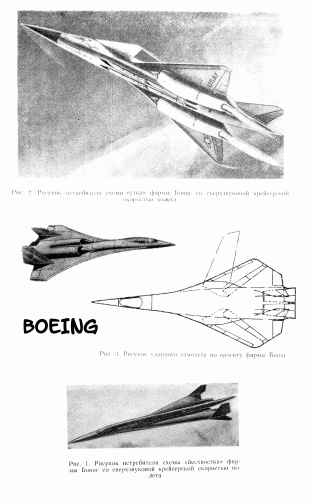

Boeing's pre-ATF designs from TsAGI's Tekhnicheskaya Informatsiya (No.13, 1984):


Attachments

  • Boeing pre-ATF.gif
    Boeing pre-ATF.gif
    1.4 MB · Views: 1,896

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817

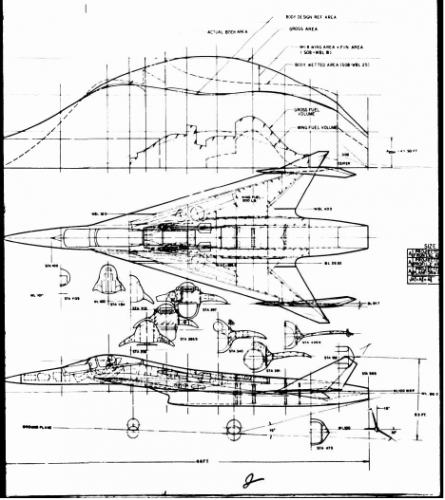

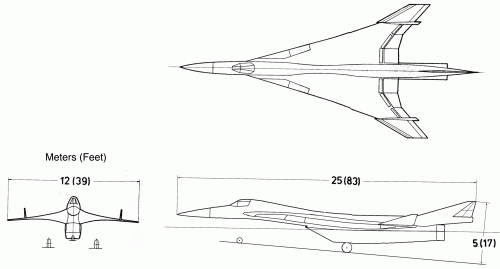

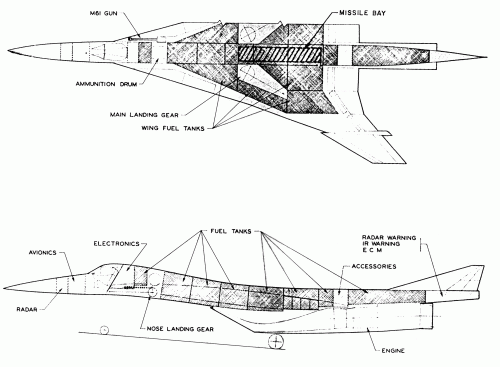

Boeing Mach 2.6 Long-Range Supercruise Fighter study from 1978
http://thehuwaldtfamily.org/jtrl/vehicle_data/Concepts/Long%20Range%20Mach%202.6%20Supercruiser%20Studies,%20NASA-TM-78811.pdf


Attachments

  • NASA-TM-78811 Supercruiser 3-view.gif
    NASA-TM-78811 Supercruiser 3-view.gif
    207.9 KB · Views: 1,534
  • NASA-TM-78811 Supercruiser Interior.gif
    NASA-TM-78811 Supercruiser Interior.gif
    433.8 KB · Views: 1,483

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,619
Reaction score
432

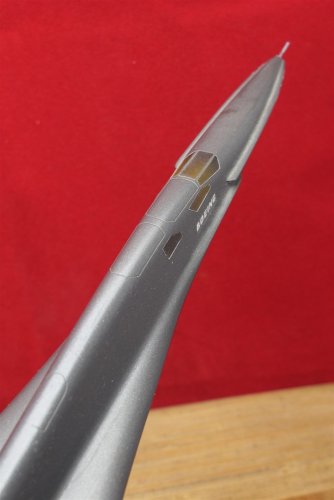

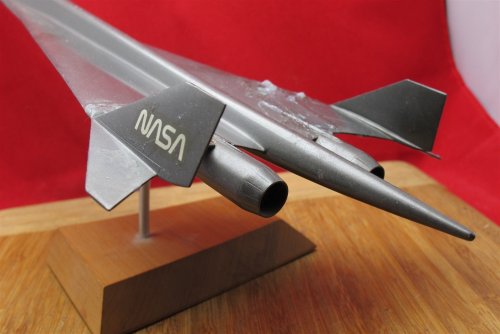

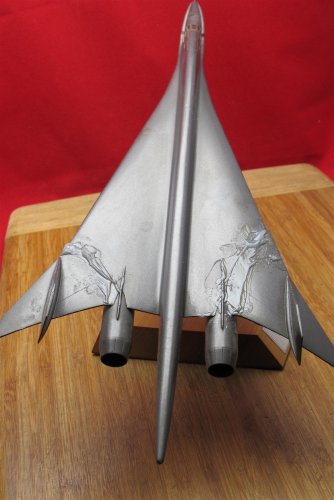

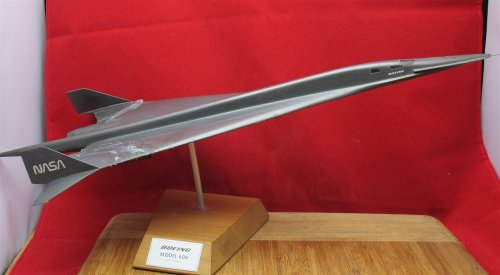

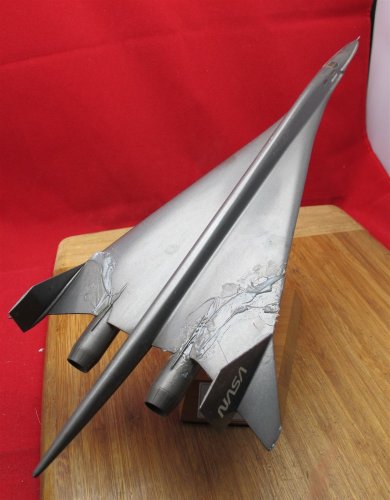

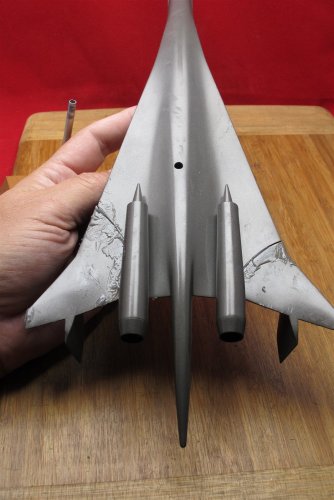

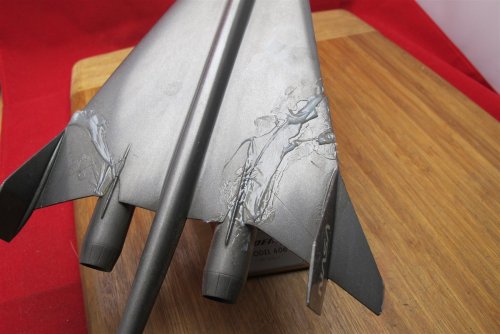

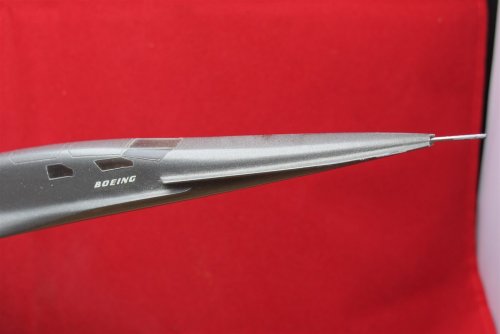

Boeing Model 606 Display Model

Greetings All -

On EPay... Mark

http://www.ebay.com/itm/Vtg-BOEING-Model-606-Desk-Shelf-Prototype-Military-Jet-Supersonic-W-issues/201587891474?_trksid=p2047675.c100010.m2109&_trkparms=aid%3D555012%26algo%3DPW.MBE%26ao%3D2%26asc%3D36795%26meid%3Dfc6dbae3796d4509b0ec78e69e5e5352%26pid%3D100010%26rk%3D1%26rkt%3D24%26sd%3D222124584880


Attachments

  • Boeing Model 606 Display Model - 8.jpg
    Boeing Model 606 Display Model - 8.jpg
    110.2 KB · Views: 135
  • Boeing Model 606 Display Model - 7.jpg
    Boeing Model 606 Display Model - 7.jpg
    218.8 KB · Views: 134
  • Boeing Model 606 Display Model - 6.jpg
    Boeing Model 606 Display Model - 6.jpg
    207.1 KB · Views: 123
  • Boeing Model 606 Display Model - 5.jpg
    Boeing Model 606 Display Model - 5.jpg
    141.8 KB · Views: 154
  • Boeing Model 606 Display Model - 4.jpg
    Boeing Model 606 Display Model - 4.jpg
    103.3 KB · Views: 195
  • Boeing Model 606 Display Model - 3.jpg
    Boeing Model 606 Display Model - 3.jpg
    171.3 KB · Views: 207
  • Boeing Model 606 Display Model - 2.jpg
    Boeing Model 606 Display Model - 2.jpg
    221.6 KB · Views: 193
  • Boeing Model 606 Display Model - 1.jpg
    Boeing Model 606 Display Model - 1.jpg
    240 KB · Views: 815

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,619
Reaction score
432
Re: Boeing Model 606 Display Model

May the Force be with you! ;D Mark


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365

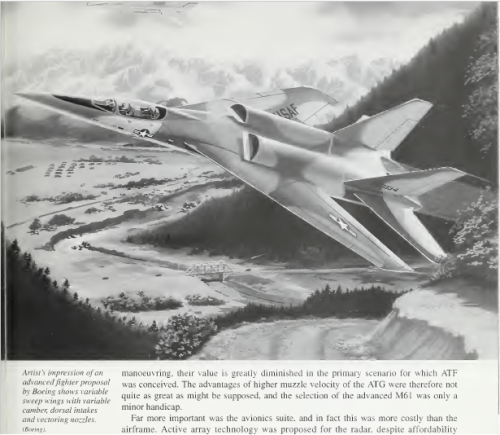

From; Designed for the Kill The Jet Fighter, Development - Experience


Attachments

  • 2.png
    415.3 KB · Views: 179

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,262
Reaction score
3,149
http://www.dtic.mil/dtic/tr/fulltext/u2/b022011.pdf

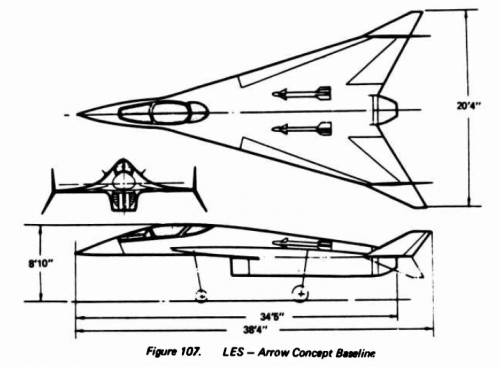

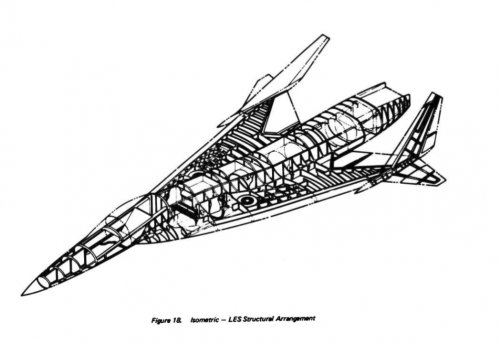

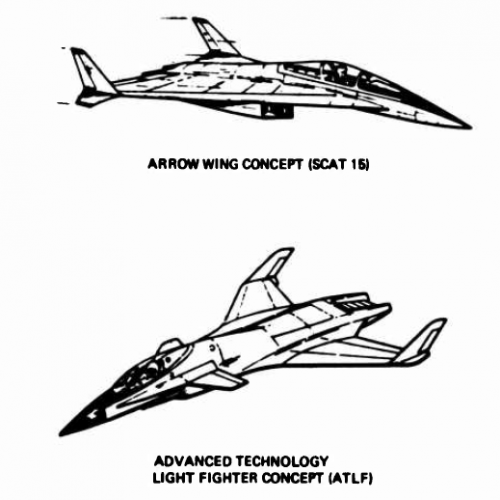

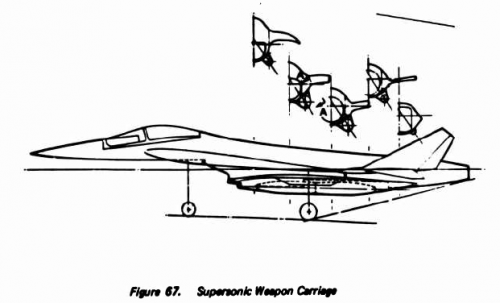

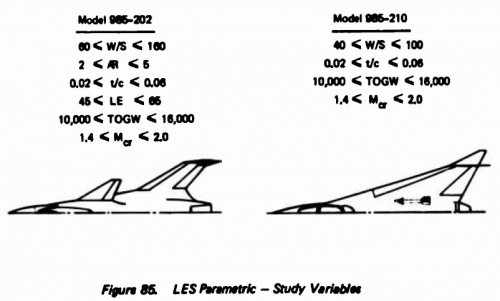

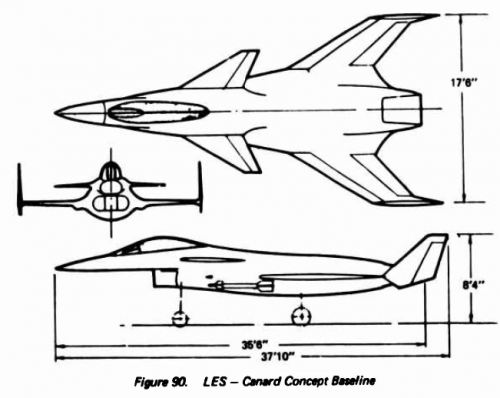

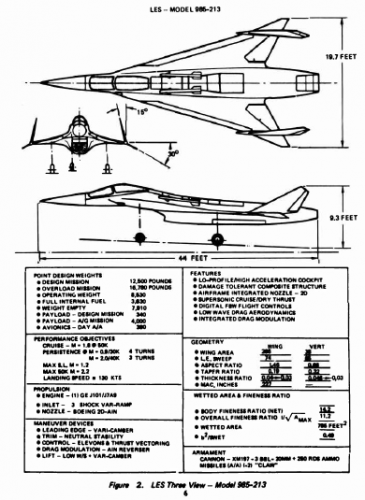

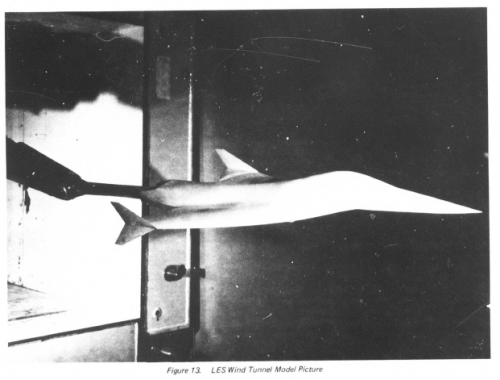

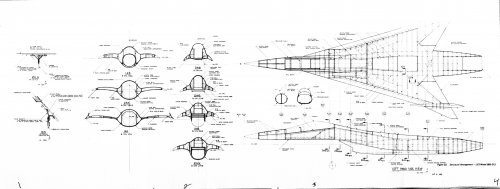

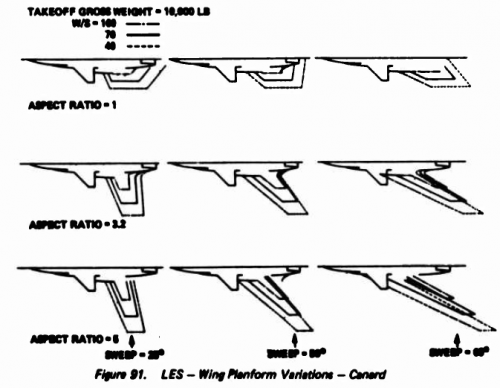

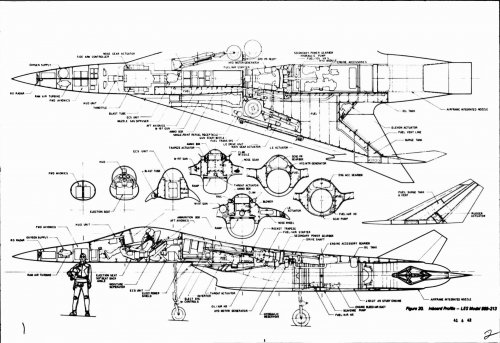

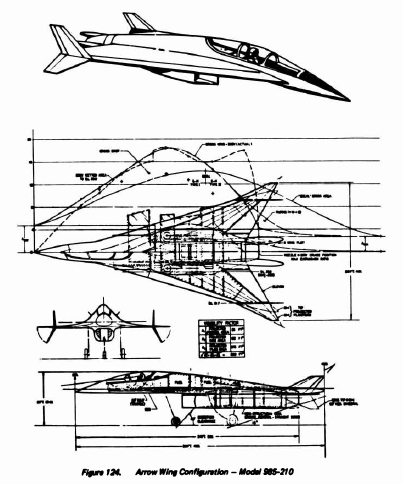

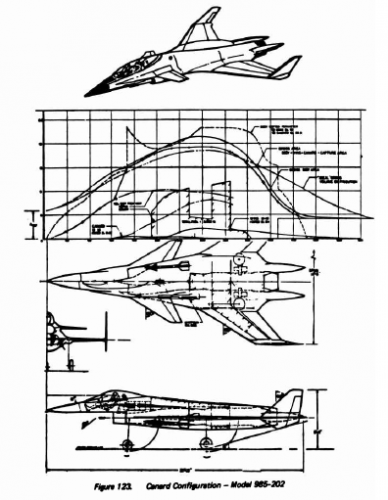

A detailed report into the Bud Nelson Light Experimental Supercruiser 985-213 design. Lots of drawings.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
PaulMM (Overscan) said:
http://www.dtic.mil/dtic/tr/fulltext/u2/b022011.pdf

A detailed report into the Bud Nelson Light Experimental Supercruiser 985-213 design. Lots of drawings.

Forget to say,amazing find my dear Paul.


Attachments

  • 8.png
    138.4 KB · Views: 154
  • 7.png
    80.5 KB · Views: 150
  • 6.png
    82 KB · Views: 156
  • 5.png
    66.8 KB · Views: 131
  • 4.png
    125 KB · Views: 151
  • 3.png
    132.3 KB · Views: 131
  • 2.png
    229.6 KB · Views: 135
  • 1.png
    102.1 KB · Views: 154

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
And;


Attachments

  • 12.png
    97 KB · Views: 169
  • 11.png
    103.5 KB · Views: 153
  • 10.png
    146.9 KB · Views: 153
  • 9.png
    98 KB · Views: 104

RAP

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
685
Reaction score
387

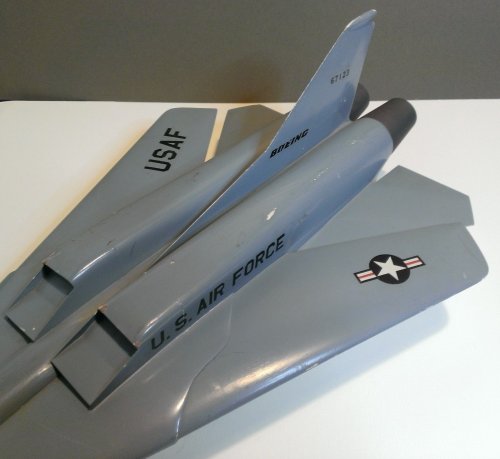

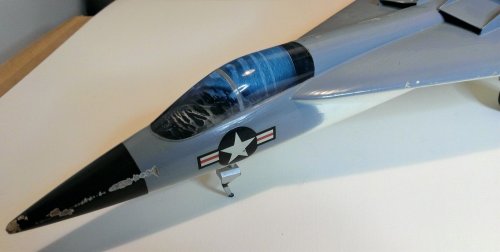

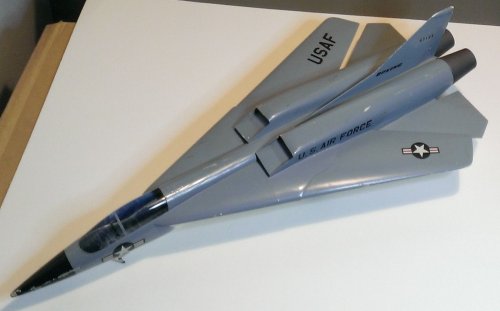

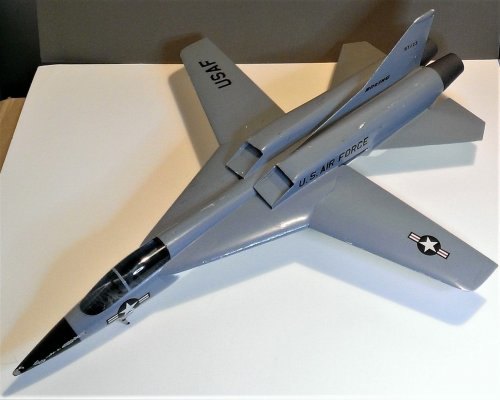

Boeing Fighter Model

https://www.ebay.com/itm/Vintage-Wooden-Swing-Wing-Fighter-Jet-Model-1960s-Boeing-Prototype-AVS/332716937712?_trkparms=aid%3D222007%26algo%3DSIM.MBE%26ao%3D2%26asc%3D44040%26meid%3Dd6c74814c8a940e3ae761c058de6865f%26pid%3D100005%26rk%3D4%26rkt%3D10%26sd%3D123250221412%26itm%3D332716937712&_trksid=p2047675.c100005.m1851


Attachments

  • s-l16001Y8NPL0U.jpg
    201.4 KB · Views: 140
  • s-l1600PM62WZ42.jpg
    110.5 KB · Views: 144
  • s-l1600446RZ0EE.jpg
    118.7 KB · Views: 165
  • s-l16001YXICMQV.jpg
    183.3 KB · Views: 171

Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Re: Boeing Fighter Model

Obviously an iteration of the Model 818 TFX, but why a single-seater? I don't think I'd seen this before.


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,815
Reaction score
256
Re: Boeing Fighter Model

Skyblazer said:
Obviously an iteration of the Model 818 TFX, but why a single-seater? I don't think I'd seen this before.

To me, it looks more like a design for the 1970's ATF super cruise strike fighter program.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,336
Reaction score
1,367
Re: Boeing Fighter Model

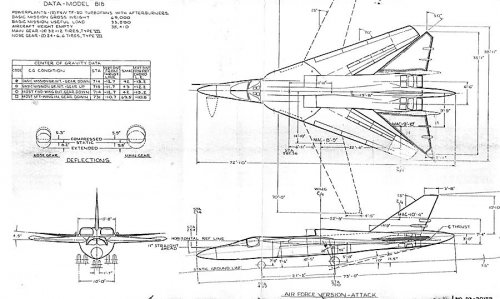

Hmmm. Maybe they used their TFX entry as a starting point?


Attachments

  • BoeingModel818TFX-2.jpg
    93.2 KB · Views: 1,152
  • 4700ab36d85d547f6a8d94f288f4a406.jpg
    67.8 KB · Views: 1,096

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,613
Reaction score
602
Re: Boeing Fighter Model

I think that's Boeing Model 818 for the TFX what became the F-111

Boeing proposed for 818 and 818Navy Different cockpits





Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Re: Boeing Fighter Model

sferrin said:
Hmmm. Maybe they used their TFX entry as a starting point?

I think Scott is right, Michel, as proved by the image he shared. It is indeed an ATS proposal, but strongly influenced by one of their earlier TFX designs. Thanks!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Re: Boeing Fighter Model

Skyblazer said:
Obviously an iteration of the Model 818 TFX, but why a single-seater? I don't think I'd seen this before.

Good question.


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Re: Boeing Fighter Model

hesham said:
Skyblazer said:
Obviously an iteration of the Model 818 TFX, but why a single-seater? I don't think I'd seen this before.

Good question.

hesham, it's already been answered by sferrin...


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,613
Reaction score
602
Re: Boeing Fighter Model

One moment Skyblazer and hesham

i just realized something, How many pilots are in USAF TFX: One or Two ?
since this is one seater and most USAF TFX models show two pilots cockpits

and by the way, what was Boeing proposal for FX that became F-15?


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Re: Boeing Fighter Model

Michel Van said:
One moment Skyblazer and hesham

i just realized something, How many pilots are in USAF TFX: One or Two ?
since this is one seater and most USAF TFX models show two pilots cockpits

and by the way, what was Boeing proposal for FX that became F-15?

People on this forum do not read what's written today, it seems... ::)

I said that it LOOKED like TFX but was surprised to see a TFX with only one seat, as indeed the TFX was a two-seater.

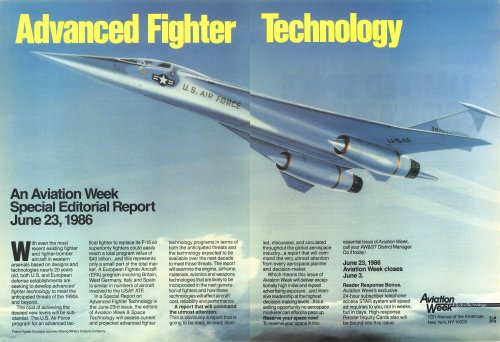

To which sferrin rightly replied that the ATS (early ATF) proposal by Boeing was exactly like the model, even providing an original painting of that project.
End of story! Why continue to question when we have an image of the Boeing ATS that matches the model perfectly?! ???

As for your question, I do not know of any Boeing proposal for FX, so I couldn't give you the Model number. However I'm sure they must have worked on that proposal at some point, so most likely someone like Paul or Scott would know.


galgot

CLEARANCE: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
896
Reaction score
896
Website
galgot.com
Found these beauties in this PDF :
http://www.dtic.mil/docs/citations/ADB022011
And assembled it , there are other images in the pdf.
If already posted, i'll go back to my room in shame.


Attachments

  • 985-213-Struc02.jpg
    161.9 KB · Views: 930
  • 985-213-Struc01.jpg
    508.2 KB · Views: 978
  • 985-213-Cut01.jpg
    364.9 KB · Views: 1,038

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,262
Reaction score
3,149
One page back...

https://www.secretprojects.co.uk/forum/index.php/topic,398.msg322190.html#msg322190

Nice selection of images though.


galgot

CLEARANCE: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
896
Reaction score
896
Website
galgot.com
PaulMM (Overscan) said:
One page back...

https://www.secretprojects.co.uk/forum/index.php/topic,398.msg322190.html#msg322190

Nice selection of images though.

Oups ! Sorry then :)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

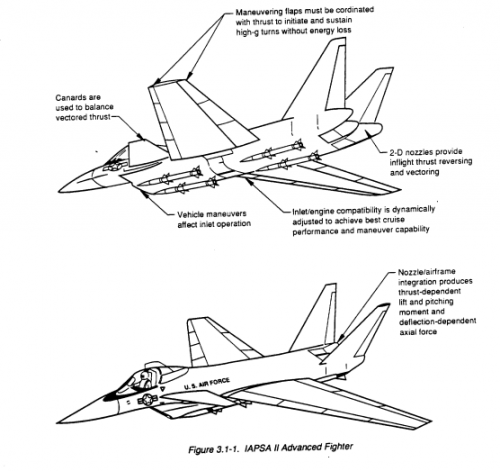

https://apps.dtic.mil/dtic/tr/fulltext/u2/a177061.pdf


Attachments

  • 1.png
    24.5 KB · Views: 121
  • 2.png
    24.8 KB · Views: 116
  • 3.png
    24.5 KB · Views: 104
  • 4.png
    27.9 KB · Views: 108

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19920013401.pdf


Attachments

  • 1.png
    68.5 KB · Views: 142

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
hesham said:
https://apps.dtic.mil/dtic/tr/fulltext/u2/a177061.pdf

What was it,908-833 or 985-420 ?.

https://apps.dtic.mil/dtic/tr/fulltext/u2/a259291.pdf


Attachments

  • 4.png
    67.2 KB · Views: 93

Similar threads

Top
