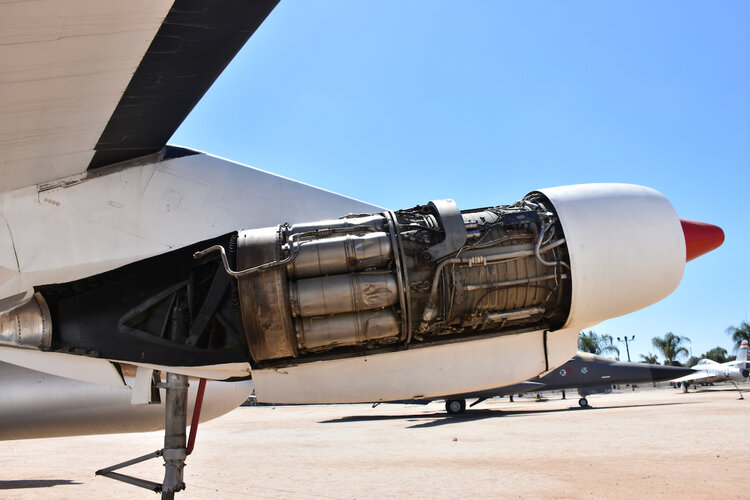

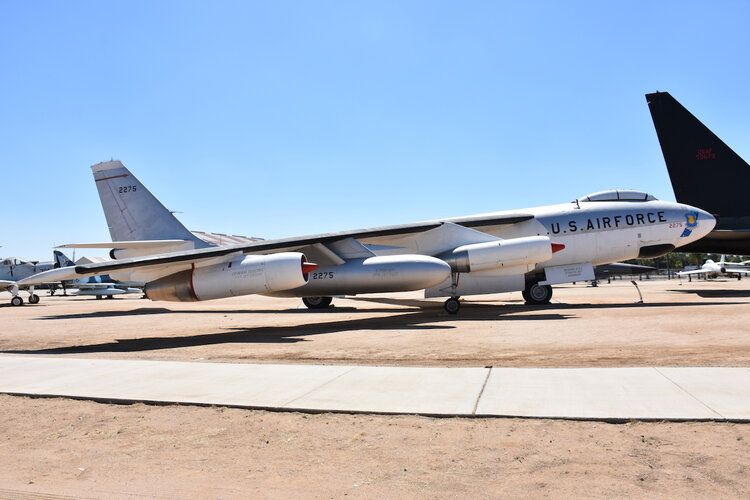

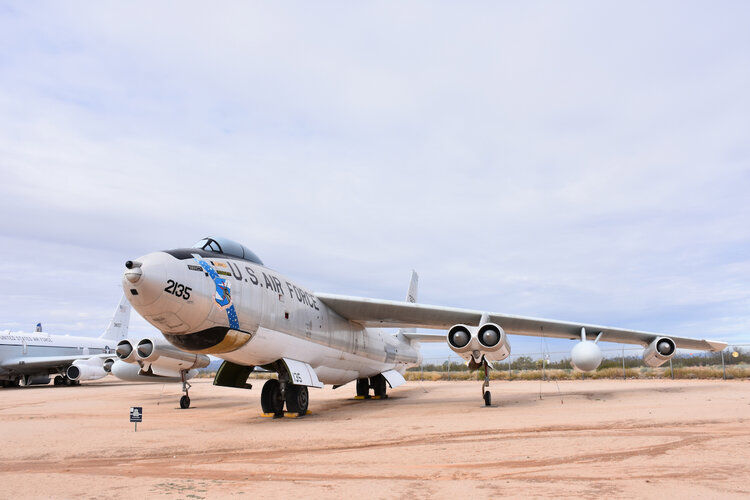

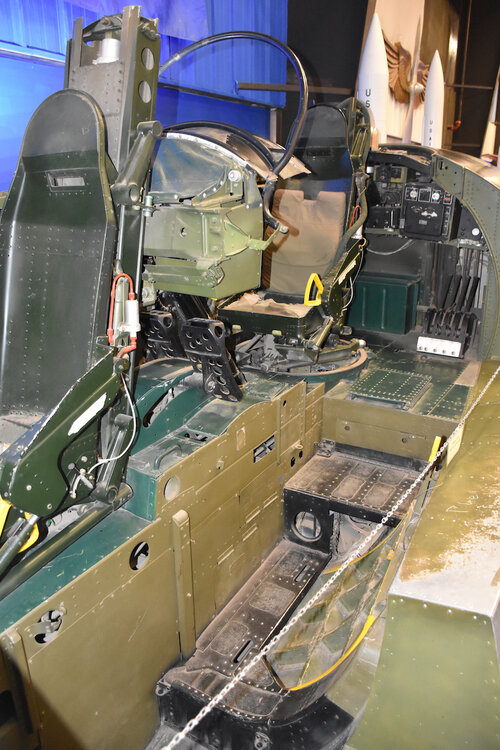

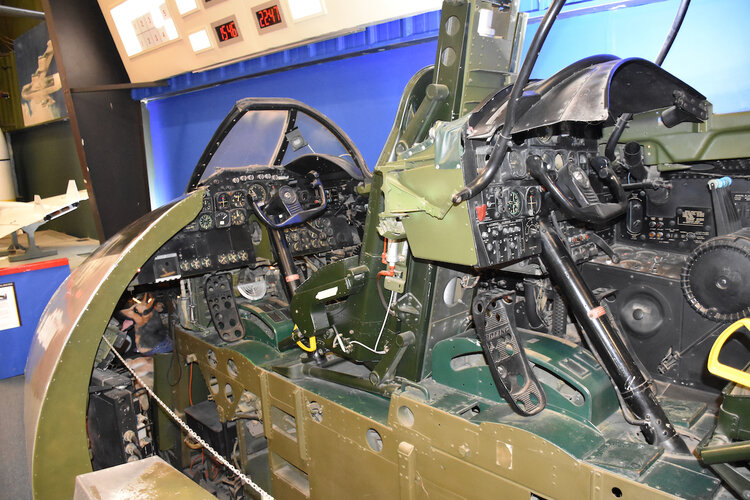

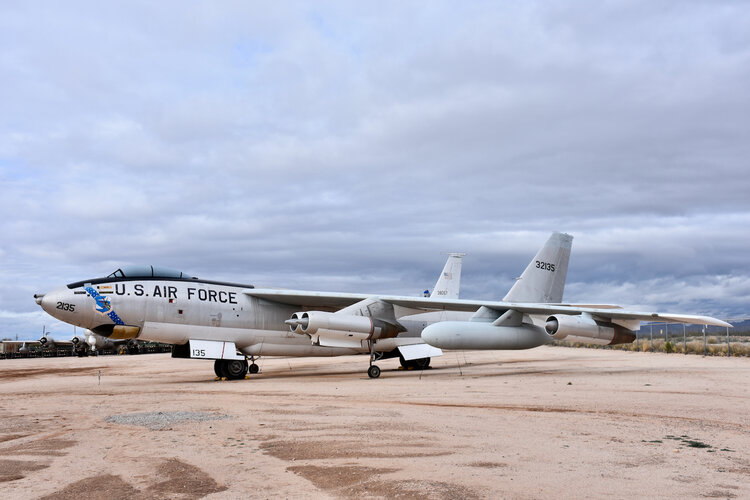

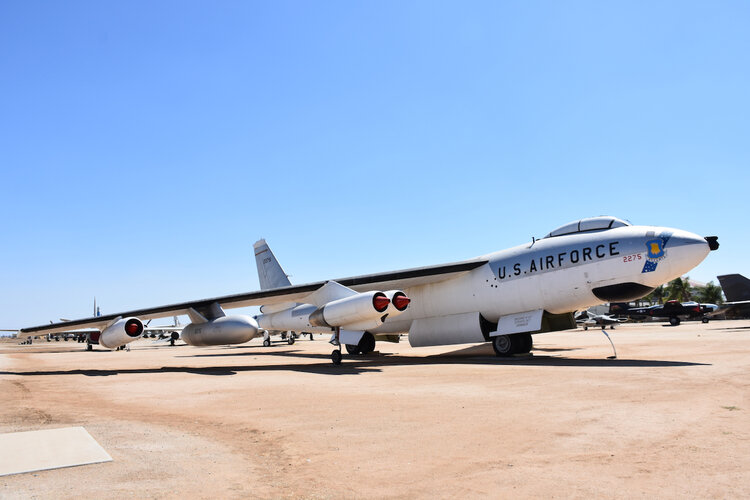

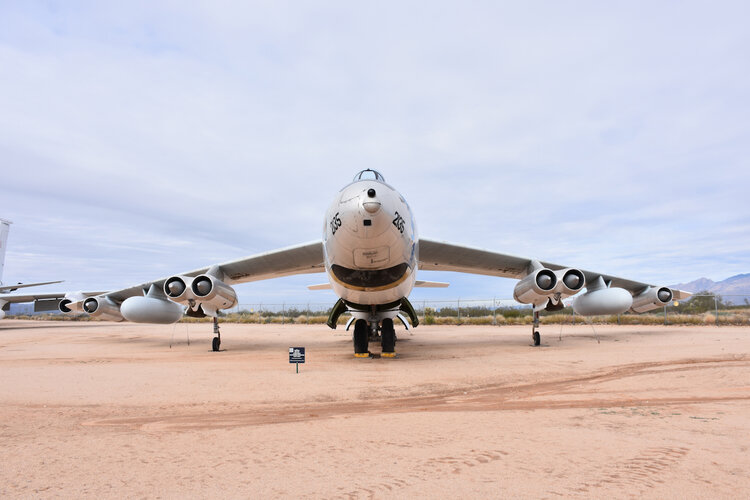

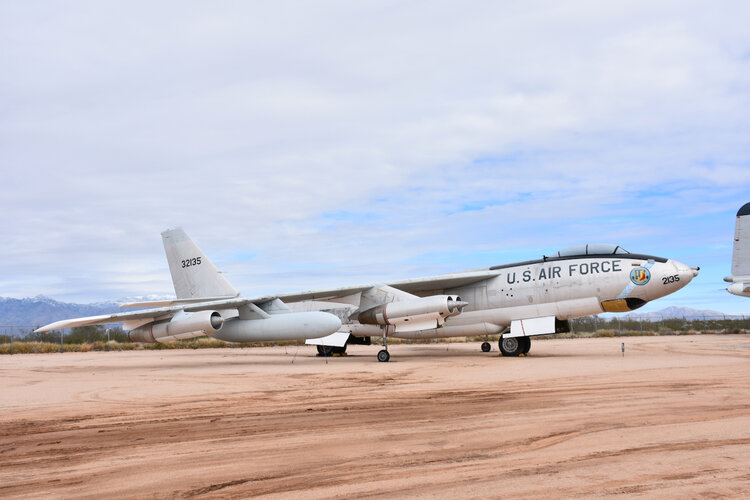

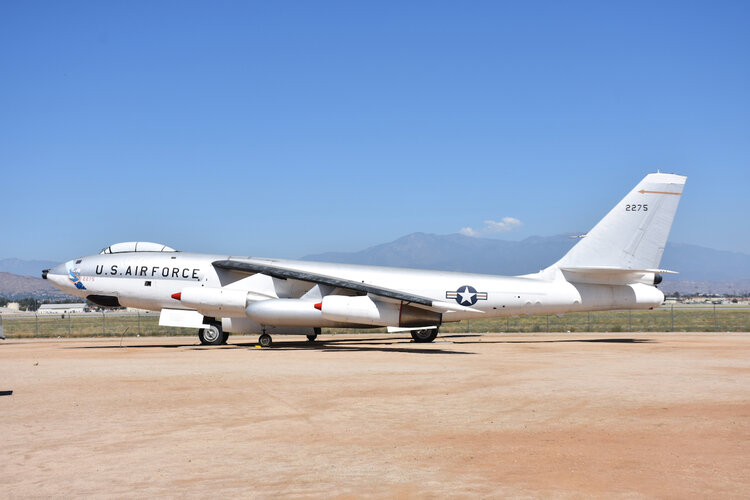

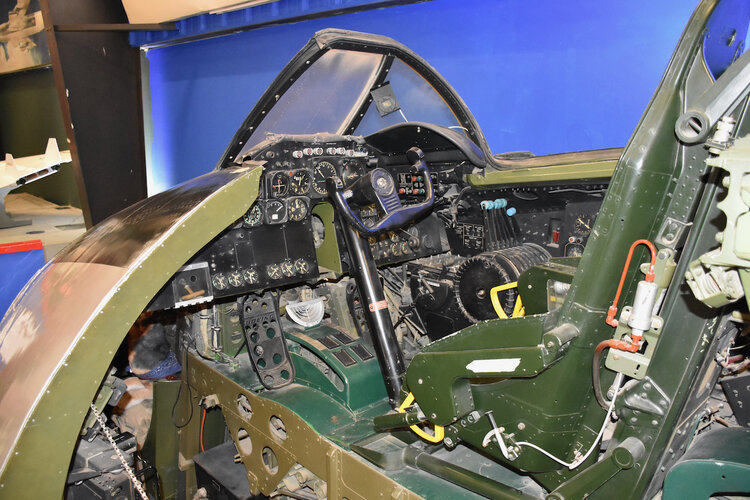

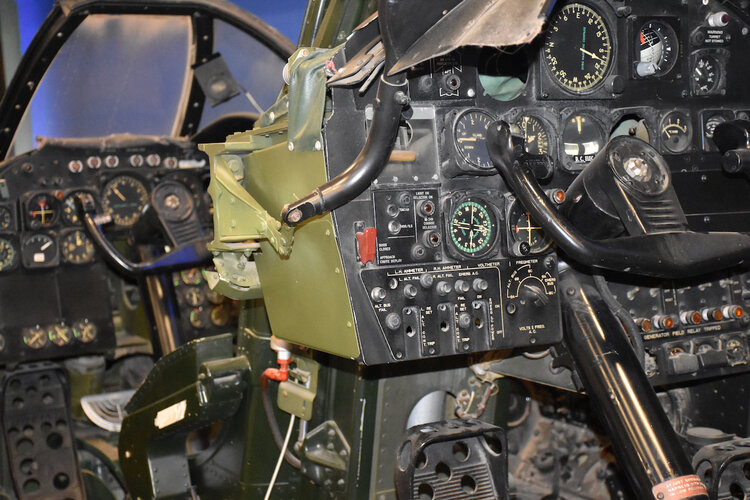

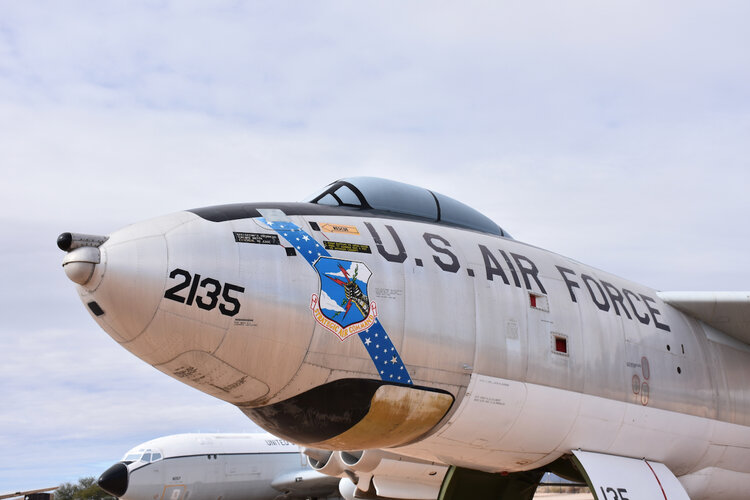

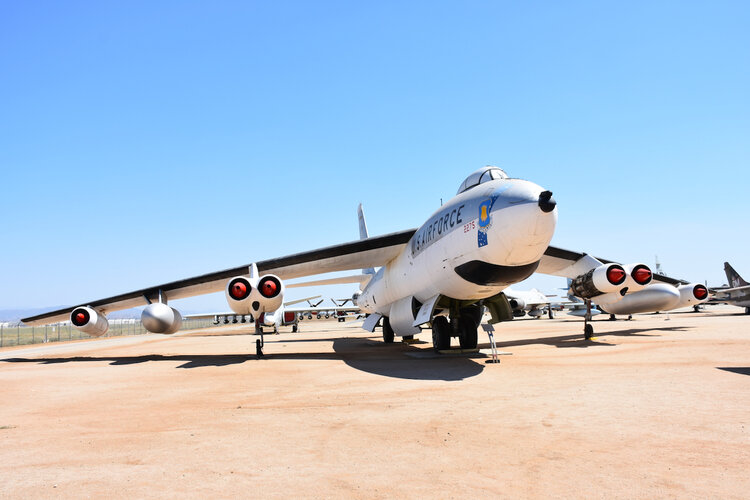

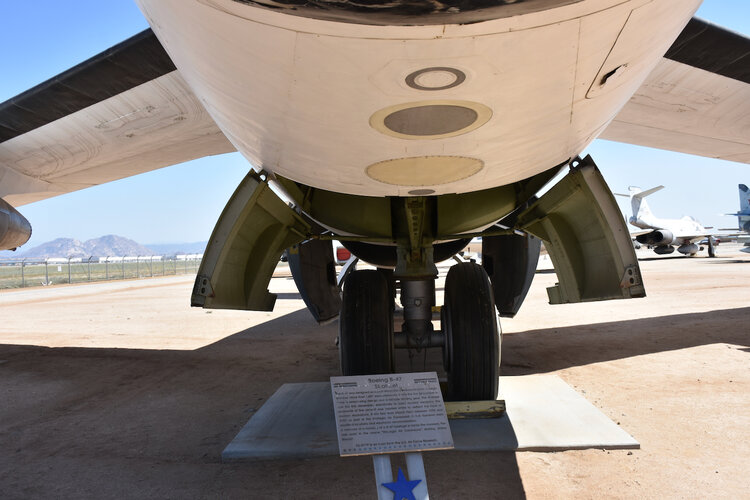

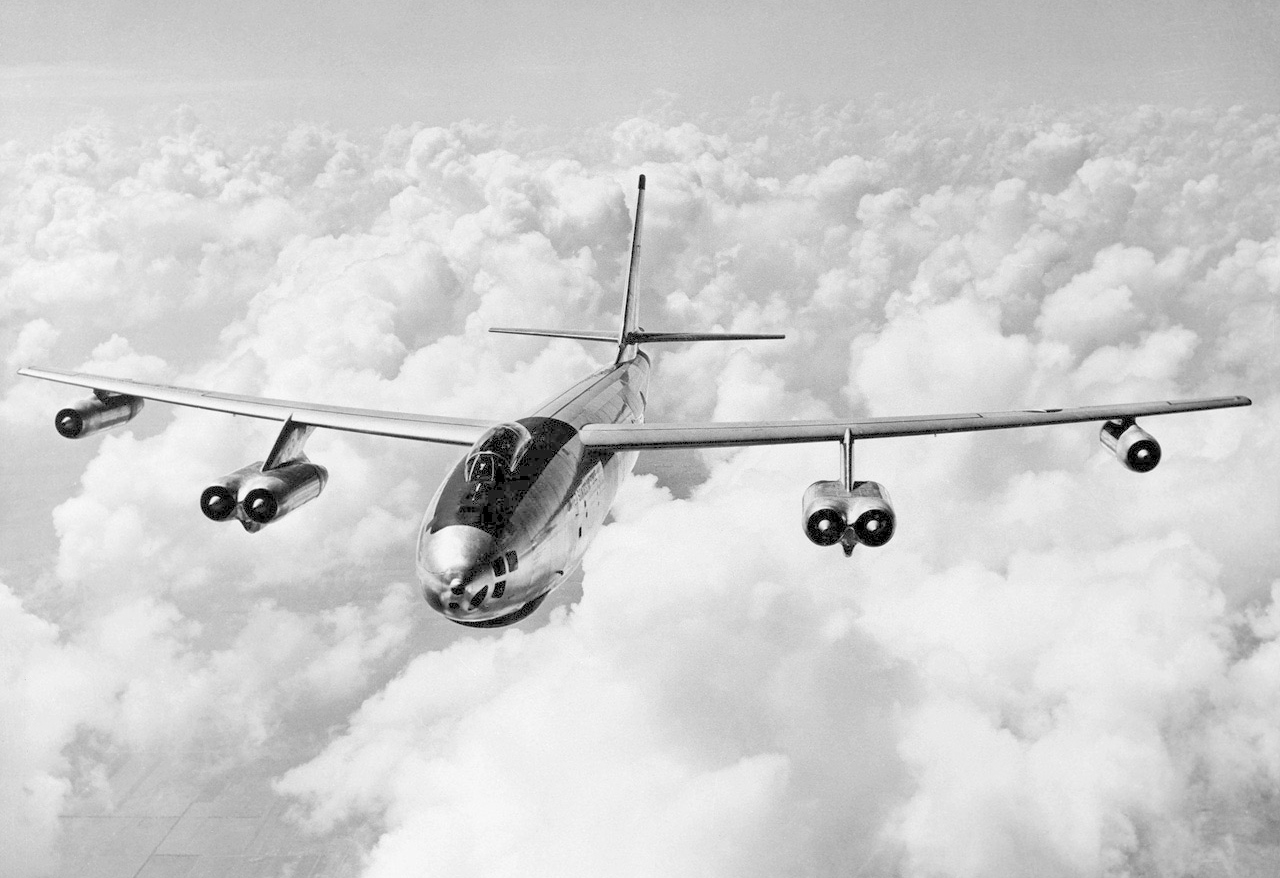

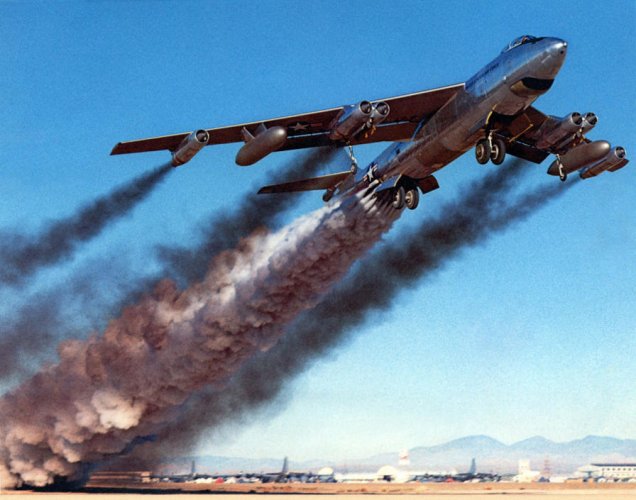

Boeing B-47 Stratojet

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
58

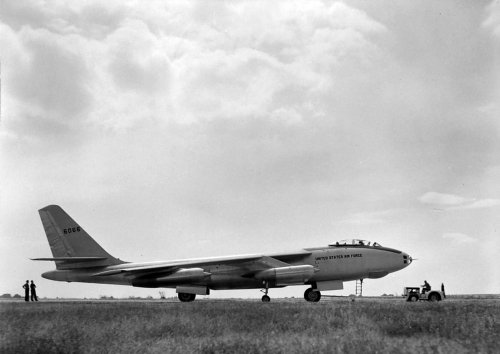

The only picture I've ever seen of XB-47 number two (46-066) - Life magazine.


Attachments

  • XB-47 No. 2 46-066.jpg
    XB-47 No. 2 46-066.jpg
    98.8 KB · Views: 903

aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
613
Reaction score
358
Oddly enough, this aircraft has survived the years and is on display today at the Chanute Air Museum, Rantoul, Illinois... see http://www.aeromuseum.org/aircraft_xb47.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,975
Reaction score
5,265
Hi,


the Boeing Models, 424,432 and 450-1;


http://coollib.net/b/150691/read


Attachments

  • 424,432 & 450.jpg
    424,432 & 450.jpg
    17.3 KB · Views: 1,119

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,975
Reaction score
5,265
We can transfer this topic to Postwar Aircraft Projects section;

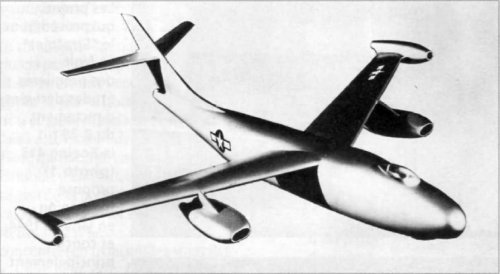

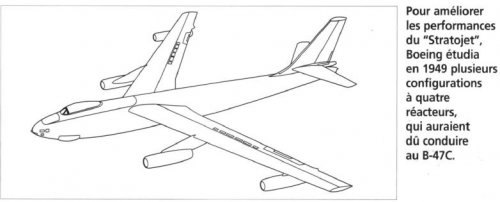

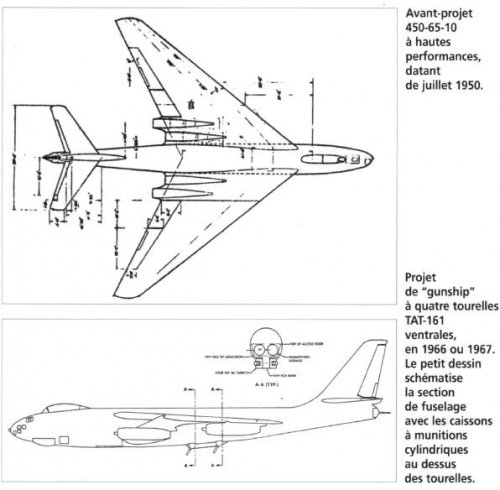

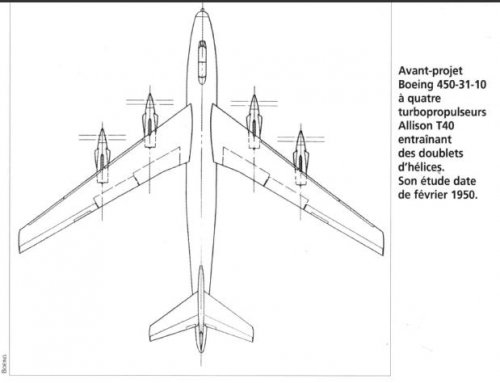

From Le FANA 432,here is some Boeing B-47 projects.


Attachments

  • Bo 450-31-10.JPG
    Bo 450-31-10.JPG
    26.6 KB · Views: 609
  • Bo 450  B-47C.JPG
    Bo 450 B-47C.JPG
    28.7 KB · Views: 594
  • Bo 450-65-10 & TAT-161.JPG
    Bo 450-65-10 & TAT-161.JPG
    43.9 KB · Views: 596

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,975
Reaction score
5,265
As I said before,we can transfer this topic to Postwar section,

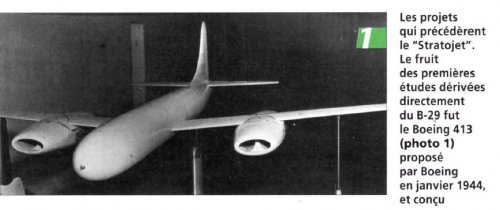

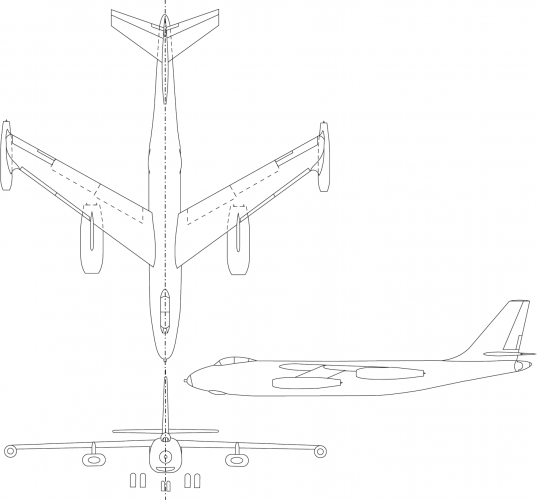

from Le FANA 431,here is the Boeing Model-413 (which looks like Model-424)
and Model 450-1-1 & Model 450-2-2.


Attachments

  • 450-2-2.JPG
    55.6 KB · Views: 89
  • 450-1-1.JPG
    40 KB · Views: 89
  • Bo-413.JPG
    40.9 KB · Views: 179

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,975
Reaction score
5,265
GTX said:
That first one looks like a B-29 with jet pods.


My dear GTX,yes,it is,please read the comment.


Attachments

  • 413.JPG
    40.7 KB · Views: 114

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
345
Reaction score
19
I have seen a 3 view in an old APR issue and it is very similar to a B-29 with B-45-type nacelles.


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
594
Reaction score
271
The Evolution that led to the B-47

I came across this intriguing wind tunnel model (below) from 1944 of a Boeing Model 432 that I had not come across before, which led to dome digging. All I know about the Boeing Model 432 is that the project arose from a 1943 US Army Air Force (USAAF) requirement for a jet bomber / reconnaissance aircraft that ultimately led to the XB-47.

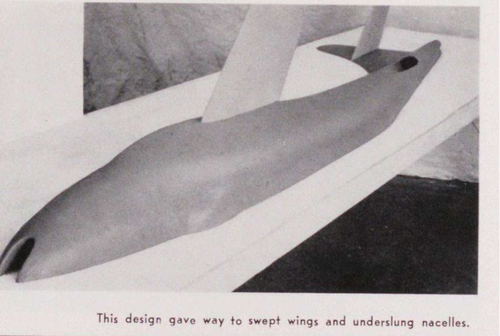

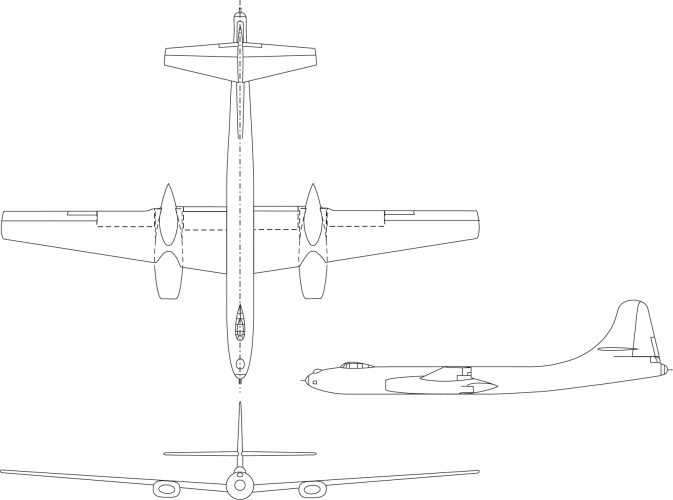

North American, Convair and Boeing all responded with proposals. The first Boeing proposal, the Model 424, was a modification of a conventional propeller-driven bomber design, a scaled-down version of the Boeing B-29 Superfortress fitted with four TG-180 turbojets.

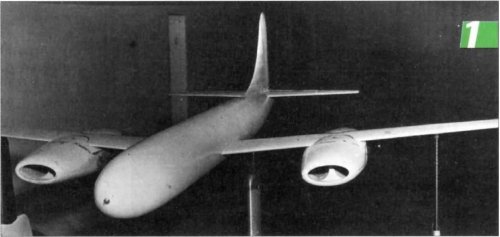

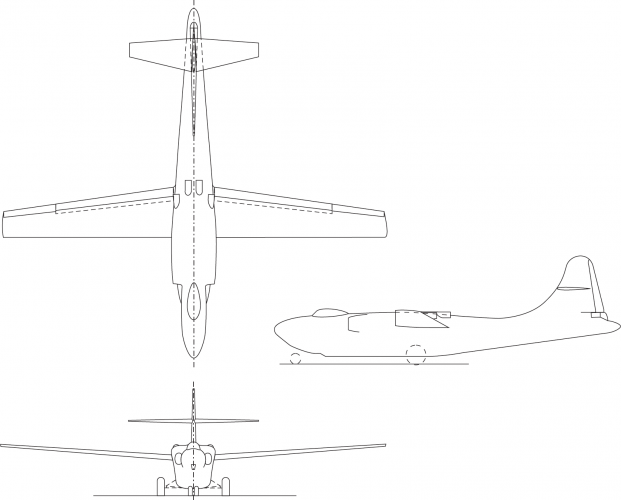

The US National Advisory Committee for Aeronautics (NACA) performed wind tunnel tests on a model of the design. The NACA wind tunnel tests showed that the model suffered from excessive drag. Boeing engineers then tried a revised design, the Model 432, which had the four engines buried in the forward fuselage. Changing the engine layout didn't really reduce drag all that much. The main benefit of the change was found to be structural advantages. The Boeing engineers turned to the swept-wing of 35 degrees.

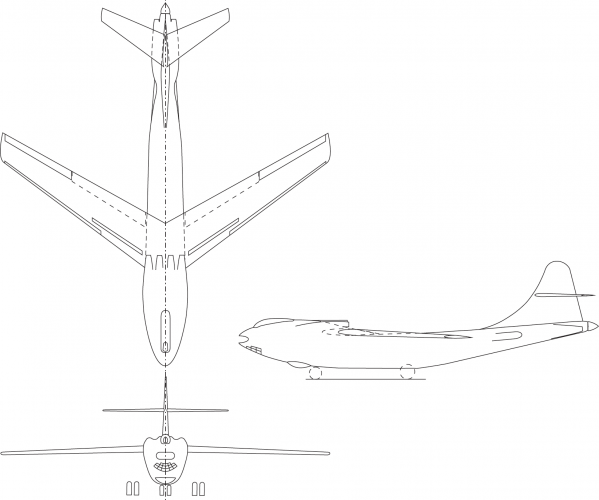

Boeing then modified the Model 432 design with swept wings and tail, resulting in the Model 448, which was presented to the USAAF in September 1947.

The Model 448 had the four TG-180s in the forward fuselage as had the Model 432, plus two TG-180s buried in the rear fuselage. Boeing submitted the Model 448 to the USAAF in October 1945, only to have it rejected. The Air Force strongly disliked fitting the engines in the fuselage on safety ground in the event of in-flight fires and the engines were moved back out on the wings.

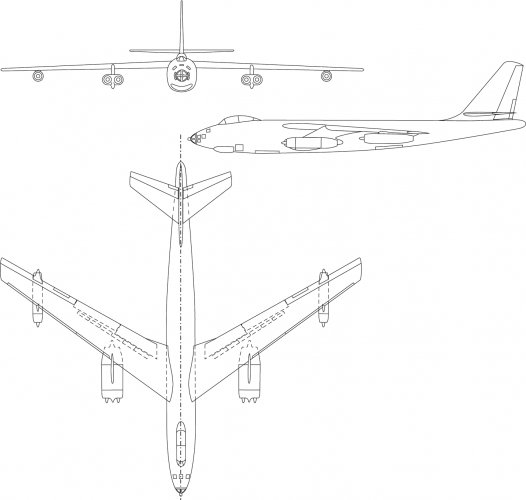

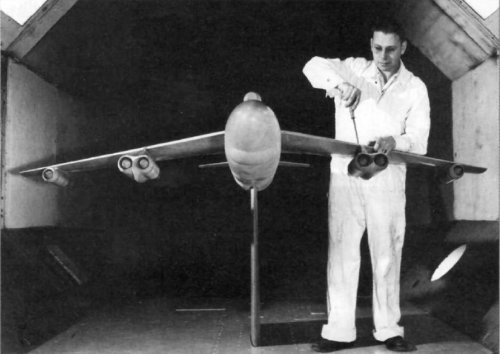

That led straight back to the drag problem, but the engineering team came up with a clean, elegant solution, with the engines in streamlined pods attached to the wings. This innovation led to the next iteration, the Model 450, which featured two TG-180s in a single pod mounted on a pylon about a third of the way outboard on each wing, plus another engine slung from the wingtip.

The USAAF was very pleased with the refined Model 450 design, and in April 1946 the service ordered two prototypes, to be designated XB-47. Assembly began in June 1946 and the Stratojet flew on into fifties history.

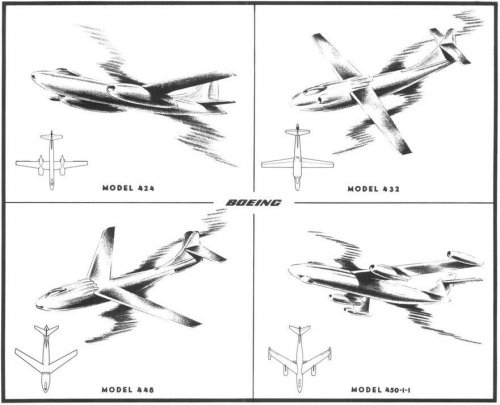

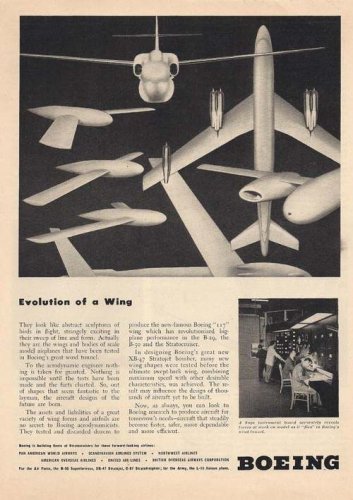

Searching in an Artwork folder I also found some drawings of the designs mentioned above, that led eventually to the Boeing B-47 Stratojet.


Attachments

  • Boeing_432_Windtunnel_1944_Model.png
    328.7 KB · Views: 102
  • Boeing Models 1945 Artwork.jpg
    Boeing Models 1945 Artwork.jpg
    78.8 KB · Views: 126

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
277
aim9xray said:
Oddly enough, this aircraft has survived the years and is on display today at the Chanute Air Museum, Rantoul, Illinois... see http://www.aeromuseum.org/aircraft_xb47.html

The Chanute Air Museum has announced that it will close down on 12/31/2015.

http://www.illinoishomepage.net/story/d/story/chanute-air-museum-closing-for-good/34873/j76_FGQ4SEGr9uO-fnW4-w


Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,455
Reaction score
489

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
277
I'm not with that museum so I don't know what their plans really are. I have heard, through local conversations, that one or two if the aircraft are likely to go to the James S. McDonnell Air Park at the St Louis Science Center, and a few of the aircraft might (might) go to the Prairie Aviation Museum in Bloomington, Illinois.

In my opinion, based on how they looked the last time I saw them, some of the aircraft like the C-97 might have to be scrapped. Those are aircraft that have been kept outdoors all these years. The B-58 is indoors, so it might be worth moving to some other museum. One of the biggest losses will be that training missile silo deeply imbedded in the floor of the one hangar bay. It is not likely to be moved anywhere.

Again. I'm not with that museum, so I don't know for sure what is going to happen to the collection.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,002
Reaction score
460
hesham said:
We can transfer this topic to Postwar Aircraft Projects section;


From Le FANA 432,here is some Boeing B-47 projects.

Thank you hesham.
That Gunship has me fascinated indeed :p
Obviously a project in relation to the Vietnam War :(
Had to find out what it said in French ..... alas Google Translate ::)
"Project gunship four TAT-161 ventral turrets in 1966 or 1967. The small drawing diagrams the fuselage section with the ammunition boxes cylindrical above turrets."

Regards
Pioneer


Hank58

ACCESS: Restricted
Joined
Jun 10, 2020
Messages
30
Reaction score
123
The Evolution that led to the B-47

I came across this intriguing wind tunnel model (below) from 1944 of a Boeing Model 432 that I had not come across before, which led to dome digging. All I know about the Boeing Model 432 is that the project arose from a 1943 US Army Air Force (USAAF) requirement for a jet bomber / reconnaissance aircraft that ultimately led to the XB-47.

North American, Convair and Boeing all responded with proposals. The first Boeing proposal, the Model 424, was a modification of a conventional propeller-driven bomber design, a scaled-down version of the Boeing B-29 Superfortress fitted with four TG-180 turbojets.

The US National Advisory Committee for Aeronautics (NACA) performed wind tunnel tests on a model of the design. The NACA wind tunnel tests showed that the model suffered from excessive drag. Boeing engineers then tried a revised design, the Model 432, which had the four engines buried in the forward fuselage. Changing the engine layout didn't really reduce drag all that much. The main benefit of the change was found to be structural advantages. The Boeing engineers turned to the swept-wing of 35 degrees.

Boeing then modified the Model 432 design with swept wings and tail, resulting in the Model 448, which was presented to the USAAF in September 1947.

The Model 448 had the four TG-180s in the forward fuselage as had the Model 432, plus two TG-180s buried in the rear fuselage. Boeing submitted the Model 448 to the USAAF in October 1945, only to have it rejected. The Air Force strongly disliked fitting the engines in the fuselage on safety ground in the event of in-flight fires and the engines were moved back out on the wings.

That led straight back to the drag problem, but the engineering team came up with a clean, elegant solution, with the engines in streamlined pods attached to the wings. This innovation led to the next iteration, the Model 450, which featured two TG-180s in a single pod mounted on a pylon about a third of the way outboard on each wing, plus another engine slung from the wingtip.

The USAAF was very pleased with the refined Model 450 design, and in April 1946 the service ordered two prototypes, to be designated XB-47. Assembly began in June 1946 and the Stratojet flew on into fifties history.

Searching in an Artwork folder I also found some drawings of the designs mentioned above, that led eventually to the Boeing B-47 Stratojet.
Yikes! That Model 432 is ugly. Goes right into the "fugly" category. I cannot believe it had any structural advantages over layouts with wing-mounted engines. Medium to high aspect ratio wings are wing-bending-moment critical (hence few spars, with the loads primarily carried in the wing skins, and the skins get thick). Moving the engines out on the wing puts their mass outboard and greatly reduce wing-bending moments (and correspondingly wing skin thickness and weight). That's the "span loading" concept.


apparition13

I really should change my personal text
Joined
Jan 27, 2017
Messages
199
Reaction score
288
Yikes! That Model 432 is ugly. Goes right into the "fugly" category. I cannot believe it had any structural advantages over layouts with wing-mounted engines. Medium to high aspect ratio wings are wing-bending-moment critical (hence few spars, with the loads primarily carried in the wing skins, and the skins get thick). Moving the engines out on the wing puts their mass outboard and greatly reduce wing-bending moments (and correspondingly wing skin thickness and weight). That's the "span loading" concept.
Looks a bit like an amphibian, as does the 448. I think Convair had an amphibian or sea plane with a similar design.


taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
330
Reaction score
227
The Evolution that led to the B-47

I came across this intriguing wind tunnel model (below) from 1944 of a Boeing Model 432 that I had not come across before, which led to dome digging. All I know about the Boeing Model 432 is that the project arose from a 1943 US Army Air Force (USAAF) requirement for a jet bomber / reconnaissance aircraft that ultimately led to the XB-47.

North American, Convair and Boeing all responded with proposals. The first Boeing proposal, the Model 424, was a modification of a conventional propeller-driven bomber design, a scaled-down version of the Boeing B-29 Superfortress fitted with four TG-180 turbojets.

The US National Advisory Committee for Aeronautics (NACA) performed wind tunnel tests on a model of the design. The NACA wind tunnel tests showed that the model suffered from excessive drag. Boeing engineers then tried a revised design, the Model 432, which had the four engines buried in the forward fuselage. Changing the engine layout didn't really reduce drag all that much. The main benefit of the change was found to be structural advantages. The Boeing engineers turned to the swept-wing of 35 degrees.

Boeing then modified the Model 432 design with swept wings and tail, resulting in the Model 448, which was presented to the USAAF in September 1947.

The Model 448 had the four TG-180s in the forward fuselage as had the Model 432, plus two TG-180s buried in the rear fuselage. Boeing submitted the Model 448 to the USAAF in October 1945, only to have it rejected. The Air Force strongly disliked fitting the engines in the fuselage on safety ground in the event of in-flight fires and the engines were moved back out on the wings.

That led straight back to the drag problem, but the engineering team came up with a clean, elegant solution, with the engines in streamlined pods attached to the wings. This innovation led to the next iteration, the Model 450, which featured two TG-180s in a single pod mounted on a pylon about a third of the way outboard on each wing, plus another engine slung from the wingtip.

The USAAF was very pleased with the refined Model 450 design, and in April 1946 the service ordered two prototypes, to be designated XB-47. Assembly began in June 1946 and the Stratojet flew on into fifties history.

Searching in an Artwork folder I also found some drawings of the designs mentioned above, that led eventually to the Boeing B-47 Stratojet.
Yikes! That Model 432 is ugly. Goes right into the "fugly" category. I cannot believe it had any structural advantages over layouts with wing-mounted engines. Medium to high aspect ratio wings are wing-bending-moment critical (hence few spars, with the loads primarily carried in the wing skins, and the skins get thick). Moving the engines out on the wing puts their mass outboard and greatly reduce wing-bending moments (and correspondingly wing skin thickness and weight). That's the "span loading" concept.
I've read that a major reason for the underestimation of the B-47's performance was an overestimation of the drag produced by externally mounted jet engines due to experience with piston engine nacelles and a misunderstanding of how much of their drag was due to intake and exhaust of cooling air. This probably contributed to the British enthusiasm for buried engines also.
