Boeing 707 Jetliner and KC-135 Prototype

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54

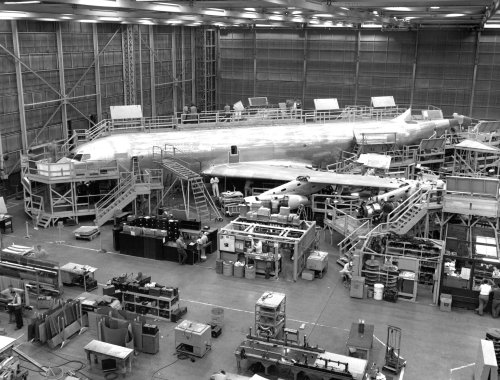

Here's a rare photo of the 367-80 "Dash 80," under construction at Boeing Plant 3 in Renton, WA. In-flight later...


Attachments

  • Dash 80 under construction 1-20-54.jpg
    Dash 80 under construction 1-20-54.jpg
    955.7 KB · Views: 405

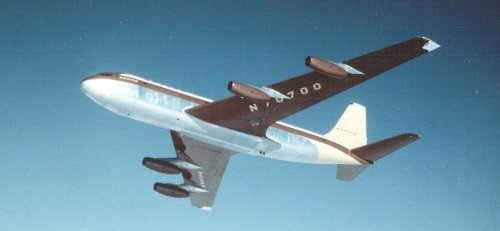

  • 707 Prototype-small.jpg
    707 Prototype-small.jpg
    225.4 KB · Views: 348

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54

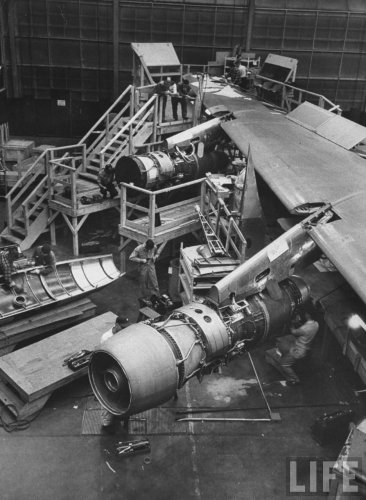

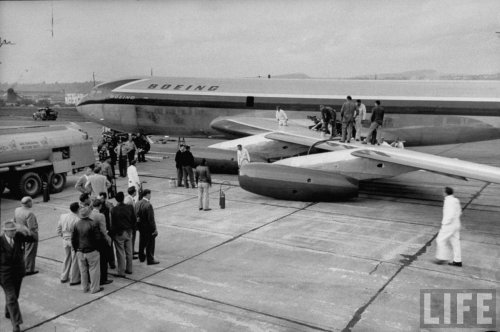

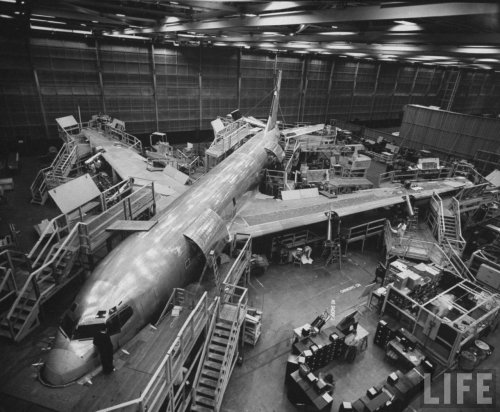

Some newly found images via Life magazine. -SP


Attachments

  • dash80-2.jpg
    157.8 KB · Views: 276
  • dash80-3.jpg
    183.2 KB · Views: 272
  • dash80-4.jpg
    128.5 KB · Views: 287

Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
151
Here's a couple of links to shots at the San Diego Air & Space Museum's archive on Flickr of the Dash 80 featuring Bill Boeing. Note the original (now seemingly odd) nose profile of the Dash 80.

http://www.flickr.com/photos/sdasmarchives/4727334891/in/set-72157624349446386/


http://www.flickr.com/photos/sdasmarchives/4727980404/in/set-72157624349446386/


ysi_maniac

ACCESS: Confidential
Joined
Jan 26, 2007
Messages
81
Reaction score
2
In this book there are several drawings of projects/studies around Boeing 707 design.
http://www.amazon.com/Boeing-707-Pioneer-Jetliner-History/dp/0760306753/ref=sr_1_1?ie=UTF8&qid=1385264660&sr=8-1&keywords=boeing+707


pg 20
- Similar to B-47: 2 jet double pods and shoulder mounted swept wings.


pg 22
- Boeing model 473. Idem first one in pg 20, but only 2 engines
- Boeing model 473-25. Idem first one in pg 20, but 6 engines: 4 jet pods 2 single inboard and 2 double outboard


pg 23
- Boeing model 473-47. Idem first one in pg 20, but low wings and only 2 engines. Smilar to Boeing 737 but straight tail surfaces and moderately swept wings.


pg 25
- Boeing model 707-6. Low wings 2 jet double pods. Very close to 367-80 (dash 80)


pg 28
- Boeing 707-7-27 like dash 80 but with 4 turboprops and wing tip tanks
- Boeing 707-7-39 like dash 80 but with 6 engines: 4 jet pods 2 single outboard and 2 double inboard, and wing tip tanks


pg 58
- Boeing 707-020 Shortened version with only 2 engines


pg 75
- Boeing 707-320-101 Double deck large-capasity (up to 250 passengers) version


Sorry, I have no scanner currently :(


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
151
Here is a 1950s Boeing promotional film detailing the Boeing 367-80 (N70700), better known as the "Dash 80," recently posted by Periscope Film on YouTube. It's cliche, but appropriate in this instance, the film ends with the caption "This is not the end, but the beginning."

YouTube - Periscope Film: "BOEING MODEL 707 STRATOLINER / STRATOTANKER PROTOTYPE PROMOTIONAL FILM 31394"
https://www.youtube.com/watch?v=hUDH-9Dbeus
