Blohm & Voss P.193.01.01

Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
3
This is a favourite of mine.
I've never done a proper profile set for this. It must have slipped below the radar.


I did do a profile of it when I very first started, but it was more for camouflage ideas than anything else.


Maybe this is the kick up the tail section I need.


;D


Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
860
Reaction score
7
Peter,

please remind the Bv P.180 ;)!


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,197
Reaction score
70

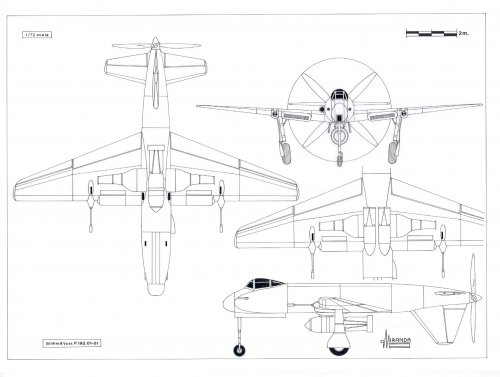

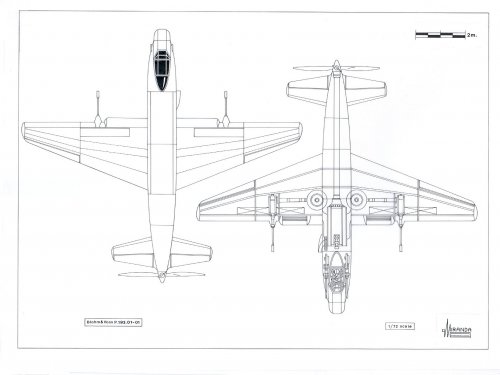

wundervoll art work Justo

it's sad this "bug" was never build, you know Görings dislike of Push propellors (this not a aircraft) and modern landing gear (This is too american)
Also other Blohm & Voss proposal gave Goring fits of raving madness...


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
3

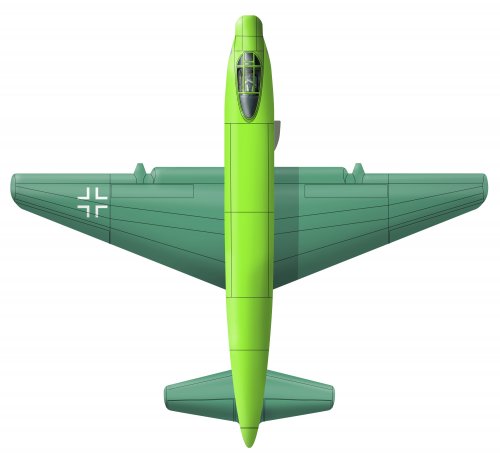

Started work on the BV P193.

Any advice to hatches, panels etc very welcome.
F


Attachments

Nimitz Zhang

CLEARANCE: Restricted
Joined
Jul 15, 2019
Messages
10
Reaction score
1

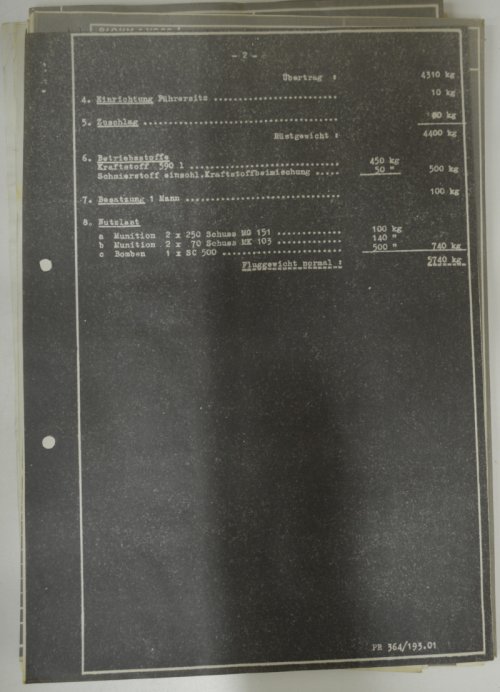

Anyone have specifications on its weight? And can any creative mind think of how hardpoints can be added to support rockets pods (RA55), SC 50, and SC 250 bombs of the like to more properly support the ground troops?
The central hardpoint can only carry one bomb and no hardpoints can be added due to the awkward landing gear position taking up most of the wing.


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
774
Reaction score
97
Anyone have specifications on its weight? And can any creative mind think of how hardpoints can be added to support rockets pods (RA55), SC 50, and SC 250 bombs of the like to more properly support the ground troops?
The central hardpoint can only carry one bomb and no hardpoints can be added due to the awkward landing gear position taking up most of the wing.

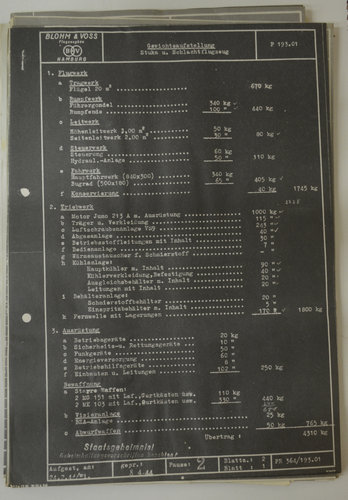

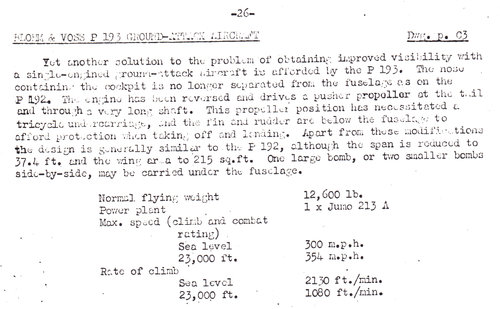

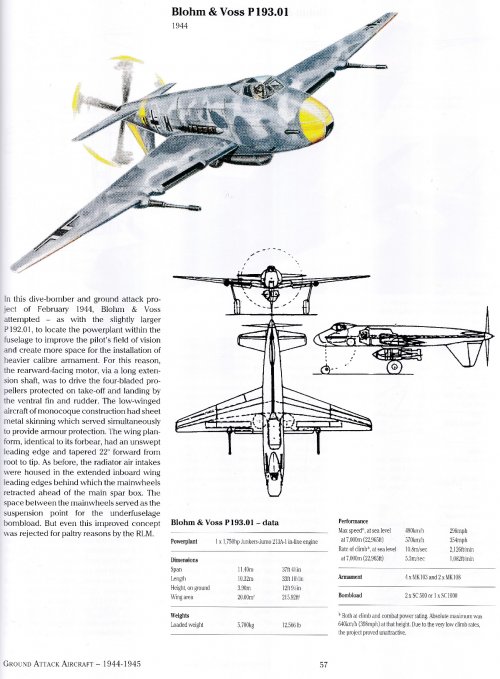

From German Aircraft: New and Projected Types, January 1946:


P 193.jpg


Basil

CLEARANCE: Confidential
Joined
Aug 10, 2009
Messages
189
Reaction score
5
Dan, you regularly surprise with your document sources. Don you also have the same for the P 192?


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
774
Reaction score
97

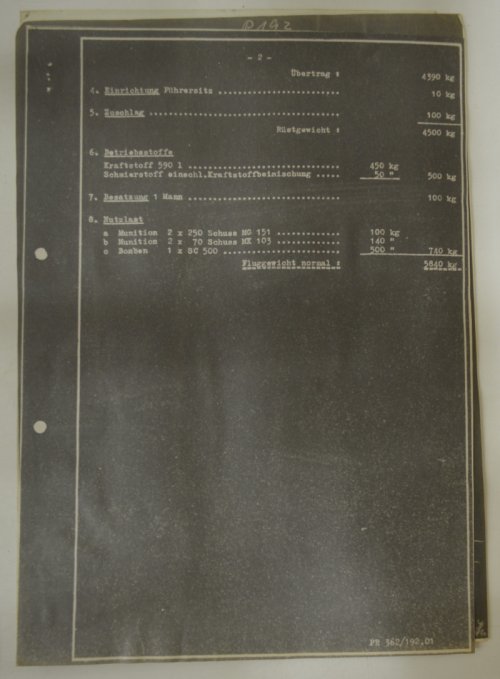

Dan, you regularly surprise with your document sources. Don you also have the same for the P 192?

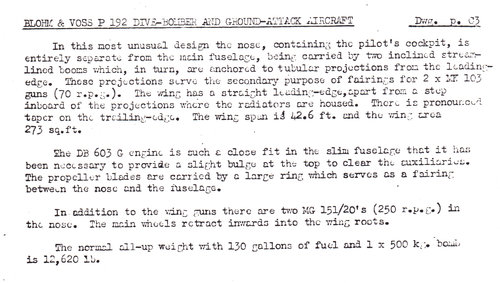

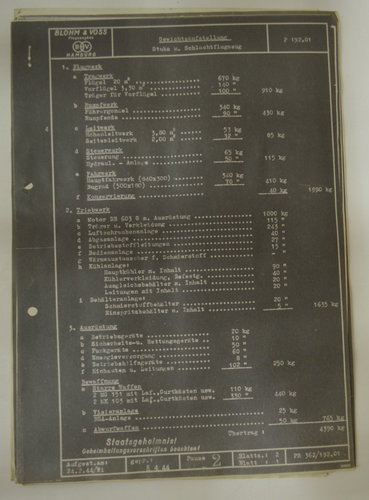

Yes (see below). I might have the original German documents somewhere but it's quicker to use these.

P 192.jpg


Basil

CLEARANCE: Confidential
Joined
Aug 10, 2009
Messages
189
Reaction score
5
Dan, thank you. This is the first (semi)original document I have seen.
