Blohm & Voss P.192.01.01

[Justo Miranda]

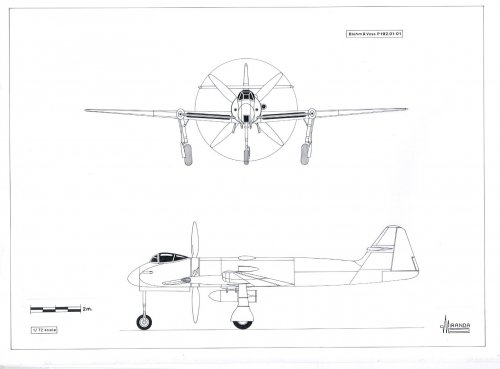

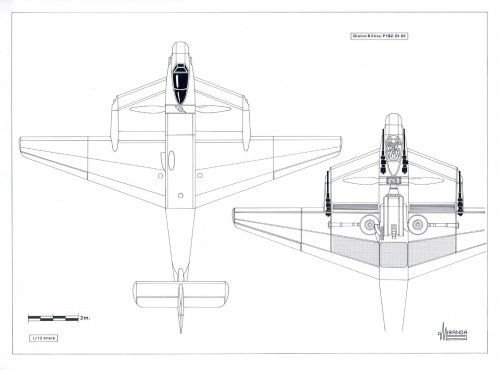

Justo Miranda files



[AeroFranz]

Neat drawings.
Do you know if the front surface had a movable trailing edge and thus was used as an aerodynamic control surface, or if it served a purely structural purpose?



[Justo Miranda]

purely structural



[AeroFranz]

silly me...I guess you wouldn't want to mess with the airflow with the prop so close behind anyway



[Johnbr]

It would be a lot of baling out of it.



[airman]

http://luft46models.com/manufacturers/bv/bvp192/bvp192q.jpg

It was projected for role of air combat and dive-bomber ...

For role of dive-bomber ? Was not a problem the position of propeller ?



[Justo Miranda]

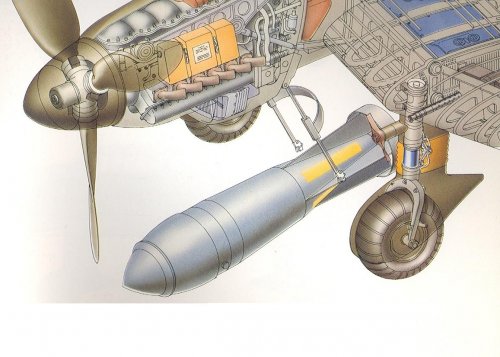

Bomb release trapeze?



[airman]

Bomb release trapeze?

understood than there was a mechanism : images speak more than words !

thanks Justo !
