Bell Model 4

CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3

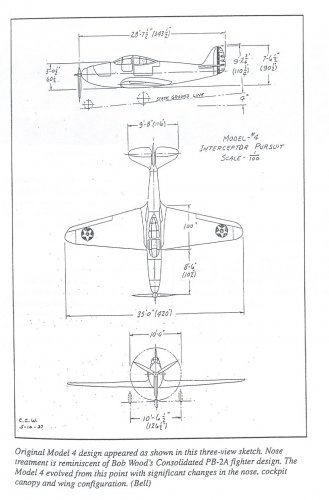

Thanks for the pic. The P-39 lines are still apparent, although the Model 4 sketch has a fair resemblance to the Consolidated fighters of the 30's. I'd like to think of it as a missing link in fighter evolution.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
Very interesting... Do you confirm the nose-pannel means this is a nose-engine preliminary P-39? Great! Thanks! (Even if this is not that, you made me dream pleasantly)


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
699
Reaction score
122
Website
www.tommythomason.com

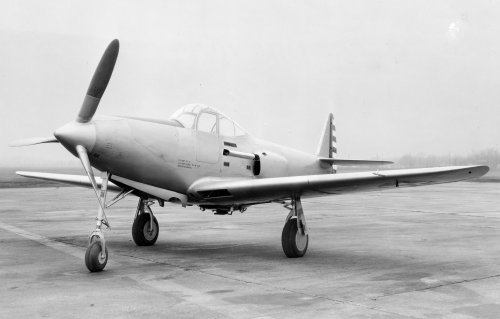

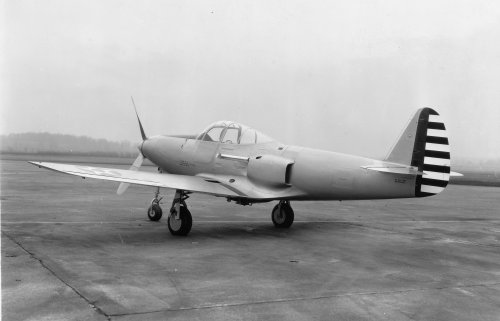

I'm all but certain that the doors over the nose were to access the armament. The panel lines under the rear canopy were to access the engine. On the following pictures of the XP-39, note the same panel lines on the nose and the air scoops on the side of the fuselage that are hinted at in the top view of the drawing. The claptrap on the belly is part of the turbocharger system that was deleted from the Y and production aircraft. Also shown are the clear plastic leading edge that housed a radio antenna, the higher canopy, and the prototype's landing gear door arrangement. These photos are from the U.S. National Archives.


Attachments

  • XP-39 small.jpg
    XP-39 small.jpg
    584.6 KB · Views: 338
  • XP-39 63161.JPG
    XP-39 63161.JPG
    599.9 KB · Views: 289

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
689
Reaction score
354

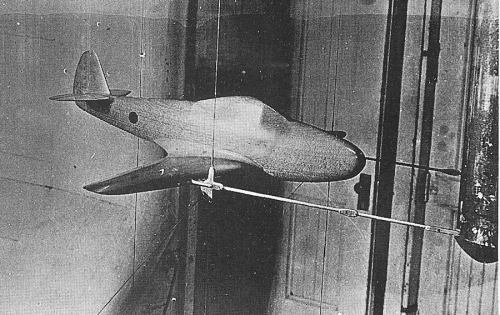

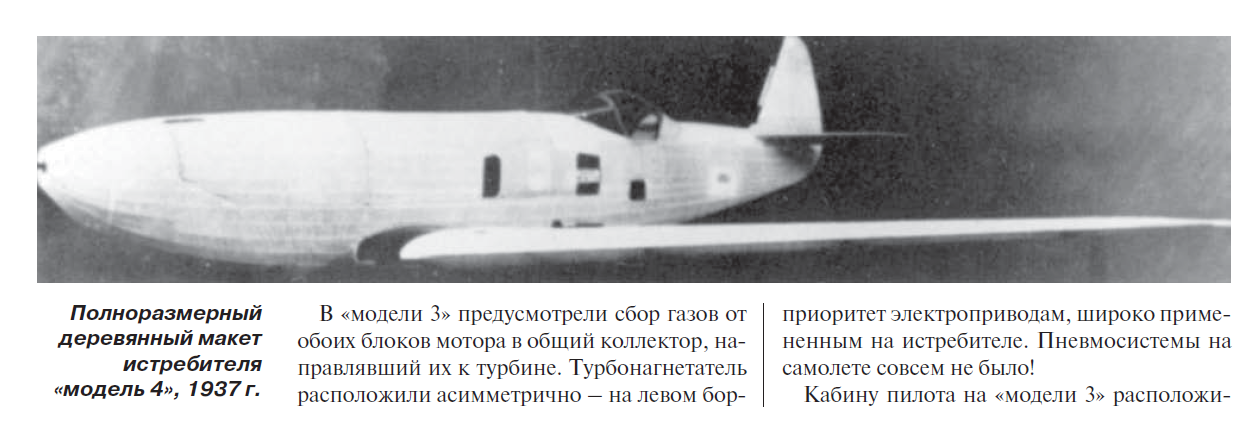

Windtunnel model from Putnams Bell aircraft since 1935


Attachments

  • bell model 4.png
    bell model 4.png
    727.2 KB · Views: 144
