Bell model 9 attack bomber

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
Is there someone of you specialist who knows more
about the Bell model 9 twin engined attack bomber.

This Bell proposal was submitted to the U.S.Army in 1938 in response
to their attack bomber competition.
Prototypes were built by by Martin-model 167,Douglas-DB7
Stearman-Model X-100. Later North American stepped in
with their model NA-40.

As far as I found out , the Bell model 9 should be a derivative
of the YFM-1 Airacuda...


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,110
Reaction score
650
lark said:
Is there someone of you specialist who knows more
about the Bell model 9 twin engined attack bomber.

This Bell proposal was submitted to the U.S.Army in 1938 in response
to their attack bomber competition.
Prototypes were built by by Martin-model 167,Douglas-DB7
Stearman-Model X-100. Later North American stepped in
with their model NA-40.

As far as I found out , the Bell model 9 should be a derivative
of the YFM-1 Airacuda...

Interesting question Lark!

But sadly I do not have anything either.

Looking forward to someone’s response.

Regards
Pioneer

J

joncarrfarrelly

Guest
According to COBRA!: Bell Aircraft Corporation 1934 - 1946, Birch Matthews, Schiffer 1996, the Bell entry in the 1938
dual-purpose attack bomber contest (DB-7, Martin 167, Stearman X-100, NA-40) was the Model 10, the Model 9
being only a proposal for an earlier Army contest.

In this earlier contest Bell and the other firms were invited to build prototypes, at their own expense, and Bell declined,
probably for financial reasons. No production contracts were ever awarded in this competition, so Bell no doubt saved
a lot of money.

To quote Matthews on the Model 9: "Not much is known about this proposal design. There is some reason to believe
it was a derivative of the YFM-1 Airacuda, but reconfigured to use Allison V-1710 tractor engines."

That is all that is said about the Model 9.

Jon


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Hi,

the Bell Model 9 was definitely a derivative of YFM-1 Airacuda
fighter,also the Model 10 was development version of Model 9.


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
314
Reaction score
160

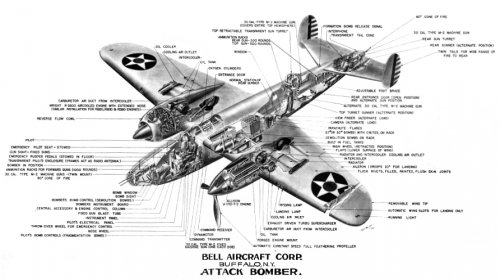

Here's a Bell Aircraft cutaway illustration that appears to fit the bill, although I cannot say if it represents the Bell Model 9 or the Bell Model 10. It was recently posted by the San Diego Air & Space Museum (SDASM) on their Flickr Commons site among a series of Bell Airacuda photos belonging to the Jay Miller Collection.

The illustration is entitled "Attack Bomber." It is illustrated with two tractor engines, presumably to demonstrate two power options, one an Allison V-1710, the other a Wright R-2600 (with a notation that the illustration would serve as well for other radial engine options, such as the Wright R-1820, Pratt & Whitney R-1830 and R-2180).
https://www.flickr.com/photos/sdasmarchives/33168550390/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Nice find my dear Boxman,

and it looks like this one;

http://www.secretprojects.co.uk/forum/index.php/topic,28394.0.html


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394
Boxman said:
Here's a Bell Aircraft cutaway illustration that appears to fit the bill, although I cannot say if it represents the Bell Model 9 or the Bell Model 10. It was recently posted by the San Diego Air & Space Museum (SDASM) on their Flickr Commons site among a series of Bell Airacuda photos belonging to the Jay Miller Collection.

The illustration is entitled "Attack Bomber." It is illustrated with two tractor engines, presumably to demonstrate two power options, one an Allison V-1710, the other a Wright R-2600 (with a notation that the illustration would serve as well for other radial engine options, such as the Wright R-1820, Pratt & Whitney R-1830 and R-2180).

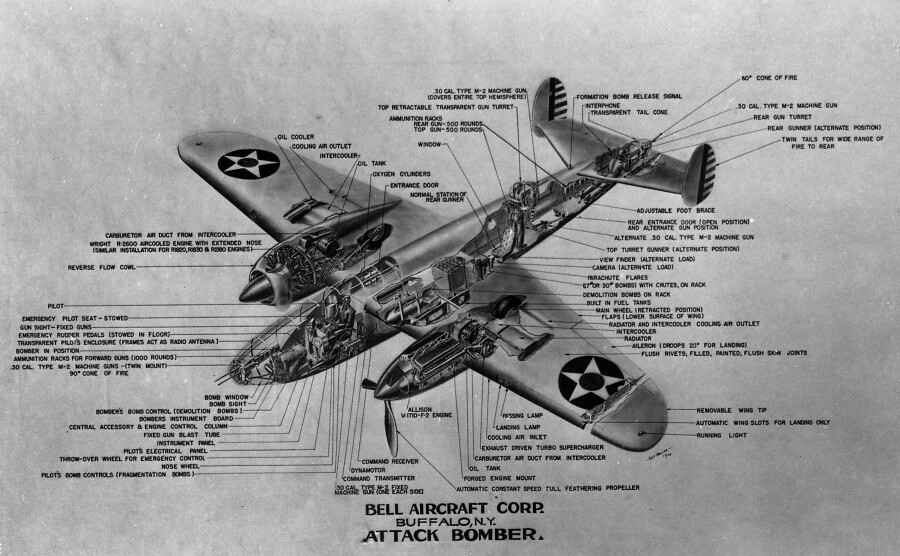

cleaned up a bit


Attachments

  • 33168550390_60da5ae4b8_o.jpg
    233.9 KB · Views: 445

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,591
Reaction score
908
hesham said:
and it looks like this one;

Certainly close but still room for doubt. This one is larger and with a twin tail, possibly a close relative but equally could just be designers with similar ideas.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
The illustration shown us by Boxman comes very close to
the description of the Bell model 10

.... Bell entered the next Army twin engine attack bomber competition of July 1938 with their model 10 design
offered with a brace of Allison V-1710s. Alternate model 10 designs used Wright R-1820s Pratt& Whitney R-1830s or R-2180s.
Bell did not win this competition. Still their proposed design was quite interesting...
The forward fuselage profile line was unbroken by the cockpit canopy wich blended from the nose to the major fuselage diameter.
The canopy had a clasic " greenhouse" appearence not unlike the Heinkel He-111 twin engine bomber....
The other interesting feature of Bell s design is the short low aspect ratio wing with a span of 52 feet....

So far the - abridged - description on page 370 - Paper Planes chapter- of " Cobra " by Birch Matthews.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
My dear Lark,

so the previous design maybe was Bell Model-9 ?;

http://www.secretprojects.co.uk/forum/index.php/topic,28394.0.html


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
I don't think so Hesham. There are to many differences compared
with the Airacuda (wider fuselage,different wing shape, different tail ) to be
it a direct derivative of this design.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
lark said:
I don't think so Hesham. There are to many differences compared
with the Airacuda (wider fuselage,different wing shape, different tail ) to be
it a direct derivative of this design.

OK my dear Lark,

but I think it was from Bell at least.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
Could be...

As I saw , Bell produced a number of idea's arround the multi seat fighter concept all
powered by a choise of engines either in the push or pull mode.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
lark said:
Could be...

As I saw , Bell produced a number of idea's arround the multi seat fighter concept all
powered by a choise of engines either in the push or pull mode.

I agree with that my dear Lark.
