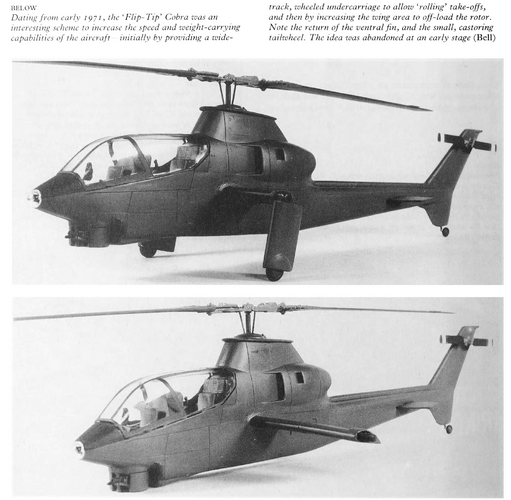

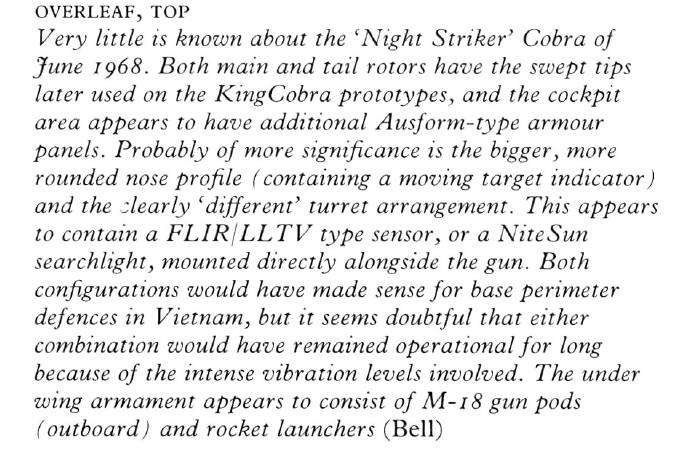

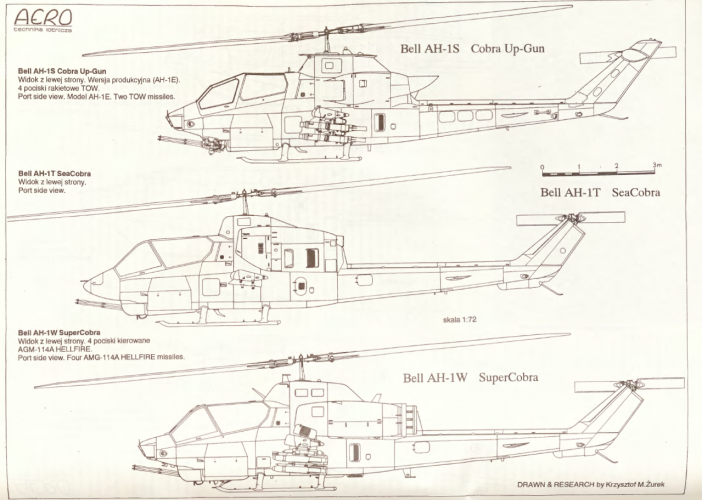

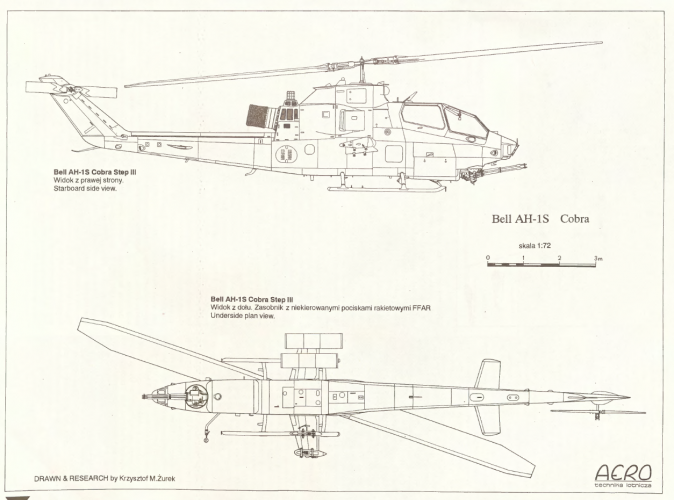

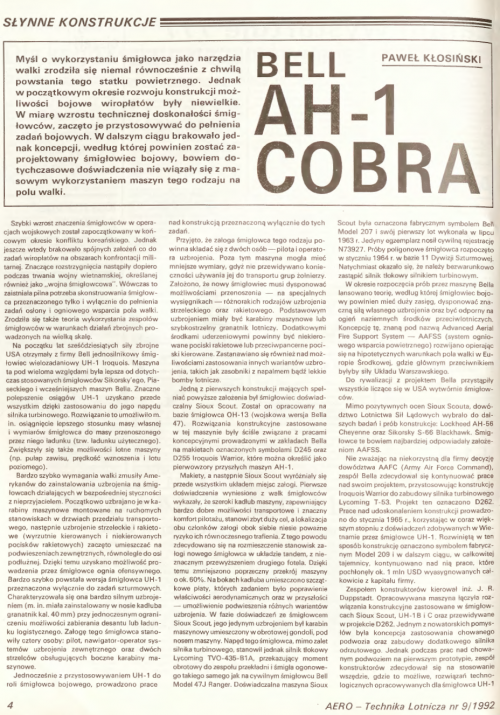

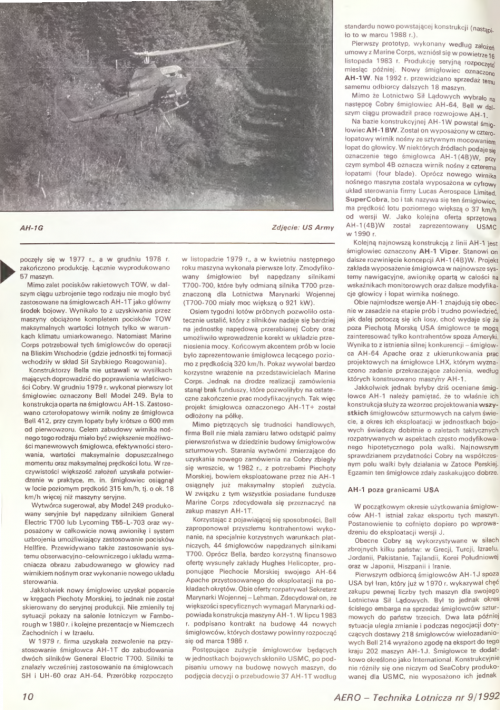

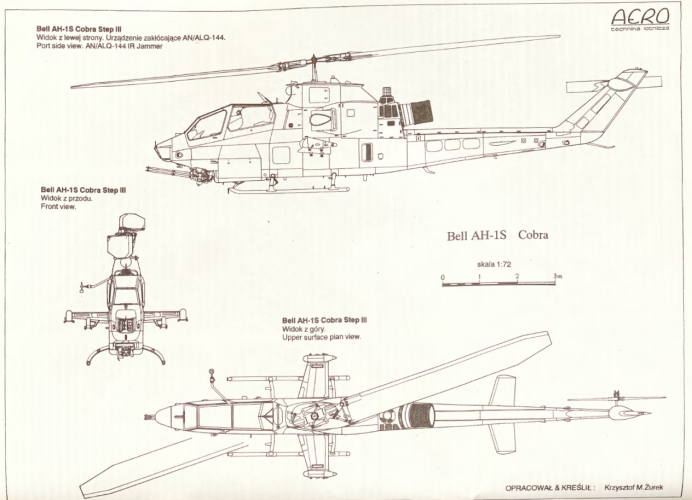

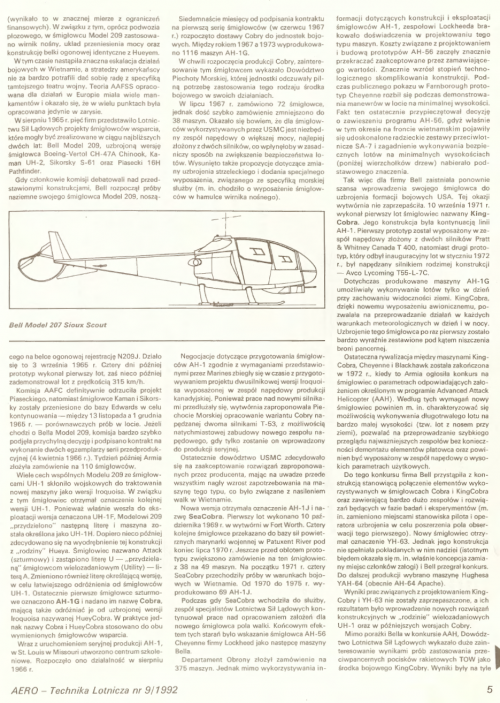

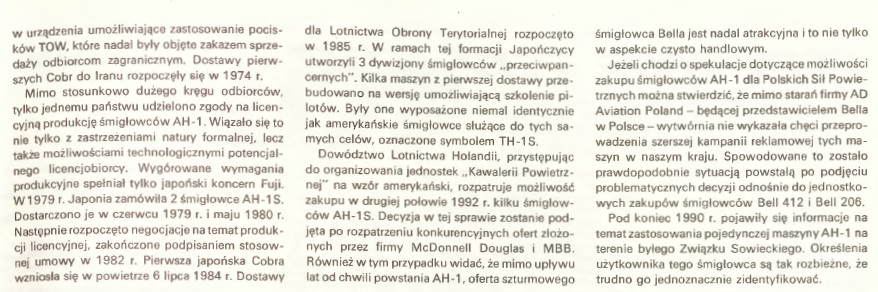

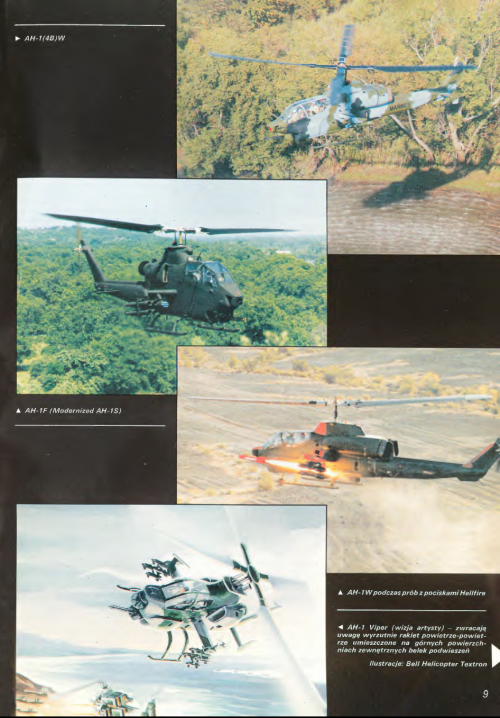

Bell D245, D255 Iroquois Warrior, D262 and D280: long road to AH-1 Cobra

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,805
Reaction score
4,969
My dears,

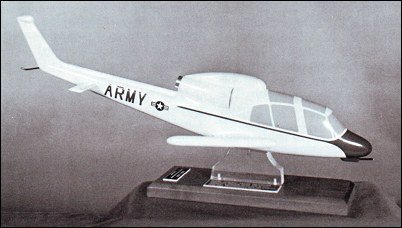

do you know those two Model to Bell,Model-280 and D-245?.


Attachments

  • bell_d-280.jpg
    21.6 KB · Views: 726
  • bell_d-245.jpg
    22.1 KB · Views: 675

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,574
Reaction score
894
Pure conjecture on my part but the 280 appears to be a concept for an assault helicopter based on some of the dynamics and structures that were (or would become) the AH-1. 245 might be an even earlier concept for a dual purpose helicopter based on H-1 dynamics.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,805
Reaction score
4,969
Hi yasotay,

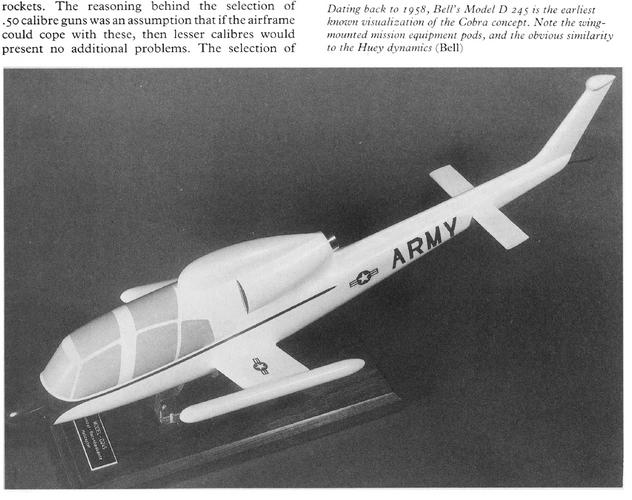

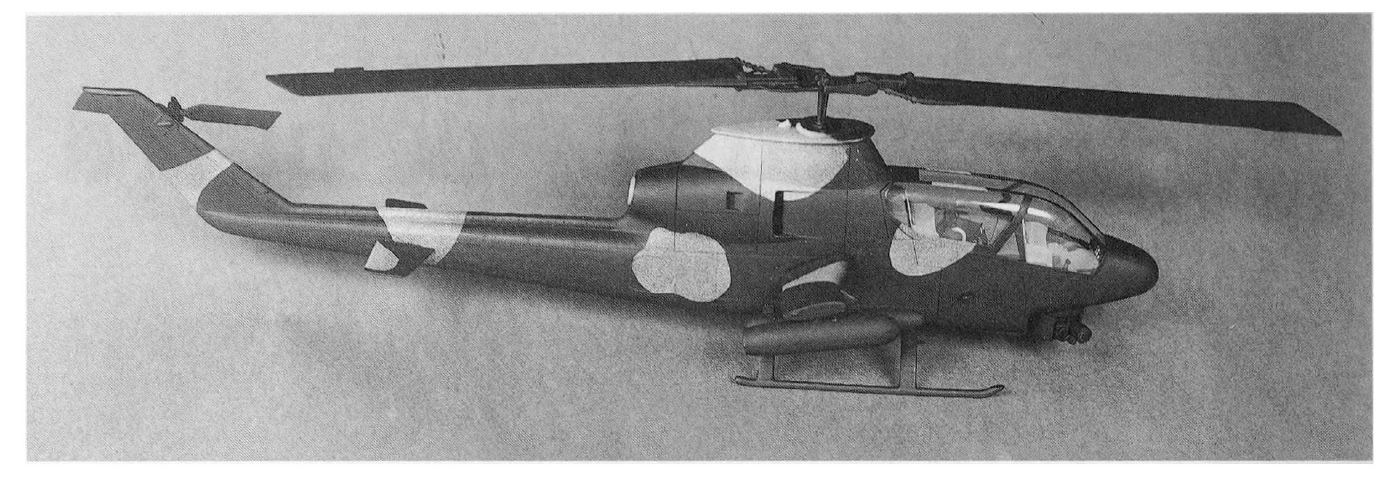

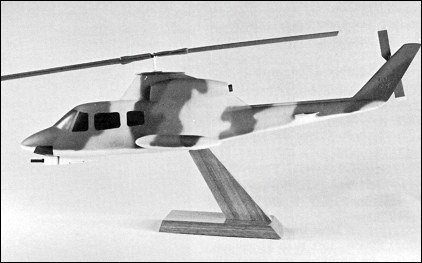

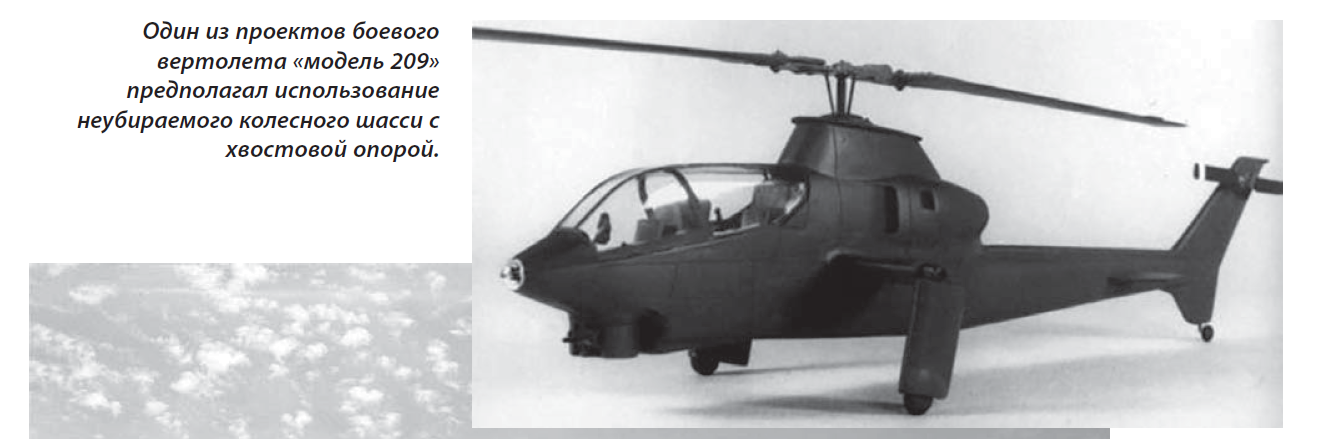

for the Bell D-280 was twin engined Cobra wide-body,and Bell D-245 was
the ealier Cobra concept.


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
935
Reaction score
340

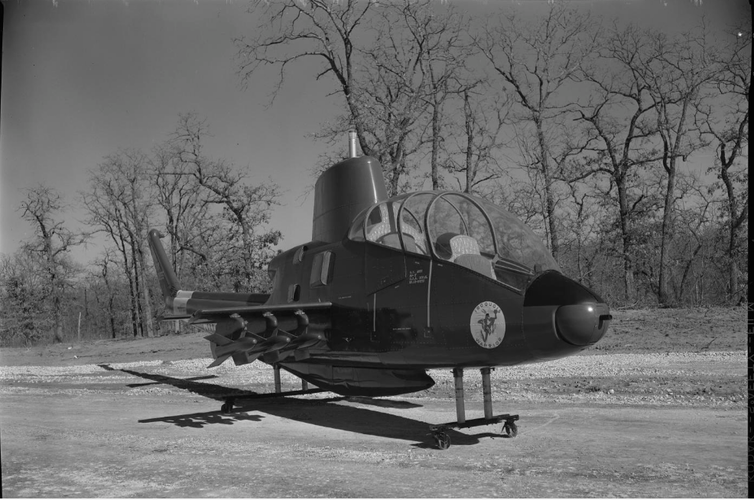

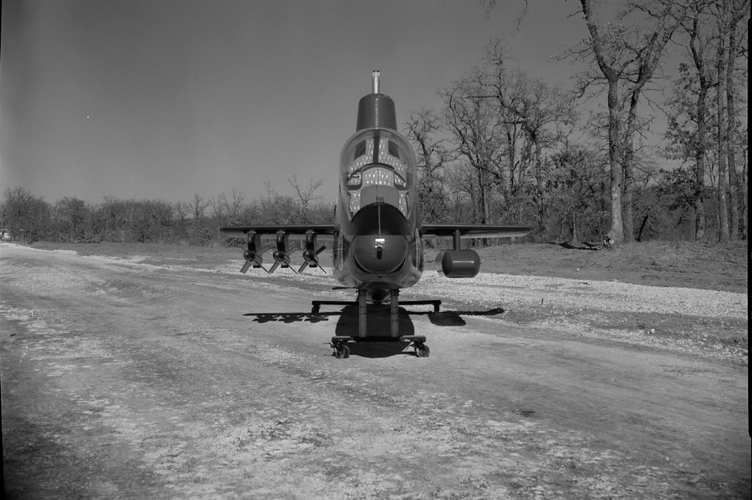

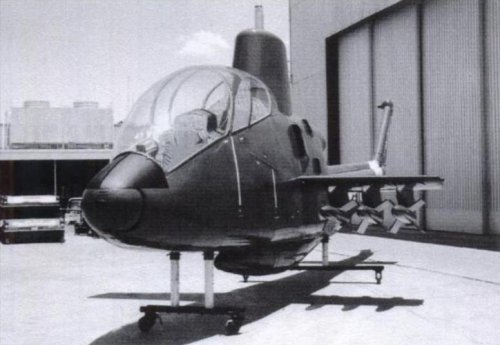

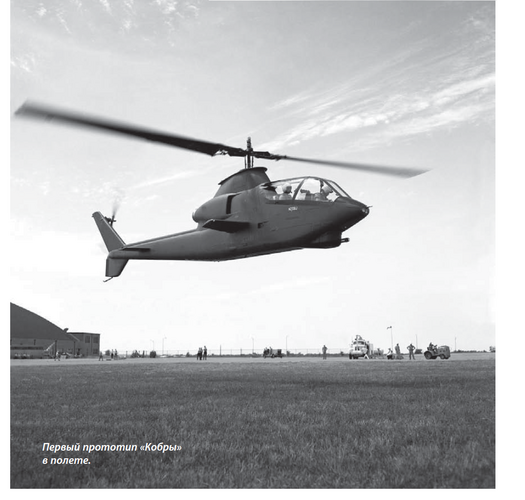

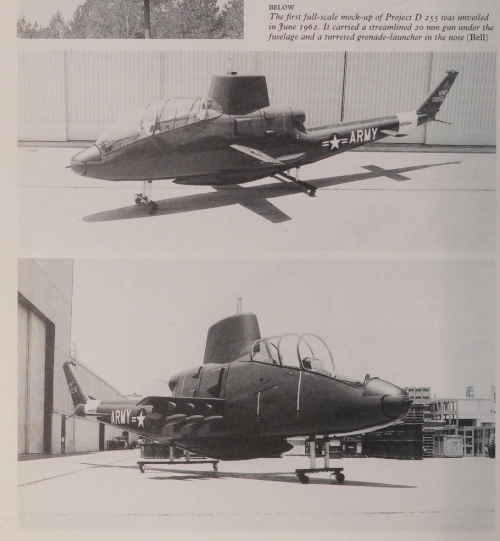

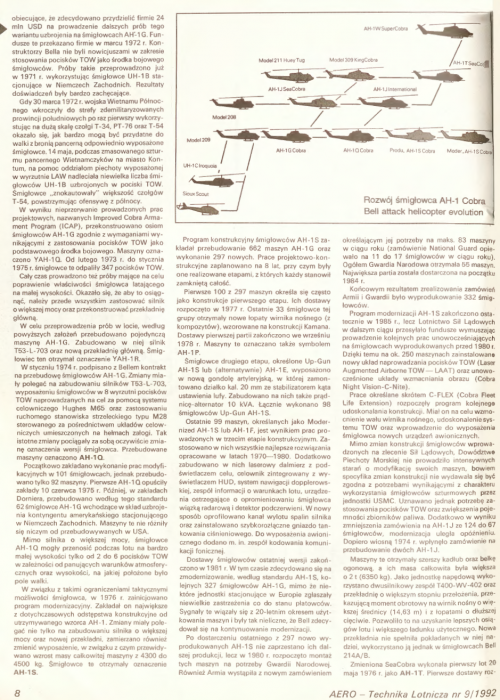

Developed from the UH-1 and following the Indian naming convention of the Bell helicopter series (before Cobra), the Model D255 'Iroquois Warrior' sought to develop a dedicated attack helicopter that was slim, maneuverable, and offered greater visibility and lower cost than existing designs. The initial mockup and the later stepped canopies, pictured below, illustrate the importance given to pilot field of view of the battlefield. The concept evolved into the Bell D262 and competed against the Lockheed AH-56 and Sikorsky Model S-66 for the 1964 Advanced Aerial Fire Support System contract. Bell lost and the D255 and D262 did not emerge from the mockup stage. However, the D255 would heavily influence the general configuration of the Bell Model 209 Cobra, which was developed inhouse with Bell money. After the AAFSS contract fell apart due to technical problems and political bickering, an interim attack platform was needed, and Bell responded with the 209.


Attachments

  • bell_d-255_1.jpg
    30.8 KB · Views: 470
  • bell_d-255.jpg
    32.6 KB · Views: 457

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Thanks. But the naming of Bell's helicopters after Indian tribes had nothing to do with Bell themselves... it's the standard US Army practice for helos!

Hughes/MDD H-6 Cayuse
Bell H-13 Sioux
Sikorsky H-19 Chicasaw
Vertol H-21 Shawnee
Sikorsky H-34 Chocktaw
Sikorsky H-37 Mojave
Bell H-40 Iroquois
Cessna H-41 Seneca
Vertol H-47 Chinook
Sikorsky H-54 Tarhe
Hughes H-55 Osage
Lockheed H-56 Cheyenne
Bell H-58 Kiowa
Hughes/MDD H-64 Apache
Boeing-Sikorsky H-66 Comanche
Bell H-67 Creek
Bell H-70 Arapaho
American Eurocopter H-72 Lakota

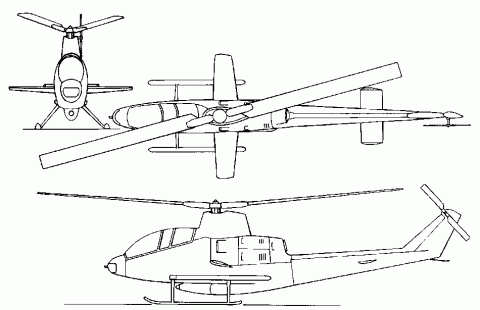

Here's a three-view to complement your pictures:


Attachments

  • bell_d-255.gif
    9.7 KB · Views: 467

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

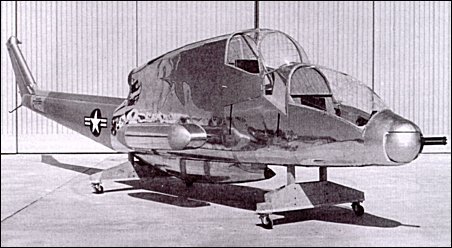

Photograph of the full-size Bell D262 mockup.

Source: Bernstein, Jonathan. US Army AH-1 Cobra Units in Vietnam Osprey Publishing Limited 2003


Attachments

  • D262.JPG
    49.4 KB · Views: 275

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
SaturnCanuck said:
Too bad they didn't build this.

If they had built this, would the Bell Model D262 program have been mired in political bickering and technical problems like the Lockheed AH-56 Cheyenne? Does anyone have technical data or estimated performance of the Model D262 so that we can compare it to the Bell AH-1 Cobra (Model D209)?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Triton, you got mixed up here. The Cobra is not D-209, it's the MODEL 209. There are too separate numbering systems at Bell.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
17
And nearly all of their fixed wing a/c except for some reason the DHC manufactured a/c & the Cessna L-19/O-1.


Stargazer2006 said:
Thanks. But the naming of Bell's helicopters after Indian tribes had nothing to do with Bell themselves... it's the standard US Army practice for helos!




Here's a three-view to complement your pictures:


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,394
Reaction score
127
Website
cluttonfred.info
The Cobra and the Bird Dog are the odd men out, it's true. For the DHC designs (Beaver, Otter, Twin Otter, Buffalo, Caribou) I guess that common sense dictated that they stick with the perfectly good and equally American names that Canadians had already given them. ;)

frank said:
And nearly all of their fixed wing a/c except for some reason the DHC manufactured a/c & the Cessna L-19/O-1.


Stargazer2006 said:
Thanks. But the naming of Bell's helicopters after Indian tribes had nothing to do with Bell themselves... it's the standard US Army practice for helos!




Here's a three-view to complement your pictures:


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
17
Excepting the fact I don't think we had any Otter, Beaver, Buffalo or Caribou Indians either.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,574
Reaction score
894

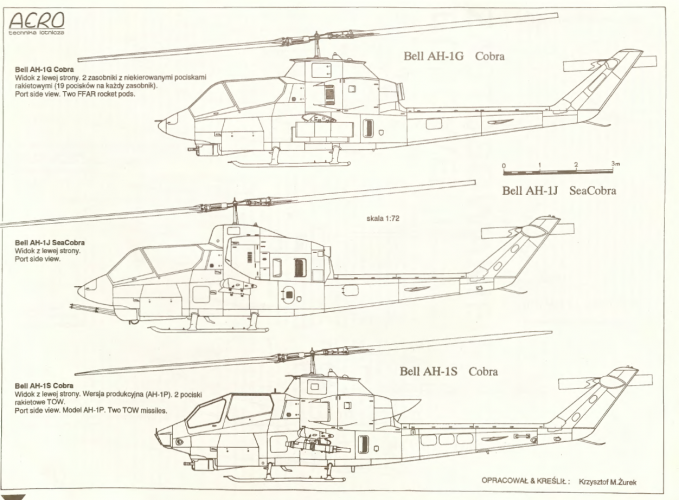

I believe that the "Cobra" was given a non-standard Army naming convention because it was still a derivative from the UH-1 series and not considered a new aircraft at the time. Obviously it quickly turned into a completely different aircraft but at the time the Army took delivery it was an interim aircraft until the AH-56A could be fielded. Like the OH-6A Cayuse which became the ubiquitous "Loach" and now "Little Bird" and "Killer Egg", it would never be called by its' official name as "Cobra" and "Snake" were ingrained into the Army psyche.

Regardless the Cobra was a blast to fly. Sure miss it. :)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
yasotay said:
I believe that the "Cobra" was given a non-standard Army naming convention because it was still a derivative from the UH-1 series and not considered a new aircraft at the time. Obviously it quickly turned into a completely different aircraft (...) Like the OH-6A Cayuse which became the ubiquitous "Loach" and now "Little Bird" and "Killer Egg", it would never be called by its' official name as "Cobra" and "Snake" were ingrained into the Army psyche.

This is true, actually, because the AH-1 was initially called the "Huey Cobra" in the magazines of those times. This may also explain why it got an "H-1" designation instead of the logical H-7. Interestingly, it was not called the "Iroquois Cobra" because the Huey monicker was already in full fling with the Army, resulting from its HU-1 designation. Same as the F-16 and A-10, which pilots never refer to as the Fighting Falcon and the Thunderbolt II, but rather as the Viper and the Warthog (or simply the Hog).


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Some info on the inception of the D255 program:

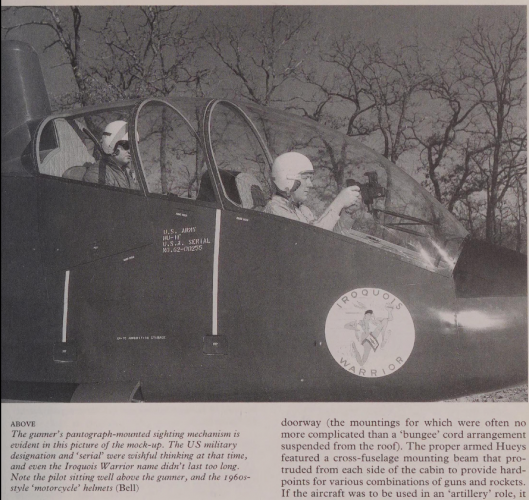

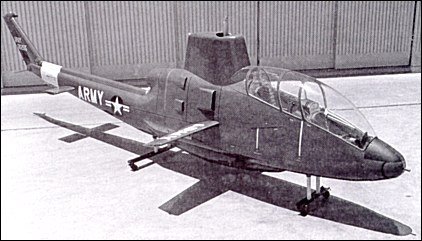

On their own initiative, Bell engineers had designed a mock-up for a dedicated attack helicopter, the Bell Model D255 "Iroquois Warrior". Designed more along the lines of a jet fighter than a helicopter, the D255 featured a fore and aft cockpit layout, small stub-wings and a nose-mounted gun turret.

Though the Army showed some interest, the conventional wisdom favored multi-purpose machines like the UH-1, which provided much more utility than a dedicated attack platform. Events in Vietnam soon changed this way of thinking.

From: Joint Replacement Aircraft: The Case For A Single Multi-Mission HMLA Platform (CSC 1999)


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695

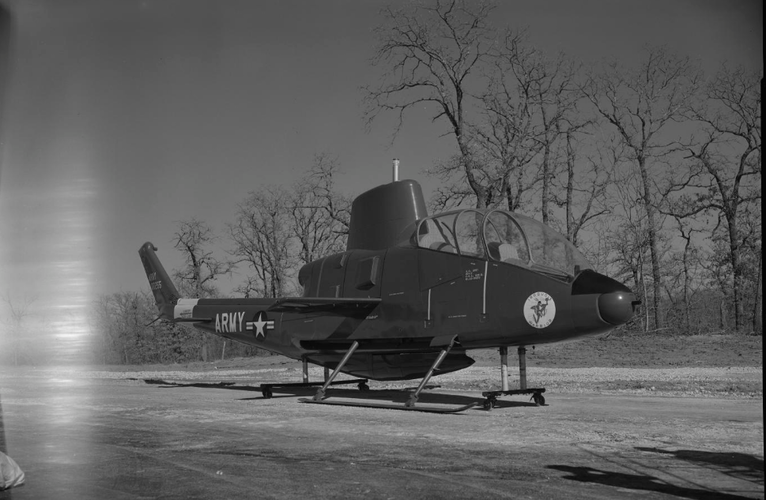

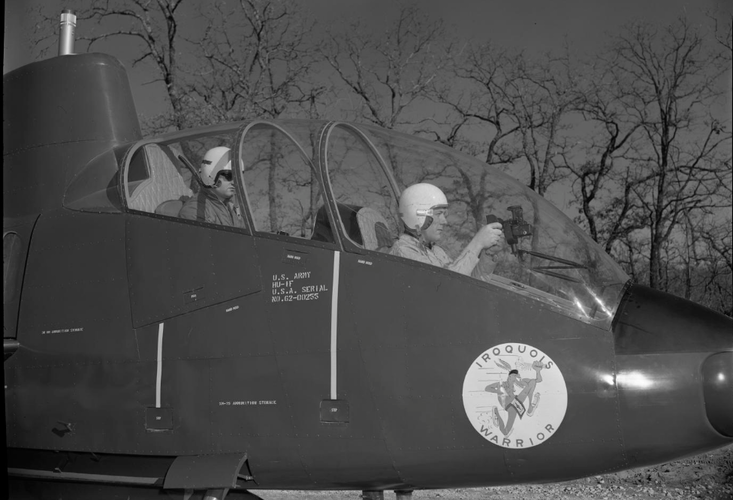

Hi All -

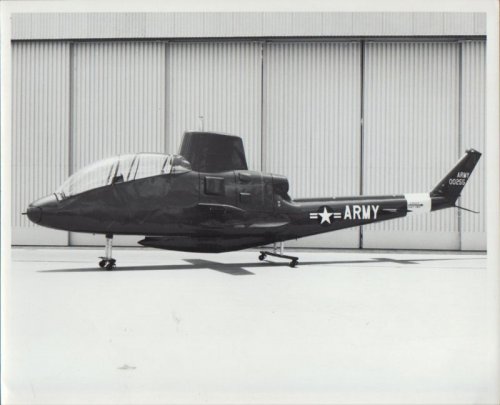

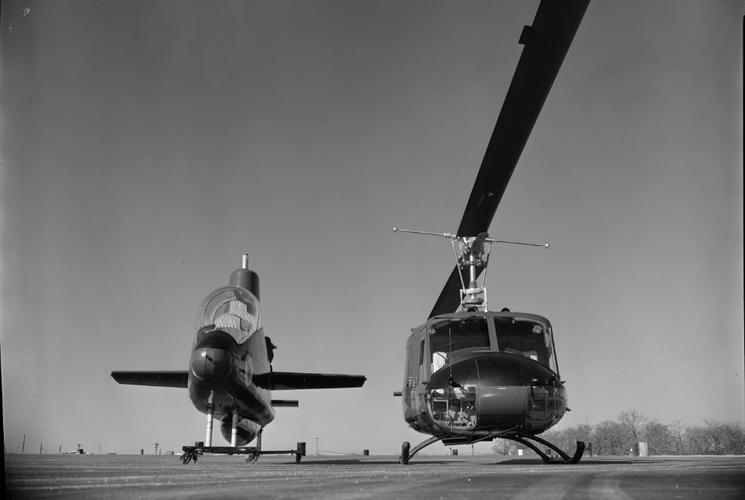

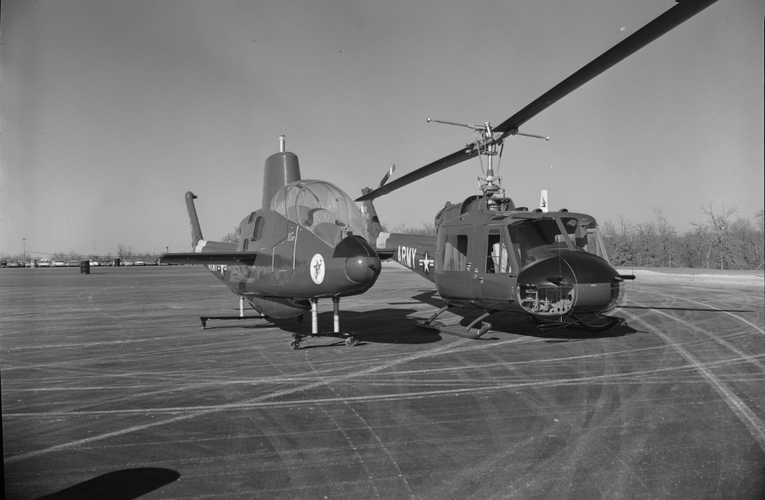

There's a 1962 photo on EPay of the D-255 - see attached.

http://www.ebay.com/itm/Original-1962-Bell-Helicopter-Photograph-US-Army-D-255-Iroquois-Warrior-/360494535797?pt=LH_DefaultDomain_0&hash=item53ef261475

Enjoy the Day! Mark


Attachments

  • Bell D-255 Iroquois Warrior 1962.jpg
    Bell D-255 Iroquois Warrior 1962.jpg
    51.8 KB · Views: 243

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
136
Reaction score
53
photo of D-255, 1962


Attachments

  • 2021-03-16_22-45-09.png
    451.2 KB · Views: 42
  • 2021-03-16_22-00-46.png
    499.2 KB · Views: 37
  • 2021-03-16_21-58-28.png
    486.7 KB · Views: 36
  • 2021-03-16_21-24-22.png
    306.8 KB · Views: 34
  • 2021-03-16_21-03-36.png
    600.7 KB · Views: 37
  • 2021-03-16_21-01-41.png
    638.7 KB · Views: 49

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,415
Reaction score
3,477
Never heard of these birds before ! Missing link between Huey and Cobra...
