Bell CTR-1900

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,106
Website
deeptowild.blogspot.com

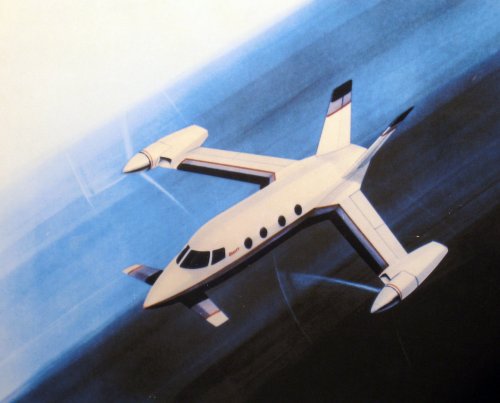

Artist's impression of Bell CTR-1900 civil tilt rotor on display at the Hiller Aviation Museum.

Source:
http://up-ship.com/blog/?p=3282


Attachments

  • img_6377.jpg
    360.3 KB · Views: 789

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,106
Website
deeptowild.blogspot.com

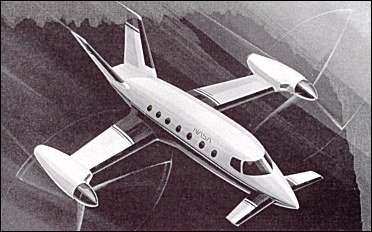

The Bell CTR-1900 was an all-new 19-passenger design. It was the result of a trade comparing the V-22 high-wing and H-tail configuration and new configurations (low-wing and conventional tail or low-wing, V-tail and canard). The CTR-1900 configuration with the V-tail and canard had the lowest drag and weight. This aircraft would have used two 3440shp Rolls-Royce/Turbomeca RTM-322 engines.

Technical data for Bell CTR-1900:

Wing span: 11.28m, rotor diameter: 8.53m, overall length: 14.20m, take-off weight: 10328kg, cruising speed: 524km/h, range: 1180km

Source:
http://www.aviastar.org/helicopters_eng/bell_ctr-1900.php


Attachments

  • bell_ctr-1900.gif
    15.9 KB · Views: 709
  • bell_ctr-1900.jpg
    30.3 KB · Views: 677

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,664

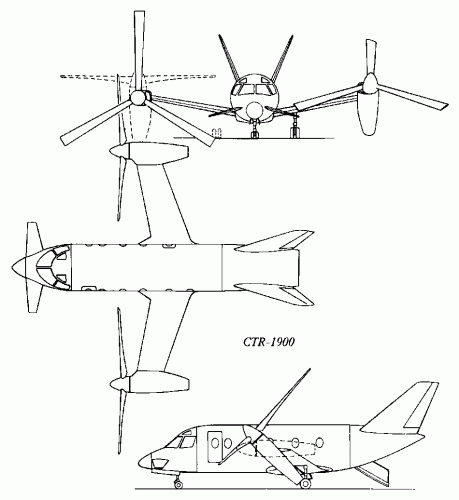

There seems to be something wrong with the nacelles in this 3-view.
With the length given in the side-view, only STOL would be possible, because of
issues with ground clearance. In the top-view length they are much shorter, but
projected onto the fron-view, the problem remains and the dotted lines
even are proving this.
So, the old say is confirmed: Never believe in 3-views, you didn't manipulate by yourself ! ;)


Attachments

  • CTR-1900.jpg
    42.5 KB · Views: 598

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891
Jemiba said:
There seems to be something wrong with the nacelles in this 3-view.

Actually, looking at this 3-view, and notably the front view, I believe that the CTR 1900 was meant to have its nacelles in forward tilted positions when on the ground, never vertical. Now how to achieve that when landing I don't know...


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,664
Don't think, that rotoprops would be a sensible choice then.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,976
Reaction score
1,795
The three view and picture seem to make it appear more practical as a STOL platform. However Bell has in the past investigated, and reintroduced with V-280, not rotating engines. This seems to me the only practical way to make this tilt rotor viable as a VTOL aircraft.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,106
Website
deeptowild.blogspot.com
yasotay said:
The three view and picture seem to make it appear more practical as a STOL platform. However Bell has in the past investigated, and reintroduced with V-280, not rotating engines. This seems to me the only practical way to make this tilt rotor viable as a VTOL aircraft.

I believe that you are correct, yasotay. It seems likely that the CTR-1900 has the same tilt-rotor configuration as the V-280 Valor without tilting engine nacelles as in the V-22. This would make the third-party three-view drawing incorrect.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,976
Reaction score
1,795
I went back and to a closer look at the concept art at the beginning of the thread and I now am more sure that my supposition about swiveling proprotor only is correct.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,664

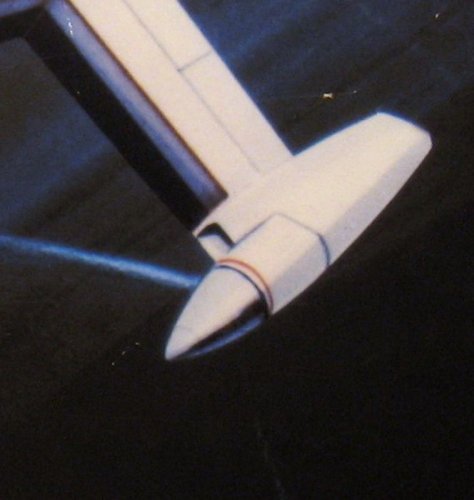

Indeed, here it's quite clearly visible, just not to the eyes of that 3-view artist ! :-\


Attachments

  • rotor.jpg
    97.1 KB · Views: 250

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,106
Website
deeptowild.blogspot.com

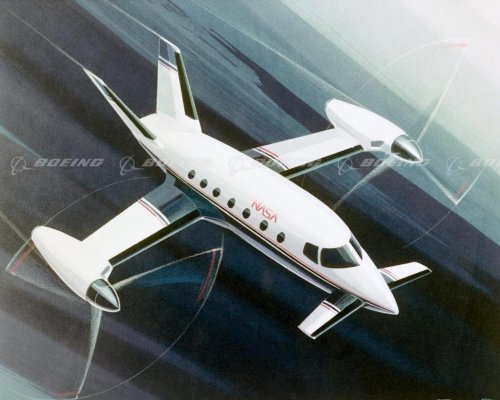

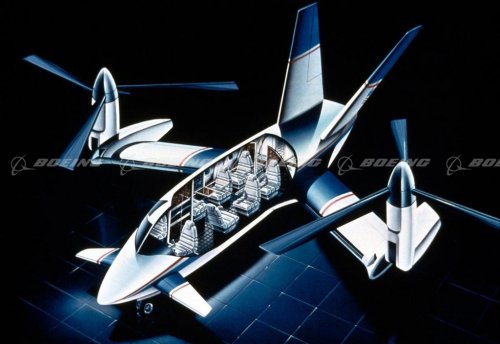

Artist's impressions of Bell Boeing NASA CTR-1900.

Source:
http://www.boeingimages.com/C.aspx?VP3=SearchResult&VBID=2JRSN2PXP22NNW


Attachments

  • BI25032.jpg
    115.4 KB · Views: 38
  • BI25034.jpg
    72.1 KB · Views: 47
