Barnes Wallis's All-Speed aircraft

Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,086
Reaction score
259

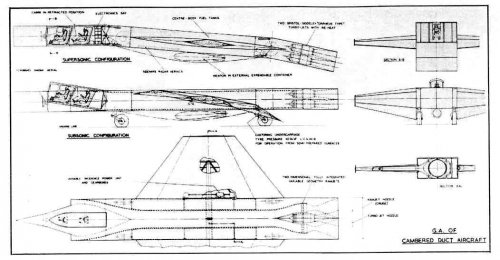

After the cancellation of the Swallow design Barnes Wallis turned to 'All Speed' aircraft. One used a 'cascade' wing to achieve VTOL and Mach 4.5. Another used wing and fuselage cambering for low speed flight. Both are in the 'conceptual' category I think, although it is said that some wind tunnel work was carried out on them.


Attachments

  • barneswallisswallow.jpg
    35.3 KB · Views: 435
  • barneswalliscascade.jpg
    69.5 KB · Views: 462
  • barneswalliscambered.jpg
    75.9 KB · Views: 438

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,166
Reaction score
6,258

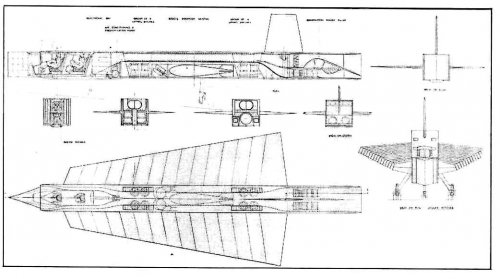

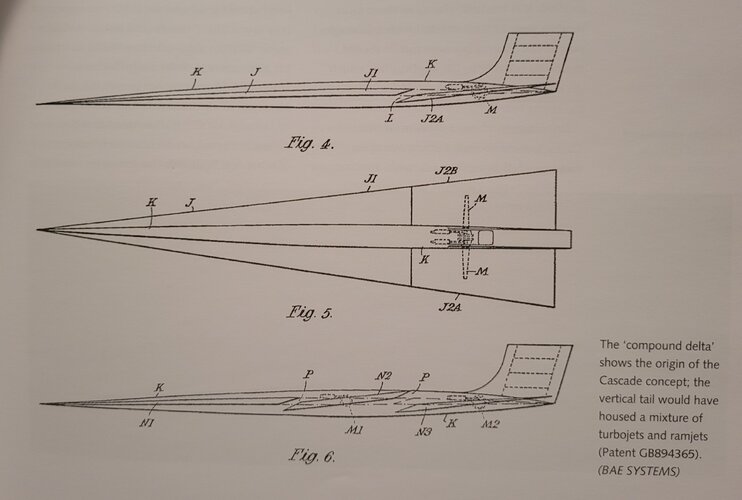

Barnes Wallis "CASCADE"

Anyone ever heard of this project?

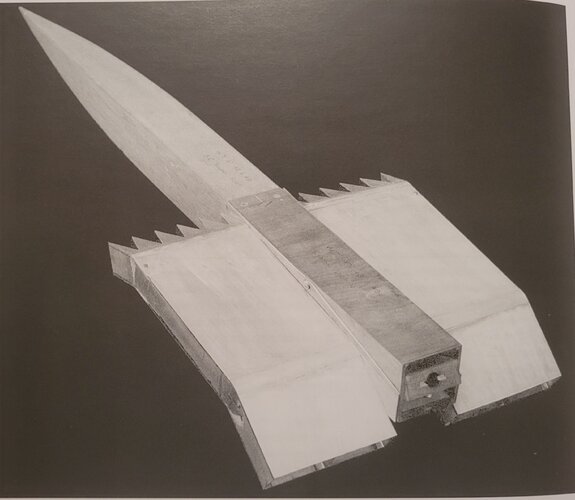

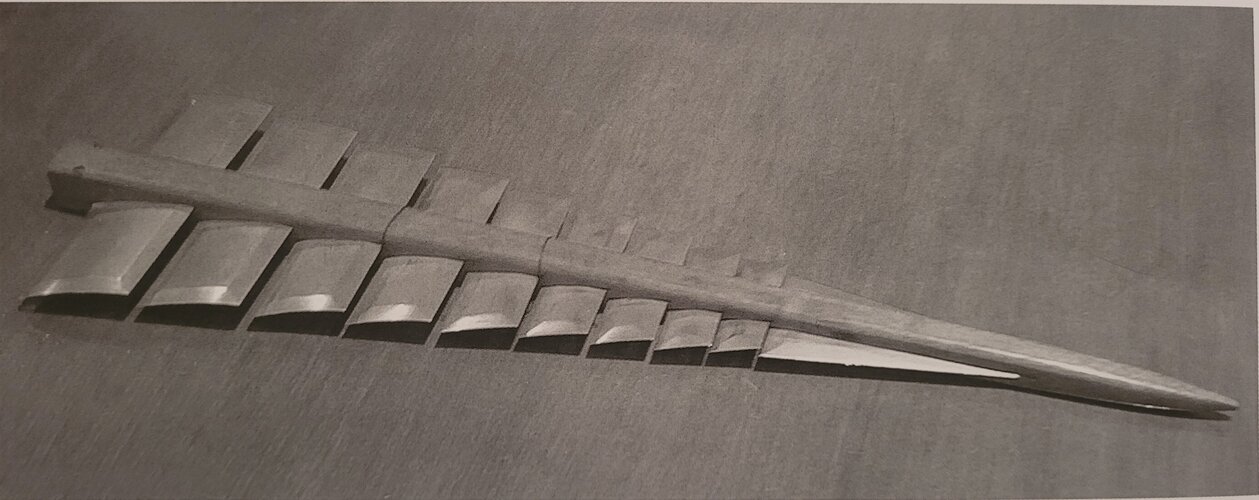

There's a model of it at RAF Reserve Collection, Stafford.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,166
Reaction score
6,258
Re: Barnes Wallis "CASCADE"

Thanks, merged with older topic :)

So, this project was at least built as a model.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
688
Reaction score
189
Re: Barnes Wallis "CASCADE"

overscan said:
There's a model of it at RAF Reserve Collection, Stafford.

Do you have any idea on access restrictions to RAF Stafford? I live close by and could go and take a look.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,166
Reaction score
6,258
I've arranged a visit in connection with my book on P.1103/P.1121. I imagine they would discourage casual visits from all and sundry though.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
156

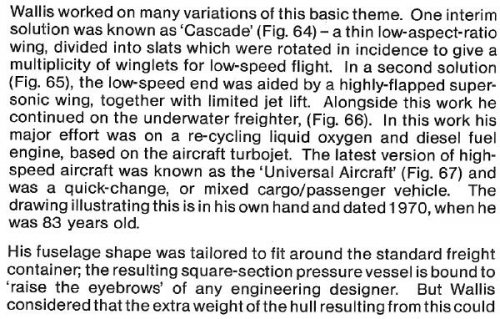

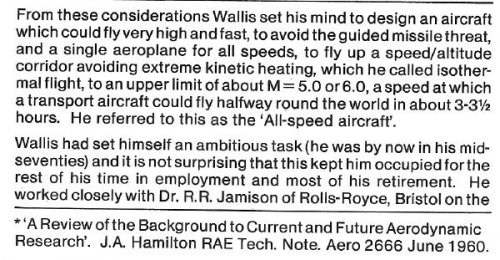

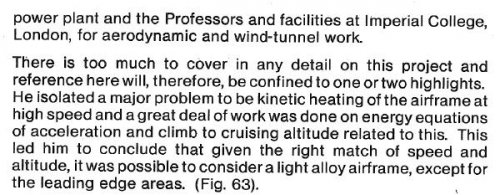

Found a memorial lecture booklet in Farnborough library...


Attachments

  • scan0001 (4).jpg
    scan0001 (4).jpg
    21.4 KB · Views: 49
  • scan0017 (4).jpg
    scan0017 (4).jpg
    90.8 KB · Views: 49
  • scan0017 (3).jpg
    scan0017 (3).jpg
    96.7 KB · Views: 49
  • scan0017 (2).jpg
    scan0017 (2).jpg
    51.5 KB · Views: 46
  • scan0016 (4).jpg
    scan0016 (4).jpg
    73.7 KB · Views: 50
  • scan0016 (3).jpg
    scan0016 (3).jpg
    118.8 KB · Views: 169
  • scan0016 (2).jpg
    scan0016 (2).jpg
    60.6 KB · Views: 145

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
156

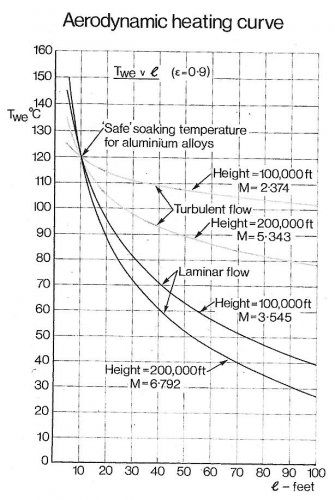

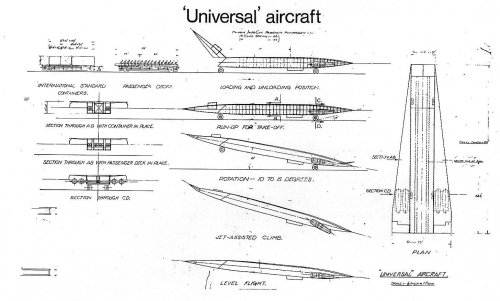

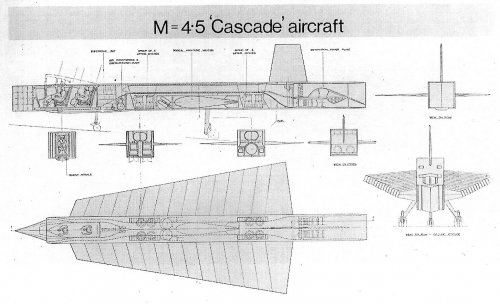

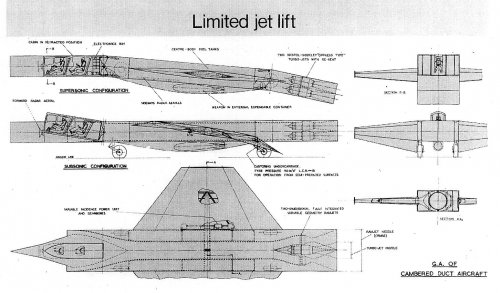

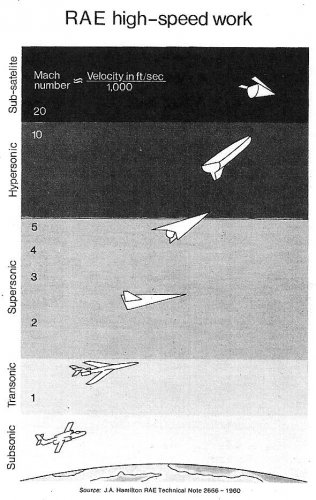

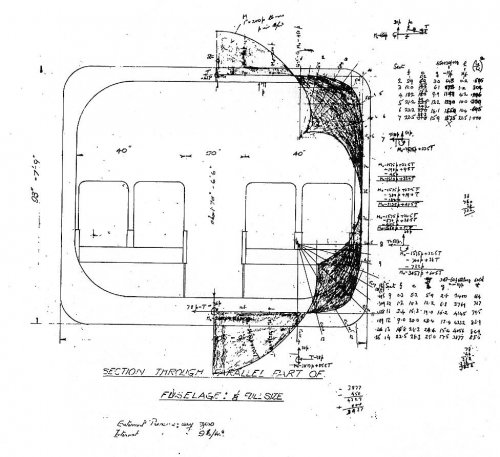

...and some diagrams from it. ;D


Attachments

  • scan0001 (3).jpg
    scan0001 (3).jpg
    160.5 KB · Views: 122
  • scan0002 (2).jpg
    scan0002 (2).jpg
    126.2 KB · Views: 80
  • scan0003 (2).jpg
    scan0003 (2).jpg
    233.2 KB · Views: 109
  • scan0004 (2).jpg
    scan0004 (2).jpg
    261.2 KB · Views: 96

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,209
Reaction score
1,509
'This is incredible, Mr.Bond' Thank you, thank you for these wonderful details!


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,378
Cannot read it on the drawing, but according to "Stuck On The Drawing Board", span
would have been 52 ft and so I got a length of approximately 147,8 ft by measuring ... ;)


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
156
It says overall length 150'.

Looks like aielerons front and rear and would the bump underneath be another form of propulsion for the high speed portion of its flight?

Regards,
Barry
