BAe Stealth UXV UCAV Carrier concept

PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
740
Reaction score
82
We have had a discussion on it here

http://warships1discussionboards.yuku.com/topic/4072/t/BAE-Systems-unveils-new-Mothership-warship-design.html

and some are starting to suspect BAE are watching the board for ideas.....

:)


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,997
Reaction score
493
Website
beyondthesprues.com

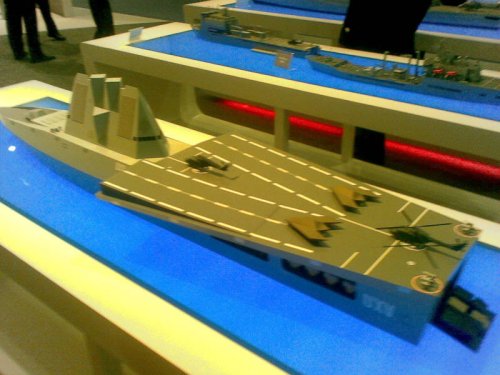

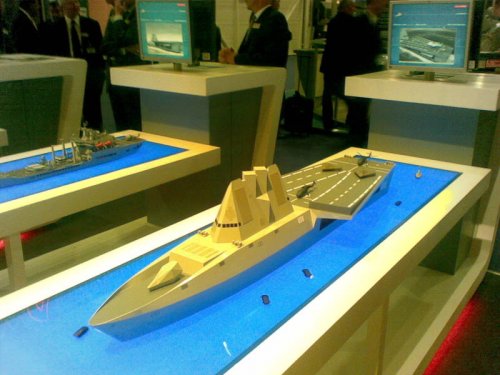

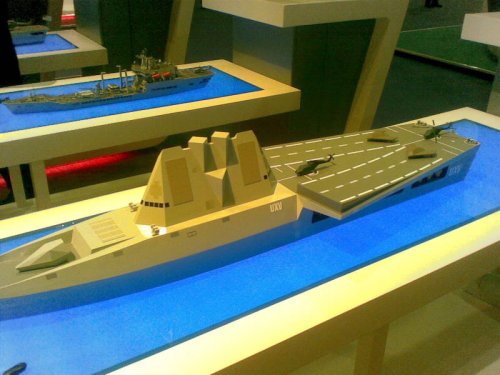

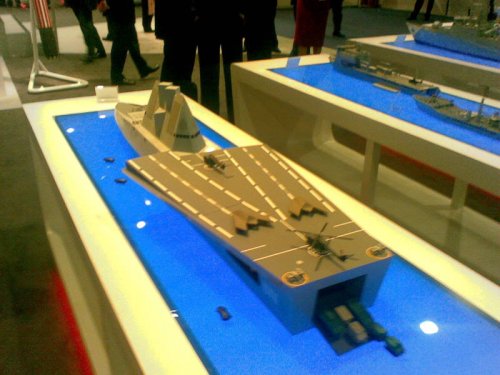

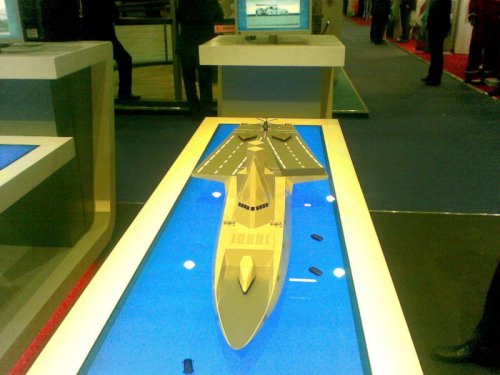

Some photos of BAE's model of the proposed UXV (not UXB as was stated in the Flight International Article) at the recent DSEi exhibition (sorry about the poor quality, the photos were taken with my phone):

Regards,

Greg


Attachments

  • 11092007005.jpg
    64.3 KB · Views: 349
  • 11092007004.jpg
    60.7 KB · Views: 328
  • 11092007003.jpg
    67.2 KB · Views: 324
  • 12092007002.jpg
    64.5 KB · Views: 323
  • 12092007003.jpg
    65.5 KB · Views: 140

Kim Margosein

ACCESS: Confidential
Joined
Feb 10, 2007
Messages
103
Reaction score
5
The phone-quality photos produce an interesting effect. They look rather like CAD designs.

Kim M

G

gery

Guest
An interesting letter....how does it stuff work...


Attachments

  • furtifconcept.pdf
    737.3 KB · Views: 117

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

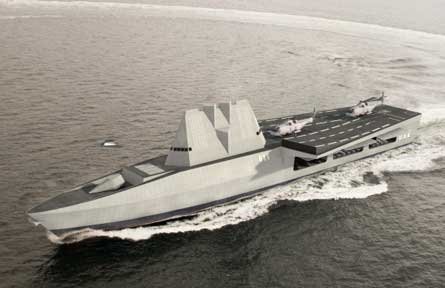

MOTHERSHIP FOR UNMANNED VEHICLES LOOKS TO THE FUTURE

10 Sep 2007 | Ref. 286/2007

BAE Systems has developed a new concept warship, the UXV Combatant, designed to operate in a future battle space dominated by land, sea and air unmanned vehicles.

Using a proven naval hull form to launch, operate and recover large numbers of small unmanned vehicles for extended periods, the UXV plays the role of mother ship - a permanent base and control centre for the futuristic unmanned land, sea and air vehicles before, during and on completion of their missions. The 8000-tonne vessel, an evolution of the multi-role warship, is not expected to enter service until post 2020.

The design provides a cost-effective solution to the evolving challenges facing the modern navy. Features will include:

* Flexible and efficient twin flight decks
* Variable ski jump
* Rotary aviation facilities
* Below-deck hangar
* Smart munitions

The weapons are a future development of the Type 45 combat suite. With the UXV support capability, performing multiple roles combined with an easily adaptable design, which moves the concept of stealth to the next level.

Propulsion options include full integrated electrical propulsion with twin propeller shafts/motors supplied by gas turbine and diesel alternators. Alternatively, cruising power can be supplied by two shafts/motors and diesel alternators with boost power from one gas turbine driving two water jets.

The concept brings together naval technologies developed through collaboration with partners such as Rolls Royce and across BAE Systems business units, as part of a programme of continuous improvement.

http://www.baesystems.com/Newsroom/Newsreleases/autoGen_107810163127.html


Attachments

  • OversizeJPGLarge_latestReleased_bae_cimg_uxv_combatatnt_conc_OversizeJPGLarge.jpg
    120.8 KB · Views: 157

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

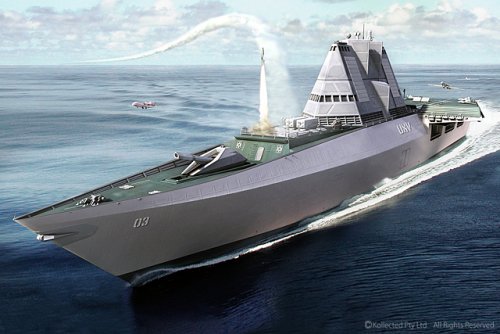

From Popular Science magazine February 15, 2008:

"The UXV Combatant Up Close"
Kris Holland

NEW-ERA CANNONS
Next-generation cannons could fire bursts of 20 rounds in succession—and have the munitions all arrive on target at the same instant.

SMART WEAPONS
The foredeck could house superlight vertical-launch missiles, ultra-precise Phalanx missiles (which can shoot down incoming rockets traveling as fast as Mach 3) and cruise missiles.

MOON POOL
From a hidden pool in the ships interior, unmanned subs could deploy and return to the craft safely and invisibly.

HIGH-TECH DECKS
On deck, electromagnetic catapults could launch unmanned aircraft from adjustable ramps. Radar, sensors and RFID chips could be used to organize the drones.
http://www.popsci.com/military-aviation-space/article/2008-02/warships-tomorrow


Attachments

  • uxvclsoe.jpg
    21.5 KB · Views: 167
  • warshipmain.jpg
    38.5 KB · Views: 242

vajt

ACCESS: Confidential
Joined
May 6, 2007
Messages
74
Reaction score
1
Got to hand it to BAE, interesting concept. Almost like a future version of an LCS mixed with the Absalon and expanded flight deck.

-----JT-----


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
JohnR said:
Any idea about dimensions?

Norman Polmar writes on Military.com that the UxV combatant’s hull and combat systems will be a development of the Type 45 destroyer aka Daring Class and be an enlarged design.
http://www.military.com/forums/0,15240,150165,00.html

The V-shaped flight deck is 164 feet long.
http://www.popsci.com/military-aviation-space/article/2008-02/warships-tomorrow?page=2

Type 45/Daring Class

Length: 152.4 m (500 ft)
Beam: 21.2 m (69.5 ft)
Draught: 7.4 m (16.4 ft)
http://en.wikipedia.org/wiki/Type_45_destroyer

I presume the UxV combatant's hull has similar dimensions since it is derived from the Type 45.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,774
Reaction score
1,911
IMHO, if ever this design manages to make it off the design board and into the shipyard, it will probably be as a nuclear powered design.


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,897
Reaction score
806
Grey Havoc said:
IMHO, if ever this design manages to make it off the design board and into the shipyard, it will probably be as a nuclear powered design.

Despite the fact that it is a conventionally powered design derived from the conventionally powered Type 45 and designed in the UK which has never built a nuclear powered surface ship?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,774
Reaction score
1,911
sealordlawrence said:
Grey Havoc said:
IMHO, if ever this design manages to make it off the design board and into the shipyard, it will probably be as a nuclear powered design.

Despite the fact that it is a conventionally powered design derived from the conventionally powered Type 45 and designed in the UK which has never built a nuclear powered ship?

Yes. Despite that little problem. ;D


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
sealordlawrence said:
Despite the fact that it is a conventionally powered design derived from the conventionally powered Type 45 and designed in the UK which has never built a nuclear powered ship?

The United Kingdom has never built a nuclear-powered surface ship. ;)


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,897
Reaction score
806
Triton said:
sealordlawrence said:
Despite the fact that it is a conventionally powered design derived from the conventionally powered Type 45 and designed in the UK which has never built a nuclear powered surface ship?

The United Kingdom has never built a nuclear-powered surface ship. ;)

corrected.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,774
Reaction score
1,911
A little thought exercise here. If they did go the nuclear route, would I be amiss in thinking that they would use two of RR's PWR2 Core H type reactors (at a glance they would seem to have the necessary growth margin) for the design, or would they use something a little more exotic?


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,897
Reaction score
806
Grey Havoc said:
A little thought exercise here. If they did go the nuclear route, would I be amiss in thinking that they would use two of RR's PWR2 Core H type reactors (at a glance they would seem to have the necessary growth margin) for the design, or would they use something a little more exotic?

They would not got the nuclear route but that would be the only realistic choice.
